Tuya Max 10.1-inch Smart Central Control Panel with Built-in Zigbee and Bluetooth Gateway
Tuya Max 10.1-inch Smart Central Control Panel with Built-in Zigbee and Bluetooth Gateway
The Smart Command Center for your home. Ultimate control power in a single screen.
The MOES Tuya Max central control panel features a 10.1-inch cinematic FHD touchscreen. It replaces hundreds of scattered switches and gateways, putting your entire home management at your fingertips.
Superior engineering designed to empower your home

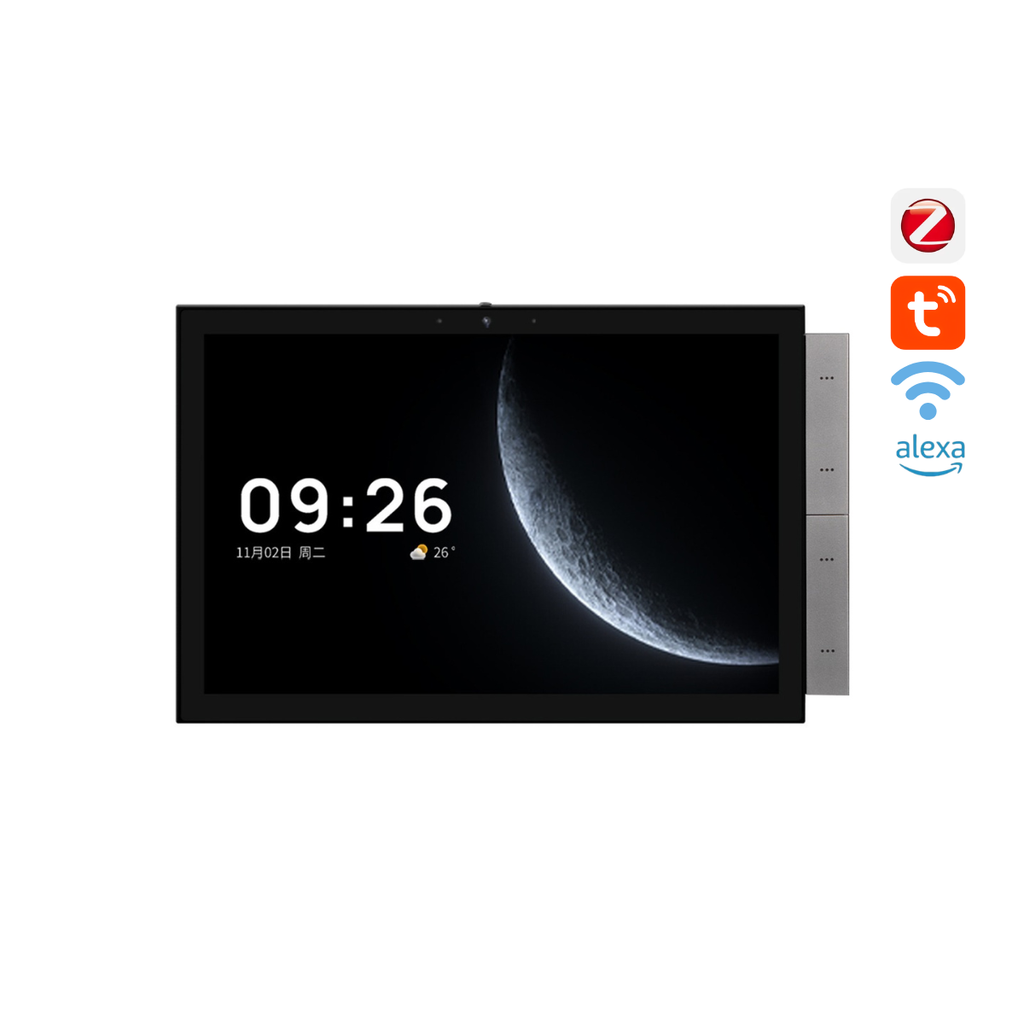

10.1-inch Cinematic Display
A high-definition 1920×1200 resolution IPS multi-touch screen, offering superior viewing angles and a seamless interaction experience to manage all your smart devices and scenes with exceptional clarity.

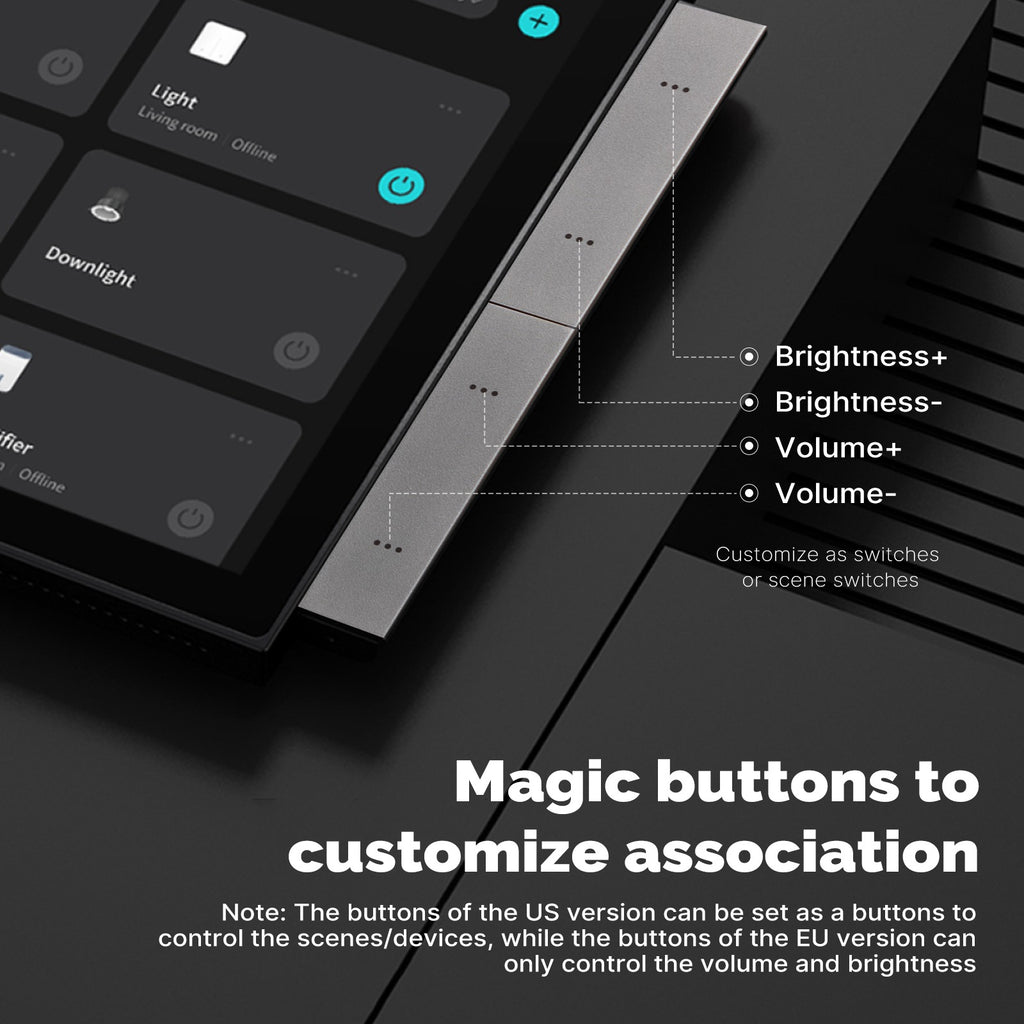

Magic Buttons (Side Buttons)
The panel includes 4 physical buttons dedicated to instant volume and screen brightness control in the EU version, with full customization flexibility via the app to program them for triggering routines or specific devices with a single press, without touching the screen.
Multi-Protocol Central Gateway
Say goodbye to multiple connection gateways. The panel acts as a master gateway integrating Zigbee 3.0, Bluetooth Mesh, and Wi-Fi protocols, supporting the seamless connection and management of over 100 sub-devices within the Tuya ecosystem.
Intercom System and Front Camera
Equipped with a high-definition front camera and a built-in microphone, it allows for direct audio and video communication with visitors via smart doorbells, in addition to real-time room monitoring for enhanced security.
Proximity Sensor and Auto-Wake
The panel senses your approach and wakes the screen automatically without needing to touch it, featuring an intelligent light sensor that adjusts screen brightness based on room lighting for 24/7 eye comfort.

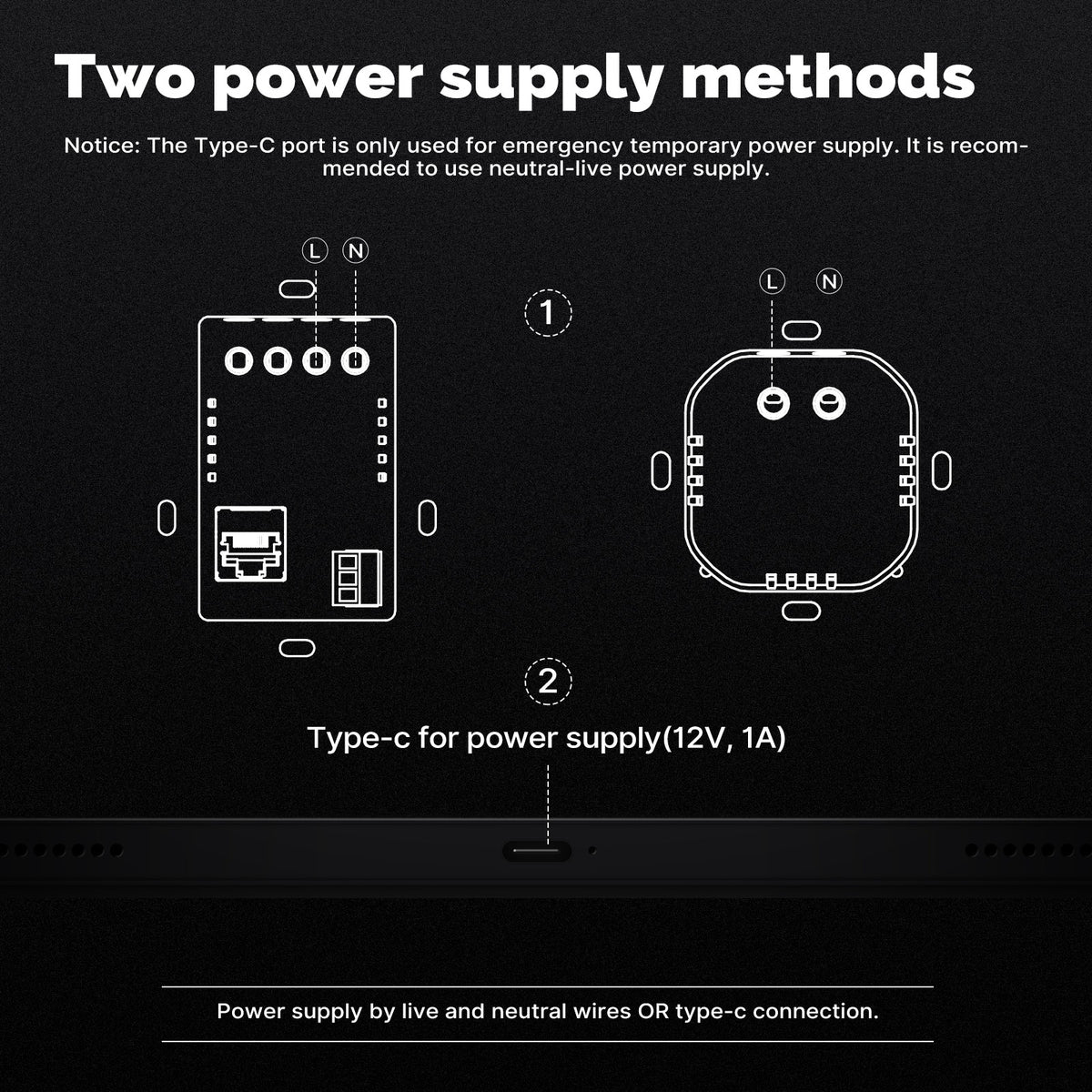

Flexible Power and Connectivity Options
The panel offers high flexibility in electrical connection, supporting operation via direct wall wiring (100-240V live and neutral wires) or via a fast Type-C port, with highly stable wireless connectivity via Wi-Fi.

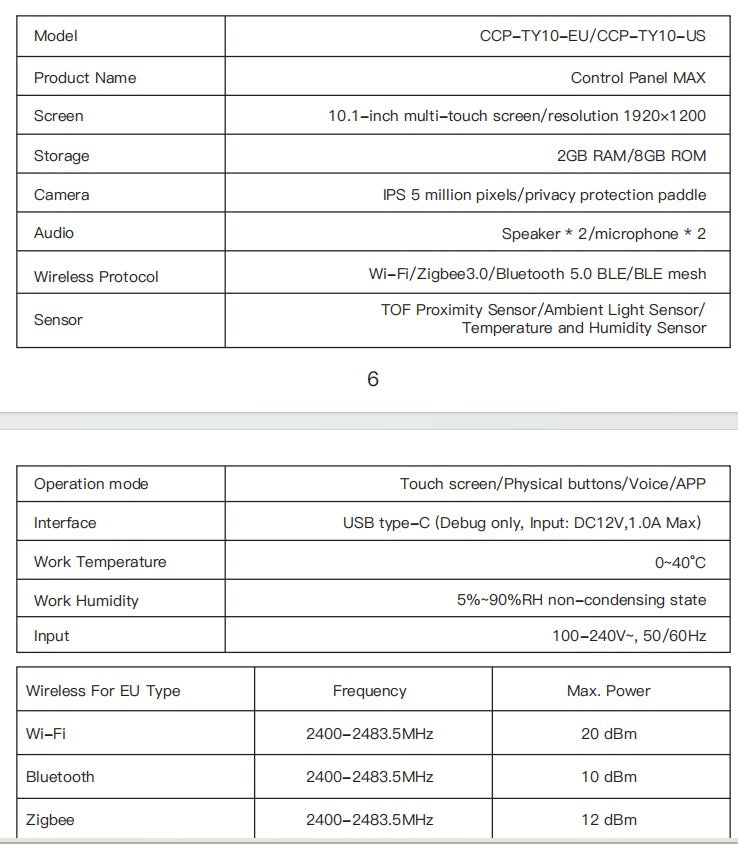

Detailed Technical Specifications
| Model Number and Compatibility | CCP-TY10-EU-EN (Standard EU Version) |
|---|---|
| Screen and Resolution | 10.1-inch Multi-touch, Full HD (1920 × 1200 pixels) IPS technology |
| Magic Buttons (Side Buttons) | 4 physical buttons for volume and brightness (default for EU version) + programmable via app |
| Wireless Communication Protocols | Wi-Fi (2.4GHz) | Tuya Zigbee 3.0 | Bluetooth Mesh |

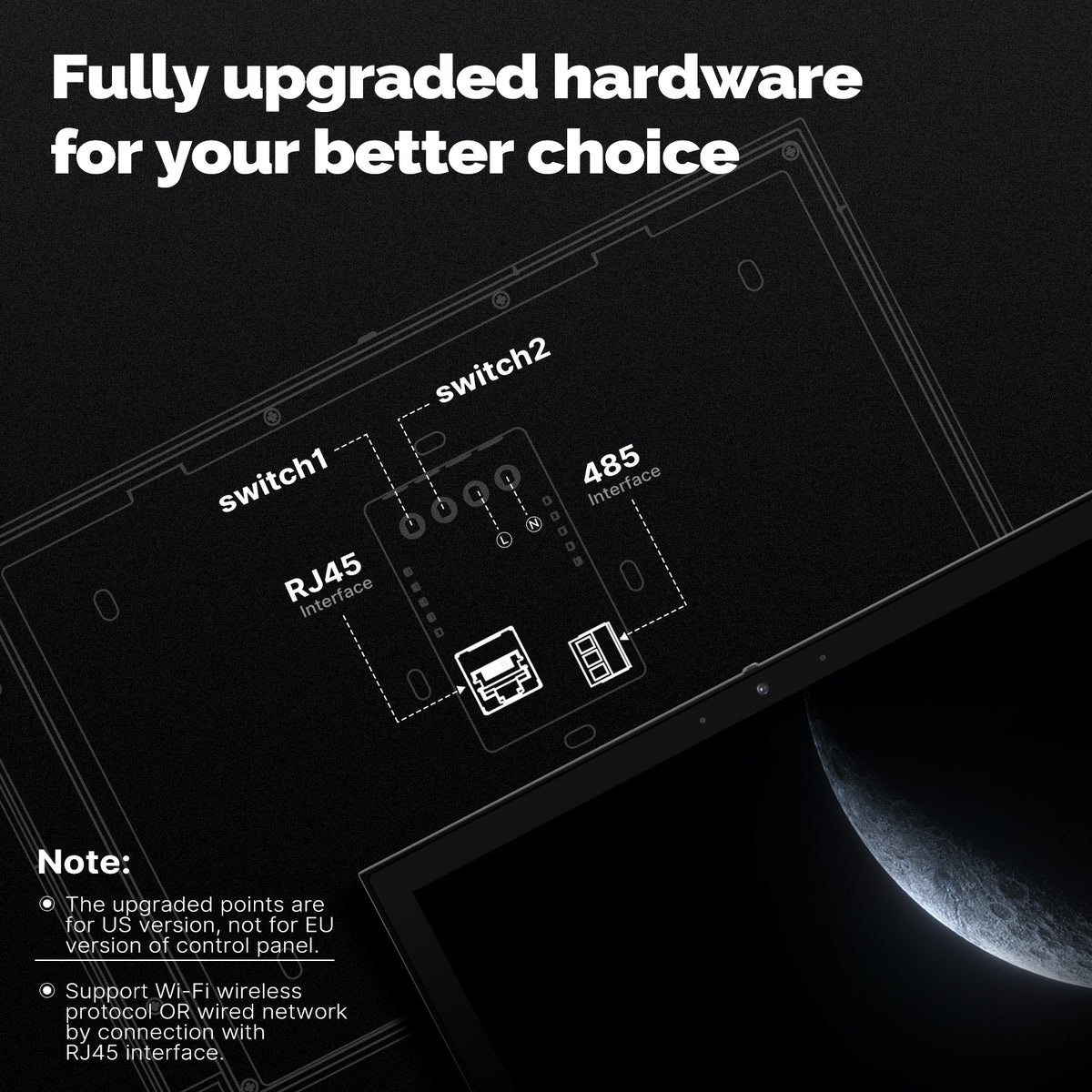

| Ports and Interfaces | RS485 communication interface | Type-C power port |
| Electrical Power Input | 100 - 240V AC (50/60Hz) or via Type-C power port |
| Built-in Sensors | Proximity Wake Sensor | Auto Light Sensor |
| Media and Intercom | High-definition front camera | Dual noise-canceling microphone array | Built-in speakers |

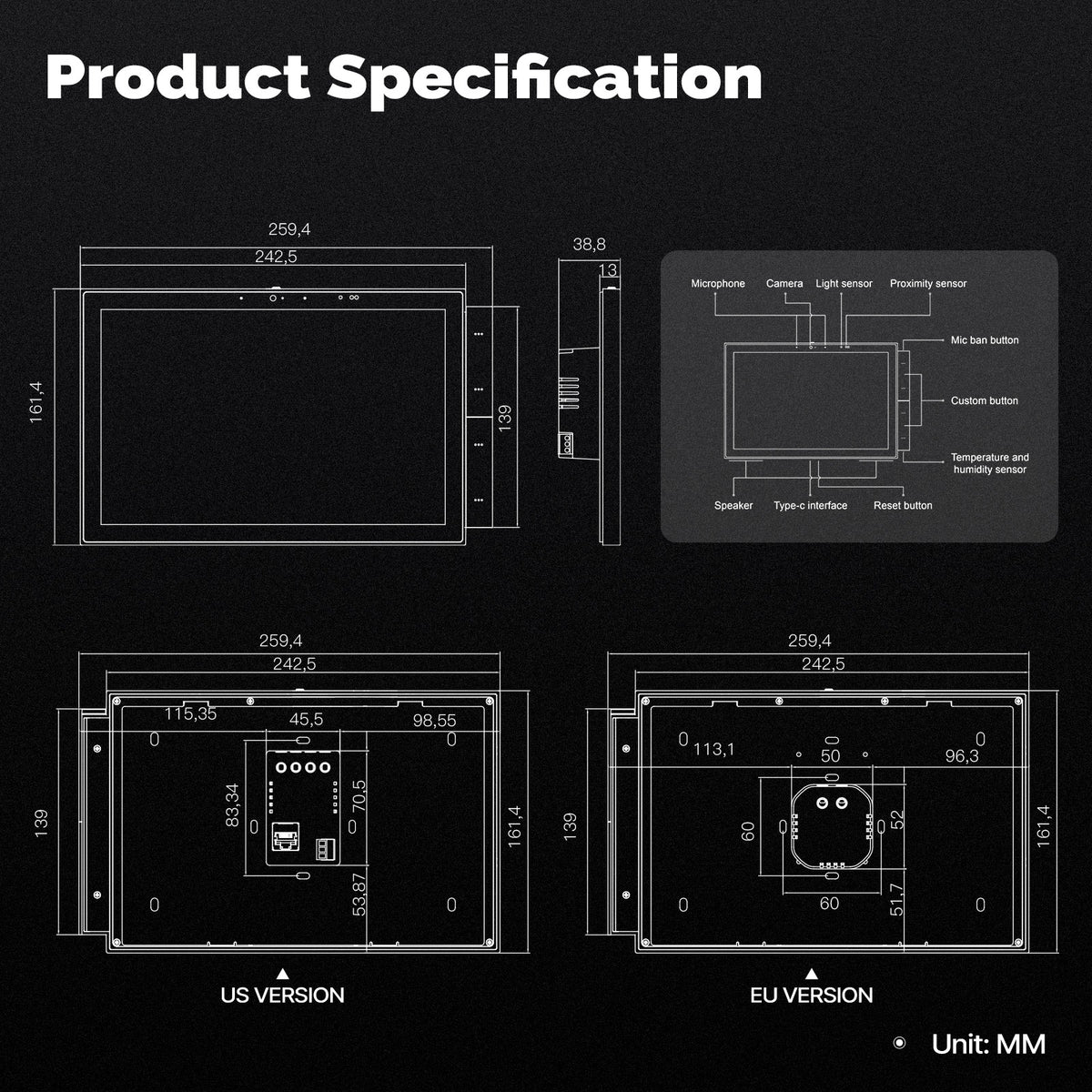

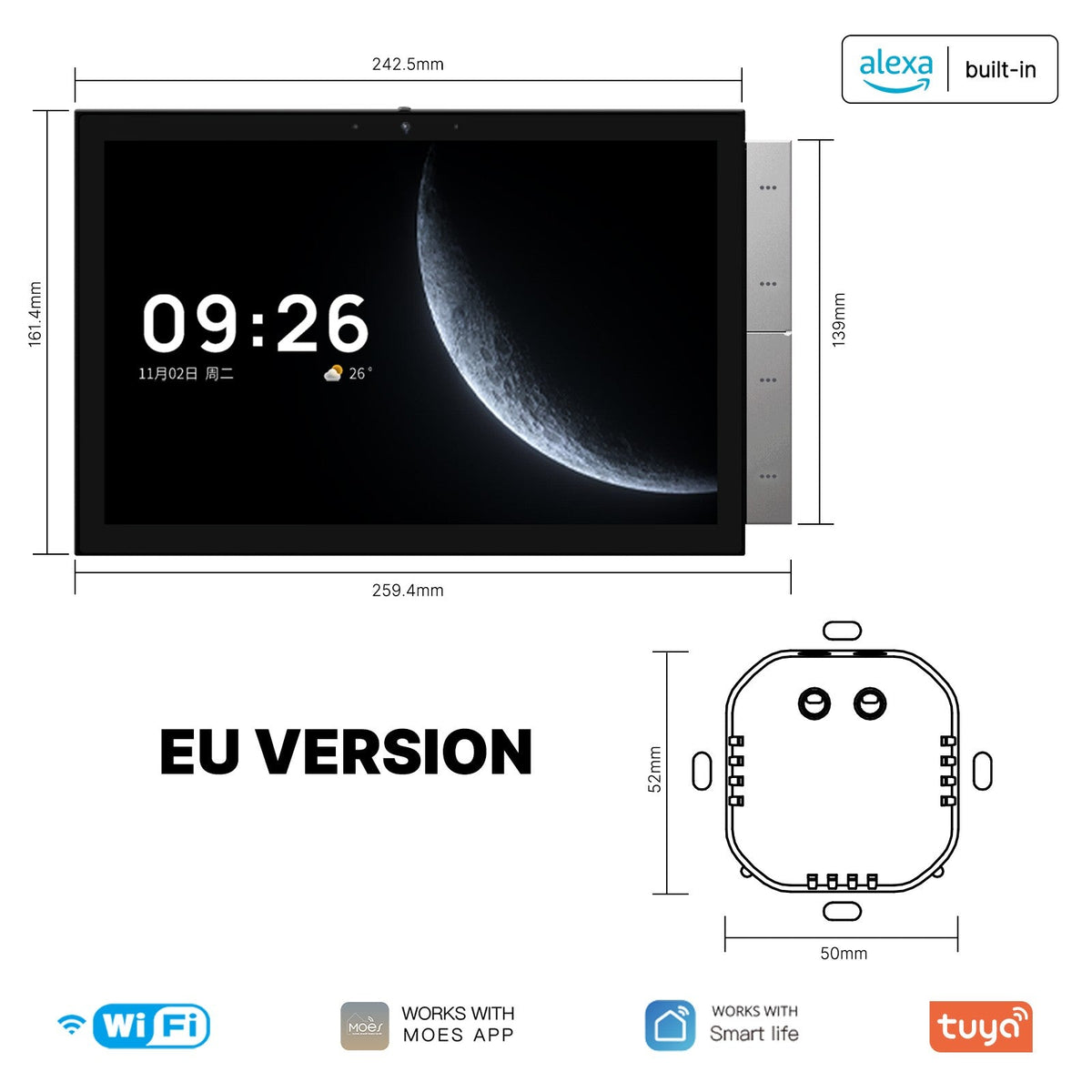

| Main Unit Dimensions | 259.4mm (width) × 161.4mm (height) × 13mm (depth without base) |
| Rear Base Dimensions (EU) | 50mm × 52mm (fully compatible with standard EU in-wall electrical boxes) |
| Ecosystem and App Compatibility | Tuya Smart App | Smart Life App | MOES App (management of 100+ sub-devices) |
- Wall Installation Compatibility: This (EU) version is engineered with a built-in rear base to fit seamlessly into standard square or circular European wall boxes without any protrusion. Please ensure a neutral and live wire are available within the box to guarantee stable power supply.
- Magic Buttons Secrets: In the EU version, the four side buttons are pre-assigned to provide quick and direct control over the panel's speaker volume and screen brightness. For maximum utility, we at SMARTIFY recommend accessing the panel settings in the (MOES App) and linking these buttons to your favorite scenes, such as assigning a button to turn off all house lights when leaving with a single press without needing to touch the screen.
- Importance of Wi-Fi Stability: Given that the EU version relies entirely on wireless Wi-Fi connectivity (to ensure size compatibility with standard wall boxes), we at SMARTIFY recommend ensuring strong and stable Wi-Fi coverage at the installation point to guarantee fast intercom video streaming and device management.

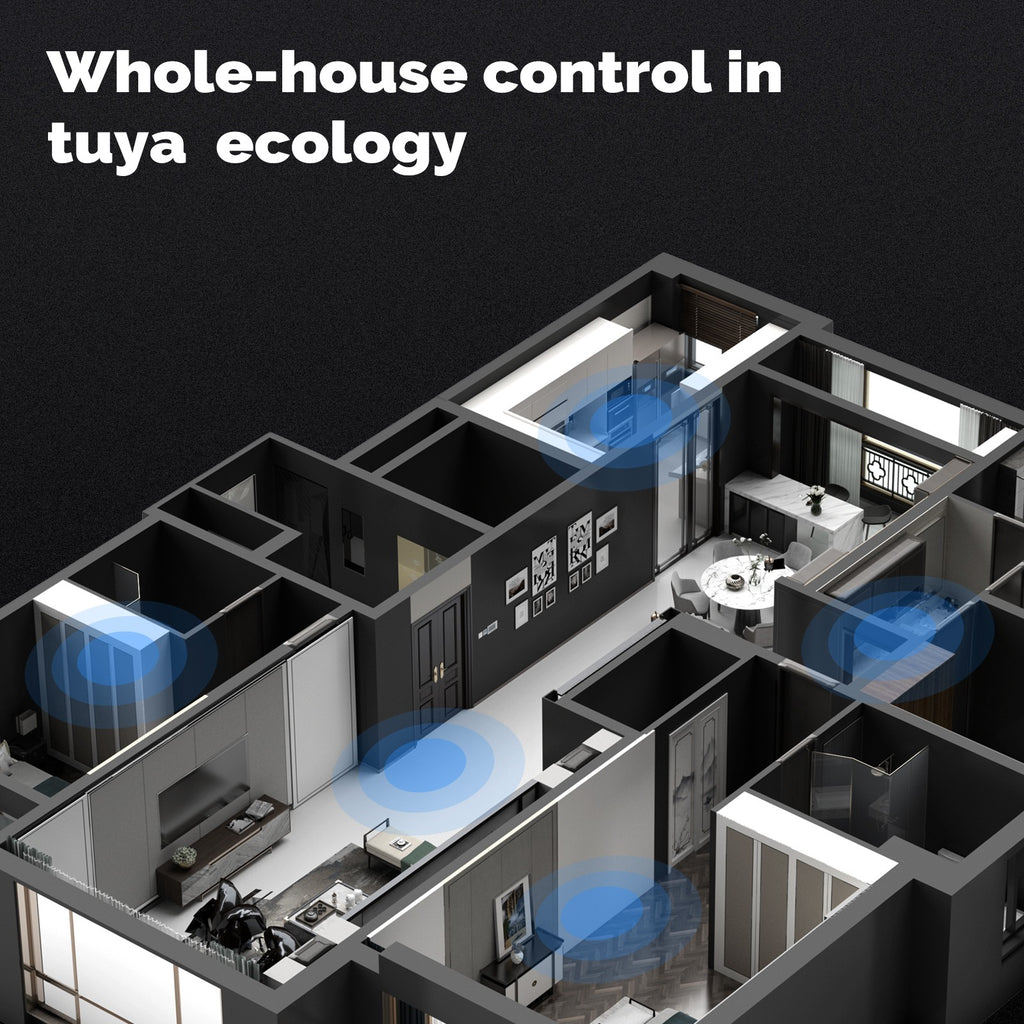

- Wireless Gateway Organization: Since the panel acts as a central Zigbee 3.0 and Bluetooth gateway for the entire home, it is preferable to install it in a central location (such as the main living room or hallway) to ensure a strong and stable signal for all sensors and sub-switches.
