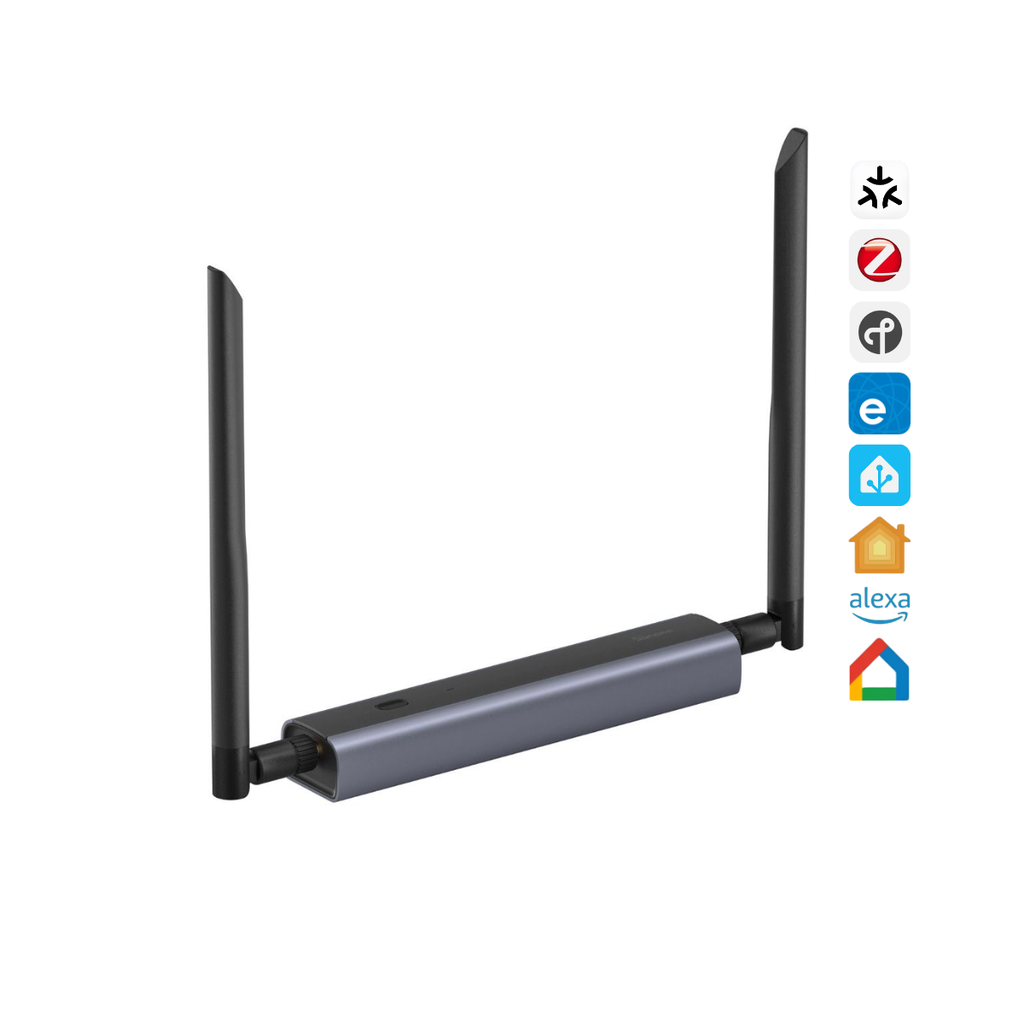

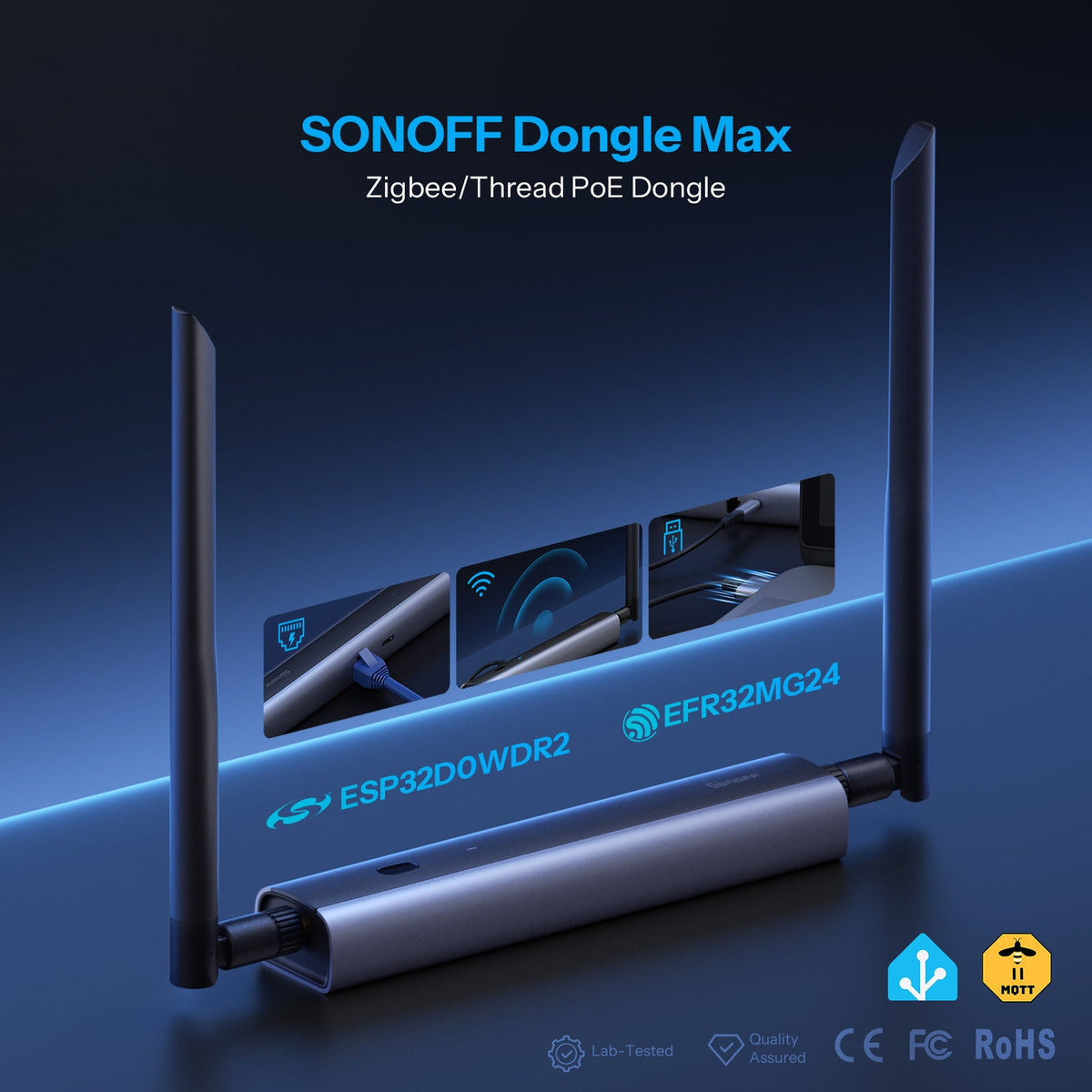

SONOFF Dongle Max | Dongle-M
The heartbeat of your smart home. Redefine stability and range with the most powerful multi-protocol network coordinator, designed exclusively for professional requirements, now available via Smartify.

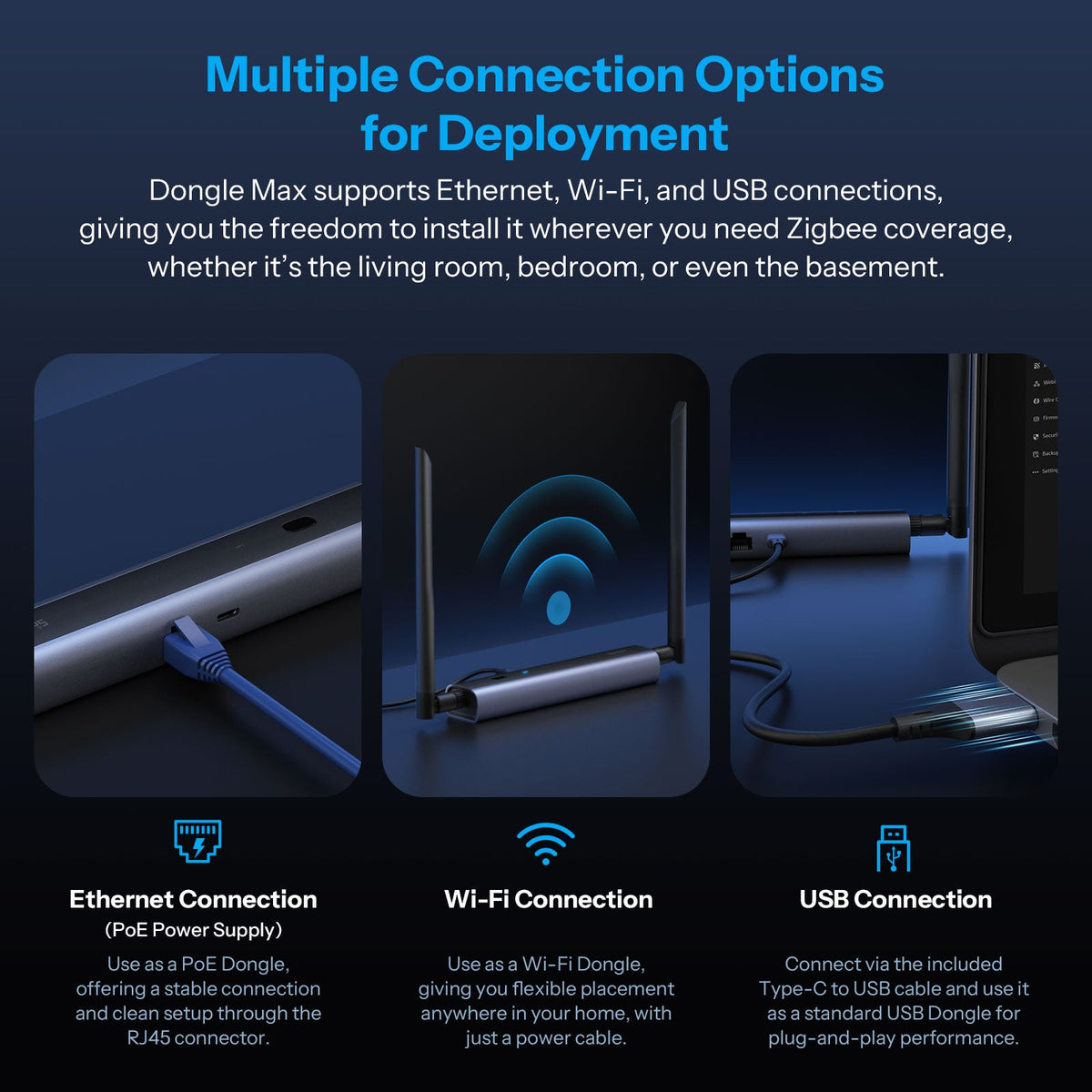

Unlimited Connectivity Options

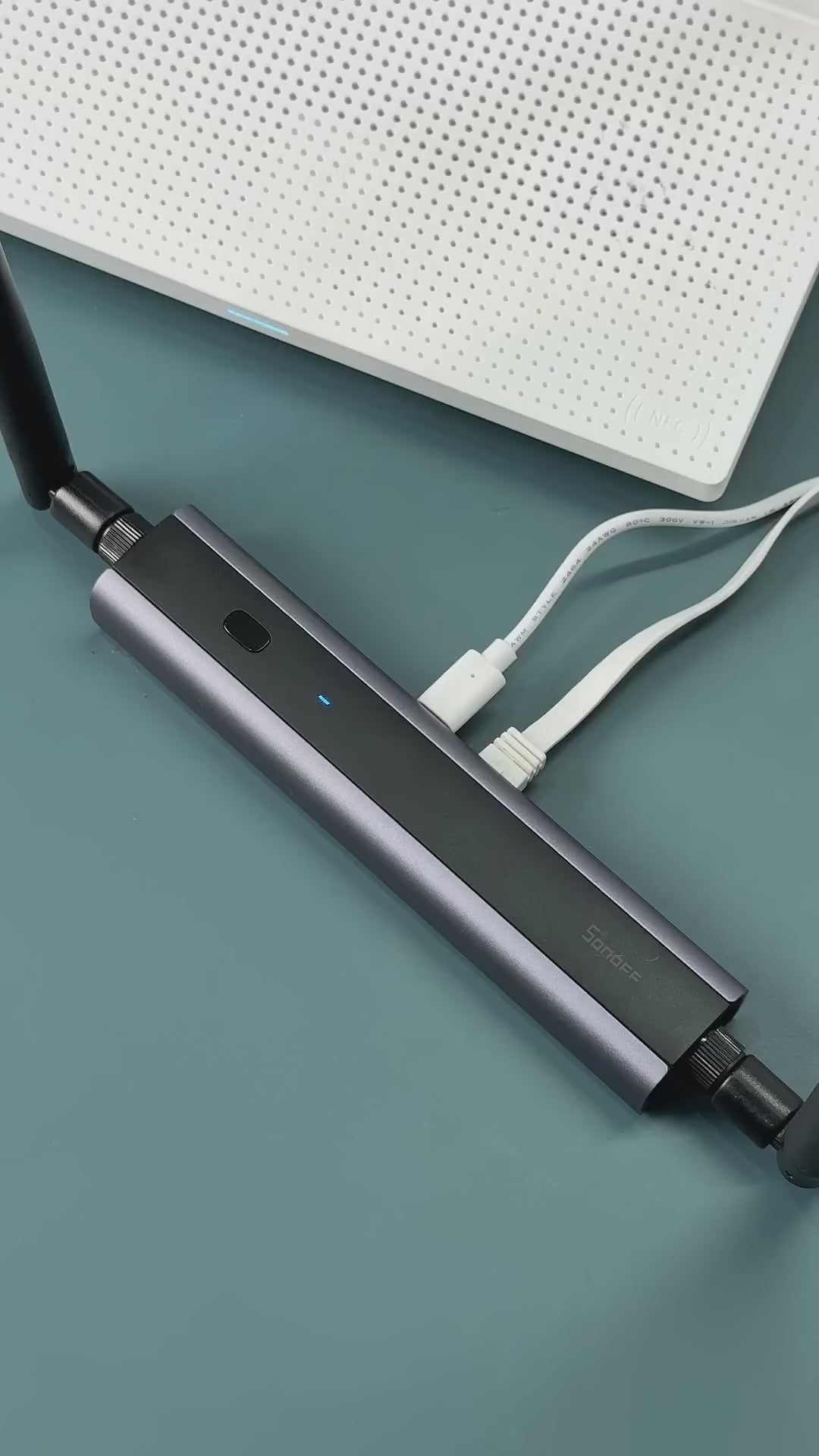

Total setup flexibility. The device supports Ethernet connectivity with PoE technology for power and data via a single cable, as well as Wi-Fi network support and direct USB connection, ensuring network stability under any conditions.

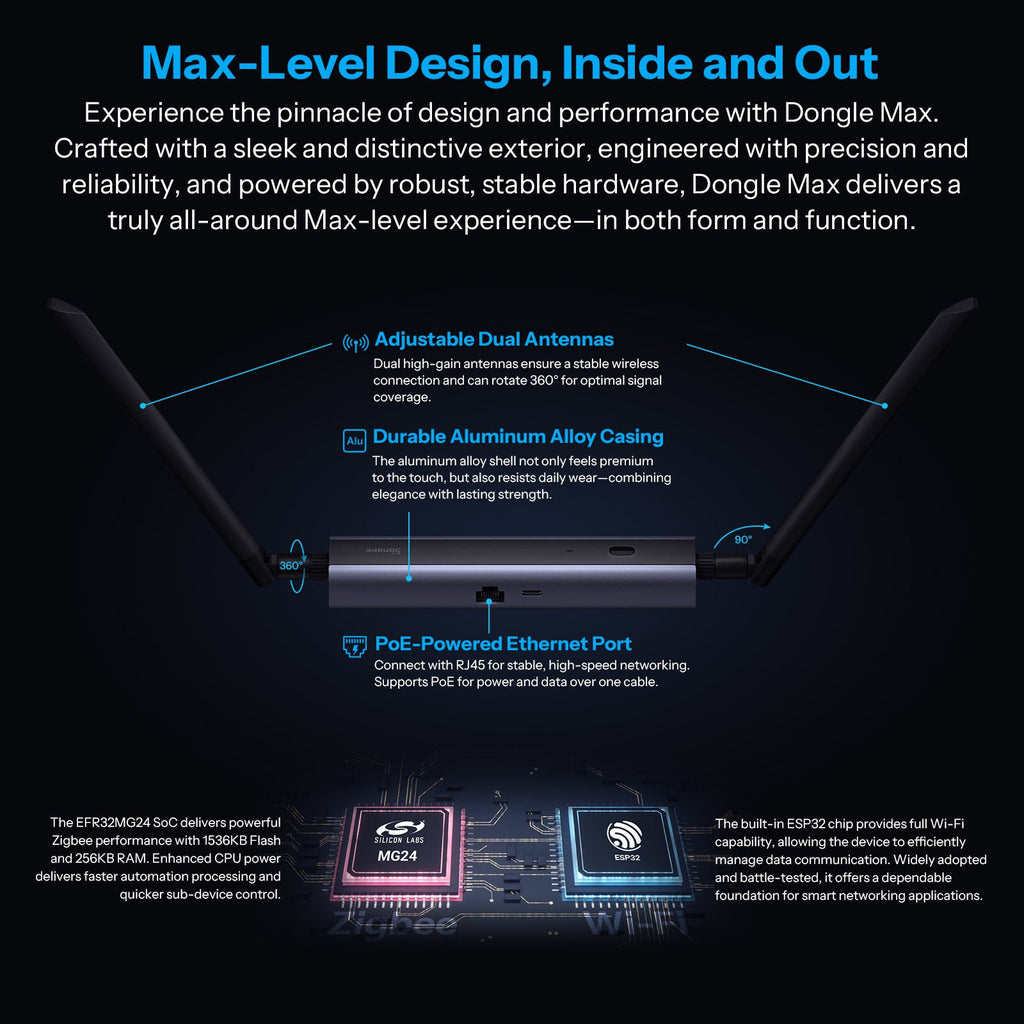

Dual Antennas and Extended Coverage
Equipped with two 18cm external antennas (one for Zigbee/Thread and one for Wi-Fi) to provide 360-degree coverage. With the "Turbo Mode" feature, you can boost the radio signal with the touch of a button to penetrate walls and reach the furthest corners of your home.
Powerful EFR32MG24 Chip
Exceptional performance for handling massive networks. The device functions as a Zigbee Coordinator or a Thread Border Router, powered by an additional ESP32 chip to process network communications at high speeds without any latency.

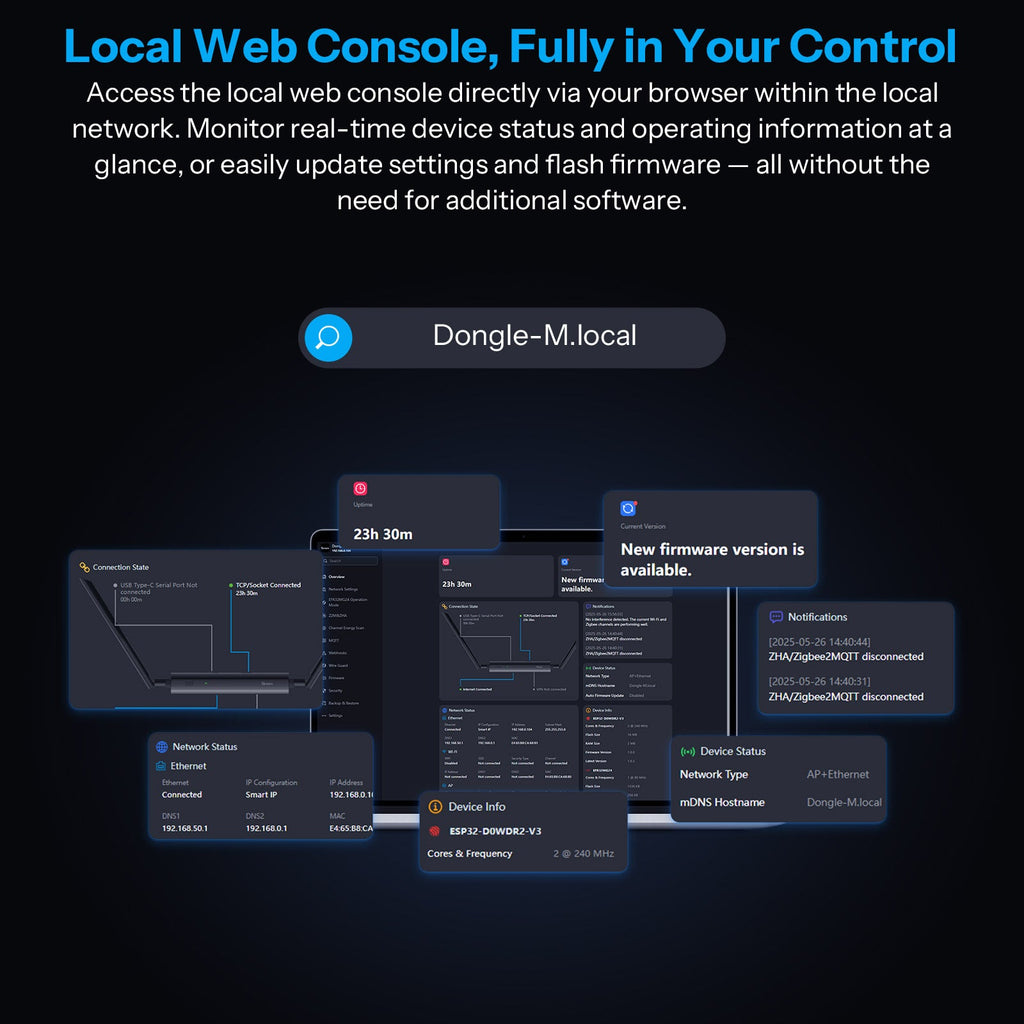

Independent Web Control Interface
No programming complexity required. The device features a built-in web interface that allows you to update systems, monitor logs, set up a VPN (WireGuard), and even create a Wi-Fi Access Point (AP) to easily connect other IoT devices.
Technical Specifications
| Model | SONOFF Dongle Max (Dongle-M) |
|---|---|
| Main Processors | EFR32MG24 (for radio protocols) + ESP32D0WDR2 (for connectivity and networking) |
| Supported Protocols | Zigbee 3.0, Thread, Wi-Fi, Ethernet |
| Power Options | Power over Ethernet (PoE) or USB Type-C port (5V/2A) |
| Open Platform Compatibility | Home Assistant (ZHA), Zigbee2MQTT, openHAB |
| Network Support (AP Mode) | Functions as a Wi-Fi access point supporting up to 8 IoT devices |
| Design and Materials | Durable aluminum housing, passed 24-hour salt spray testing |
Smartify Setup Notes & Box Contents

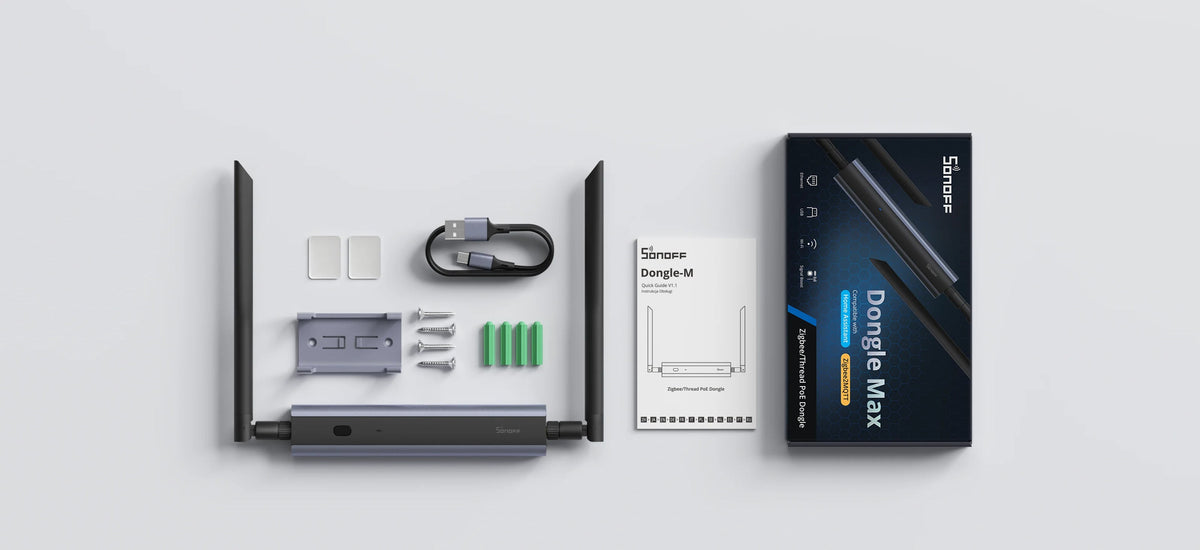

- Box Contents: Dongle Max device, two large antennas (Zigbee + Wi-Fi), USB-C cable, wall mounting bracket with screws, and user manual.
- Initial Setup: Upon first power-up, you can access the device's built-in control panel by entering (dongle-m.local) in your browser or via the IP address assigned by the router.
- TCP Synchronization: The device can be added to Home Assistant wirelessly via Wi-Fi or Ethernet using the TCP protocol without needing a physical connection to the server.
- Firmware Updates: The device supports the official web-based SONOFF Dongle Flasher tool, making switching between Zigbee Coordinator and Thread Border Router modes safe and easy while maintaining your warranty.
- Installation Tip: For the best signal range, it is recommended to mount the device in a high, central location in your home using the included wall bracket, and keep it away from other routers to avoid frequency interference.
