Human presence sensor and smart lighting with millimeter wave radar and Zigbee system – direct electrical operation, ceiling/wall mounting

Human presence sensor and smart lighting with millimeter wave radar and Zigbee system

An advanced smart sensor accurately detects the presence of people, with the ability to adjust light levels, detection distance, and delay time as needed. It uses the Zigbee system for efficient communication and allows for app-based control.

Technical specifications:

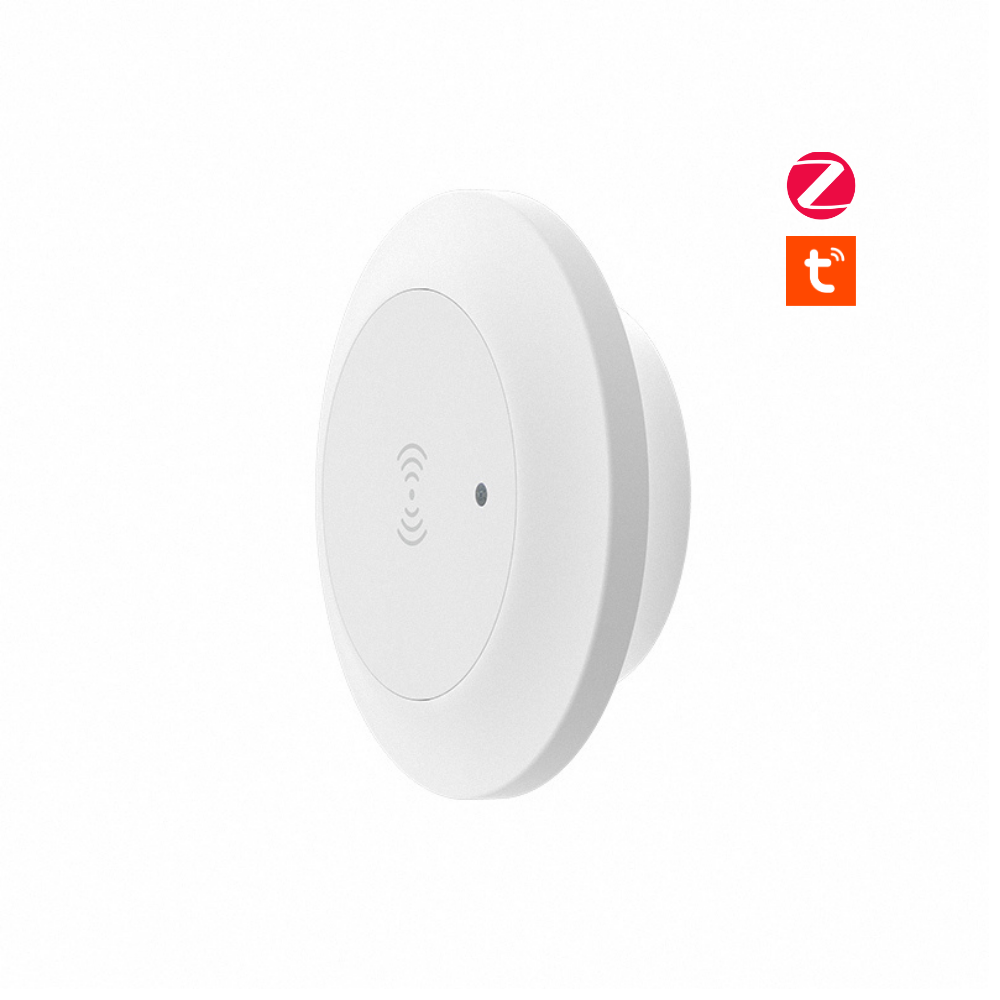

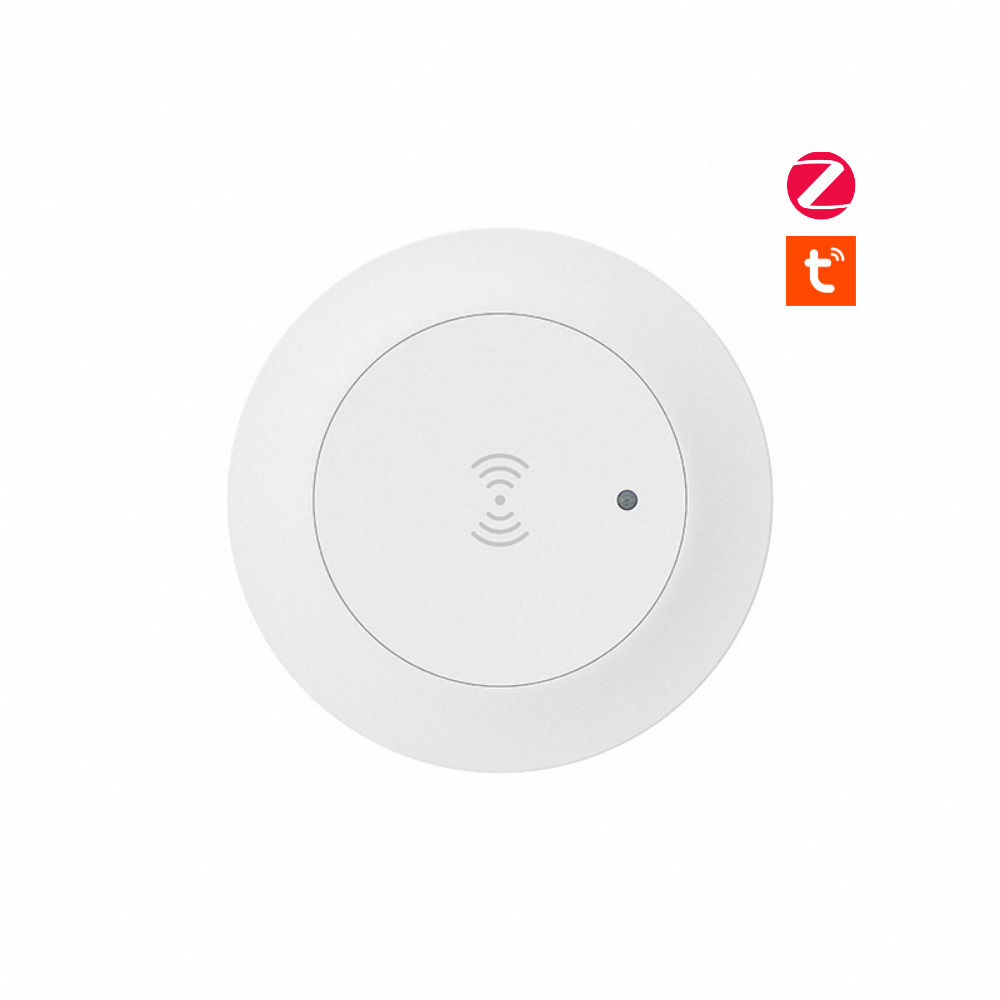

• Product Name: Zigbee Millimeter Wave Radar Human Presence Sensor
• Installation method: Ceiling mount – Wall mount – Clip-on mount

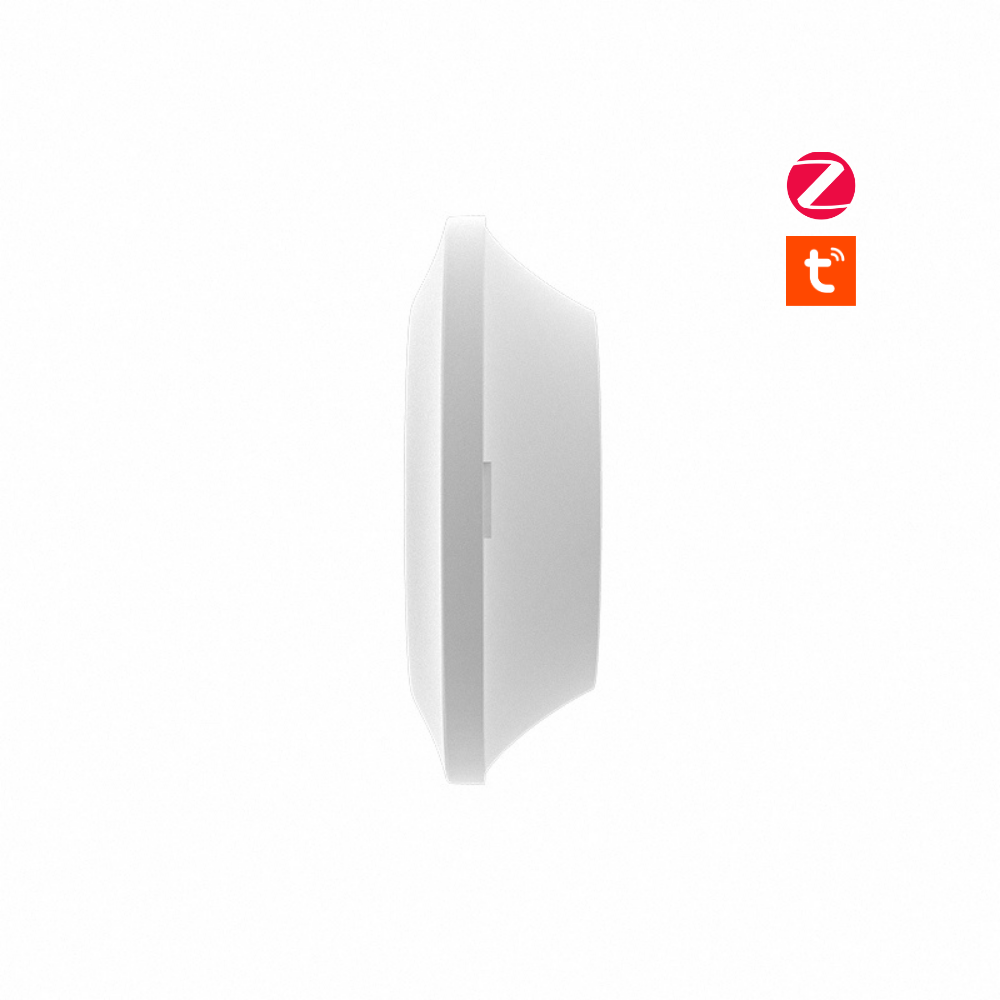

• Product dimensions: Ceiling: 90 x 28.5 mm - Wall: 86 x 86 x 28.5 mm - Clip-on: 60 x 28.5 mm
• Power: AC 95~250V, 50/60Hz
• Maximum current: 2 amps

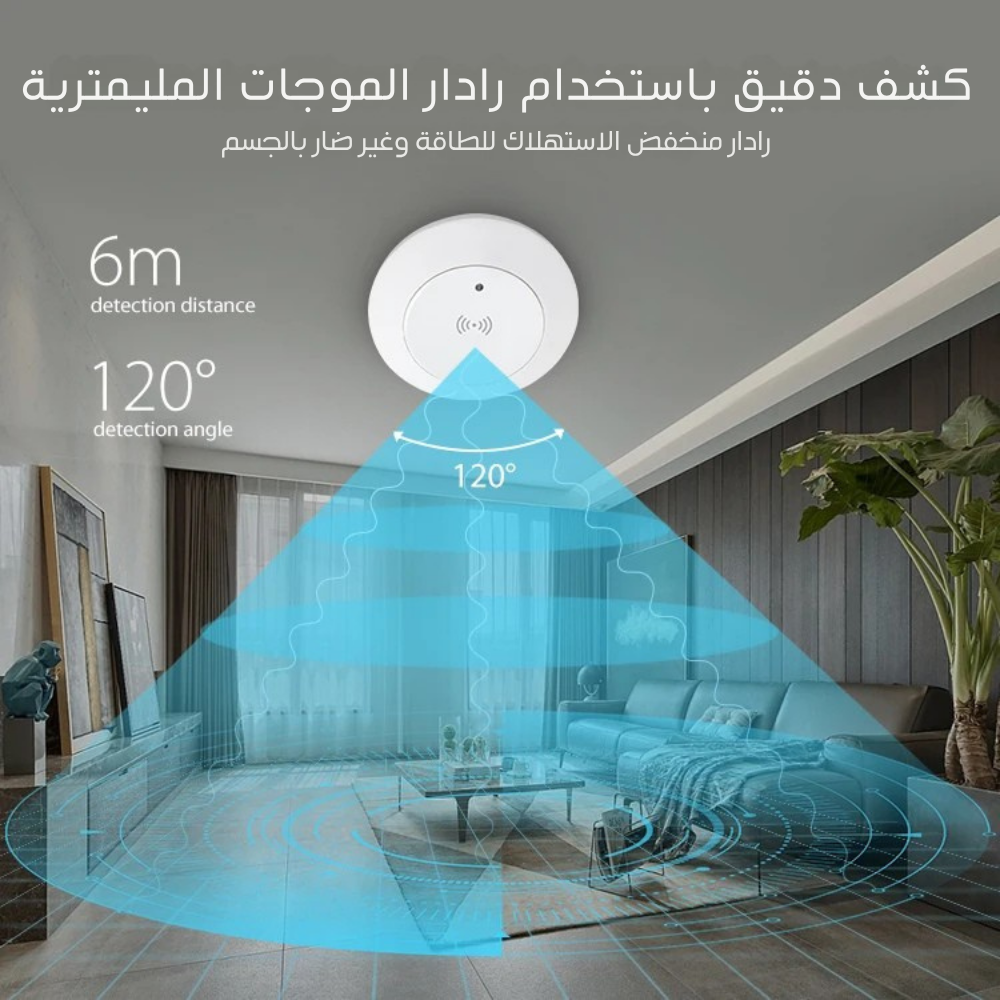

• Detection angle: 120°
• Maximum detection range: 6 meters
• Radar frequency: 24 GHz
• Operating temperature: -10℃ to 60℃
• Operating humidity: 1% - 85% RH (non-condensing)
• Wireless protocol: Zigbee IEEE 802.15.4 MAC/PHY
• Wireless communication frequency: 2.4 GHz
• Wireless communication range: up to 50 meters
• Status indicator: One LED

Main functions:

• Low-energy, harmless millimeter wave radar
• Detecting movement and presence or absence with high accuracy
• Light level detection
• Wide 120-degree detection angle

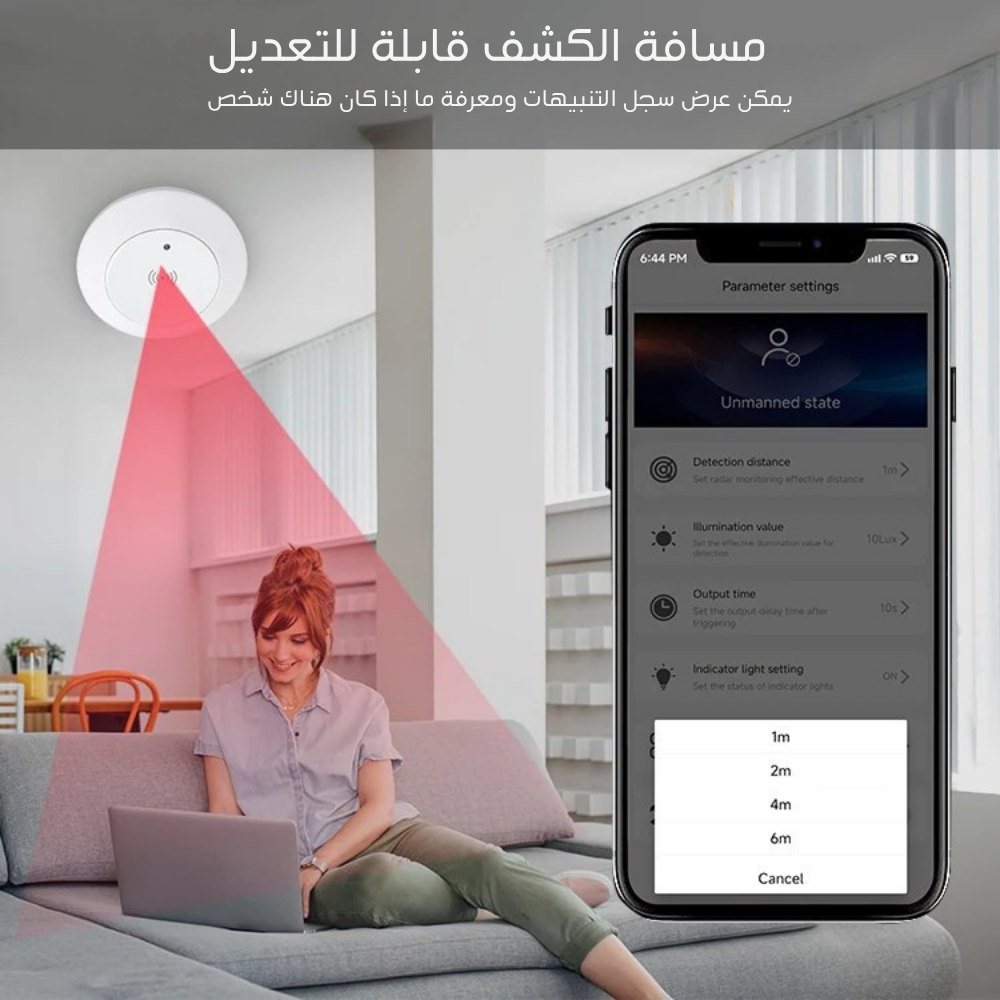

• Adjustable detection distance (1m, 2m, 4m, 6m)

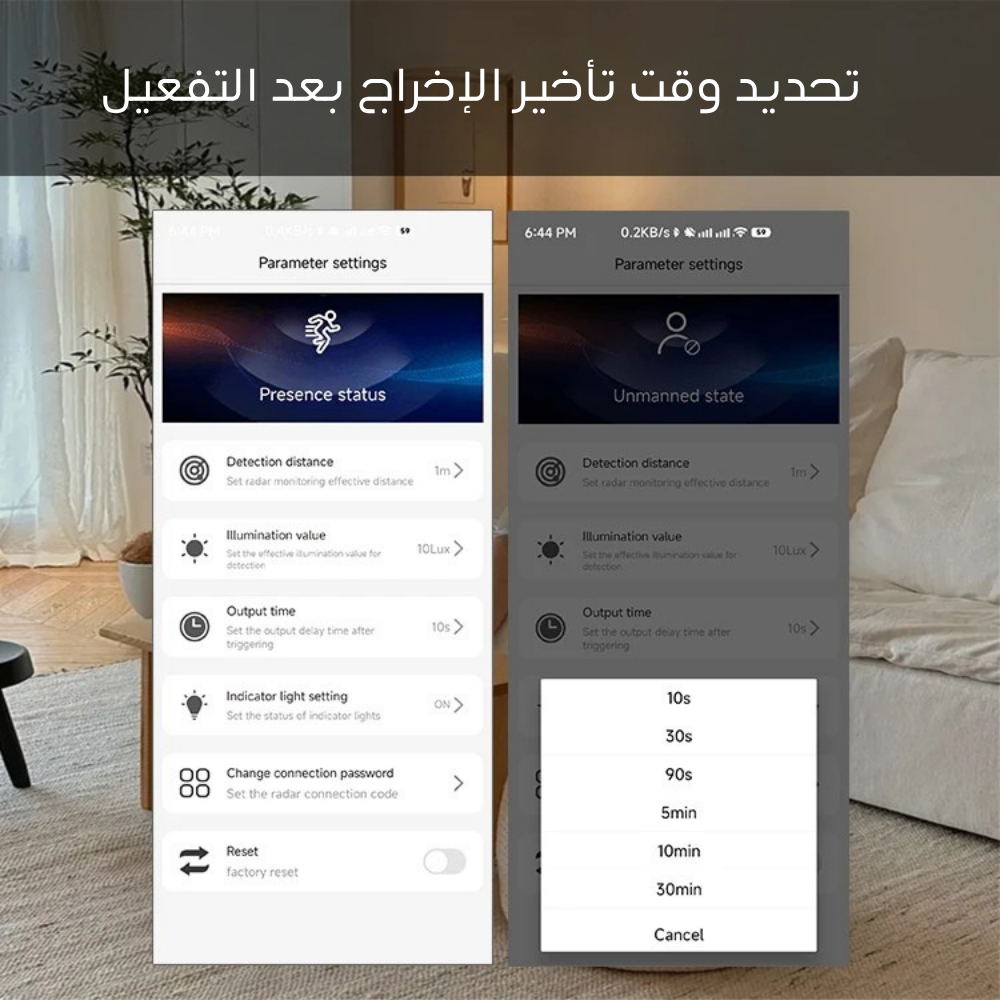

• Setting the output delay time after detection (10 seconds up to 30 minutes)

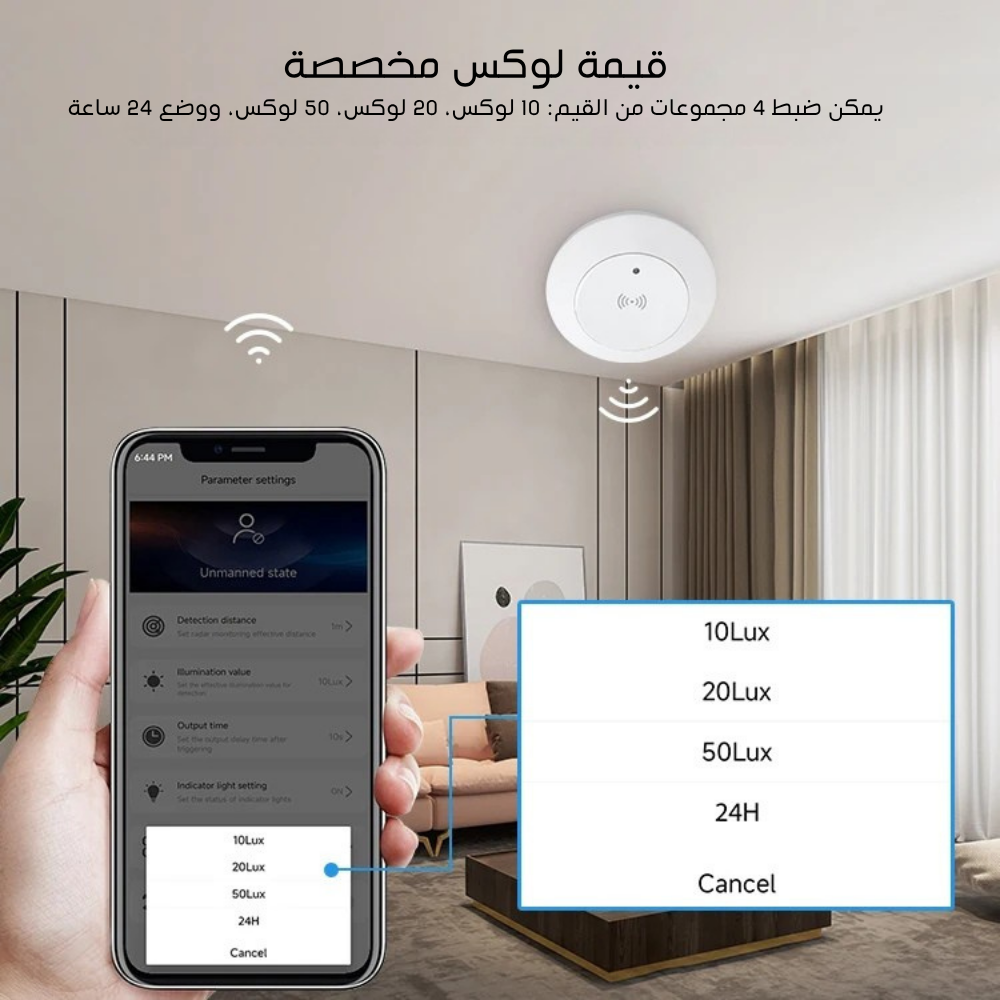

• Customize the lighting value (10Lux, 20Lux, 50Lux, 24 hours)

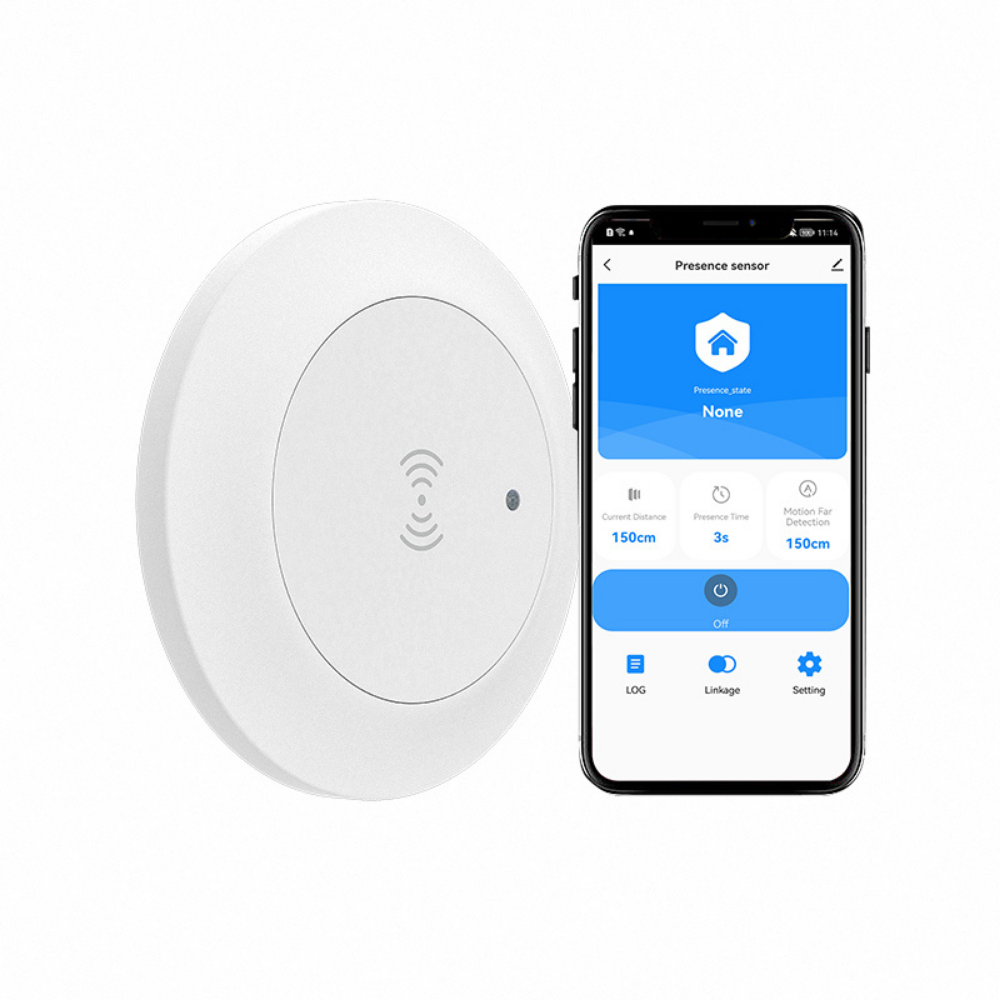

• Support for control via smartphone app

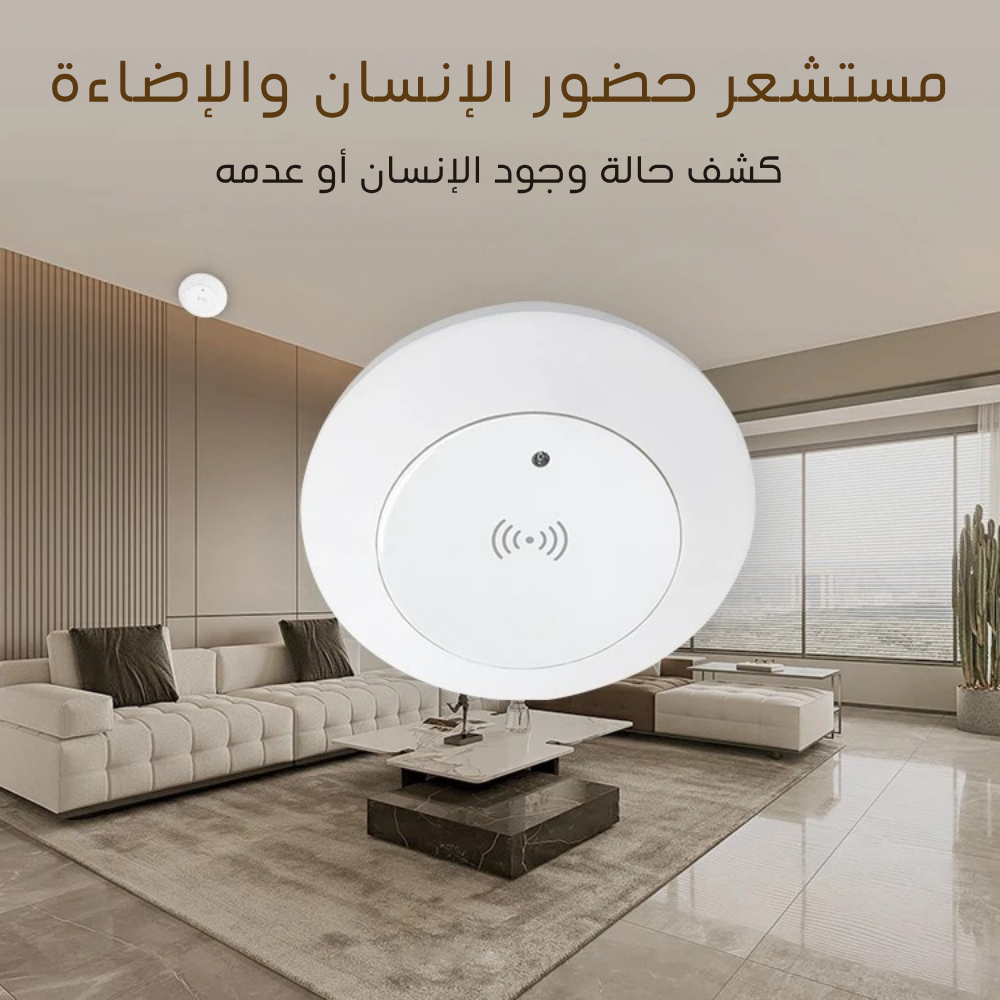

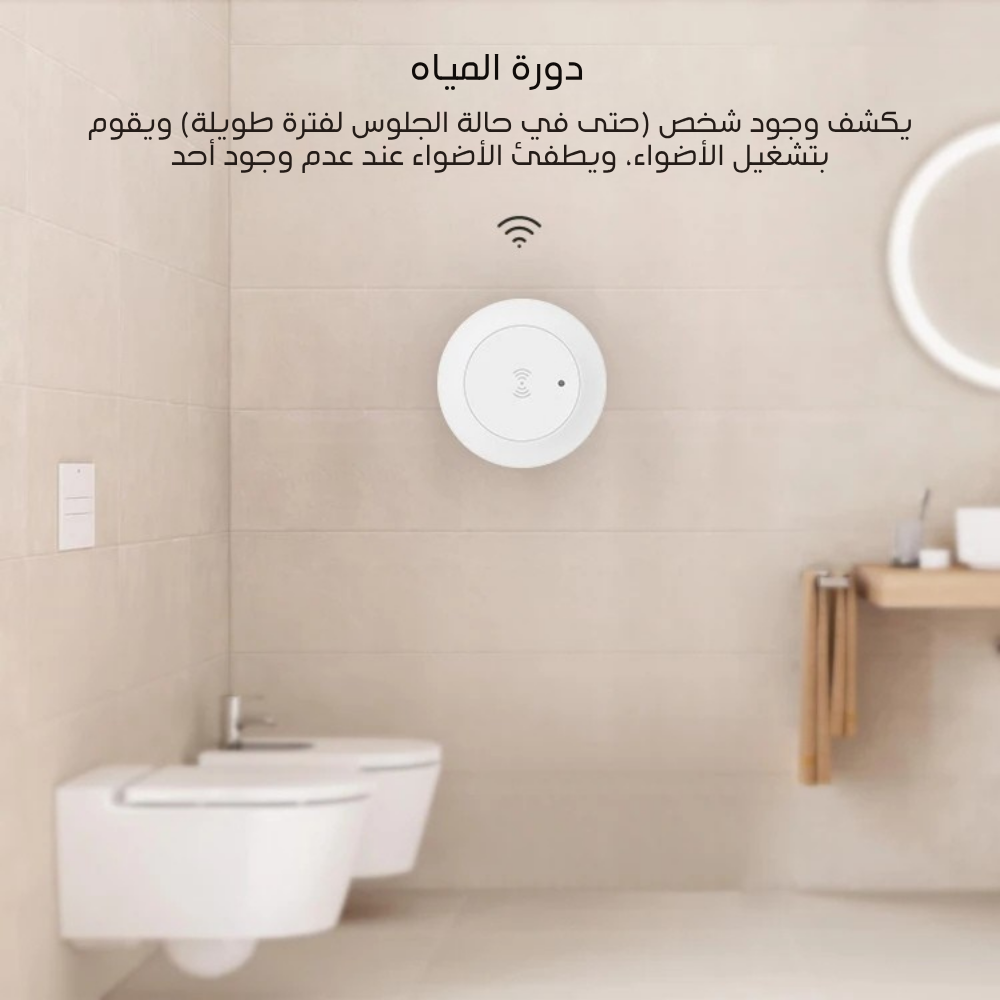

• Easy installation on the ceiling or wall

Ideal uses:

• Meeting rooms: Lighting and air conditioning automatically turn on when people are present.
• Bedrooms: Automatically activates air conditioning upon detecting a person's presence.
• Living rooms and offices: Smart device control based on availability
• Energy saving: Devices automatically turn off when no one is present for extended periods.
