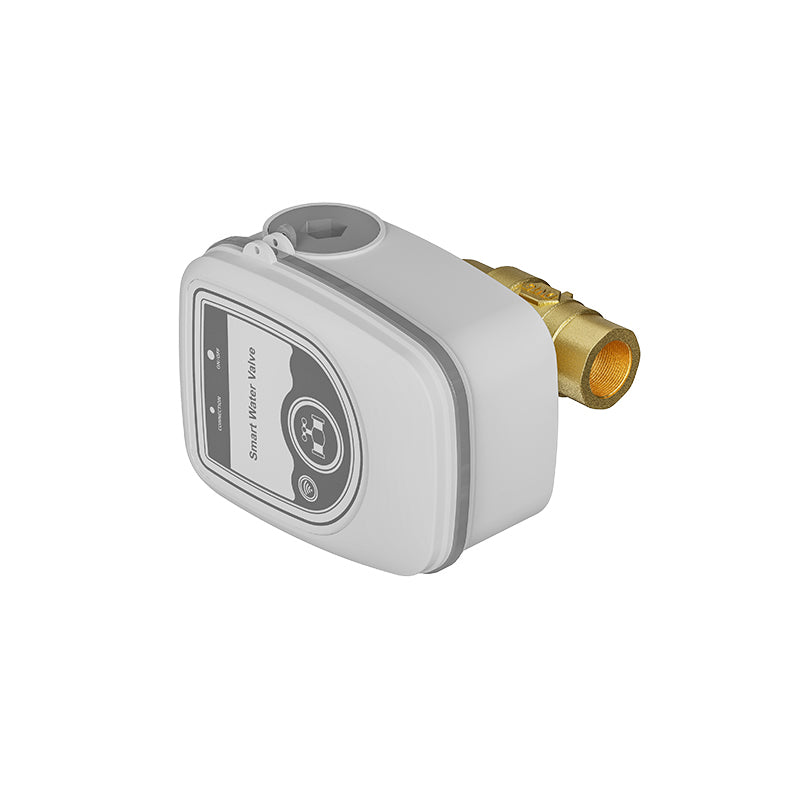

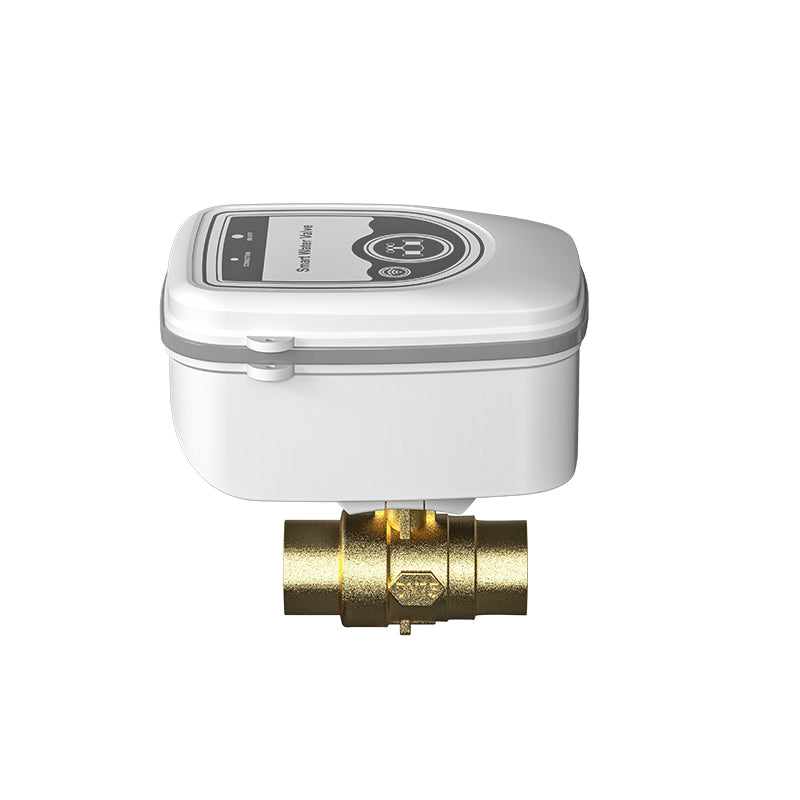

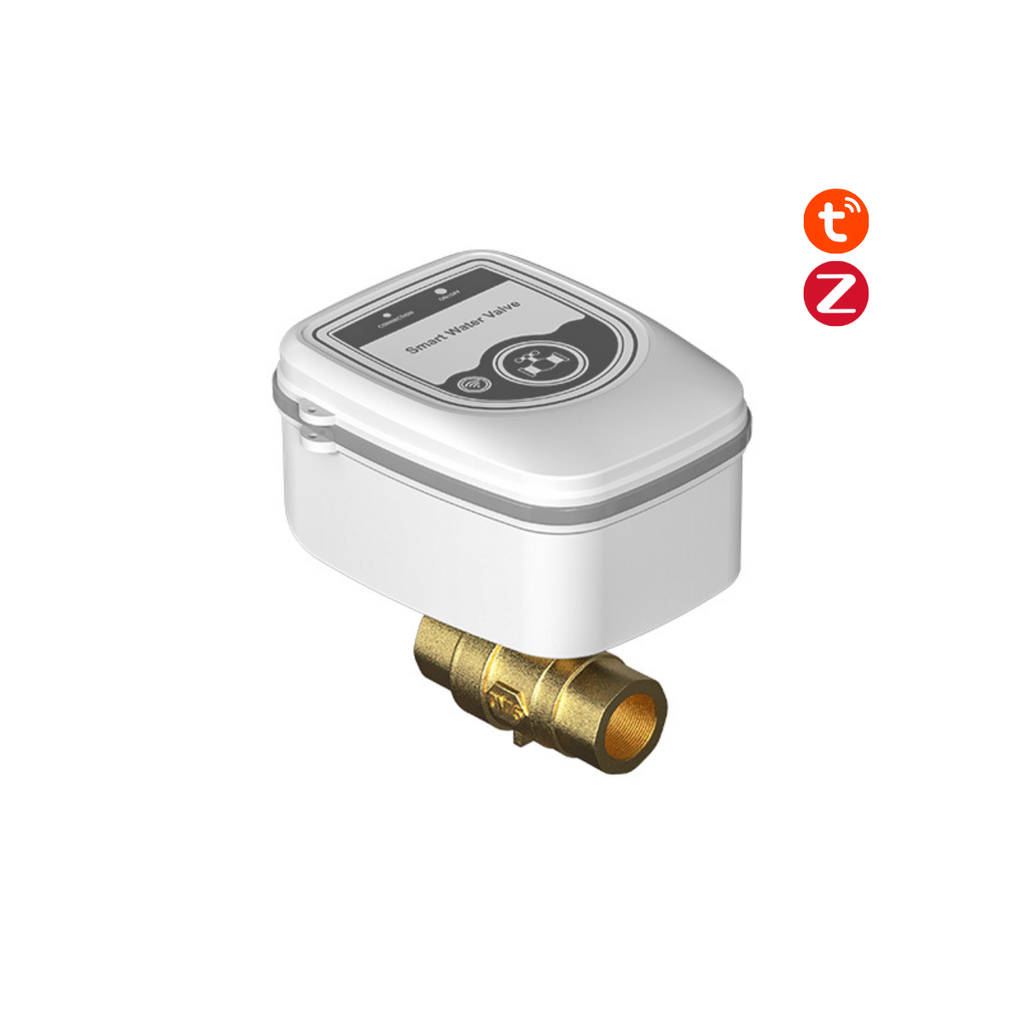

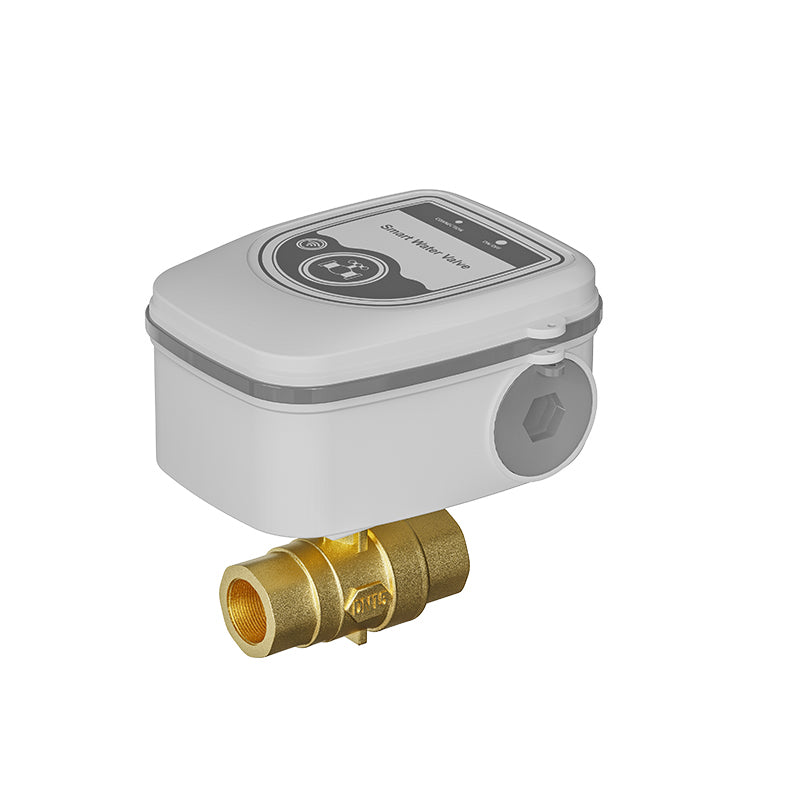

Advanced ZigBee Smart Water Valve
A comprehensive system for managing water flow in your home. It goes beyond simple opening and closing, monitoring consumption, measuring pressure and temperature, and making proactive decisions to protect your home from disasters while providing exceptional resource savings.
Comprehensive Sensing and Analysis System

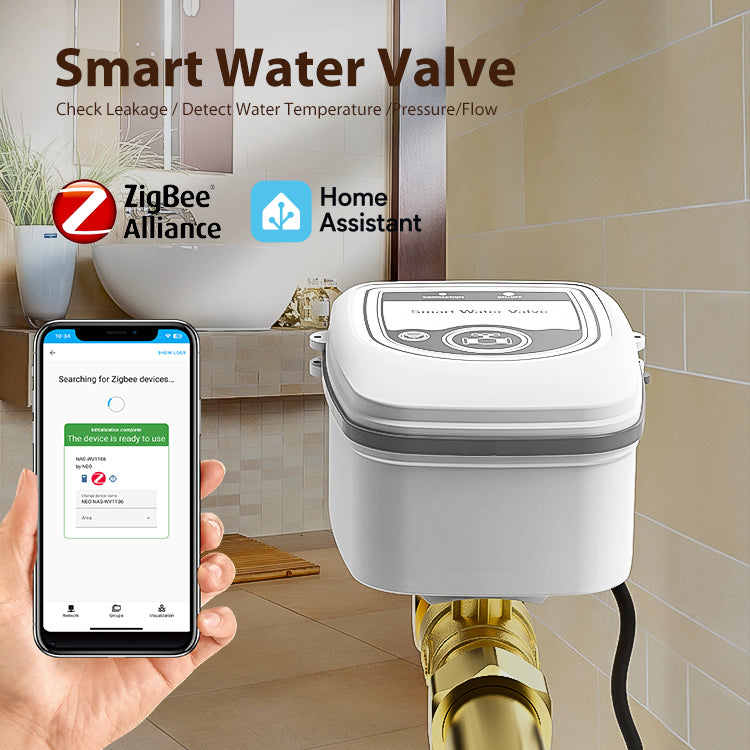

The valve does not just manage water; it possesses advanced sensing capabilities to measure water temperature, pressure levels, and real-time flow rate, providing you with a complete and accurate picture of pipe status via the app.
Full Autonomy and Local Protection

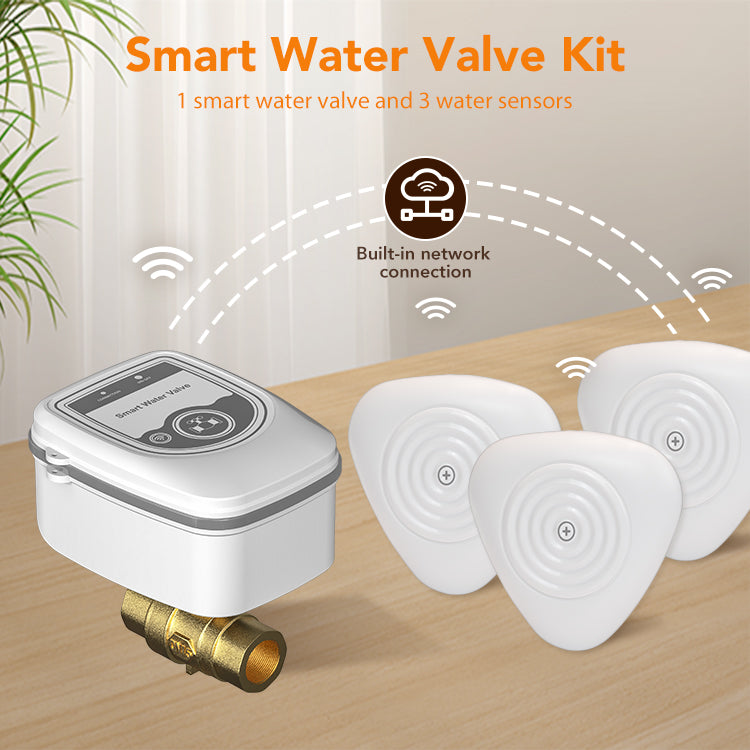

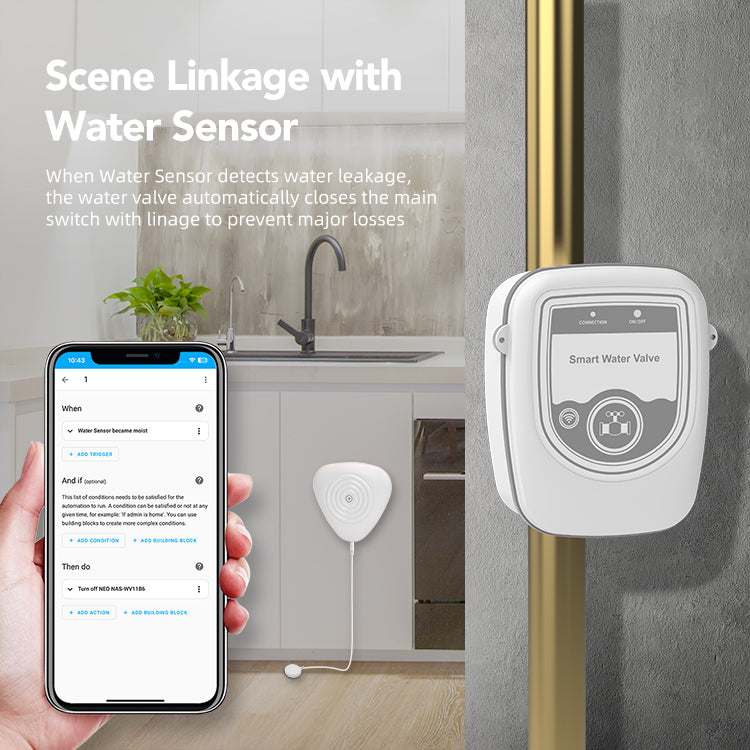

Supports Local Linkage Mode, where the valve acts as a host device in the network. It can link directly with leak sensors to shut off water immediately without the need for an internet connection.
Unprecedented Sustainability and Savings
Designed for continuous 24/7 operation. The smart system helps reduce water waste by 30% to 50%, which translates to a reduction in utility bills of up to 15%.
Activity Monitoring and Elderly Care
The system records actual water consumption. By analyzing historical log data, you can track consumption changes to remotely check on the daily activity and safety of elderly family members at home.
Dual Power and Maximum Reliability
Equipped with a replaceable and rechargeable 18650 battery, ensuring efficient operation even during power outages, with support for continuous, seamless power supply via a standard DC 5V/2A power adapter.

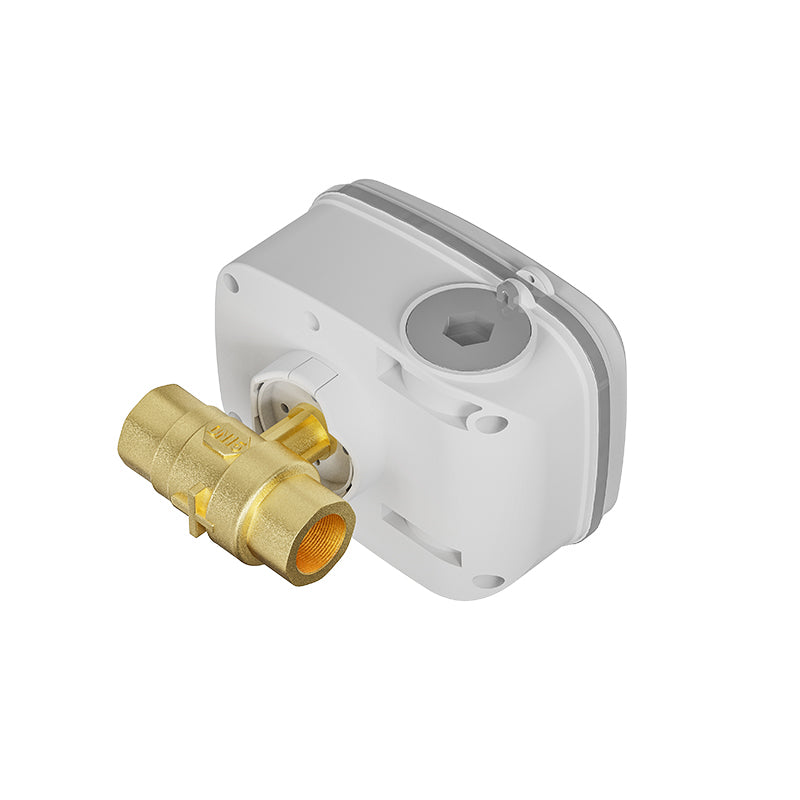

Industrial-Grade Pure Copper Engineering

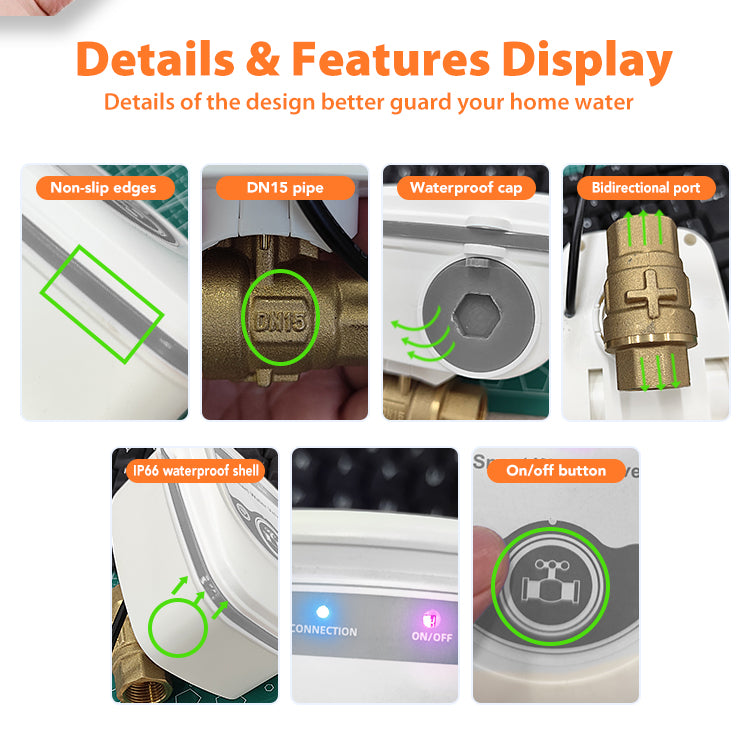

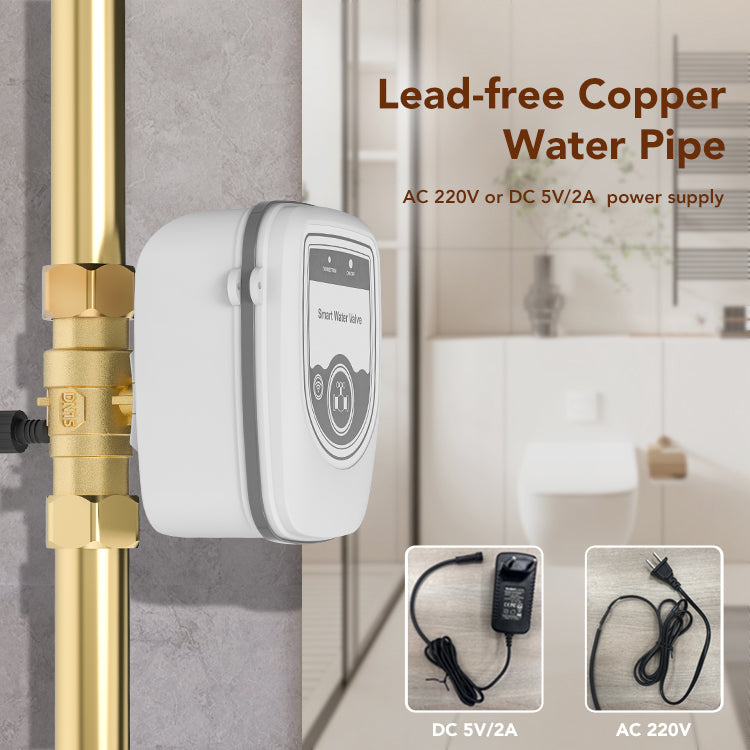

The main pipe body is crafted from lead-free copper to ensure maximum purity and hygiene, with a control housing featuring an IP66 rating for complete water and dust resistance in the harshest installation environments.

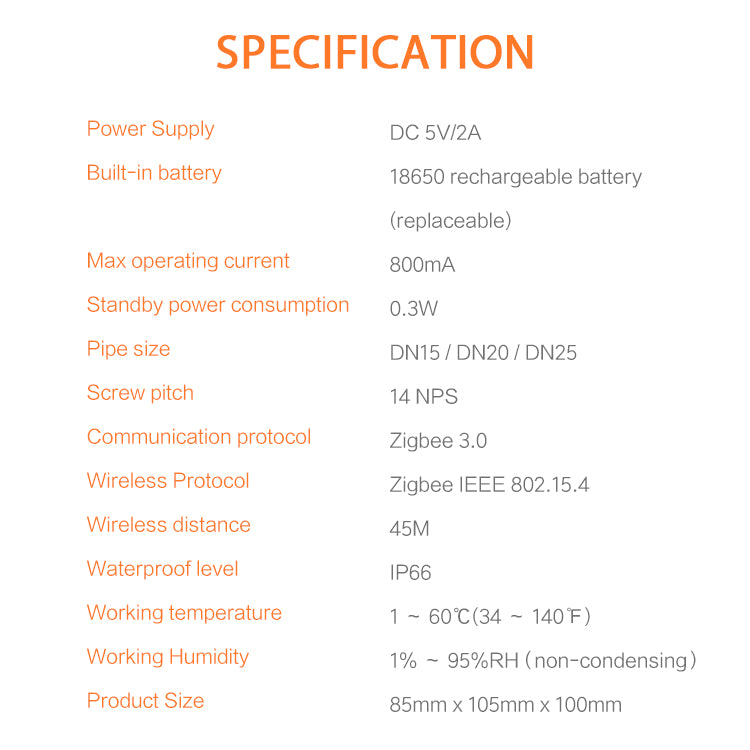

Technical Specifications
| Communication Protocol | Zigbee 3.0 (IEEE 802.15.4) |
|---|---|
| Main Power Supply | DC 5V / 2A |
| Built-in Battery | Rechargeable and Replaceable 18650 Battery |
| Maximum Operating Current | 800mA |
| Standby Power Consumption | 0.3W |
| Valve (Pipe) Size | 3/4 inch (DN20) |
| Screw Pitch | 14 NPS |
| Wireless Coverage Range | Up to 45 meters |
| Integrated Sensors | Temperature, Pressure, Flow Rate, Leakage |
| Water Resistance Rating | IP66 |
| Operating Environment (Temp / Humidity) | 1 to 60°C / 1% to 95% (non-condensing) |
| Overall Dimensions | 85mm x 105mm x 100mm |
Professional Installation and Operation Notes

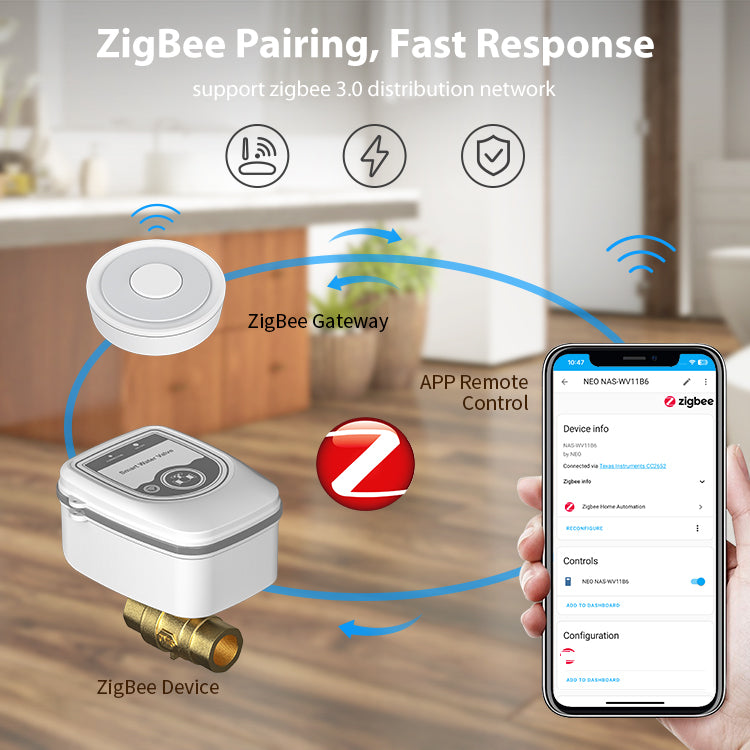

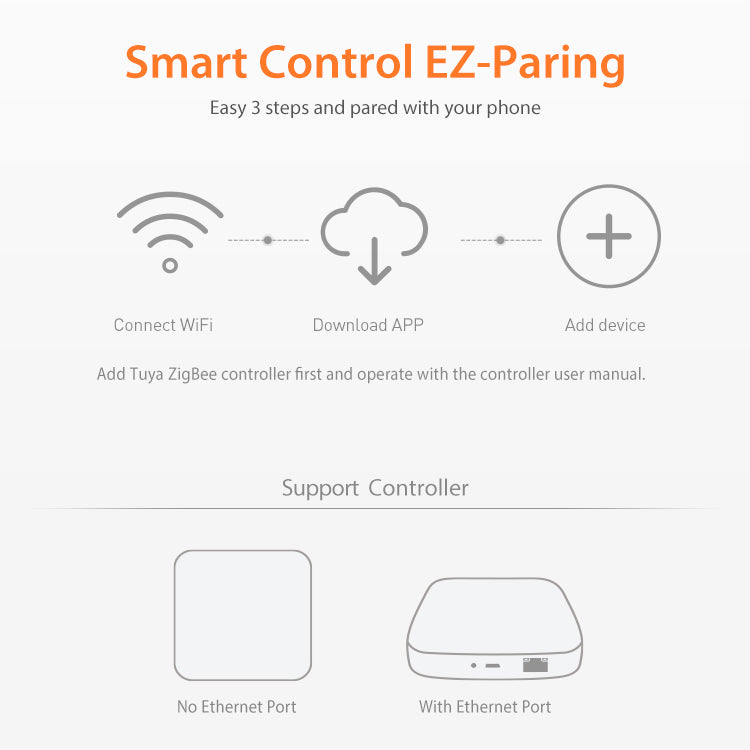

- Compatibility and Connectivity: This valve requires a Tuya ZigBee Gateway to operate. It also supports direct integration with Home Assistant systems (via ZHA mode).

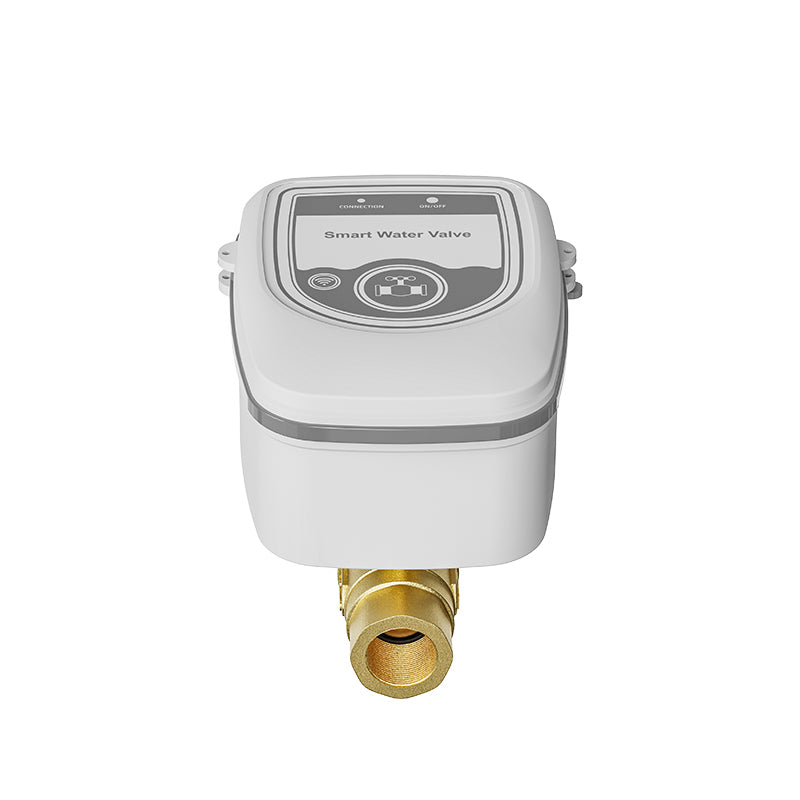

- Touch Control Interface: The top surface features responsive touch buttons; the left button for network configuration and pairing (Connection), and the right button for manual opening/closing (ON/OFF).

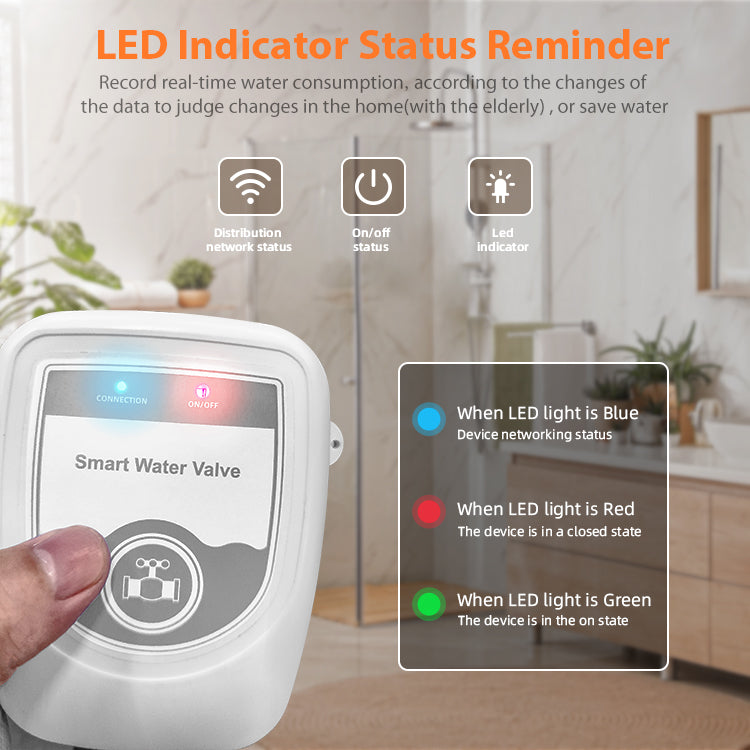

- LED Indicators: Blue indicates pairing/network connection status, red means the valve is in the closed position, and green confirms that the water flow is open.
- Tight Installation: To ensure the prevention of any minute leaks, Teflon tape must be used around the ends of the copper pipe before final tightening and installation.
