Tuya TPP05-Z Smart Control Panel

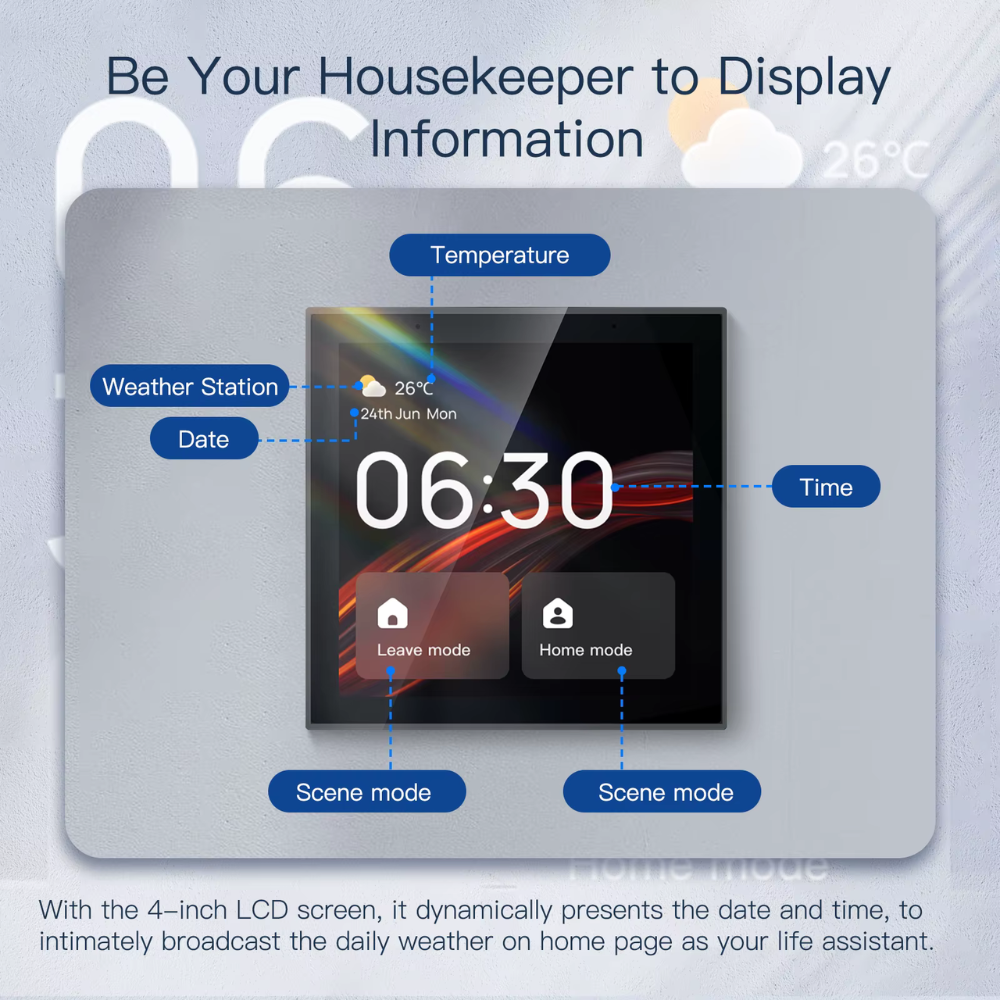

Discover the advanced TPP05-Z smart board from Tuya, designed to give you complete control over your smart home. It features a high-resolution 4-inch touchscreen display and runs on a Linux-based operating system with a processor. Rockchip RK3308B-S with a speed of 1.3 GHz to provide stable and fast performance, With the ability to customize themes, screensaver, and wake the screen by touch or using the proximity sensor.
Thanks to multiple communication protocols: Wi-Fi , Zigbee , and Sigmesh (As a backup), the board functions as a built-in Zigbee gateway capable of connecting more than 80 sub-devices, in addition to An RS-485 port and three built-in antennas ensure a strong connection. The board includes Two electrical relays, each allowing control of a load of up to 200 watts, with a total maximum of 400 watts. Alexa also supports voice control for various devices and scenes, along with Smart Life/Tuya apps for mobile operation.
Key Features

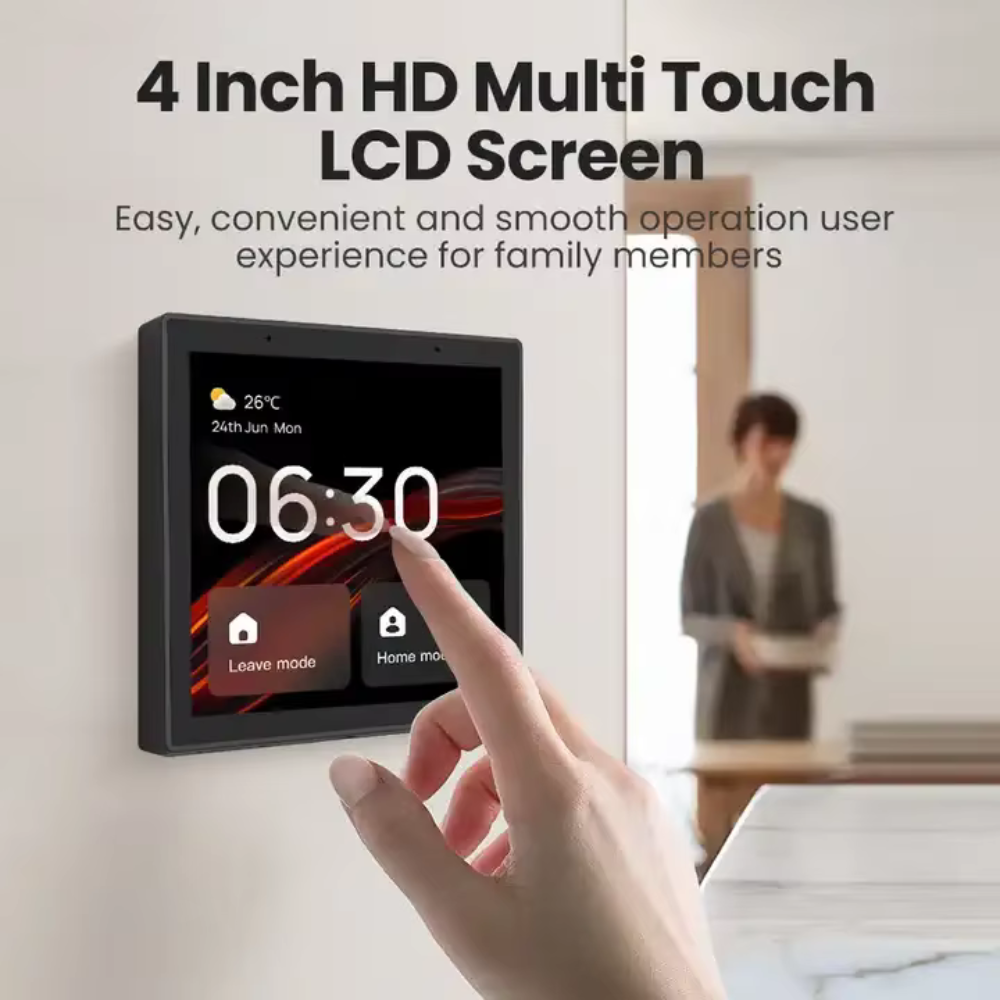

- 4-inch high-resolution IPS touchscreen for a clear and easy-to-use interactive interface.
- A Linux-based operating system with a 1.3 GHz Rockchip RK3308B-S processor.

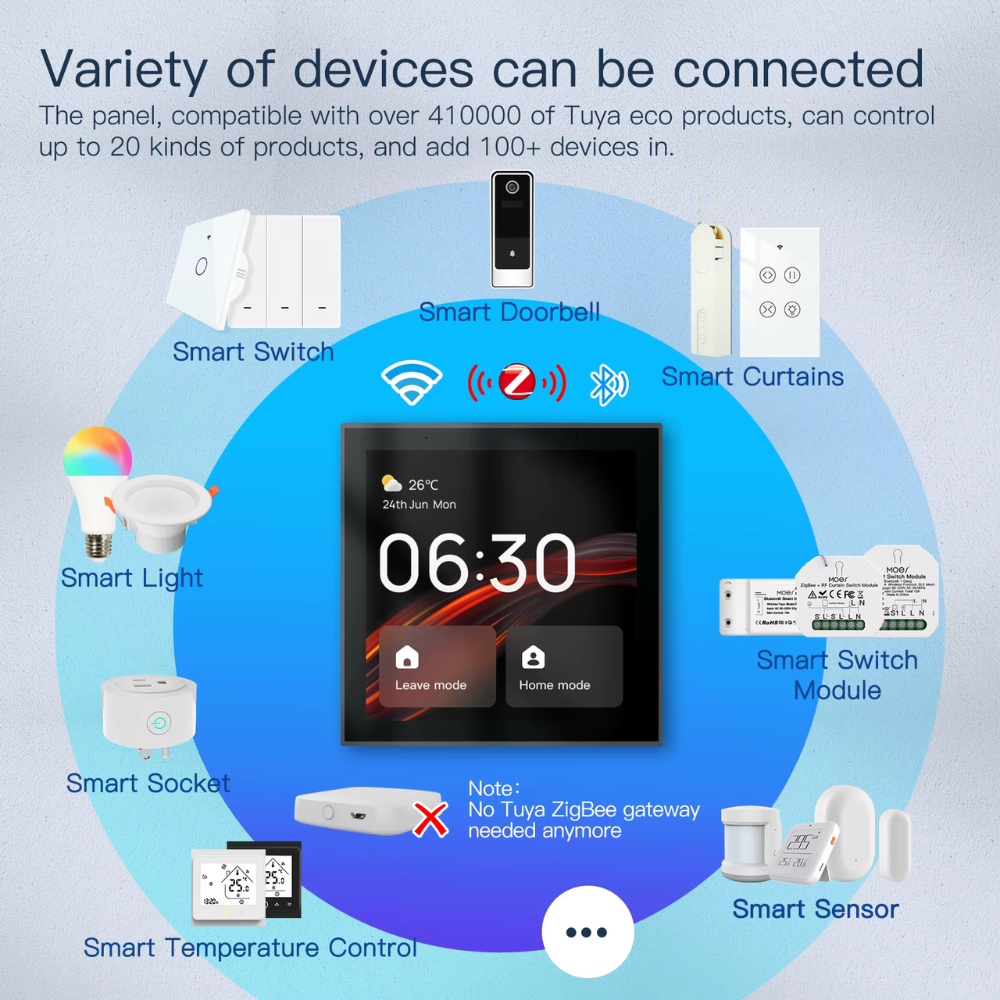

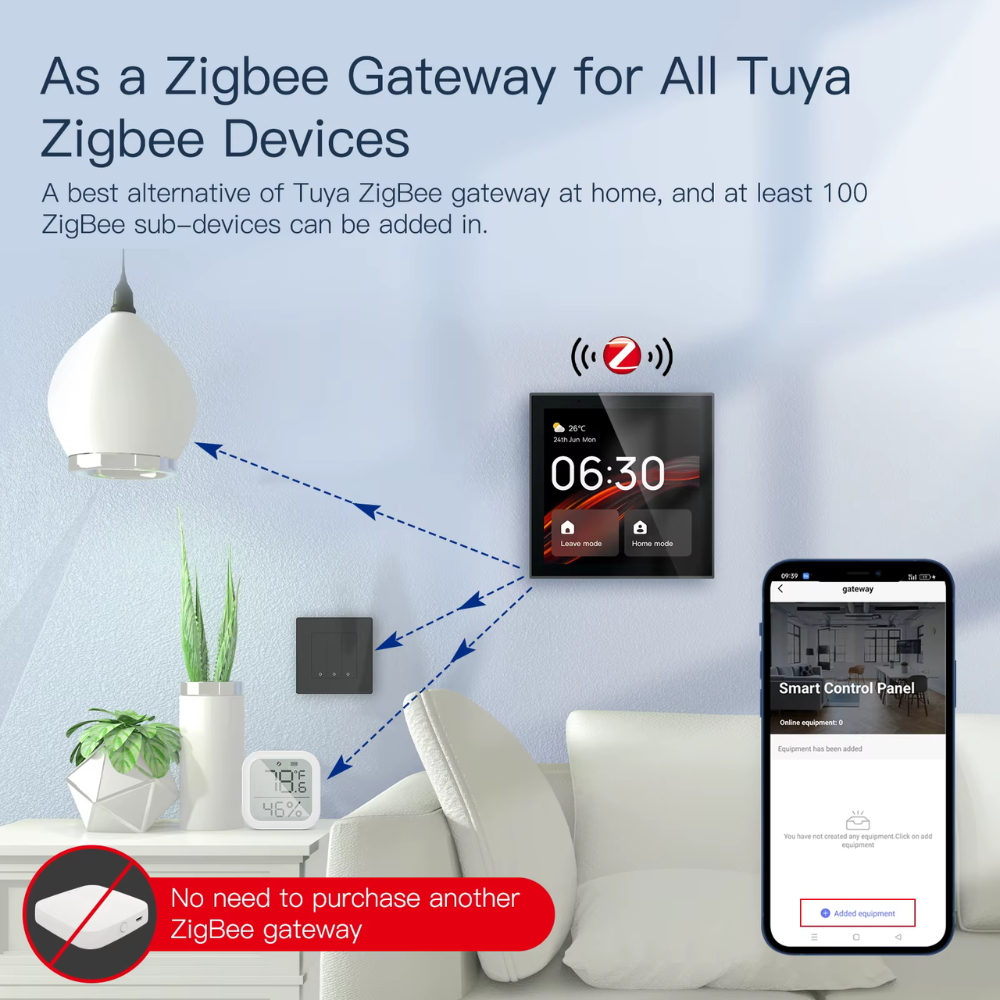

- Zigbee gateway integrated to connect over 80 sub-devices with backup Sigmesh support.
- Comprehensive connectivity via Wi-Fi, Zigbee, RS-485 port, and triple internal antenna.
- Two electrical control stages, each capable of handling up to 200 watts (total 400 watts).
- Supports Alexa voice assistant and Smart Life/Tuya apps for remote control.
- The ability to customize themes, screensaver, and wake the screen by touch or proximity.
Technical specifications
| processor | Rockchip RK3308B‑S (1.3 GHz) |
| Operating system | Built on the Linux kernel with a custom interface |

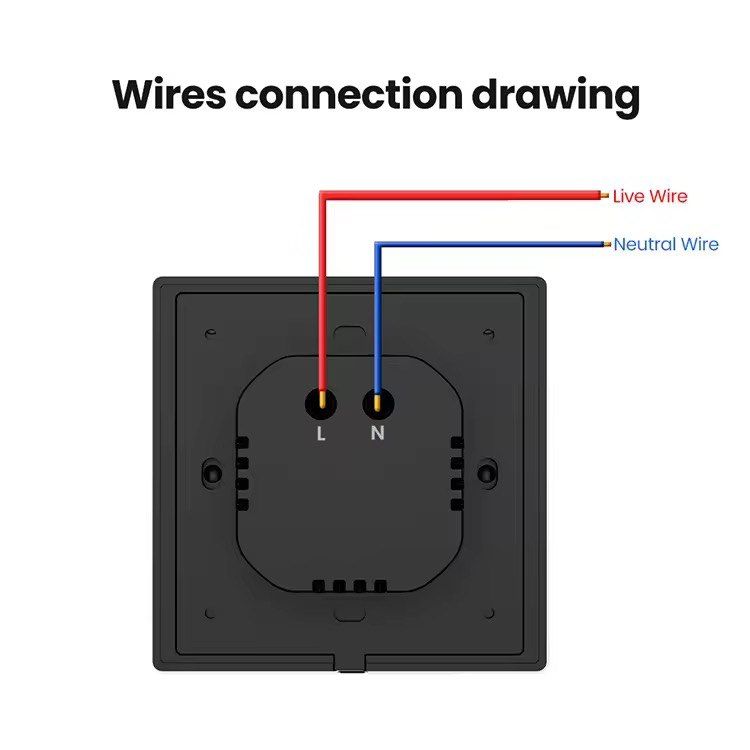

| Power inputs | 100-240V ~ 50/60Hz |
| wireless connection | Wi‑Fi 2.4 GHz, Zigbee, Sigmesh (spare) |
| Zigbee portal | It supports more than 80 sub-devices |
| Ports and antennas | 3 built-in antennas, one RS-485 port |
| relays | Two relays with a power of 200 watts per channel (400 watts total) |

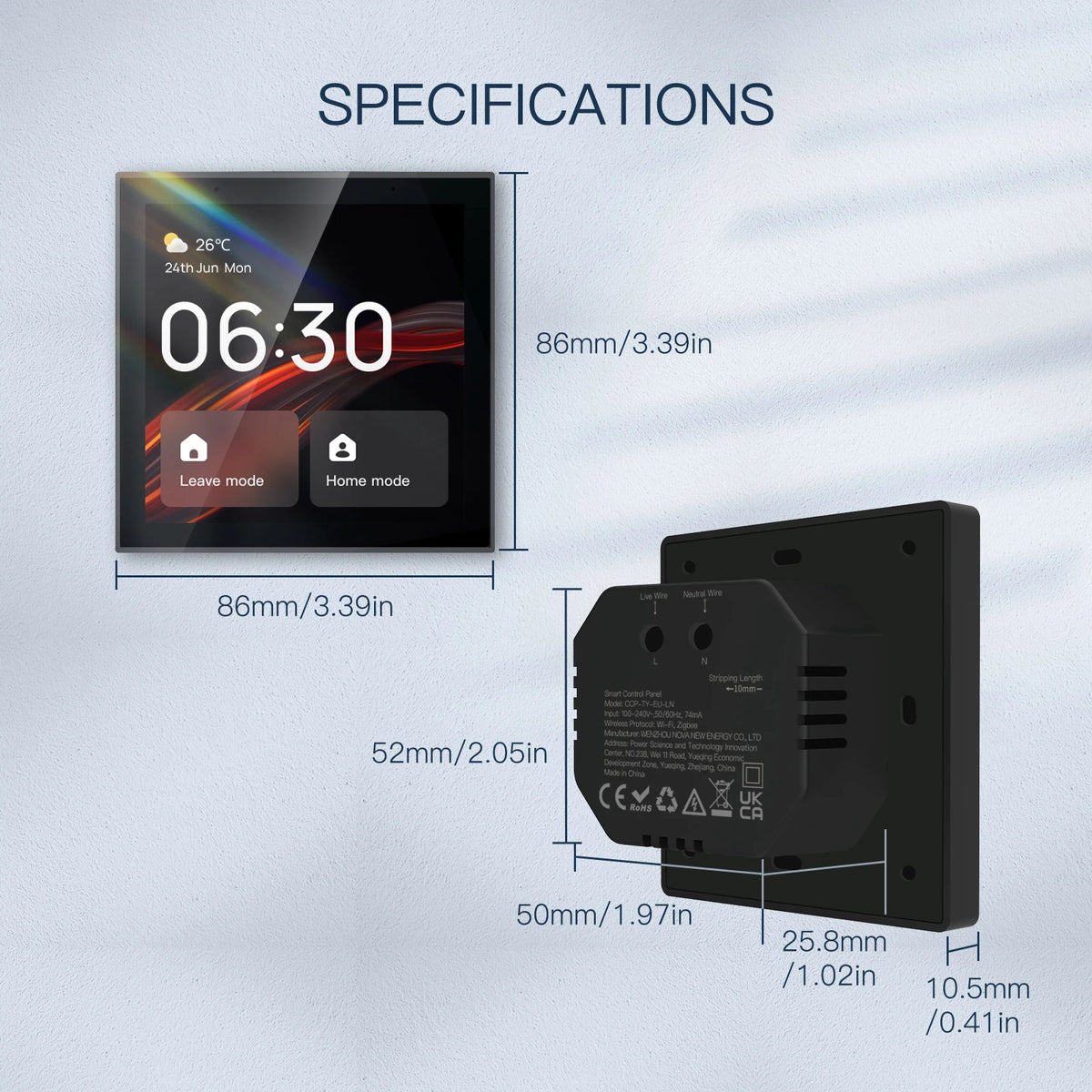

| Device dimensions | 72×127.3×10.5 mm without base | 72×127.3×36.5 mm with base |
| the weight | Approximately 215 g |
| Operating degrees | Temperature 0-40 °C, humidity 5-90% RH non-condensing |
| Sound and application | Alexa Support | Smart Life / Tuya App |
Reason for choosing TPP05-Z
This board provides a comprehensive solution for controlling smart devices, with a built-in Zigbee gateway and upload capabilities. High quality, with an easy-to-customize interface and voice support. It's the perfect choice for smart homes. Hotels and offices looking for an integrated control center with remote and voice control features.
