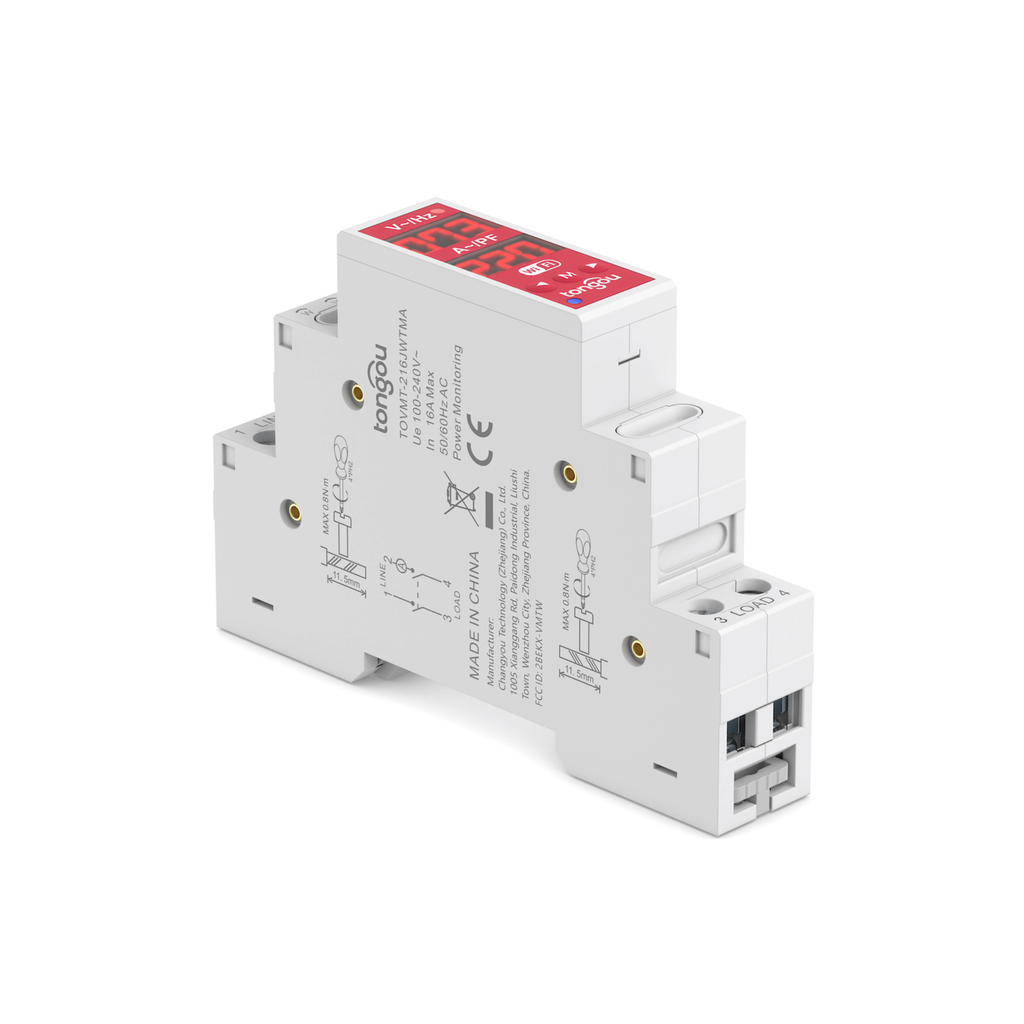

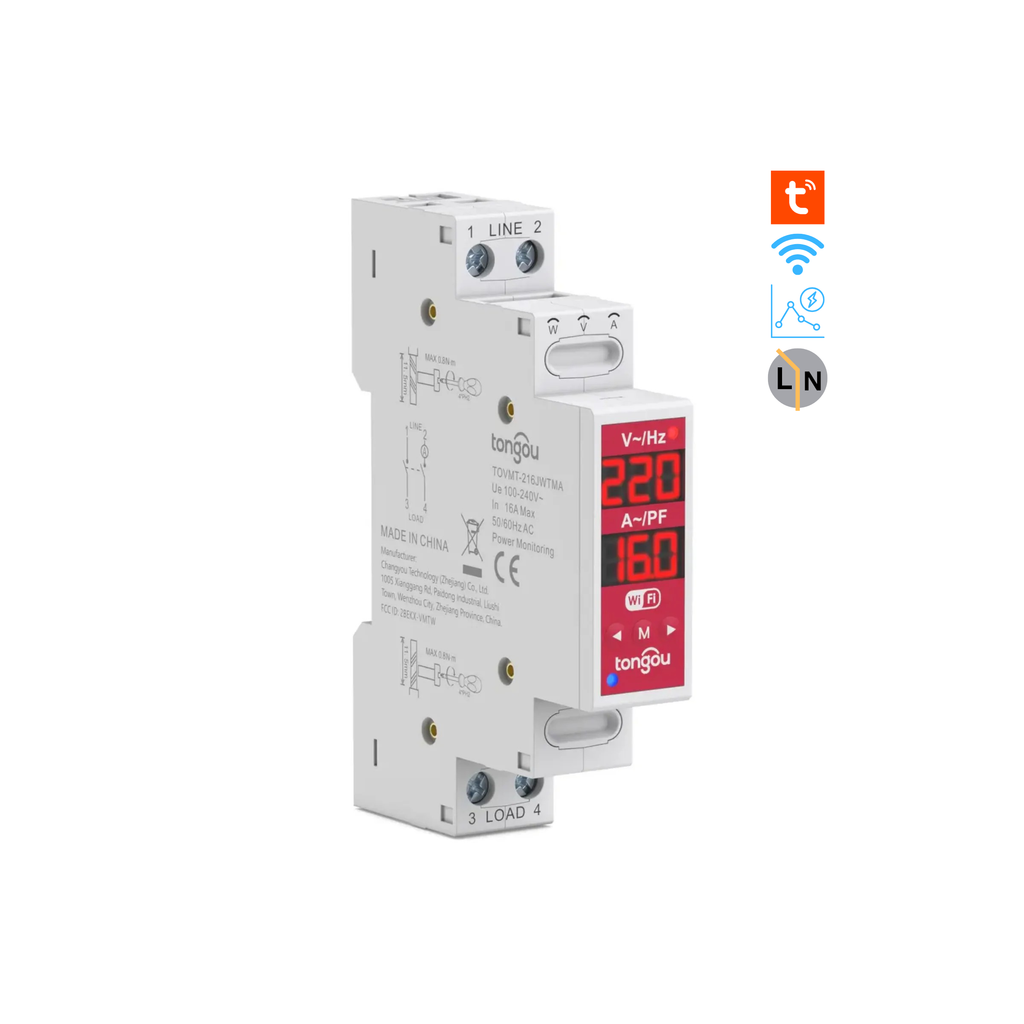

2P Wi-Fi Smart Switch/Relay (Tuya/Smart Life) – 16A – 100~240V – Supports L-N and L-L (TOVMT)
A professional DIN Rail solution providing true double-pole disconnection, remote control, on/off scheduling, and energy consumption monitoring with adjustable electrical protections.
Wi-Fi 2.4GHz Tuya / Smart Life 2P (Double Pole) 16A 100~240VAC 50/60Hz Voltage/Current/Power Protection Energy Metering
1) What makes this device special?

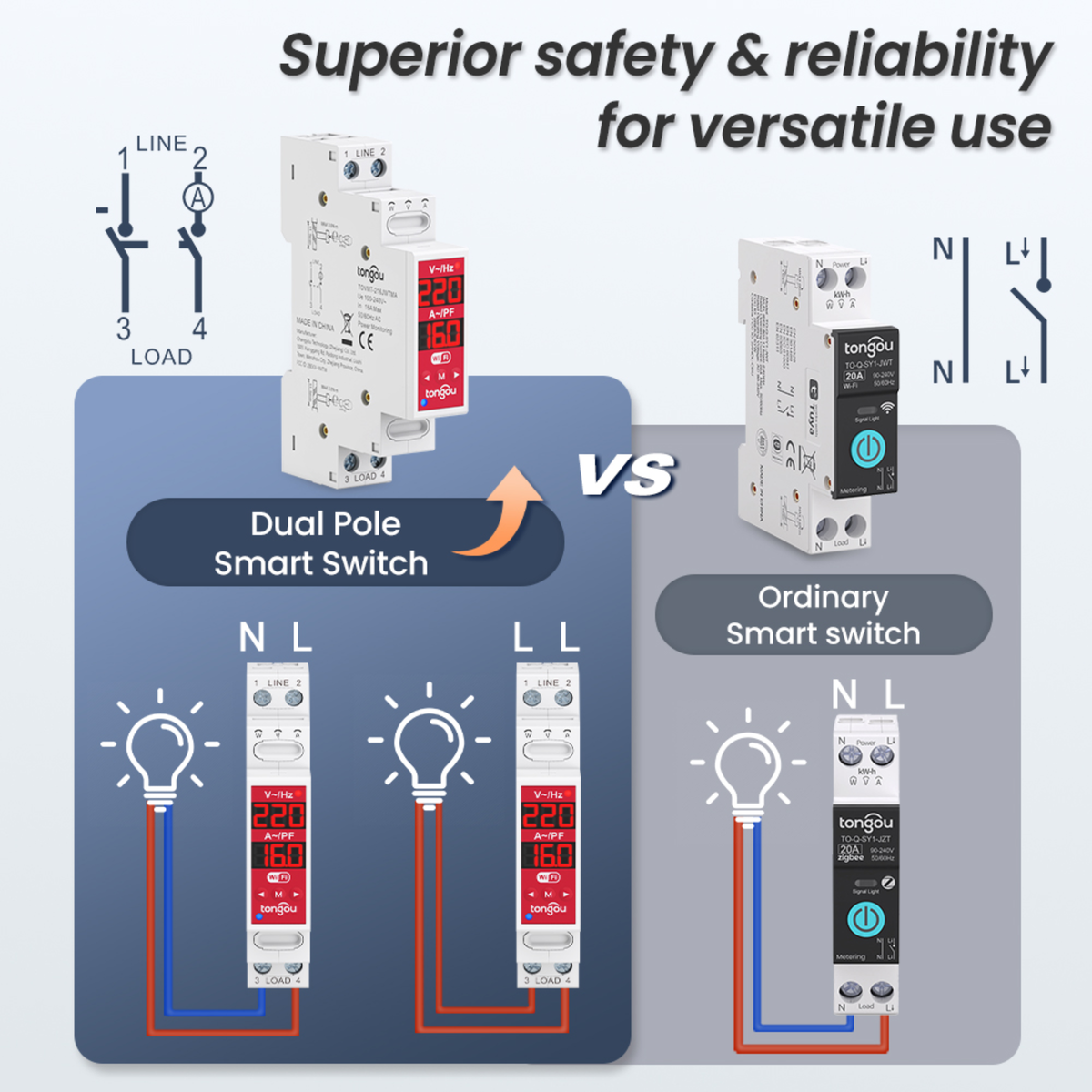

- True 2P Double Pole Disconnection: Disconnects both paths simultaneously for increased safety compared to many traditional switches.
- Wiring Flexibility: Supports both L-N and L-L within the 100~240V operating range.
- Remote Control + Timers: Turn on/off from anywhere, with daily/weekly scheduling.

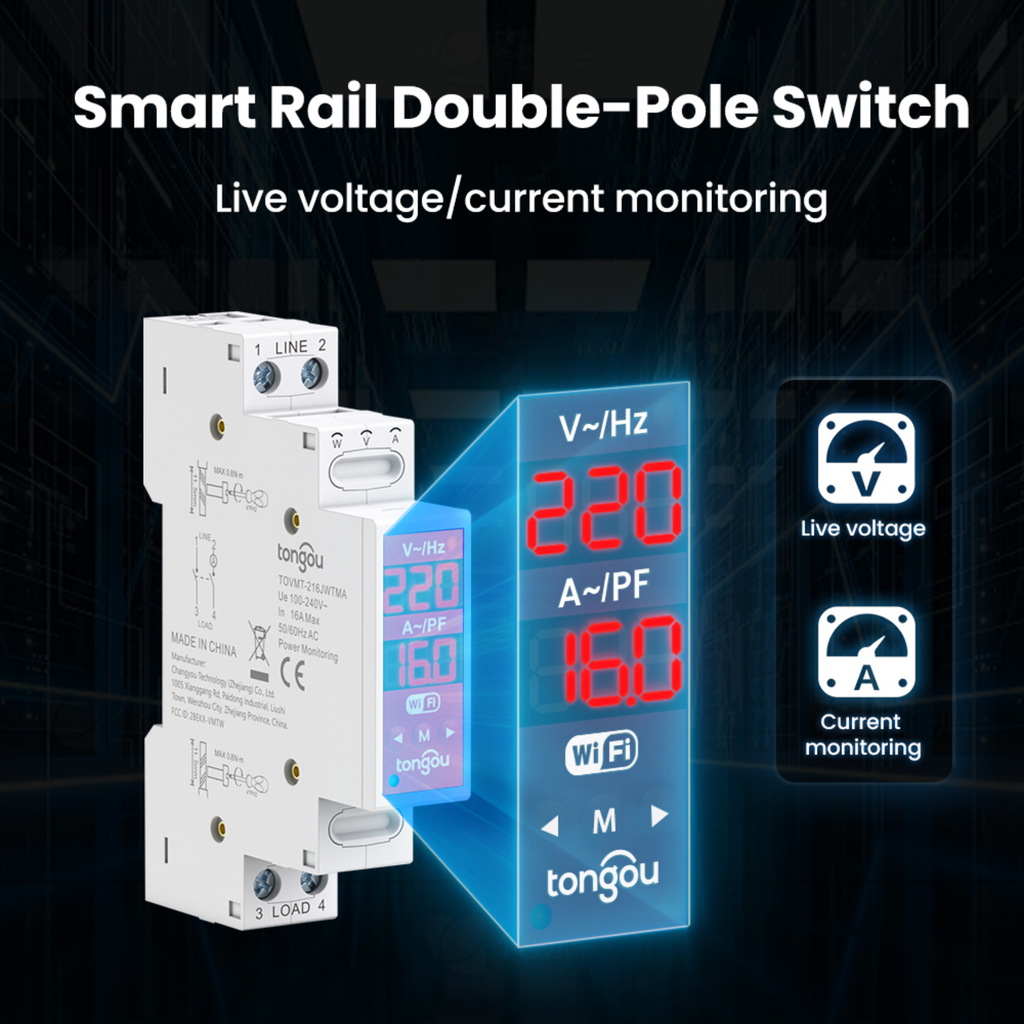

- Energy Metering: Monitor consumption via the app (depending on system support).

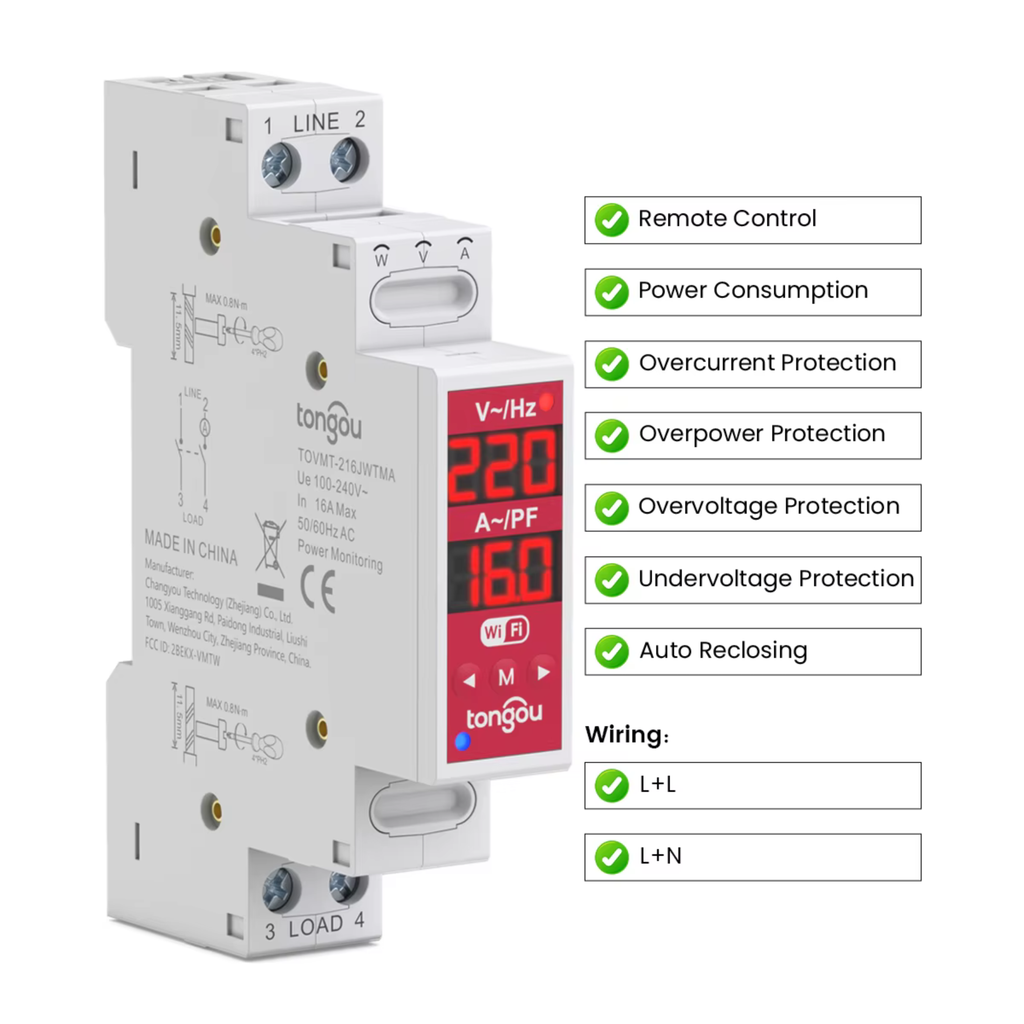

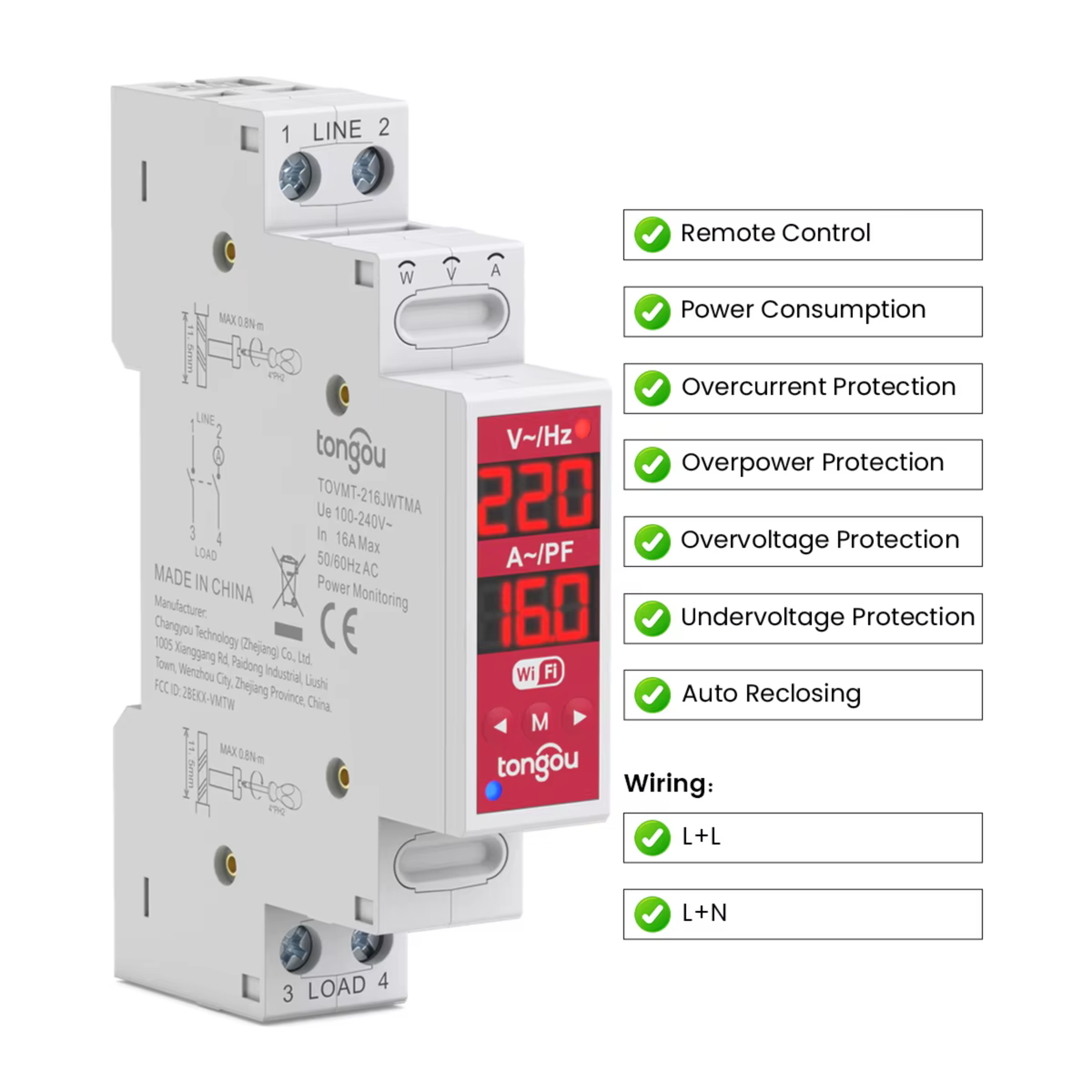

- Adjustable Protections: Over/under-voltage, overcurrent, and overpower protection with alarm/trip/delay options.

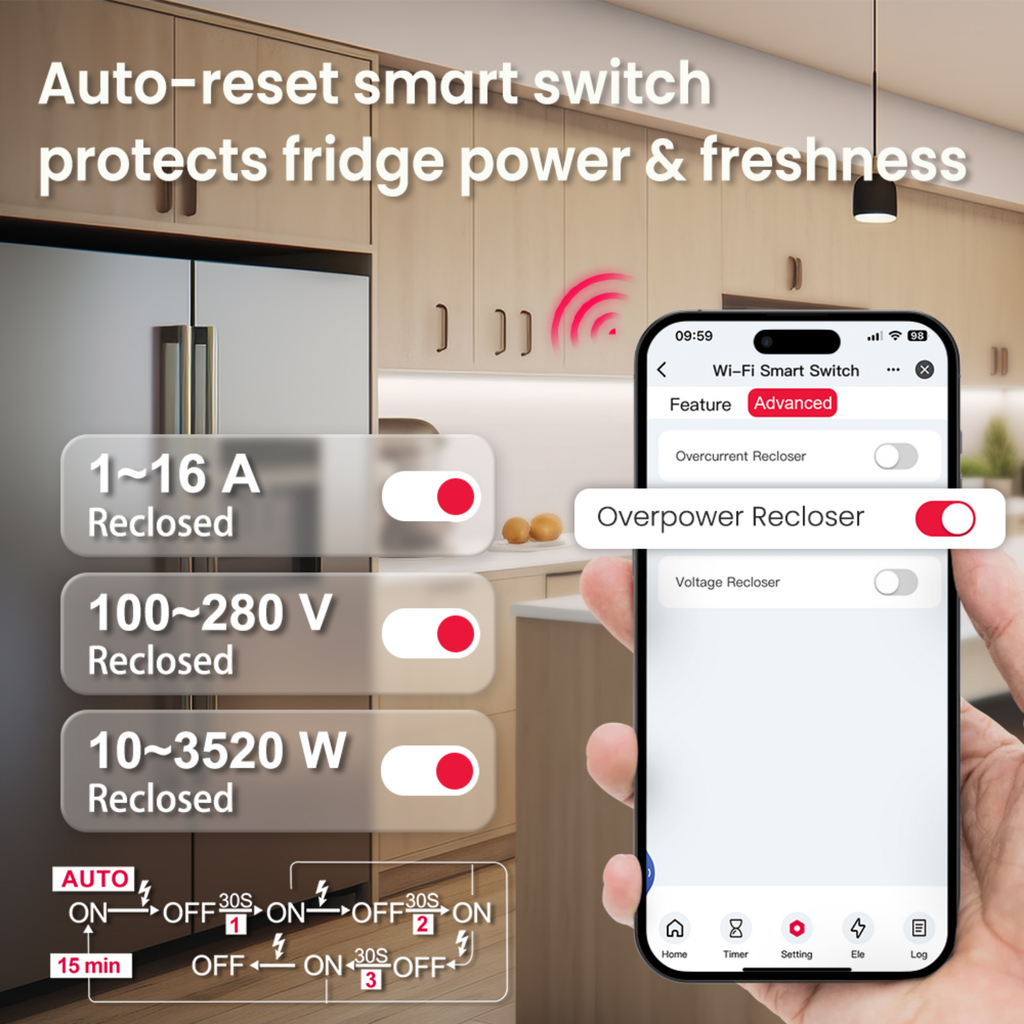

- Auto-Reclosing: After certain types of trips, it can restore power based on your settings.

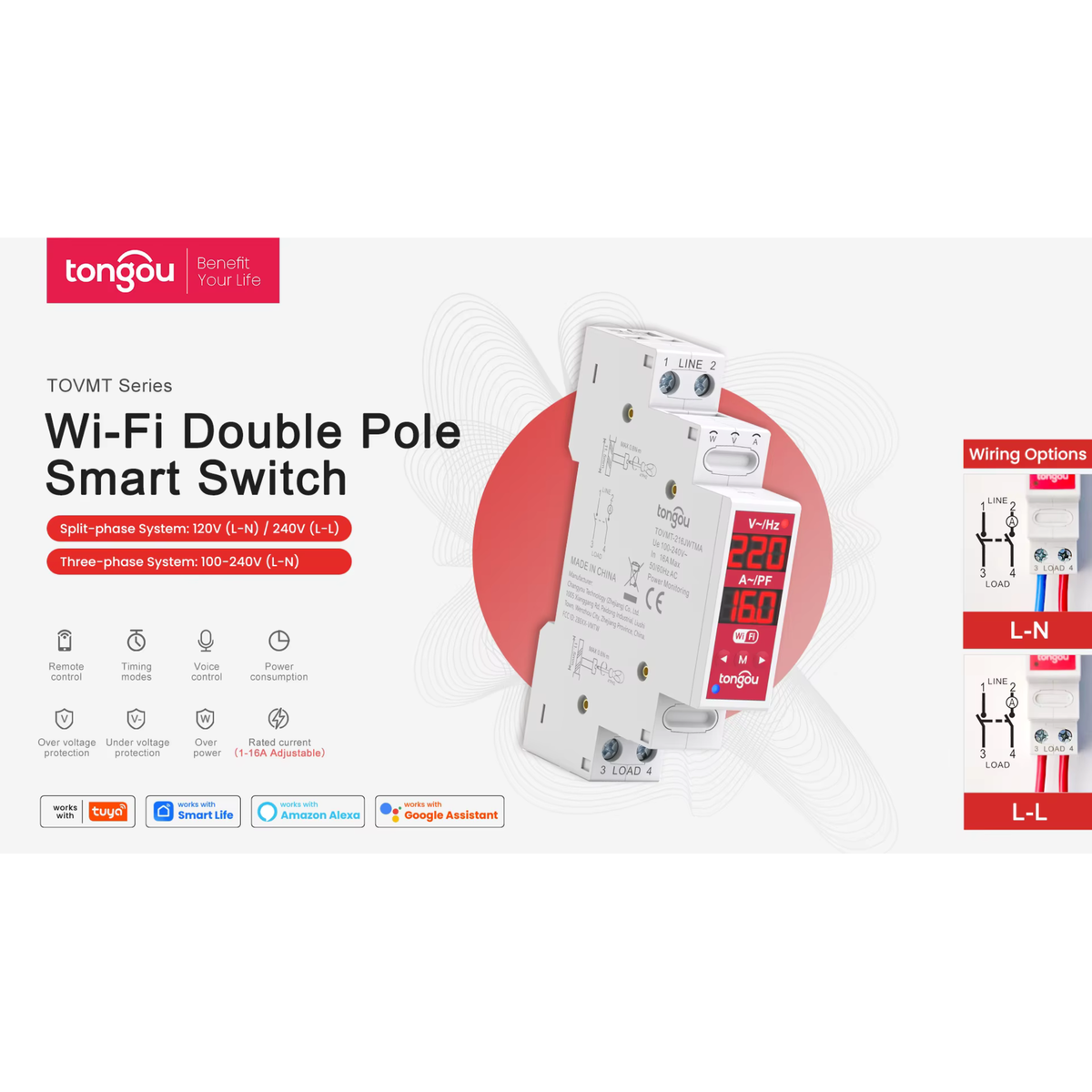

2) Supported Wiring Options
- L-N: Phase + Neutral (Standard for most homes).
- L-L: Two Lines (Suitable for systems like Split-phase or specific applications).
- Operating range: AC 100~240V and 50/60Hz frequency.

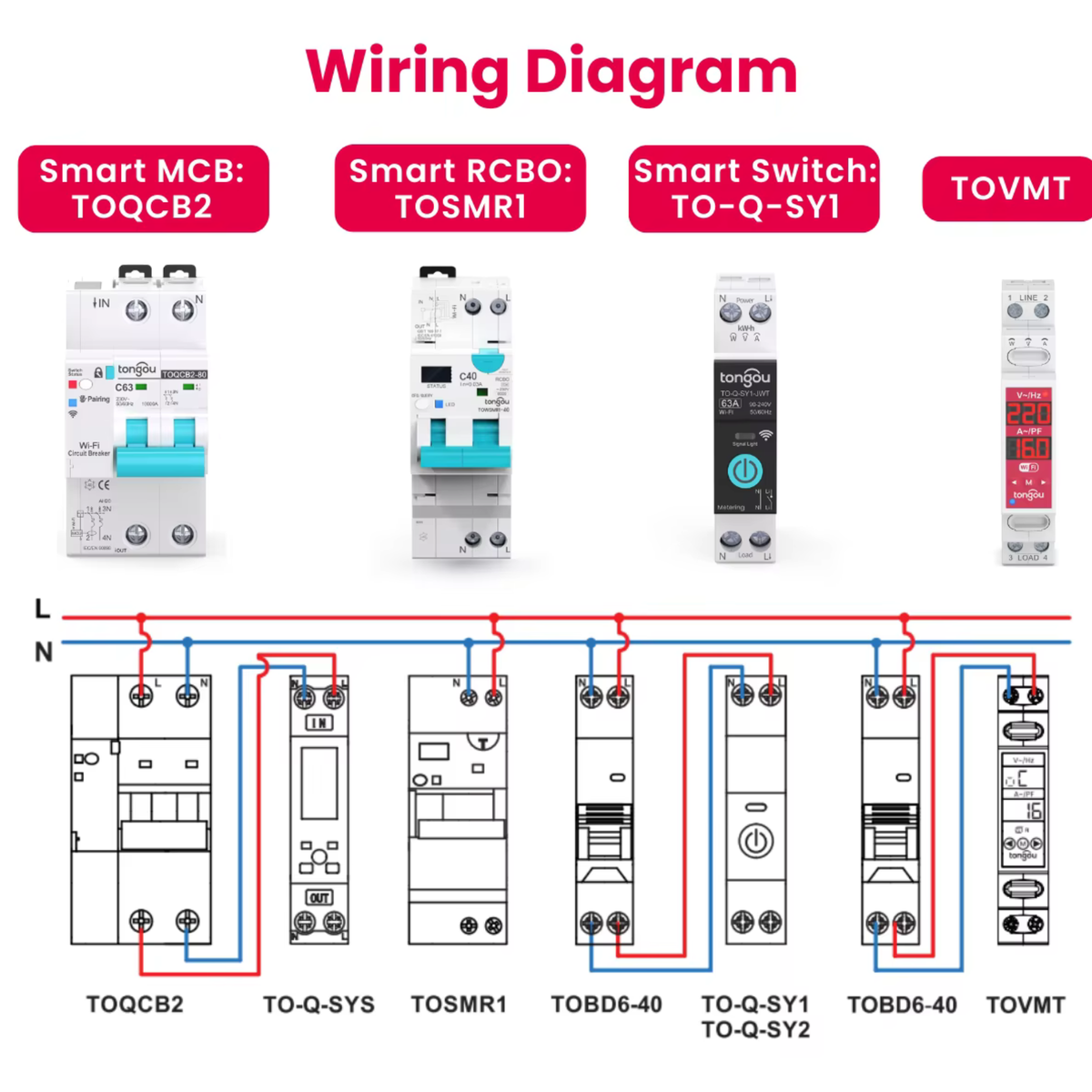

Please follow the wiring diagram provided in the product images, and ensure installation is performed by a qualified electrician.
3) Quick Setup (from the manual)
- Power on the device within the distribution panel and verify all connections are secure.
- Long press for 5 seconds to enter the Settings Menu.
- Use the M button to navigate between options and adjust values.
- To exit settings: Long press the Select button for 3 seconds (as per manual).
- Add the device to the Tuya/Smart Life app using the appropriate pairing mode for your 2.4GHz network.
4) Adjustable Protections and Settings
Overcurrent Protection
- Setting range: 1~16A
- Response mode: O (On) / F (Off) / A (Alarm)
- Delay time: 1~60 seconds
Overvoltage Protection
- Setting range: 100~280V
- Response mode: O / F / A
- Delay time: 1~10 seconds
Undervoltage Protection
- Setting range: 100~280V
- Response mode: O / F / A
- Delay time: 1~10 seconds
Overpower Protection
- Setting range: 0.01~3.52 kW
- Response mode: O / F / A
- Delay time: 1~60 seconds
Additional Settings (from manual):
- Password: From 000 (default) to 999.
- Auto-Reclosing: After OV/UV/OC/OP depending on your configuration.

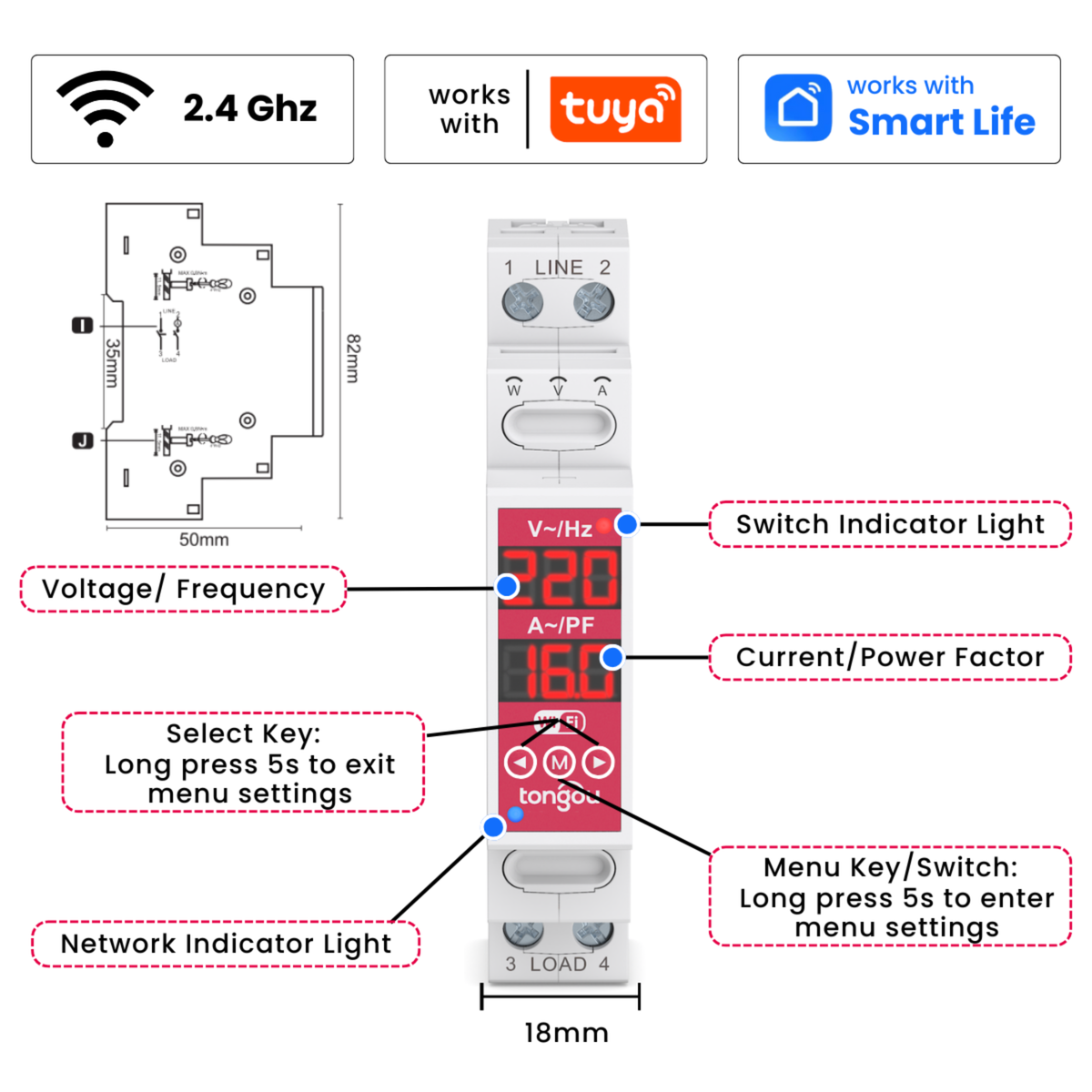

5) Control Modes and Indicators
Control Mode
- Local Lock: Device is disabled locally while data transmission continues.
- Local Mode: Control only via the device.
- Remote Mode: Control only via the app.
- Full Control: Full control (local + app).

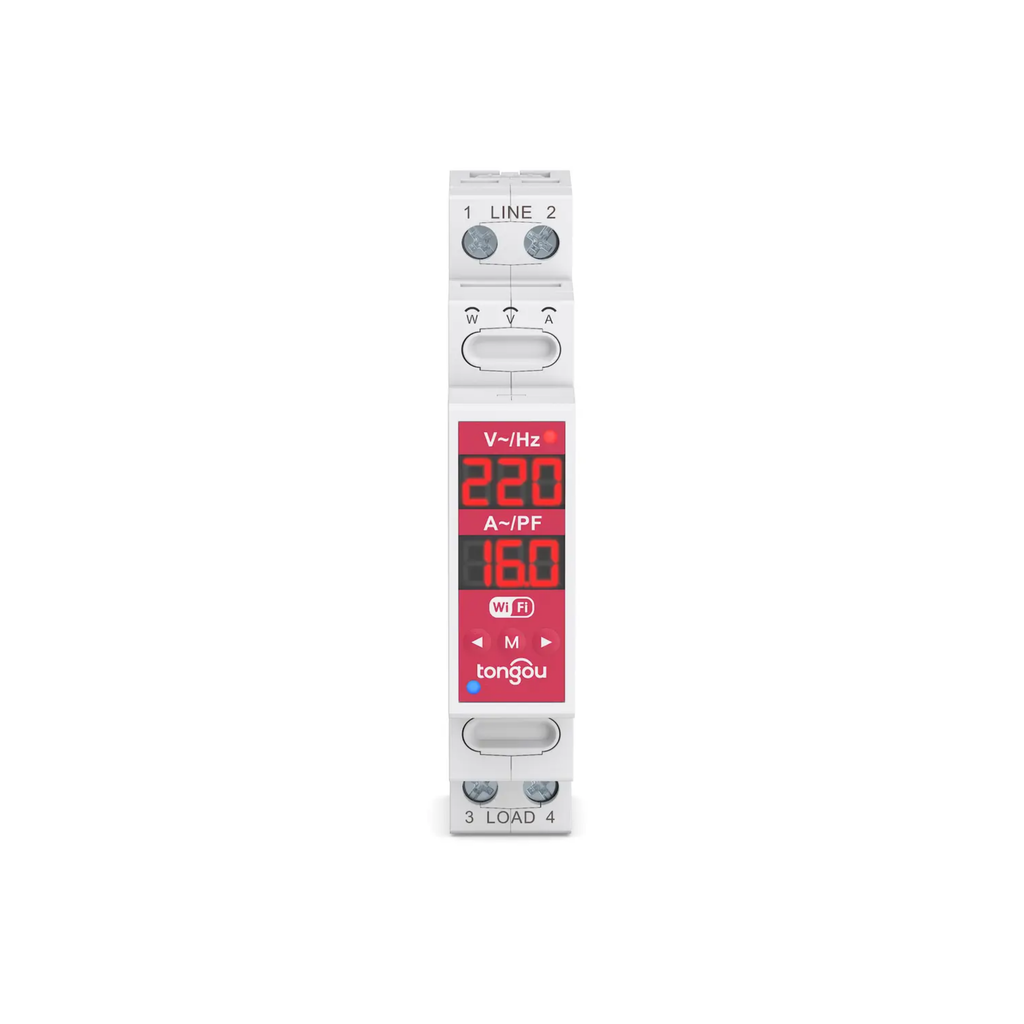

LED Indicators
- Switch indicator: Solid red = ON, Off = OFF.
-
Network indicator:
- Solid blue: Normal connection.
- Continuous blue flash: Network configuration mode.
- Flashing once every 4 seconds: Network lost.
- Off: Not connected.
- Fast flash: AP mode.
- Constant slow flash: Alarm event (local version only).
6) Full Technical Specifications
| Item | Value |
|---|---|
| Product Type | Double Pole Smart Switch/Relay |
| Poles | 2P |
| Rated Current | 16A |
| Operating Voltage | AC 100~240V |
| Frequency | 50/60Hz |
| Wiring Options | L-L / L-N |
| Connectivity/App | Wi-Fi via Tuya / Smart Life |
| Remote Control | Yes |
| Energy Metering | Yes (Consumption view via app) |
| Overvoltage Protection | 100~280V (Adjustable) |
| Undervoltage Protection | 100~280V (Adjustable) |
| Overcurrent Protection | 1~16A (Adjustable) |
| Overpower Protection | 0.01~3.52kW (Adjustable) |
| Auto-Reclosing | Supported after (OV/UV/OC/OP) based on settings |
7) Safety and Compliance
Important Warnings:
- Installation and maintenance must be performed by qualified professionals in compliance with safety instructions.
- If damage is found upon opening the package: Do not install.
- Install inside a distribution board/cabinet with appropriate isolation to prevent unauthorized access.
- Comply with local/regional/national electrical installation regulations.
FCC
Device operation in accordance with Part 15 requirements (no interference and acceptance of any received interference).
EU (2014/53/EU) + WEEE
Compliance with relevant EU directives, including WEEE notification for recycling and proper electronic waste disposal.
8) Common Use Cases
- Switching a water heater or a small pump on/off within 16A limits, with voltage/current protection.
- Lighting circuits within a distribution board (e.g., outdoor/garden lights) with automatic scheduling.
- Household loads requiring double-pole disconnection for enhanced safety, with consumption monitoring and alerts.
Note: Selecting the appropriate load depends on the device type (inrush current/inductive load), wire quality, and the circuit breaker protecting the device.
