Smart WIFI motion sensor (2 x CR123A batteries or USB) Tuya or Smart Life system

Wi-Fi motion sensor (battery or USB)

A smart motion sensor that operates via 2.4GHz Wi-Fi and sends instant alerts when motion is detected. It supports battery or USB power and can be connected to other smart devices to create automation scenarios.

Quick badges

• Instant alerts
• Automation link
• Reduce battery consumption
• Device sharing

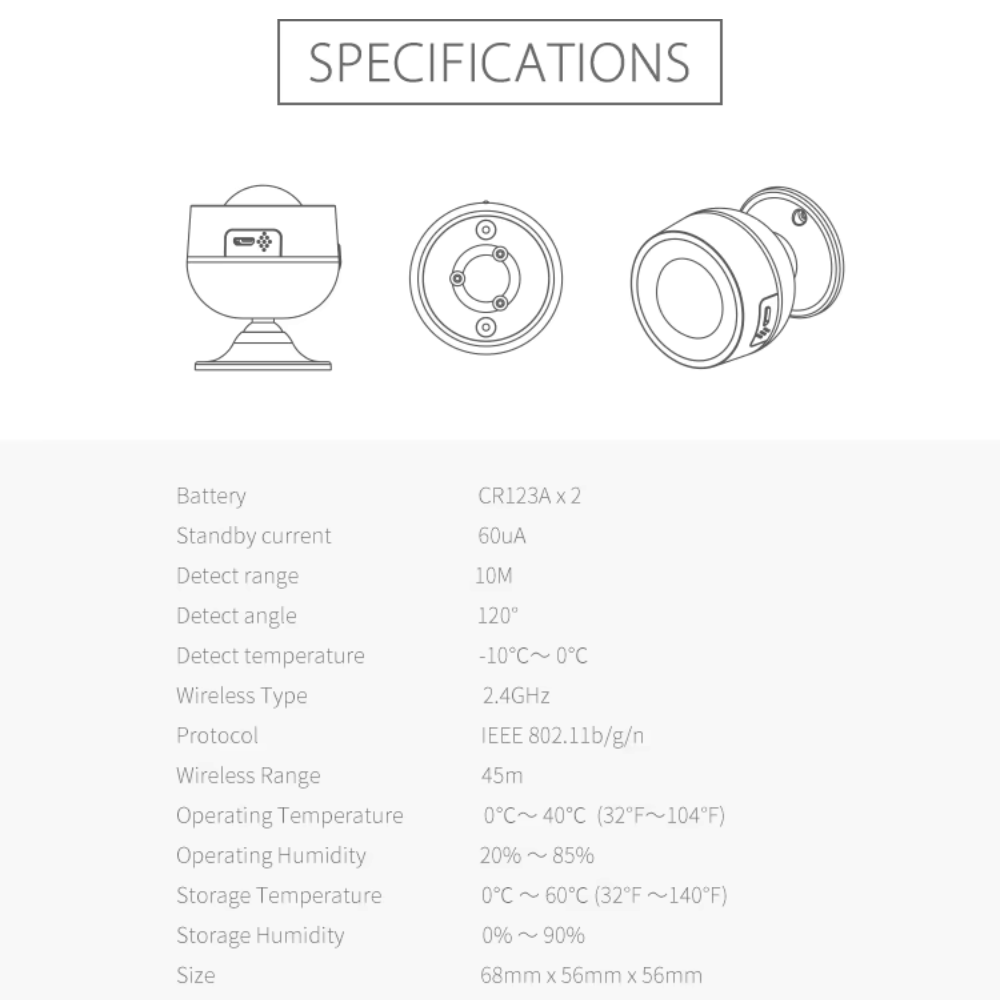

Basic specifications

• Power source: Two CR123A (3V) batteries or USB 5V/1A
• Standby current: ≈ 60µA
• Detection range: up to 10 m
• Detection angle: 120°
• Operating environment: Temperature 0~40°C — Humidity 20%~85%
• Wireless connectivity: Wi-Fi 2.4GHz (IEEE 802.11 b/g/n)
• Wi-Fi range: Up to 45m in open spaces (may decrease indoors depending on obstacles and signal quality)
• Dimensions: 68.2 x 56 x 56 mm

Smart Features

• Instant alerts to the phone when motion is detected (iOS/Android apps).
• Sharing the device with multiple users for control and receiving notifications.
• Tamper alarm: Notification when the cover is removed.
• Determine the sensor's operating periods and link it to other Wi-Fi devices to create automation scenarios.
• The movement is checked every minute with the alert continuing as long as the movement continues.

Range Advice

For optimal performance, place the sensor and router on the same floor and away from metal obstructions and thick walls.

Lighting indicators

• Powering via USB:
  • Standby mode: Flashes once every two seconds
  • AP mode: Flashes twice per second
  • Stillness: Stillness does not enter
• Battery powered:
  • Standby mode: Flashes once every two seconds
  • AP mode: Flashes twice per second
  • Stillness: Stillness is used to conserve energy.

Useful battery information

• High charging level at voltage > 2.95V, medium > 2.83V, and low < 2.72V.
• To change the thermometer (if available in another version): Press the reset button for one second.
• Full reset/entering add-on mode: Press and hold for 5–7 seconds.
