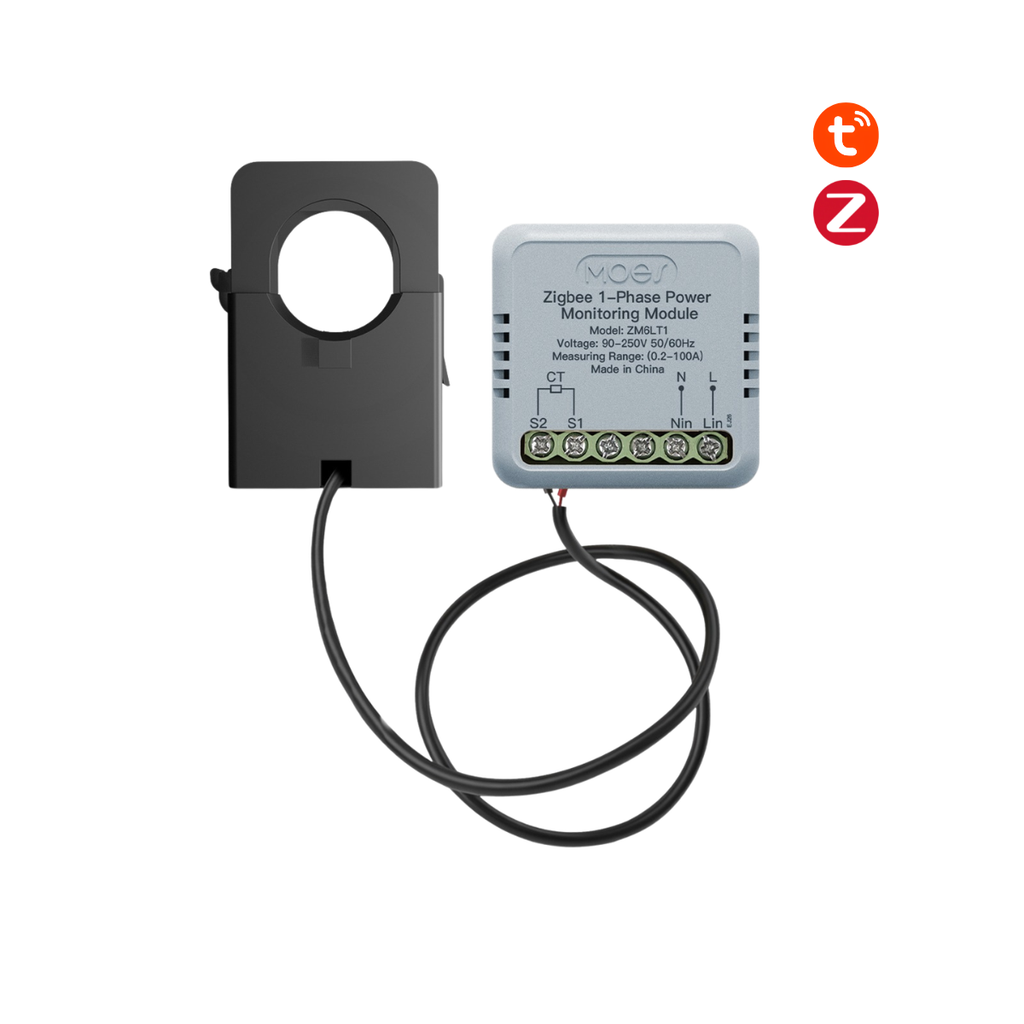

MOES Smart Energy Consumption Monitor
Smartly control your electricity consumption and understand your bill details with precision. This device is designed to give you live, accurate readings of household appliance consumption via a mobile app, featuring bi-directional measurement that is ideal for solar energy systems.
Key Technologies and Features
Bi-directional Measurement
It not only measures consumed energy but also measures returned energy, making it the perfect choice for accurately monitoring solar energy system production.

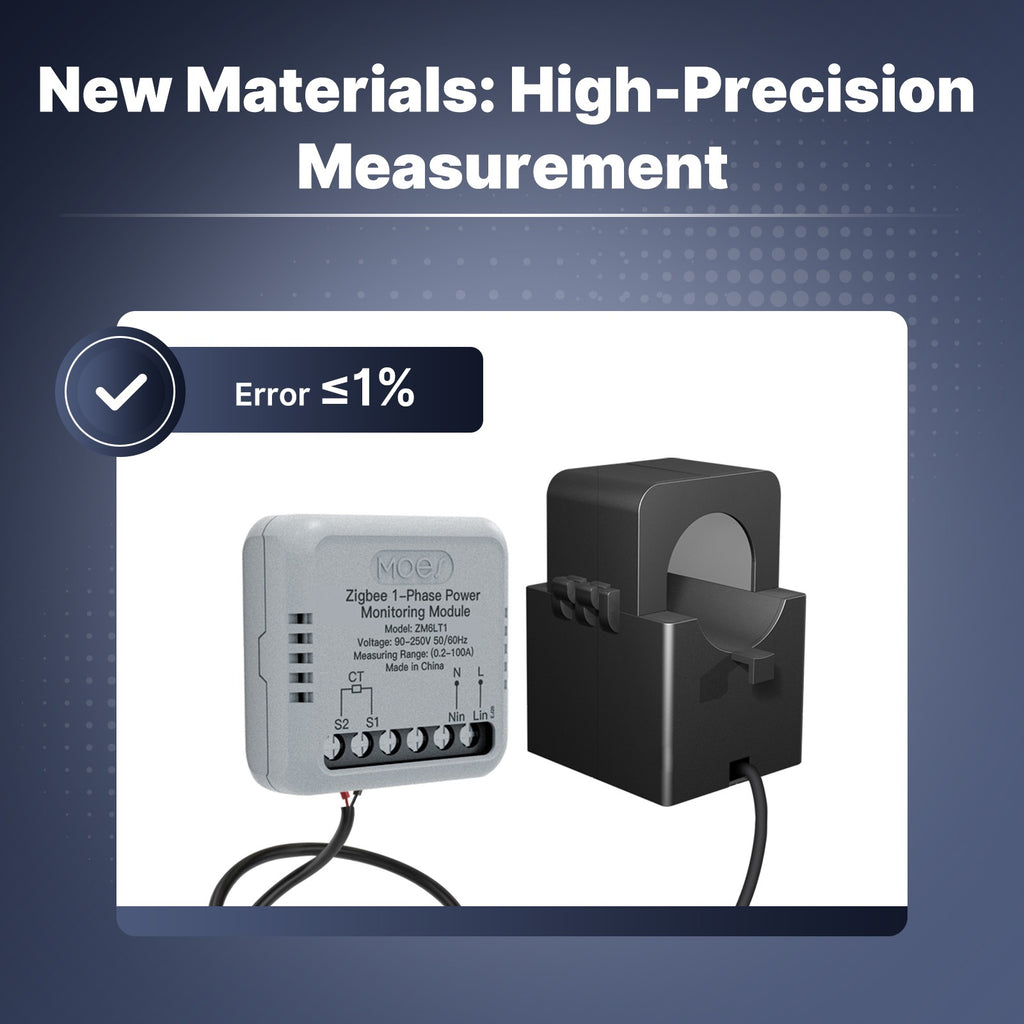

High Measurement Accuracy
Monitors electrical current with extreme precision (Class 1.0) within a wide and flexible range from 0.2A up to 100A.
Detailed Statistics and Reports

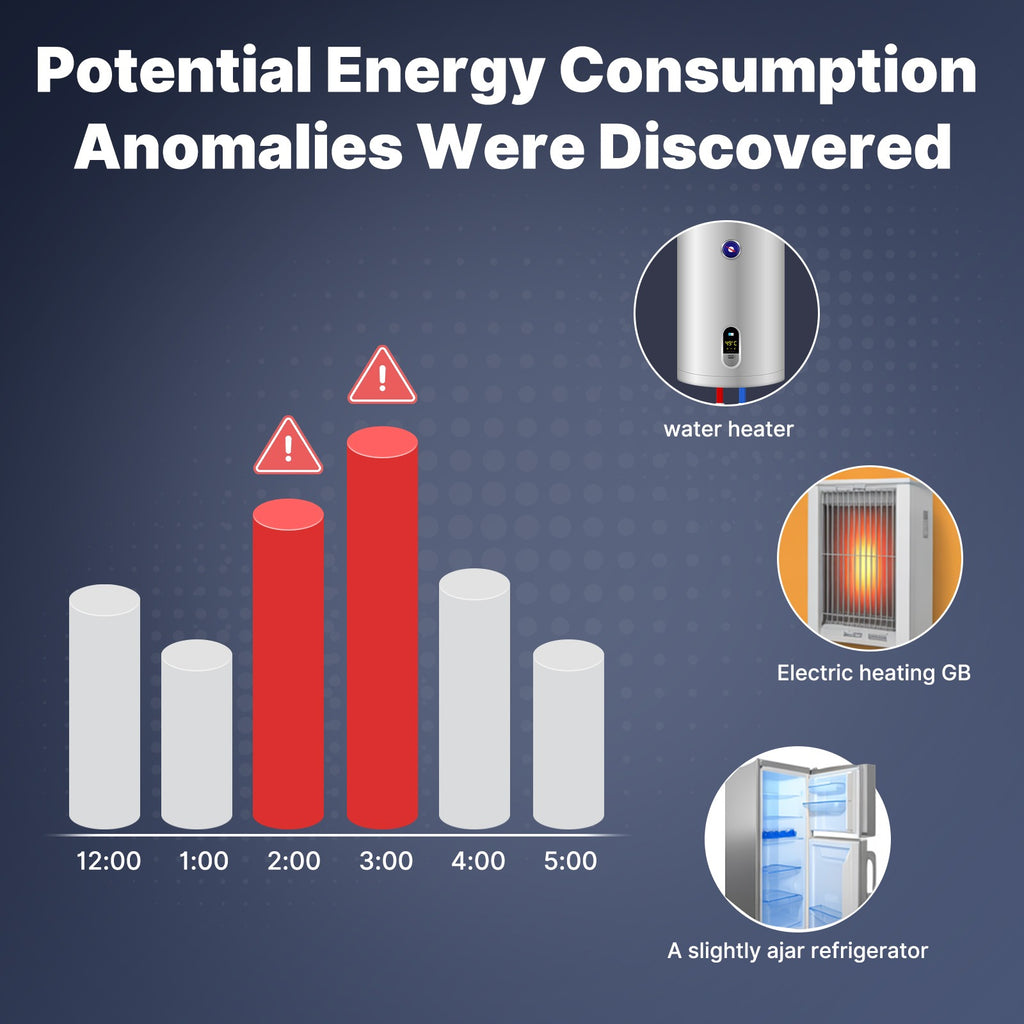

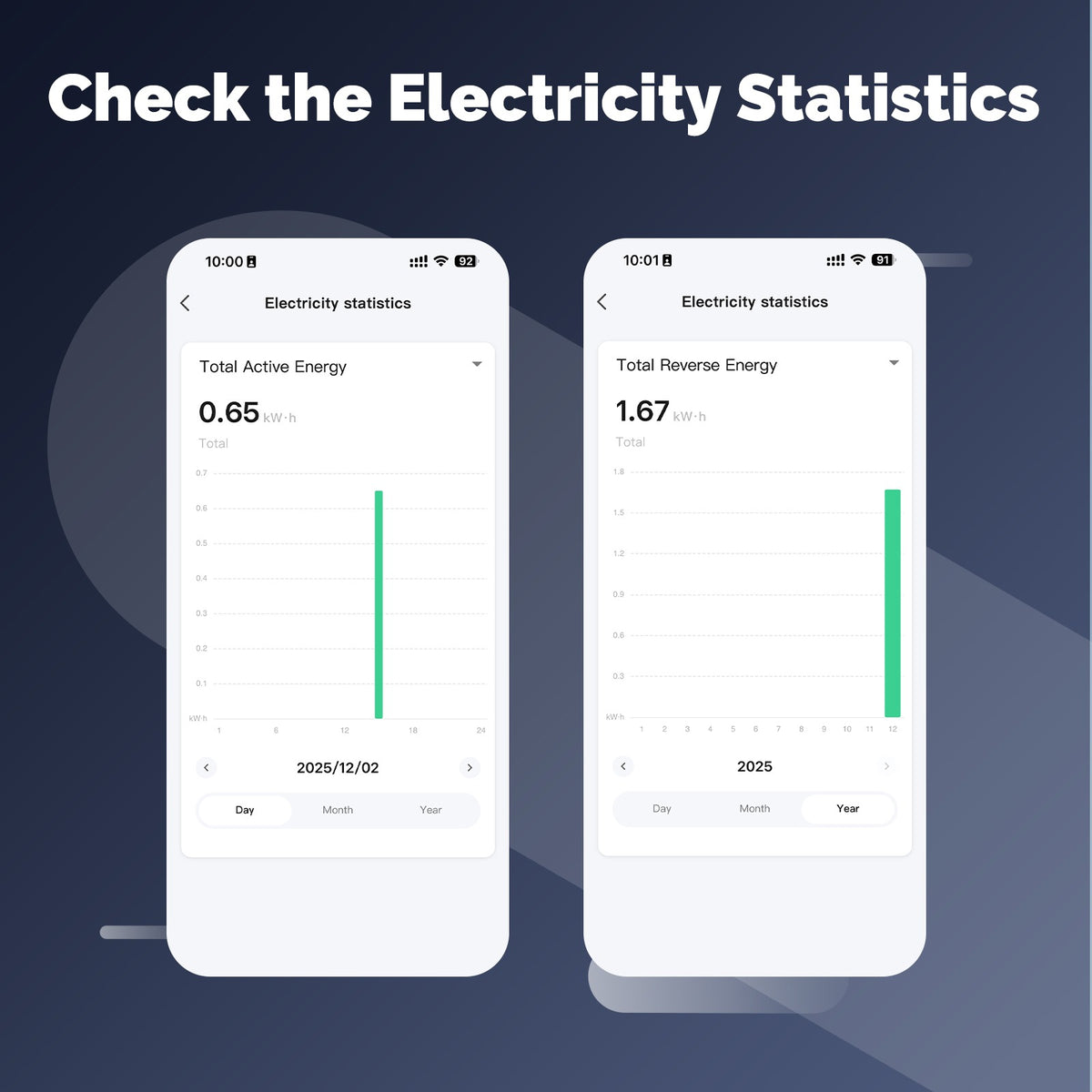

Track your daily, monthly, and annual consumption via clear charts, helping you optimize consumption and detect appliances with abnormal usage.
Protection and Security Alarms
Set upper and lower limits for consumption, and the device will send instant notifications in cases of overvoltage, undervoltage, or overcurrent.
Easy and Safe Installation

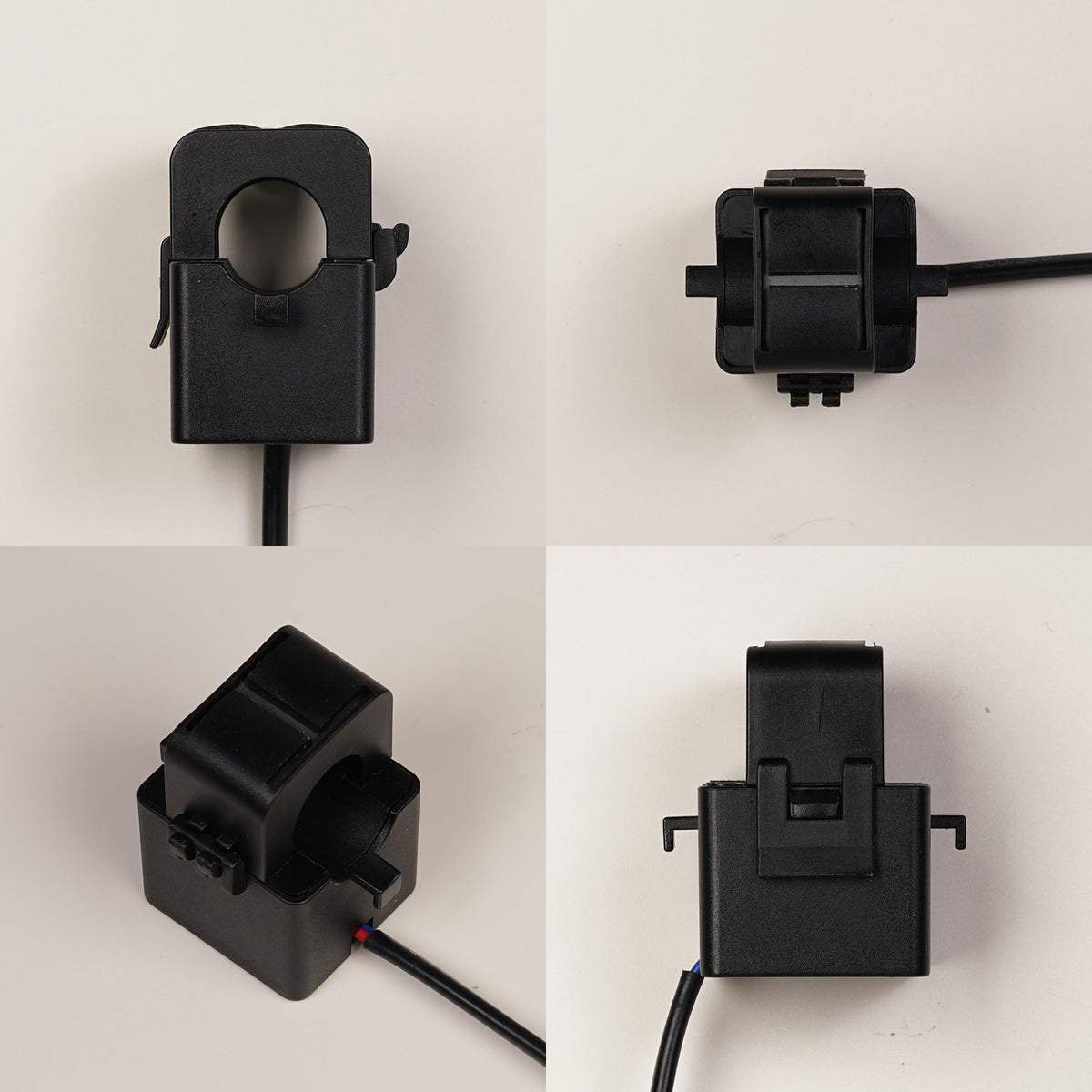

No need to disconnect or cut main wires. Simply pass the live line through the current clamp (CT Clamp) and close it securely with complete safety.
Comprehensive Data Range

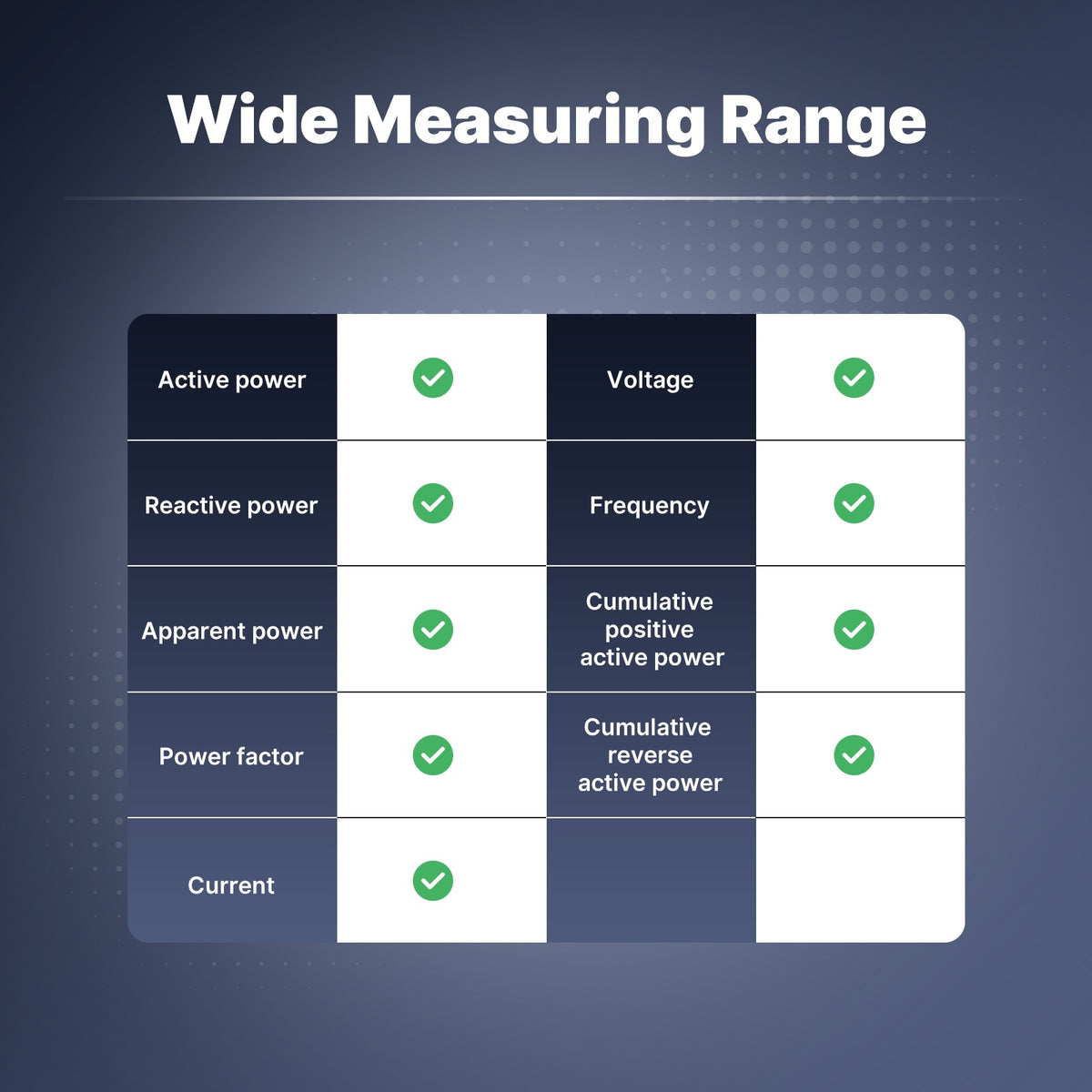

Provides live readings of voltage, current, active and reactive power, apparent power, power factor, and frequency so you are fully informed about your electrical system.

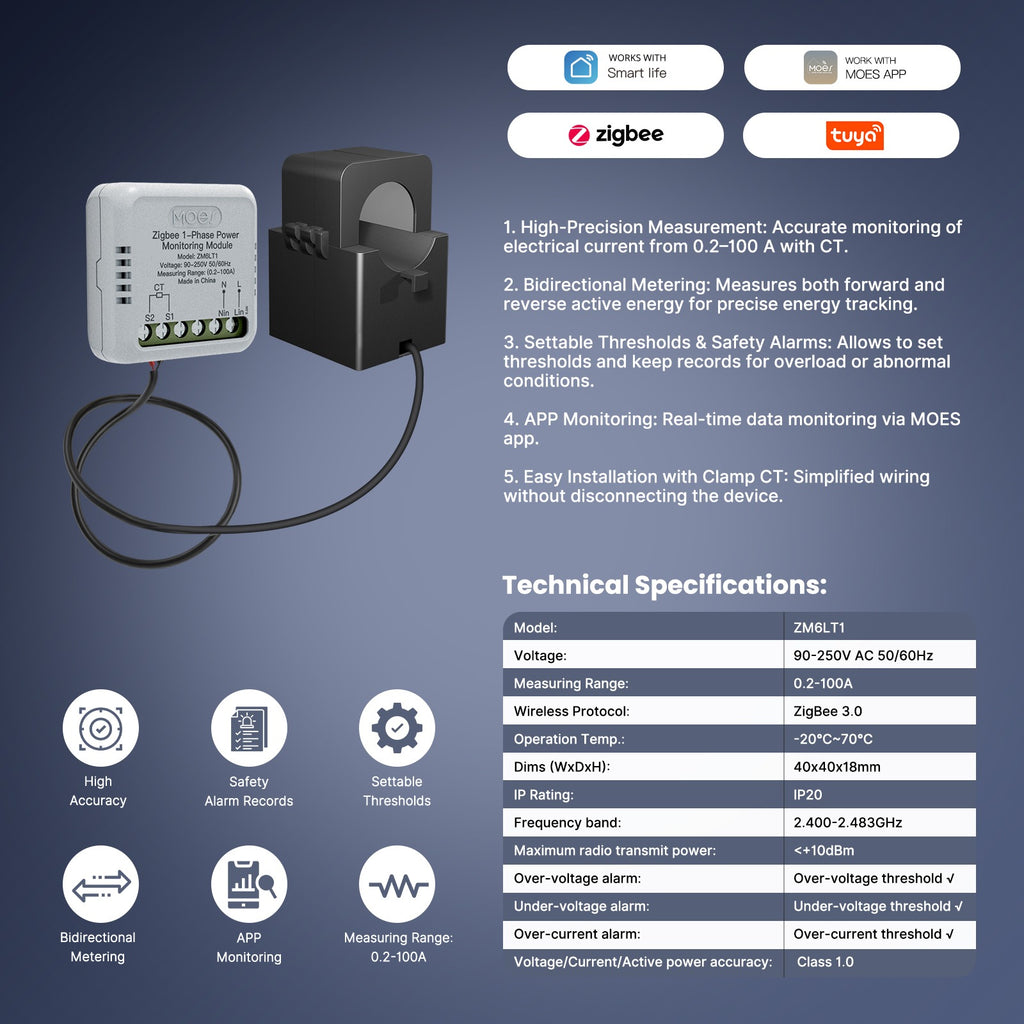

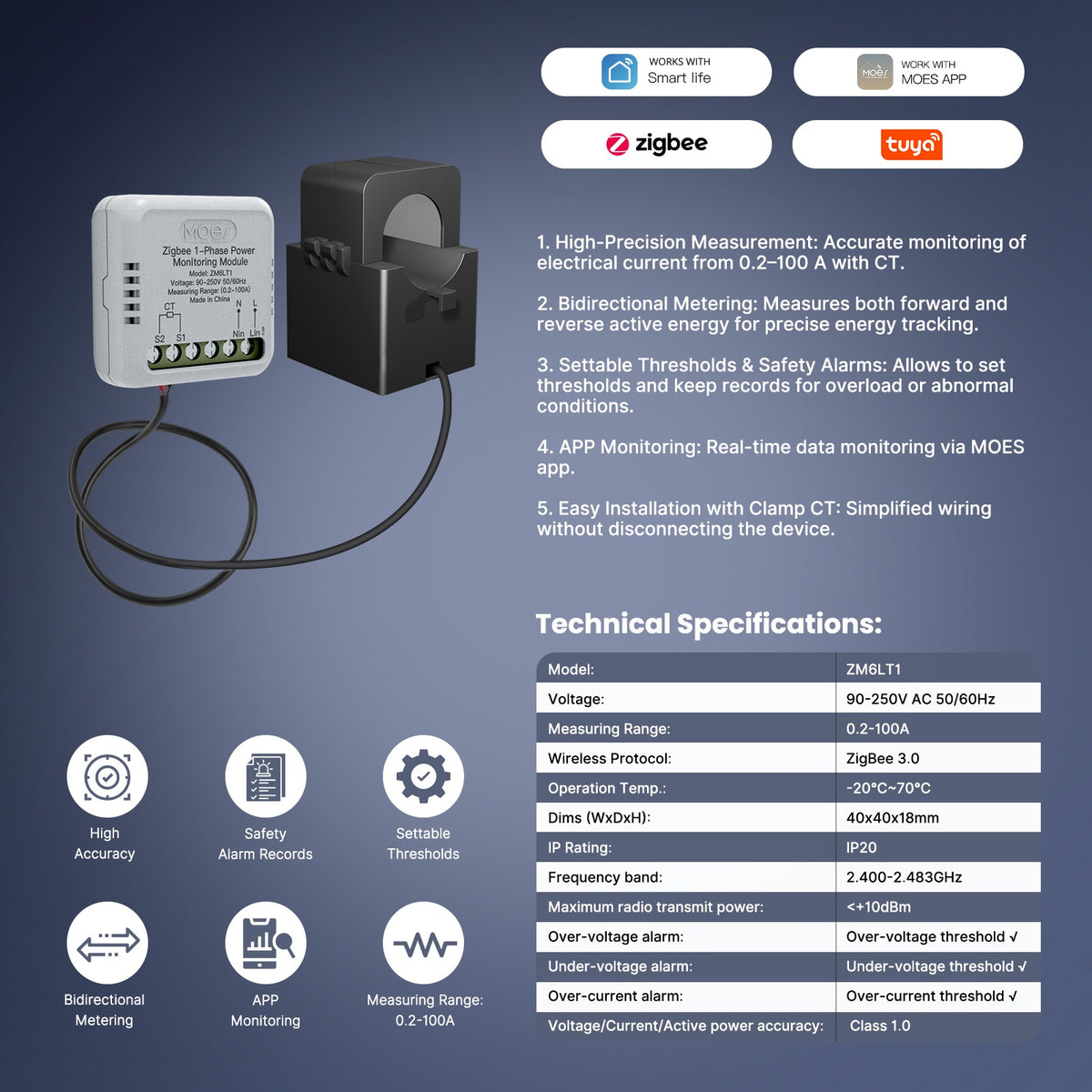

Technical Specifications
| Brand | MOES |
|---|---|
| Model | ZM6LT1 |
| Communication Protocol | ZigBee 3.0 / MQTT |
| Voltage Range | 90 - 250V (AC) | 50/60Hz |
| Current Measurement Range | 0.5 - 100A (Max) |
| Maximum Power | 23KW |
| Operating Temperature | -20°C to 70°C |

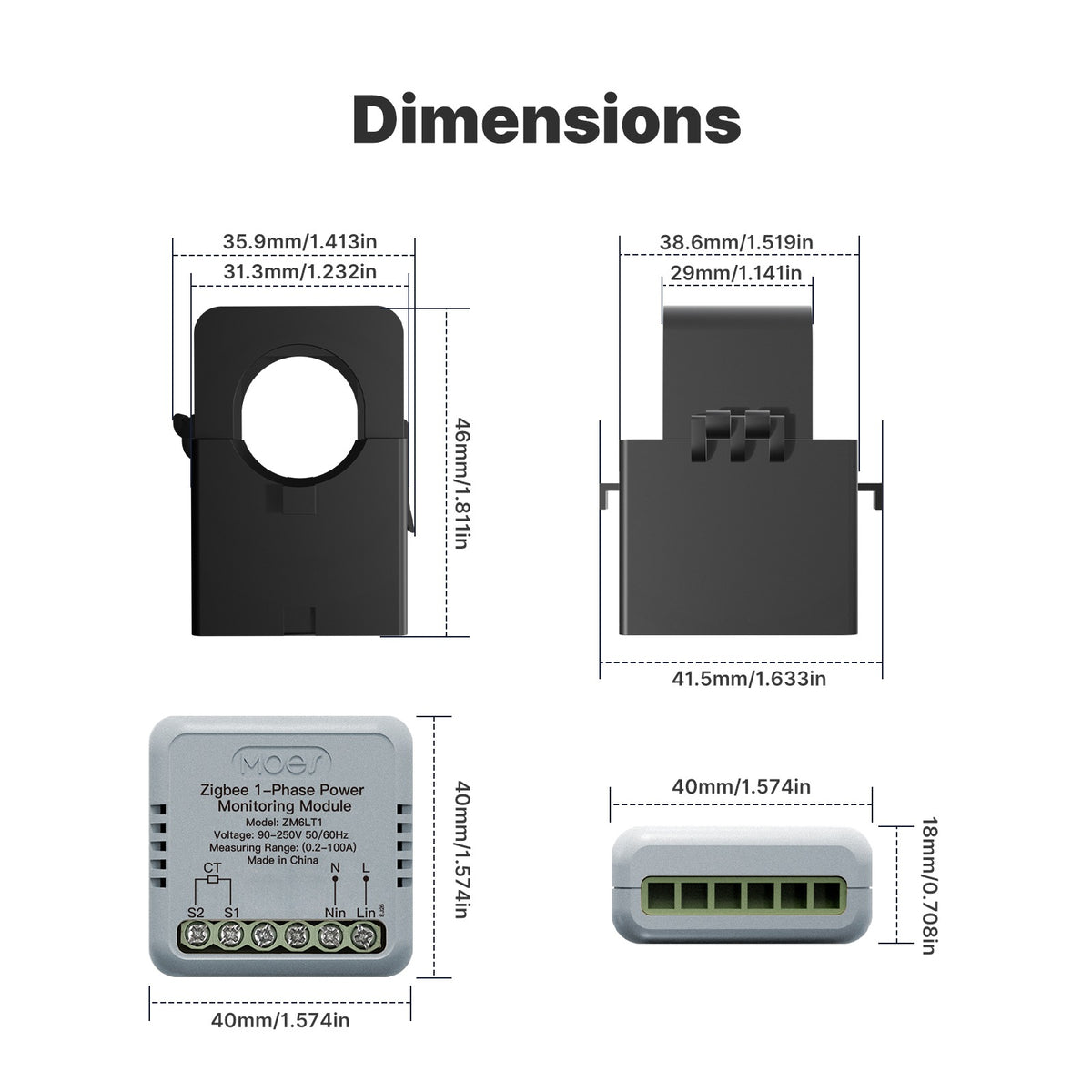

| Dimensions | 40 × 40 × 18 mm (compact size, easy to hide) |
Setup and Operation Notes
Important Instructions Before Purchasing
- This device operates on the ZigBee protocol, therefore it requires a ZigBee Gateway to connect to the internet and work with the application.

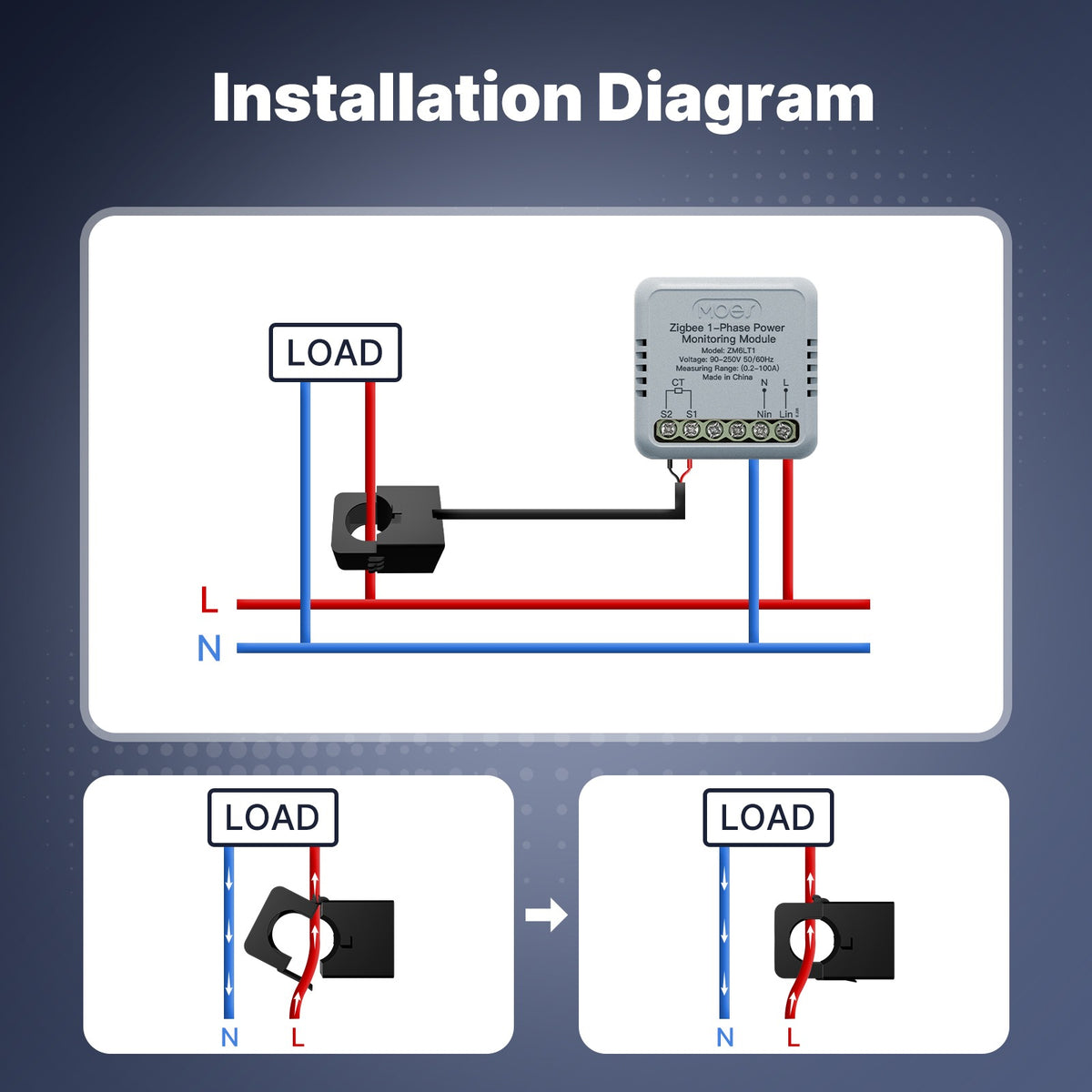

- The CT clamp must be installed on the live (L) wire only in the direction of the electrical load as shown by the arrows.
- It is strictly forbidden for the clamp to enclose both the live and neutral (L and N) wires together at the same time.
- The box contains: Smart Energy Monitor, Current Transformer Clamp, and User Manual.
