Smart fuse with amperage control from 1-63 amps, Zippy system, functions as a protection device, Tuya Smart Life app.
Smart fuse with amperage control from 1-63 amps, Zippy system, functions as a protection device, Tuya Smart Life app.
SKU:SMFY-ZSY2T
Regular price
34,000 IQD
Regular price
Sale price
34,000 IQD
Unit price
per
Shipping calculated at checkout.
32 in stock
Couldn't load pickup availability
quality assurance
One full year replacement warranty
Fast shipping

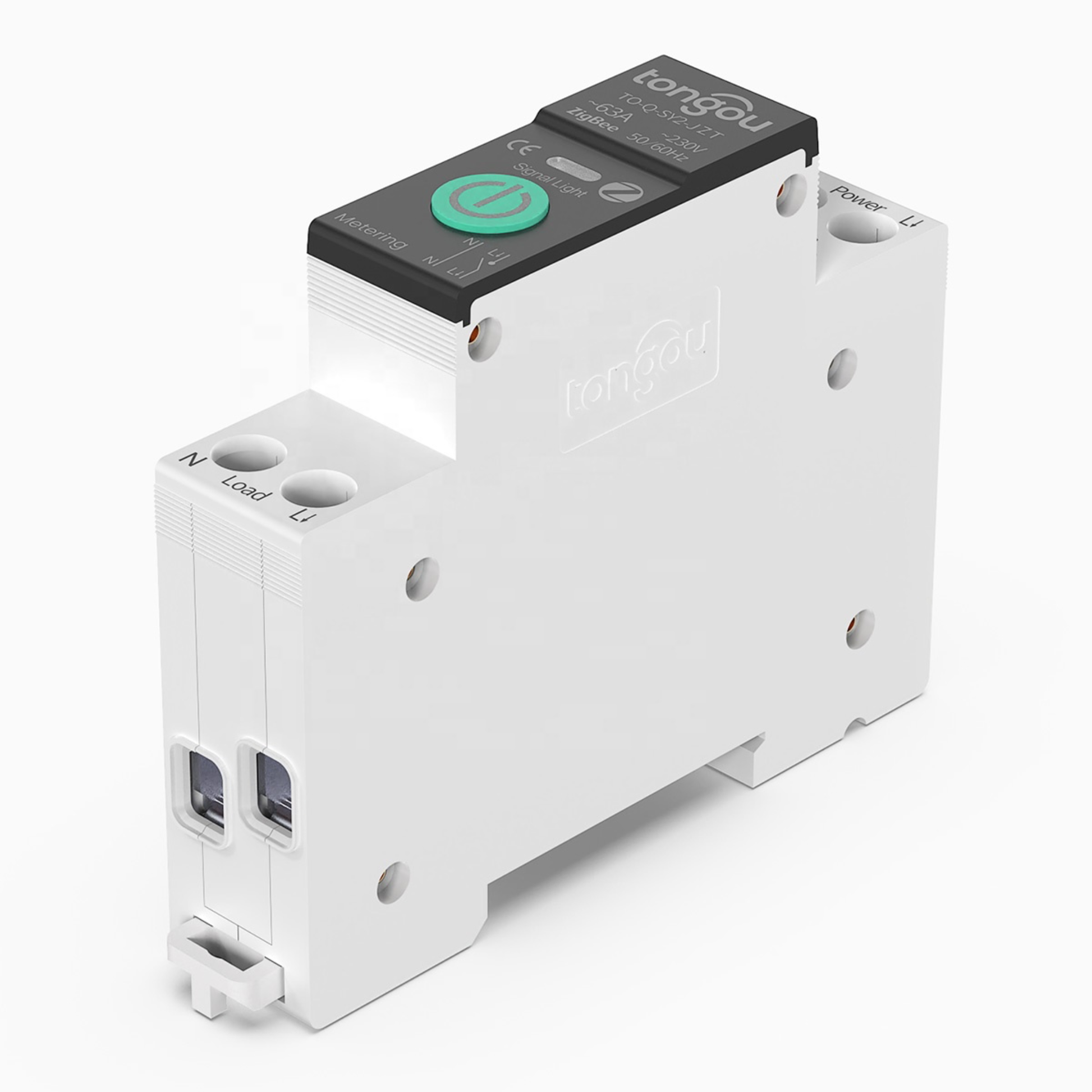

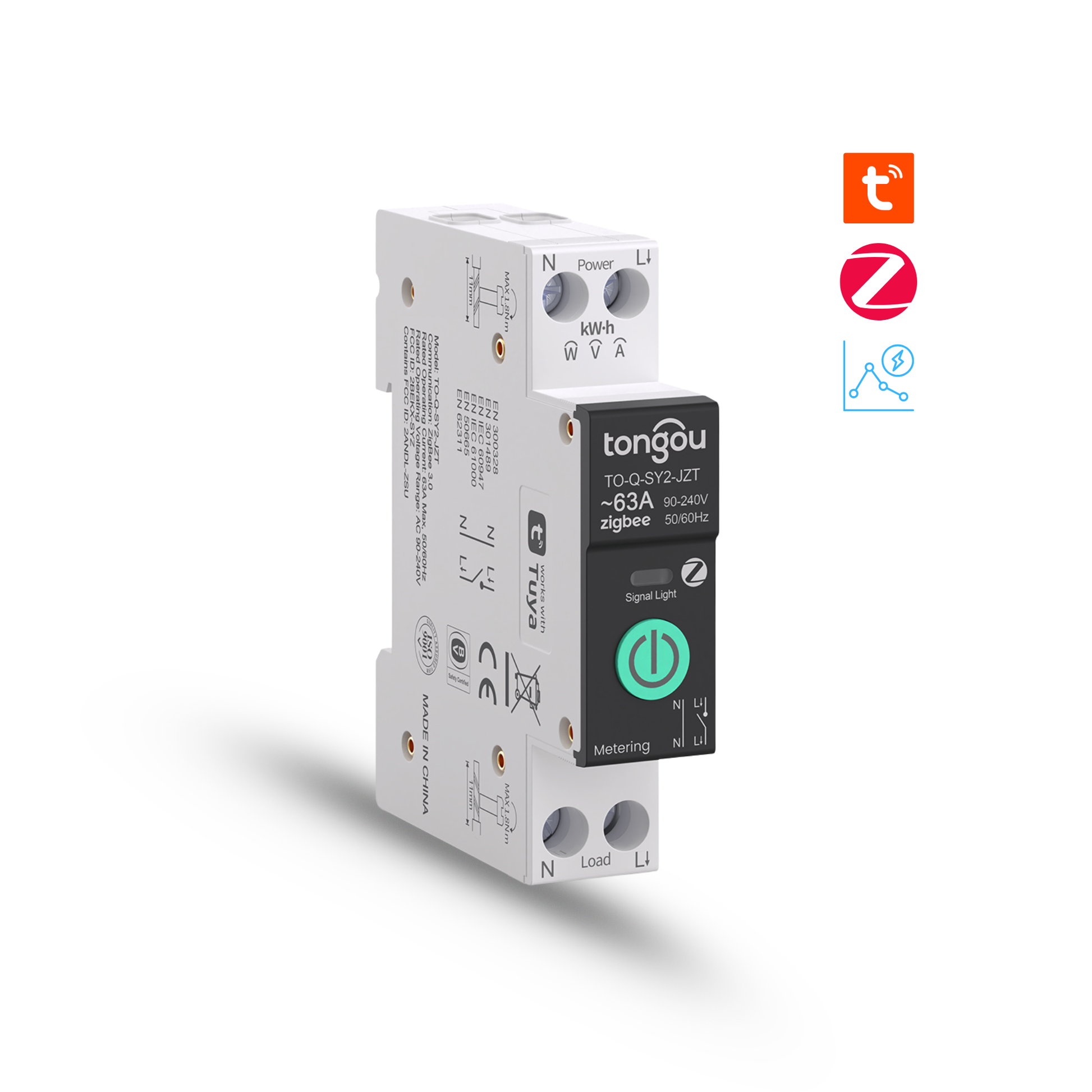

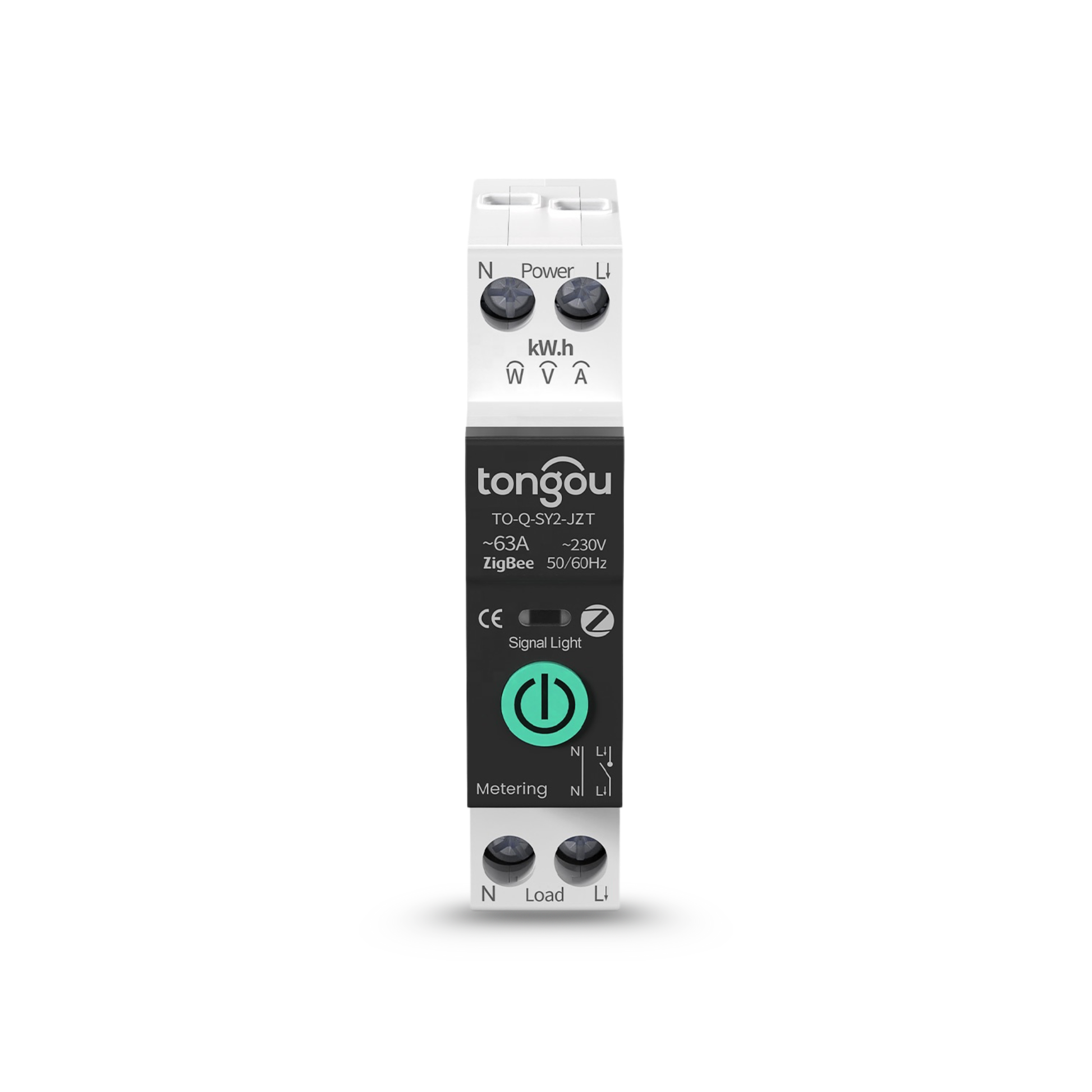

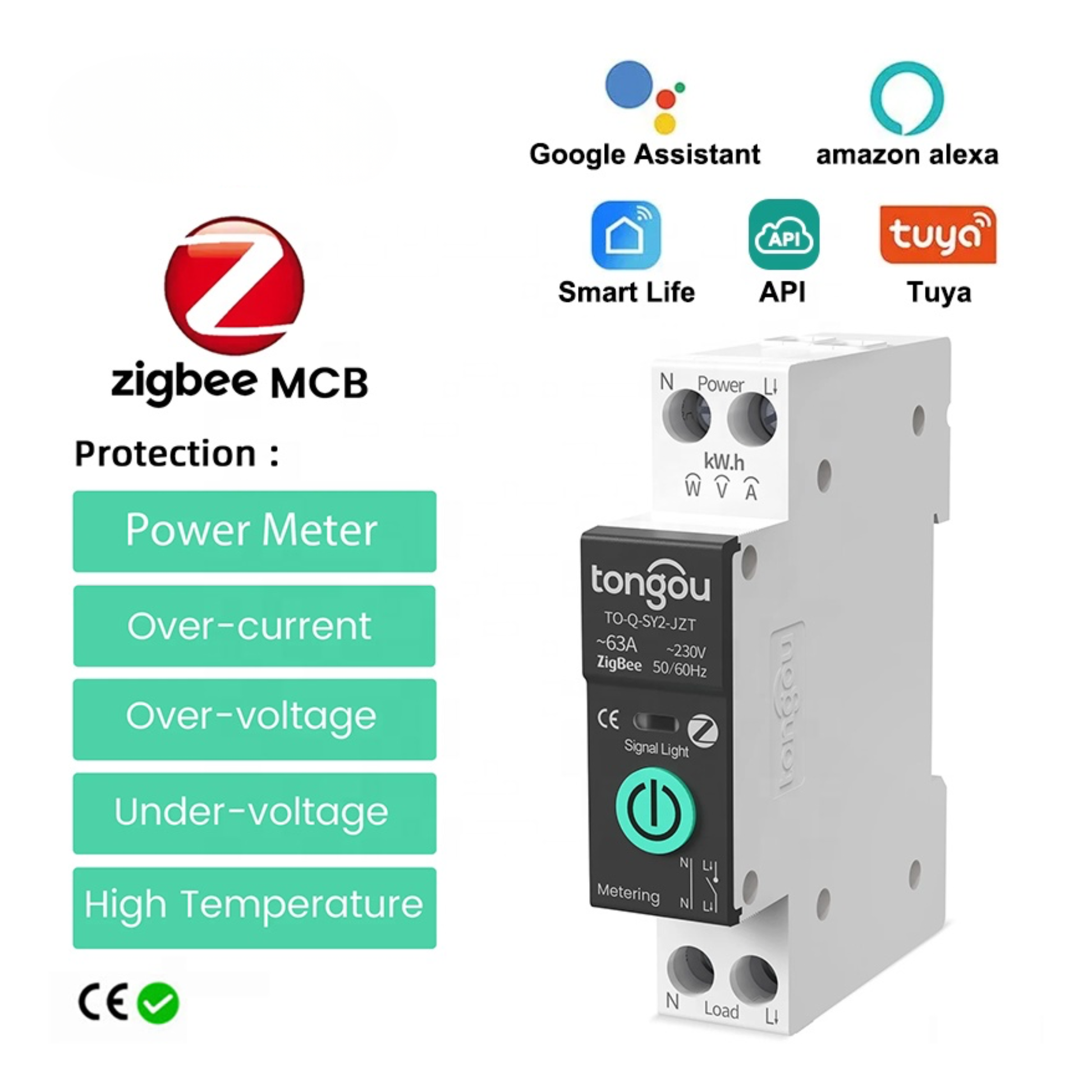

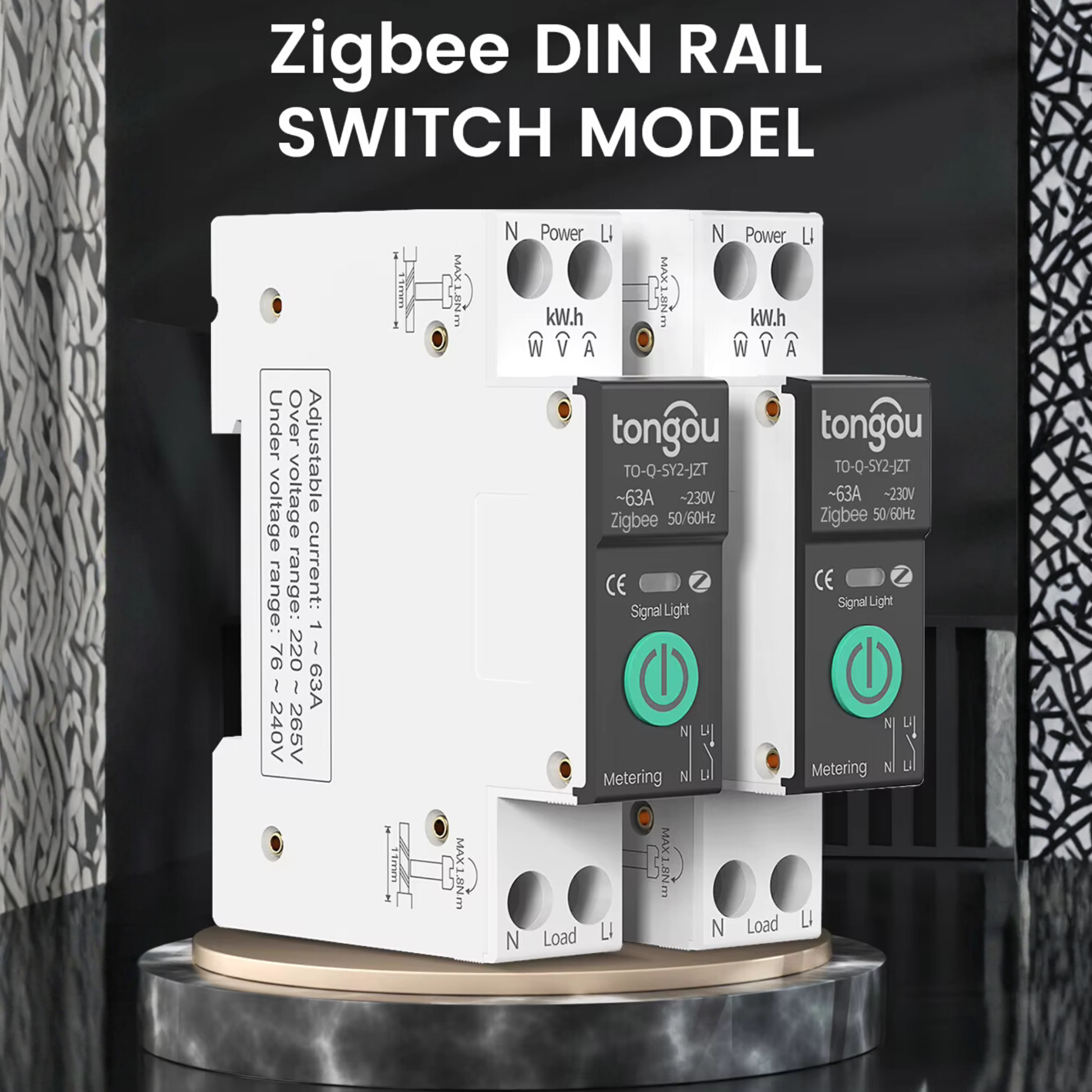

1-63 Amp Smart Circuit Breaker 1P+N - ZigBee with Power Metering and Multiple Protections (Smart Life)
Remote control, on/off scheduling, real-time electricity consumption monitoring, and automatic protection against current, voltage, and temperature.
Instantaneous energy measurement
Current/voltage/temperature protection
Control via Smart Life
ZigBee 3.0 is supported
Advanced control

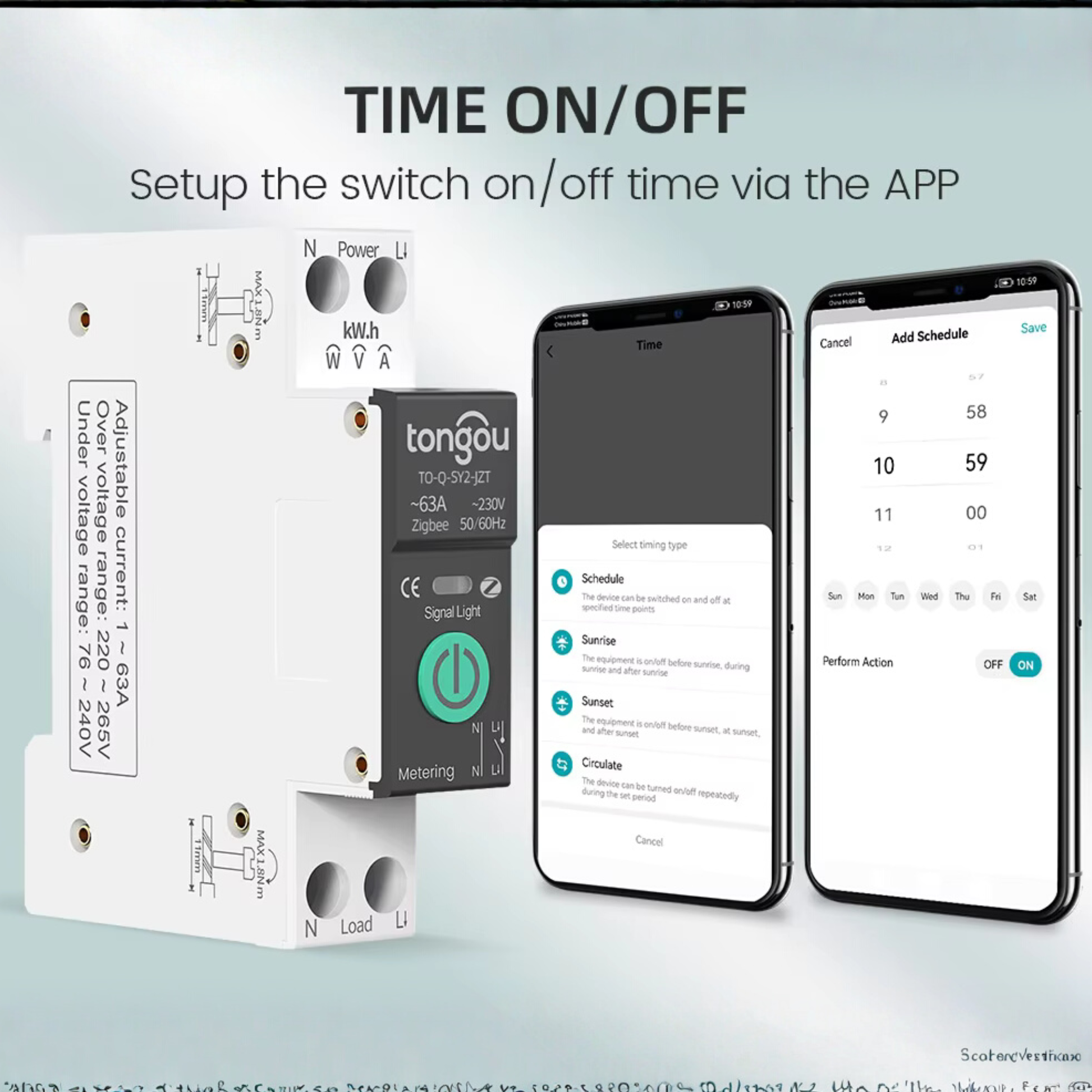

Remote on/off, timer, countdown, loop.
Monitoring and consumption

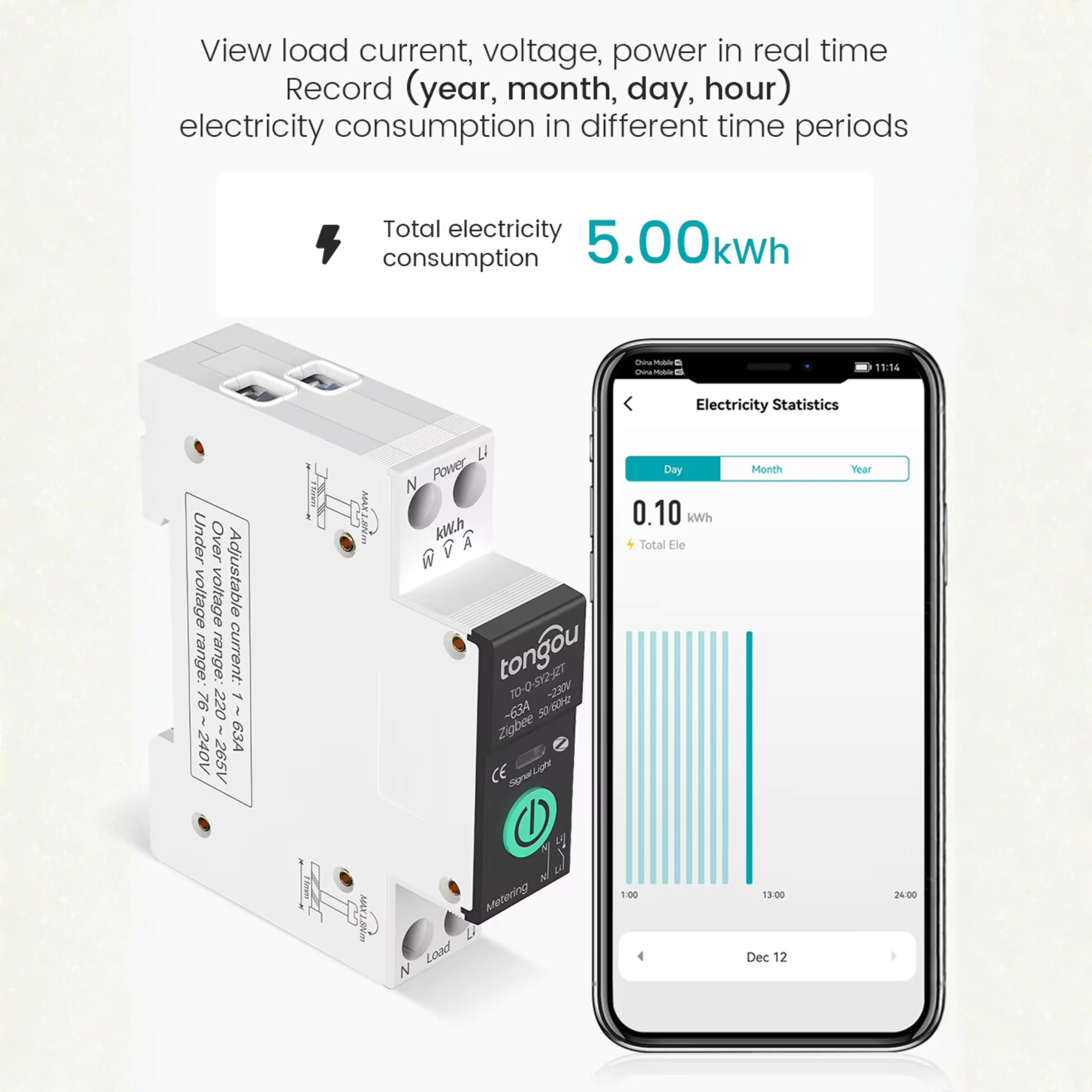

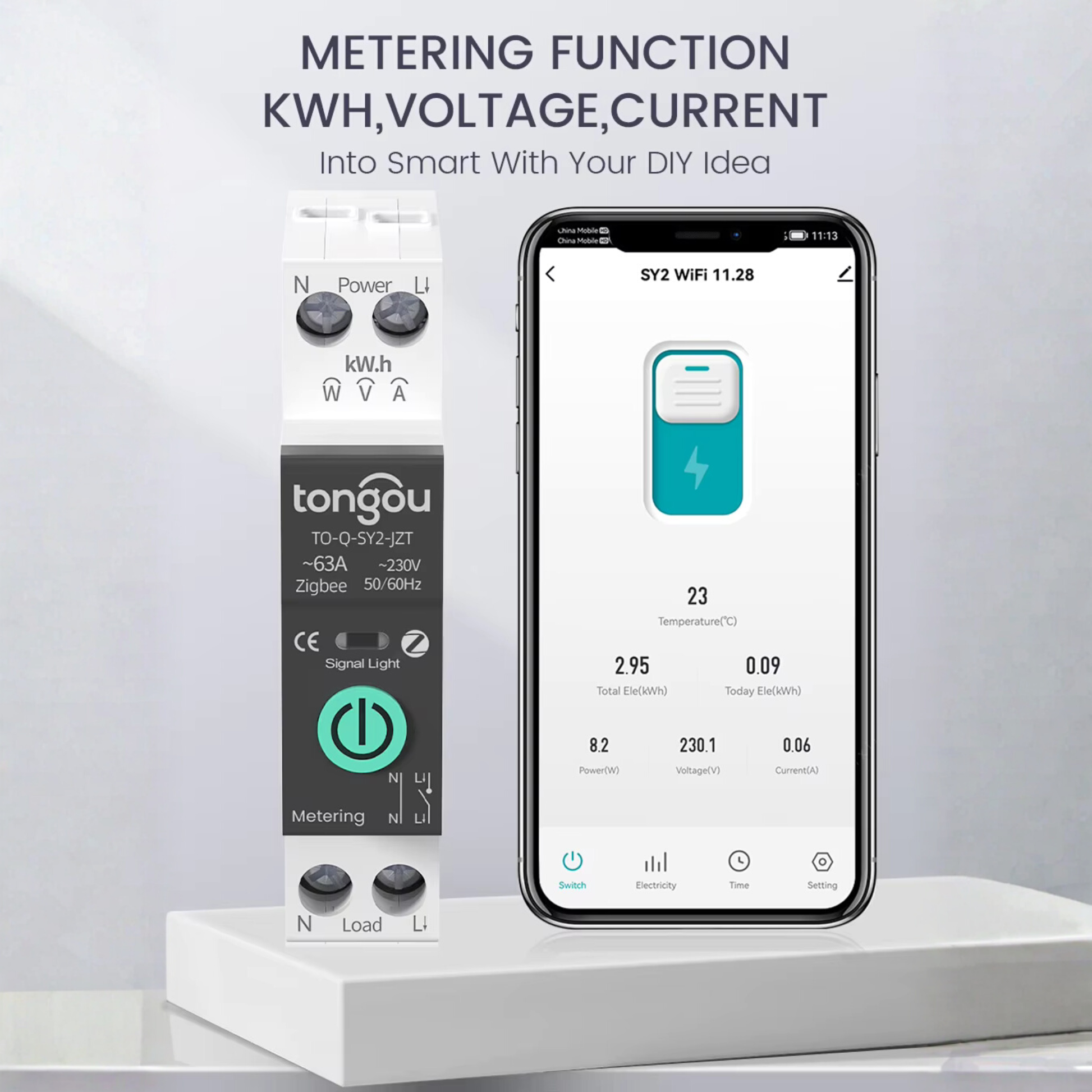

Measure current/voltage/power and energy with daily/monthly/annual records.
Electrical specifications
| Protocol | ZigBee 2.4GHz (requires a compatible hub) |
| operational effort | 90–240V AC |
| Adjustable nominal current | 0.1 – 63A |
| poles | 1P+N (N electrode pass only) |

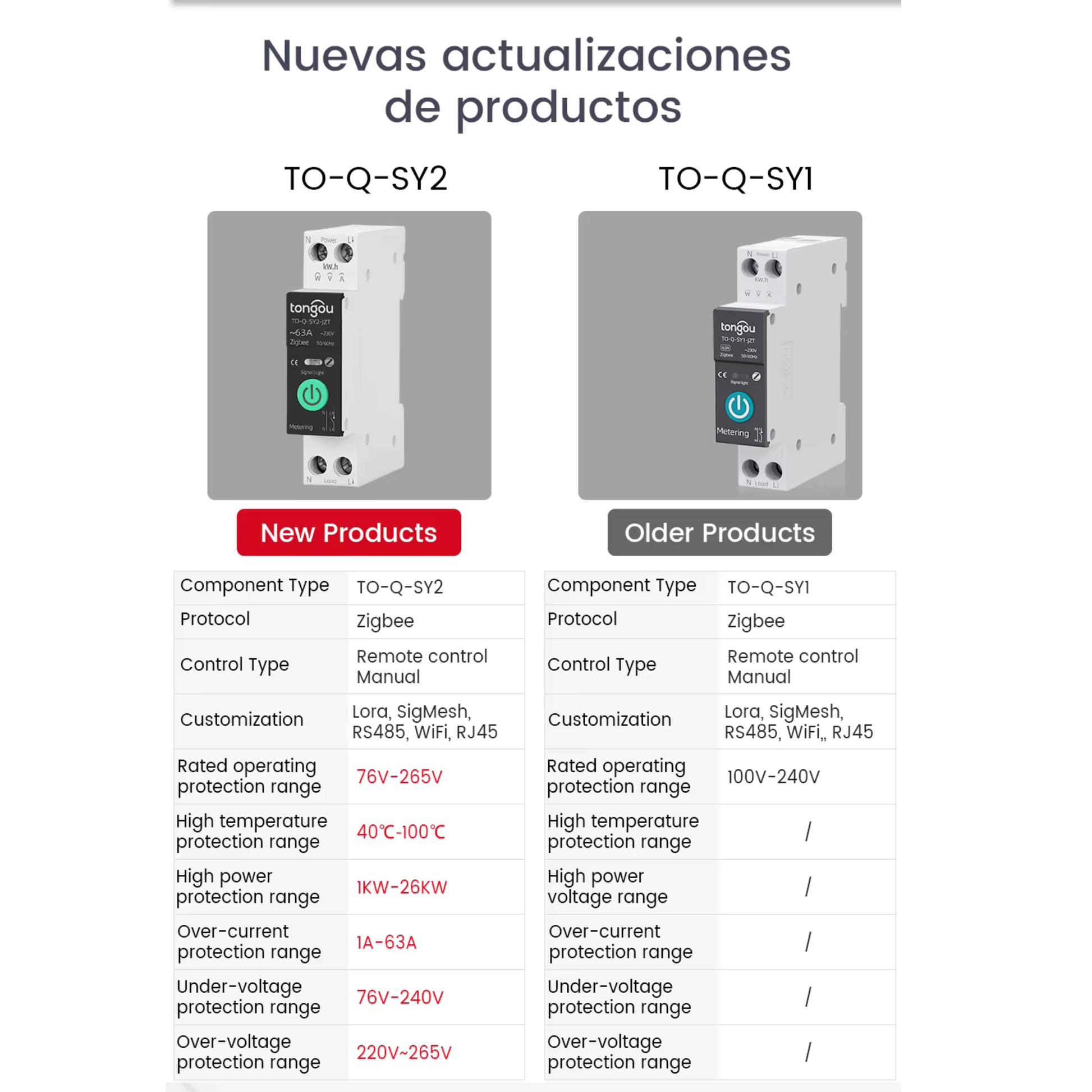

Adjustable protections
| Overcurrent (A) | 1-63 |
| Excess power (kW) | 1-26 |
| Overvoltage (V) | 220 – 265 |
| Low voltage (V) | 76 – 240 |
| Heat protection (°C) | 40 – 100 |
Advantages
- Remote on/off via the Smart Life or Tuya app.
- Smart scheduling (time, countdown, repetition).
- Automatic recovery after interruption (according to settings).
- Real-time display of current, voltage, power, and energy with detailed logs.

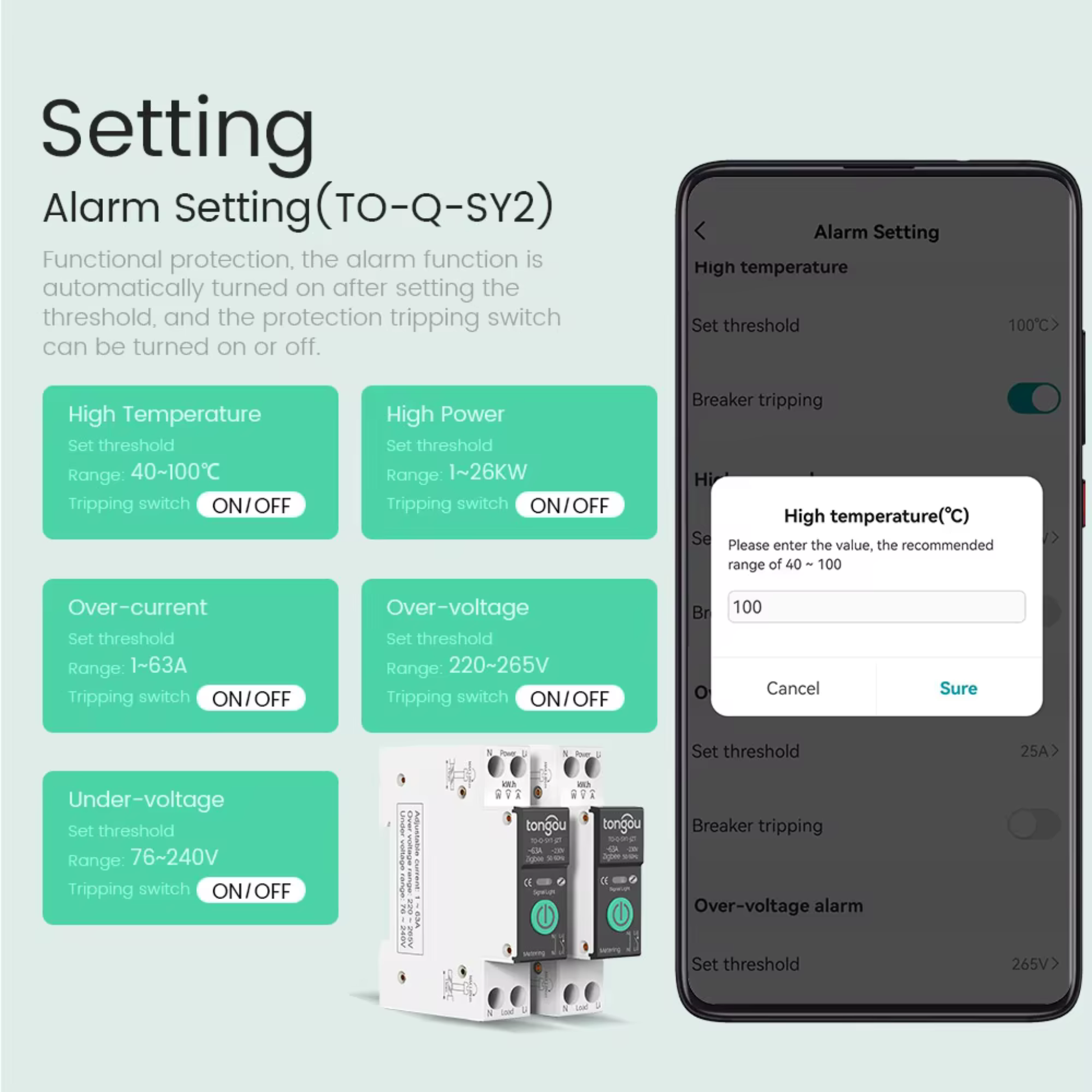

- Setting up protection limits from within the app and instant notifications when exceeding them.
Compatibility and requirements

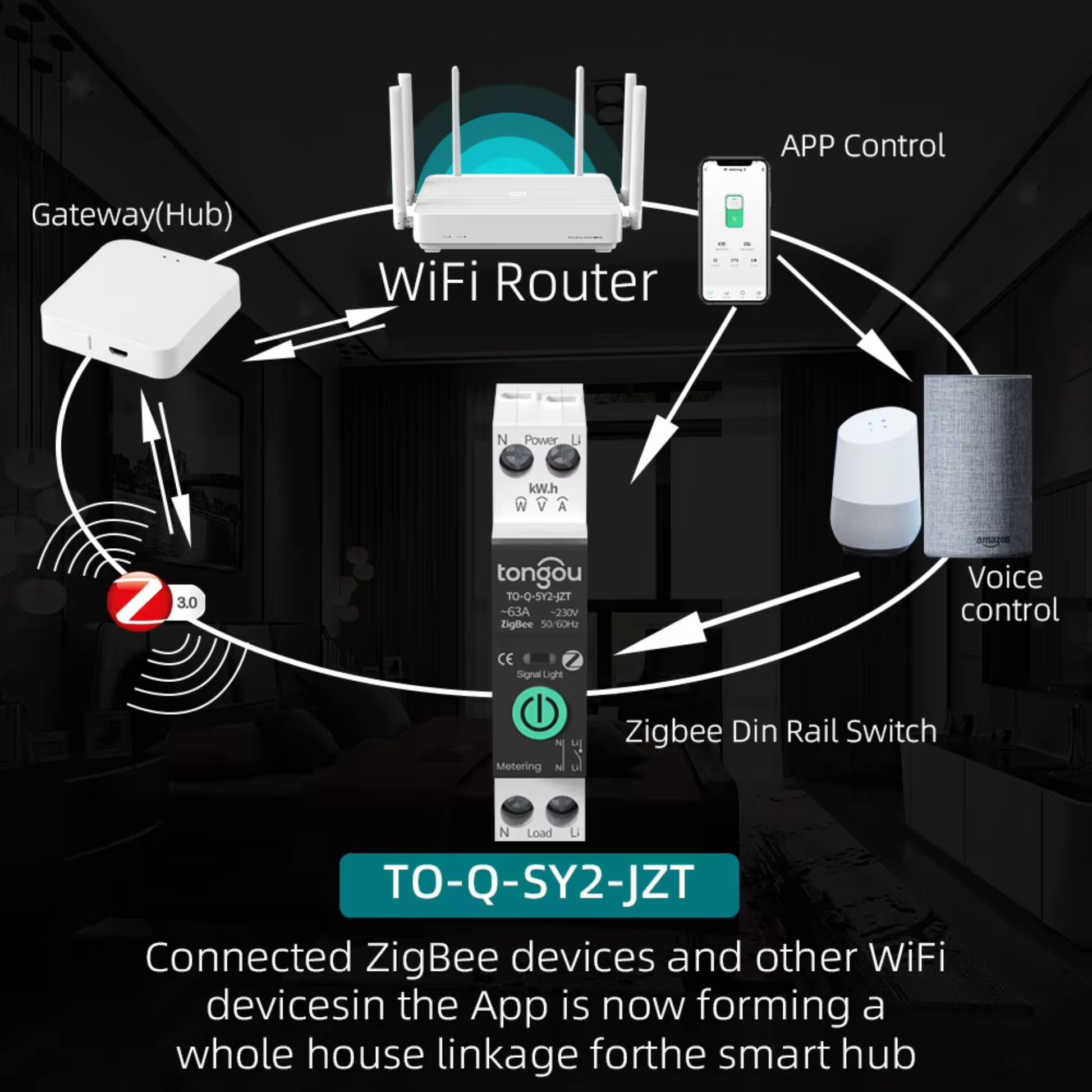

It works via ZigBee and requires a compatible Tuya gateway/hub to connect to the app. It supports voice commands via Alexa/Google Home through the same platform.
Suggested uses
- Home distribution panels for controlling large loads (heater, water pump, farm equipment).
- Protecting sensitive loads from overvoltage/undervoltage and overcurrent.
- Monitor consumption and reduce bills through scheduling and smart limits.
Box contents
- Smart Cutter 1P+N.
- Quick user guide.
Important installation notes

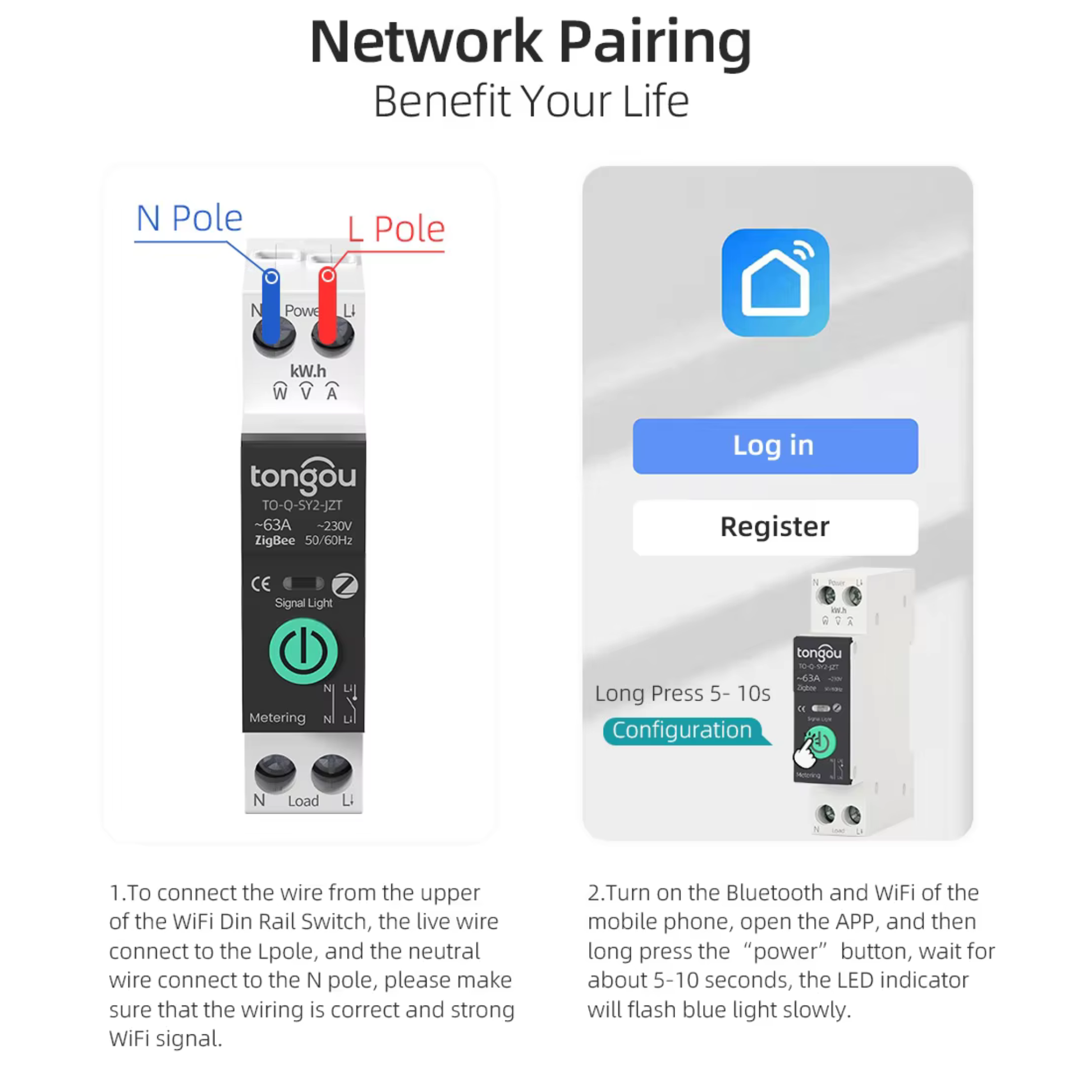

- This 1P+N model: the cut is made on the hot line only, the N line is passable.
- The installation must be carried out by a qualified electrician, and the protection limits should be adjusted to suit your load.
- ZigBee Hub is required to activate it in the application.
