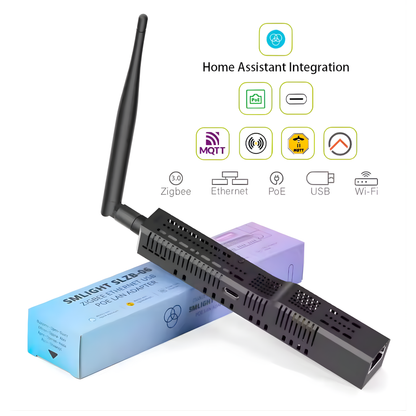

Smart Zigbee Multi-Connectivity Hub (LAN + Wi-Fi + USB-C + PoE) – SLZB-06U
60,000 IQD
Skip to product information
In stock
Smart Zigbee Multi-Connectivity Hub (LAN + Wi-Fi + USB-C + PoE) – SLZB-06U
60,000 IQD
Shipping calculated at checkout.
SMLight SLZB-06U Smart Network Coordinator (Upgraded Version)
The mastermind behind your smart home network, in its most powerful version yet. Combining a dual-core processor (ESP32-S3) with USB-Passthrough technology, it provides absolute stability and exceptional performance in managing devices, regardless of your network size.
Exclusive Features of the 06U Version
- Doubled Processing Power (ESP32-S3) This version features an Espressif dual-core processor at 240Mhz, providing massive capability to manage hundreds of smart devices simultaneously without lag, with seamless performance for Thread and Matter protocols.
- USB Passthrough An advanced feature that allows you to connect the device to a wired network (Ethernet) while simultaneously using the USB port for data passthrough and direct communication with other devices or servers.
- Advanced Security (WireGuard & DDNS) Exclusive support for private VPNs to provide secure access to your smart network from anywhere in the world, directly through the device's own system.
Integrated Core Specifications
- Exceptional Radio Coverage (CC2652P) Based on a Texas Instruments chip with a built-in power amplifier (up to +20dB) and a professional antenna (+5dB) to ensure signal stability and effective penetration through obstacles.
- Flexible & Isolated Power (PoE) Supports operation via Ethernet or Type-C port (or both) with superior protection thanks to optoelectronic isolation to prevent power fluctuations.
- Easy Over-the-Air Updates (OTA) The SLZB-OS allows you to update the system and radio chip with a single click remotely, with native Plug & Play integration with Home Assistant and Zigbee2MQTT.
Comprehensive Technical Specifications
| CPU Chip (U-Version) | Espressif ESP32-S3 (Dual Core @ 240Mhz) |
|---|---|
| Radio SoC | Texas Instruments CC2652P |
| Passthrough Technology | Fully supported exclusively (USB to Ethernet) |
| Ethernet Chip | WIZnet W5500 (10/100Mb) for Ethernet stability |
| Wireless Protocols | Zigbee, Thread, Matter-over-Thread (OTBR), Wi-Fi, Bluetooth |
| Power Ports | Ethernet (PoE 48V) or USB Type-C (supports simultaneous connection safely) |
| Native Software Compatibility | Home Assistant, Zigbee2MQTT, ZHA |
| Power Consumption & Dimensions | 1 to 1.5W | 160 × 24 × 28 mm (Weight: 86g) |
Setup and Installation Notes

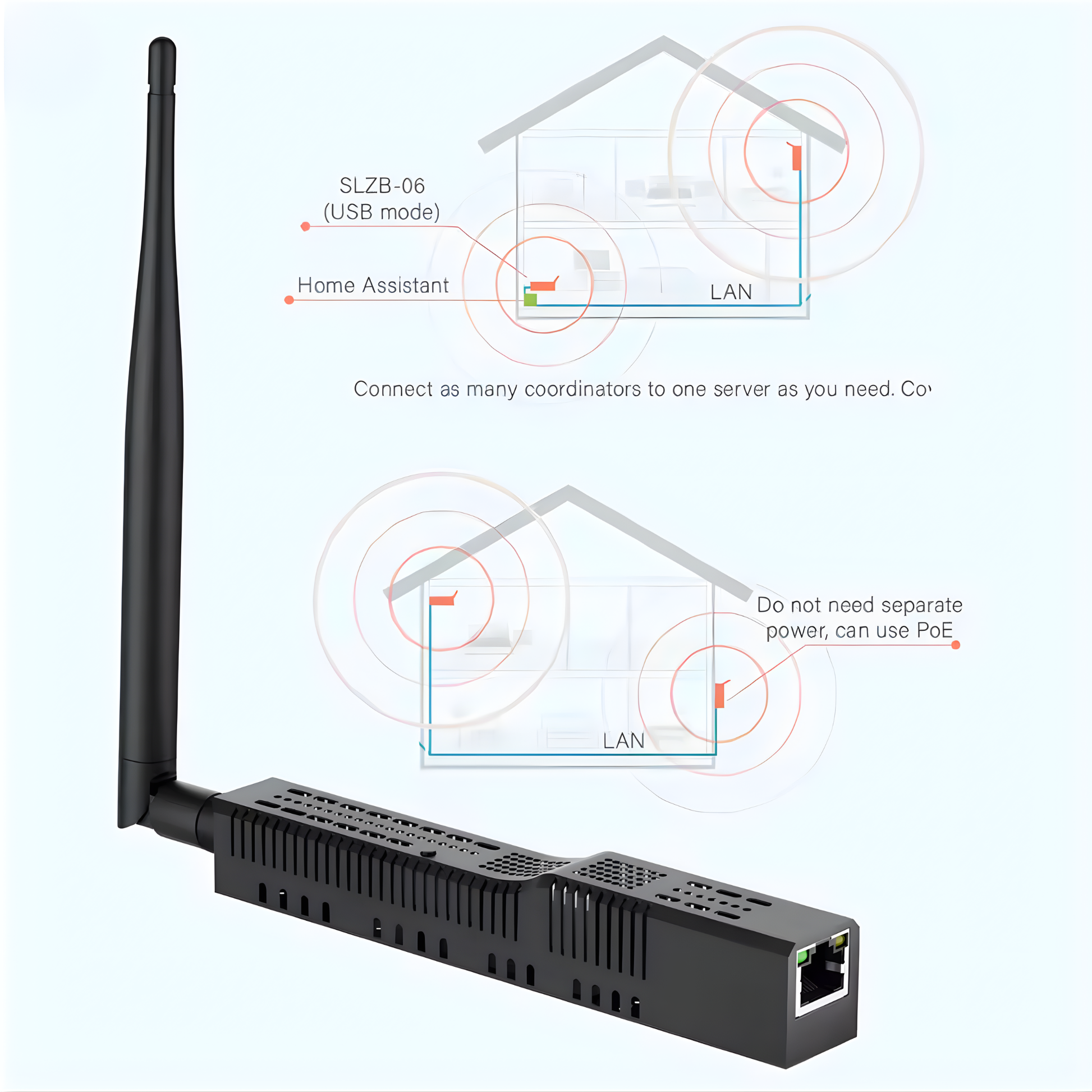

- Utilizing PoE To get the most out of the coordinator's power, connect it using a Cat6 cable linked to a PoE Switch. This provides stability unmatched by wireless connections.
- Avoiding Wireless Interference To ensure interference-free performance, keep the device at least 2 to 3 meters away from wireless routers (2.4GHz routers).
- Proper Antenna Orientation The device comes with a 3D-adjustable antenna. Keep it in a vertical position and avoid placing it inside closed metal enclosures to ensure the best home coverage.
