3-Phase Smart Circuit Breaker, WiFi System, Tuya - Smart Life App Control
3-Phase Smart Circuit Breaker, WiFi System, Tuya - Smart Life App Control

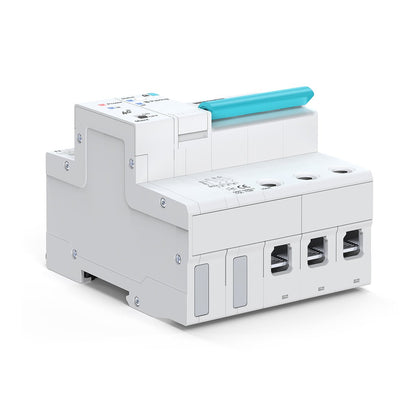

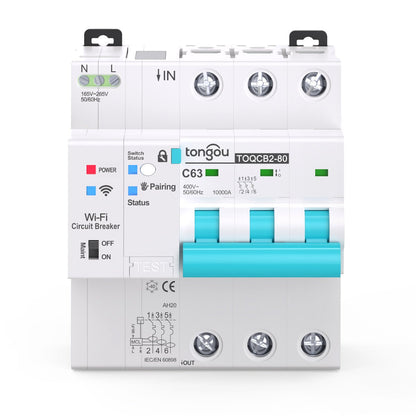

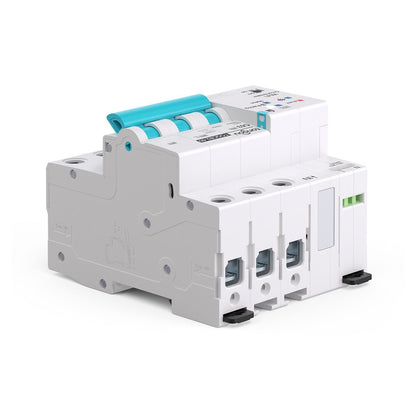

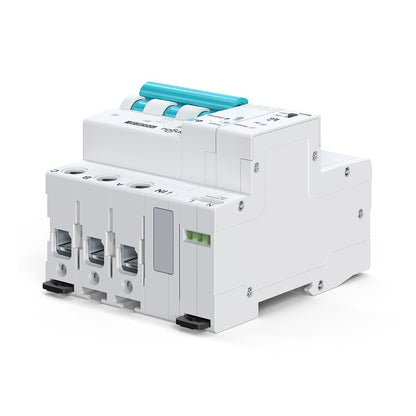

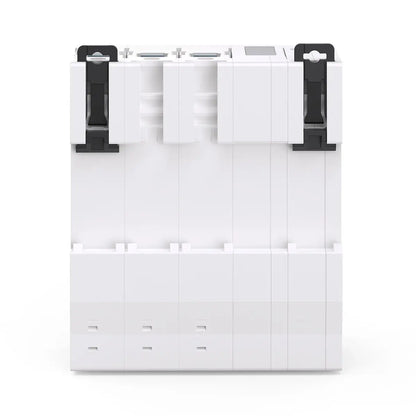

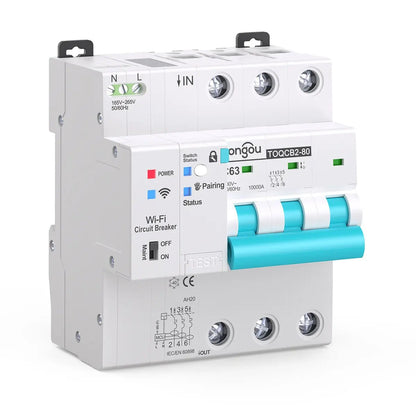

TOQCB2-80-JW Smart Circuit Breaker
Ultimate control and advanced protection for your electrical power, with superior engineering design and smart technology that elevates your home safety.
Superior Proactive Protection
An integrated security system providing protection against overcurrent, overvoltage, undervoltage, and short circuits. It features an incredible response time of just 3 seconds to disconnect power upon detecting any hazard, ensuring the safety of your appliances.
Precise Energy Monitoring

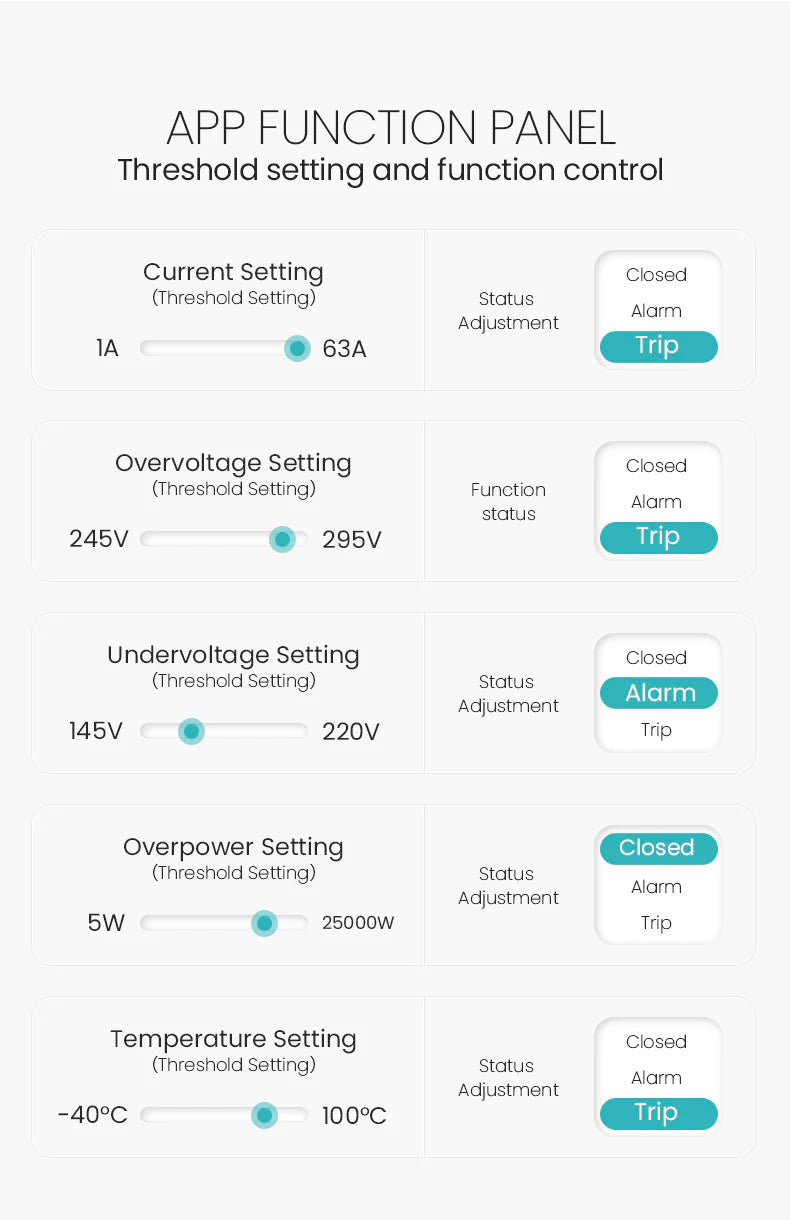

Track your consumption moment by moment with Class 1.0 precision. The app displays voltage, current, power consumption, power factor, and temperature, giving you a full analytical view to optimize your energy usage.
Smart Remote Control
Complete management via the Tuya or Smart Life app from anywhere in the world. It supports automatic switching, scheduling, and seamless integration with voice assistants such as Amazon Alexa and Google Assistant.
Robust Physical Security
Equipped with a built-in physical safety lock to prevent accidental manual operation during maintenance, along with LED indicators that show network status and connection status to ensure the highest professional safety standards.
Technical Specifications
| Model | TOQCB2-80-JW |
|---|---|
| Communication Protocol | TCP/IP: Wi-Fi (2.412~2.484GHz) IEEE 802.11b/g/n |
| Current Frame | Supports up to 80A (16A, 20A, 32A, 40A, 63A, 80A) |
| Rated Operating Voltage (Ue) | AC 145V - 230V |
| Frequency | 50/60Hz |
| Ultimate Short-Circuit Breaking Capacity (Icu) | 10kA |
| Rated Insulation Voltage (Ui) | AC 500V |
| Measurement Accuracy | Class 1.0 |
| Standards & Certifications | IEC/EN 60947-2, IEC/EN 60898-1, IEC/EN 50557 |

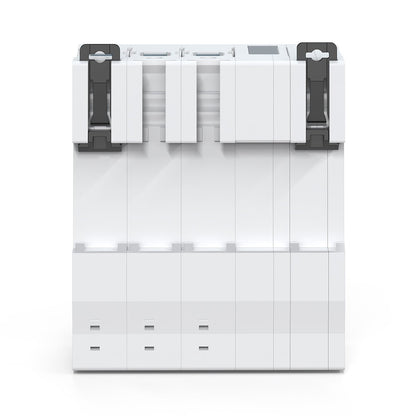

| Mounting Type | Standard DIN Rail 35mm |
Installation Notes

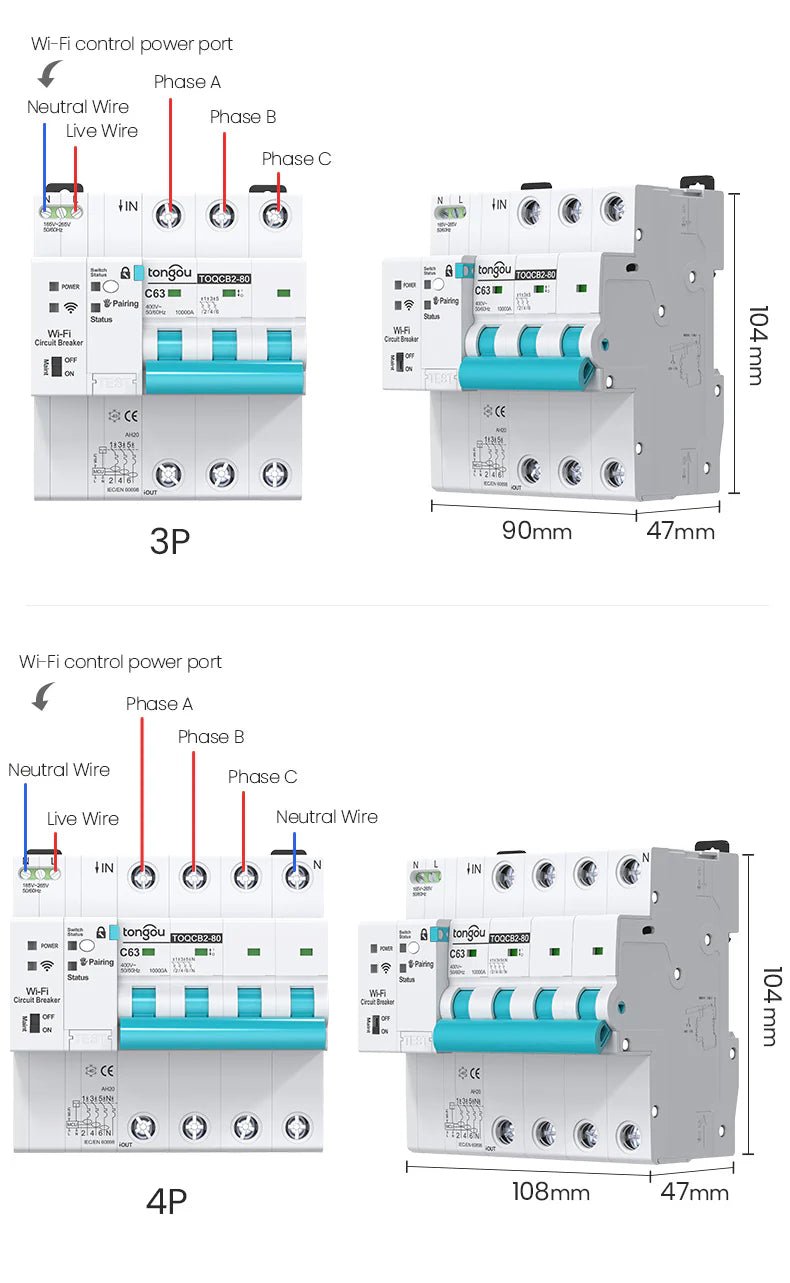

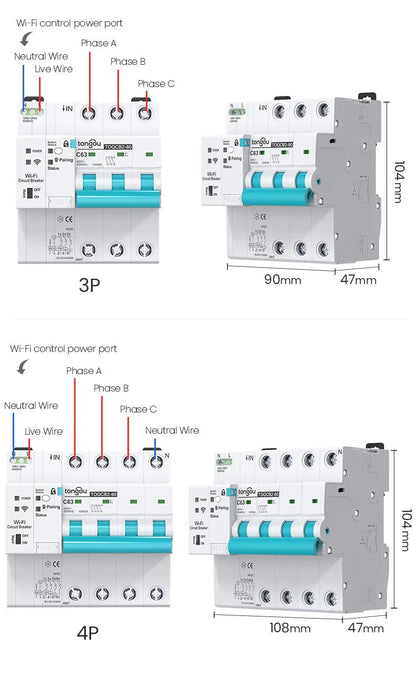

The TOQCB2-80-JW breaker is designed to be the smart core for modern distribution panels. Installation requires adherence to connecting the Line (L) and Neutral (N) wires according to the provided diagram to ensure the measurement sensors function efficiently. It is recommended to allocate sufficient ventilation space inside the distribution box to ensure stable wireless connectivity and long-term performance sustainability.
