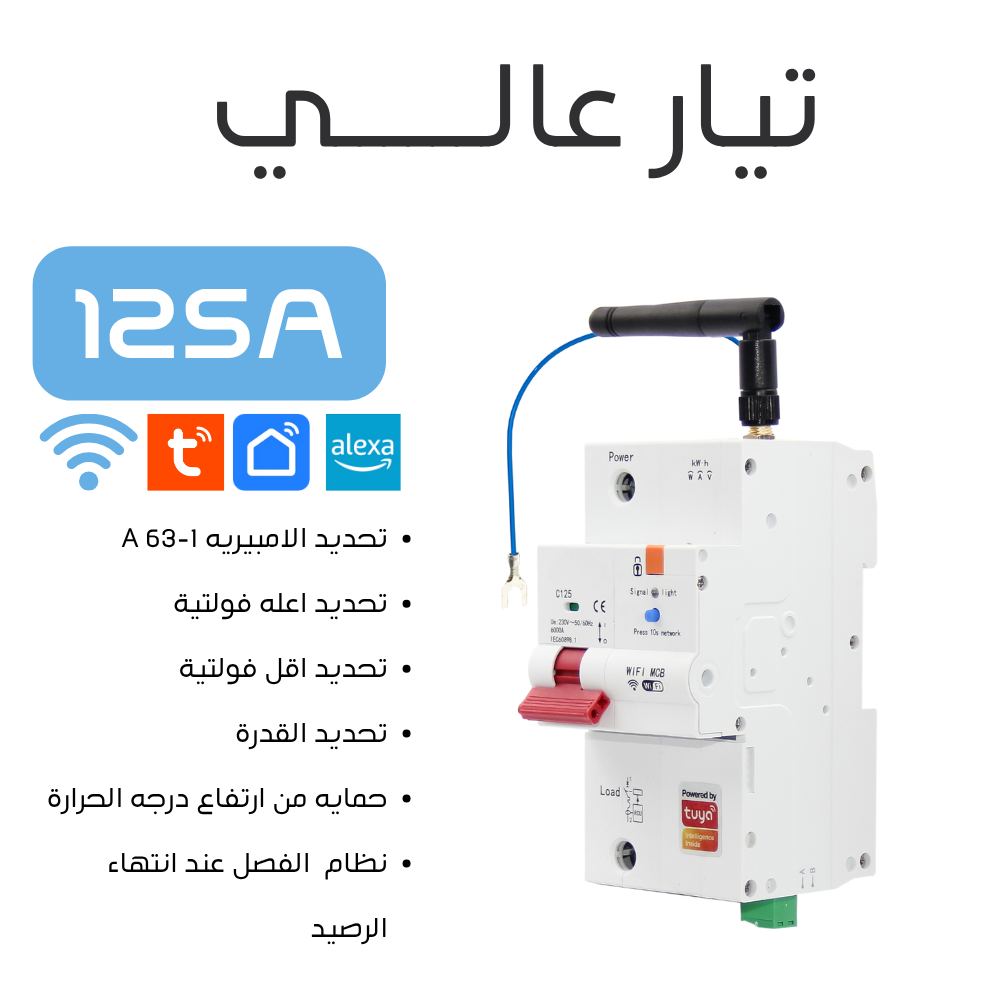

125A Smart WiFi Single-Phase Circuit Breaker with Tuya App Remote Control – Equipped with Prepaid Function and App-Based Consumption Monitoring
63,000 IQD
Skip to product information
Out of stock
125A Smart WiFi Single-Phase Circuit Breaker with Tuya App Remote Control – Equipped with Prepaid Function and App-Based Consumption Monitoring
63,000 IQD
Shipping calculated at checkout.
Smart Wi-Fi single-phase circuit breaker up to 125A — Control and monitor via the Tuya app
Control mains power or heavy loads with confidence: On/off from your phone, real-time monitoring (volts/amps/watts/power), with protection features that help you reduce outages and track consumption, especially in rented apartments or sites that need remote management.
Up to 125A Wi-Fi 2.4GHz Tuya / Smart Life Power Monitoring Schedules and Timers Alexa / Google 1P (Single Phase) 6kA
Important note: The prepaid or RS485 feature may only be available in some versions. If your version does not support it, the circuit breaker will continue to function normally as a control, protection, and metering device.
Key Features
Remote control: Turn on/off from anywhere via Tuya Smart or Smart Life .
Real-time measurements: Reading current , voltage , power and energy within the application.
Smart protection: Setting limits for overcurrent and unstable voltage to minimize damage.
Timers and schedules: Daily on/off scheduling or timer and countdown.
Voice control: via Alexa and Google Assistant (after linking Tuya).
Visual status indicator: On/off status window for quick reading.
Ideal uses
- Apartments with load management or remote monitoring systems.
- Intelligent control of main household loads within the 125A limit.
- Monitoring and analyzing consumption and making savings decisions.
- Additional protection against voltage fluctuations or overloads.
Safety note: This is a high-voltage (125A) circuit breaker. Any wiring error could cause serious damage—installation must be performed by a qualified electrician .
Technical specifications
| Type | Smart Wi-Fi Single-Phase (1P) Switch |
|---|---|
| Rated current | Up to 125A |
| Voltage/Frequency | AC 100–280V · 50/60Hz |
| Separation capacity | 6kA |
| Mechanical life | More than 100,000 times |
| Operating temperature | -25° to +70°C |
| Dimensions | 110 × 54 × 50 mm |
| Materials | High-strength ABS + reinforced metal handle |
| The app | Tuya Smart / Smart Life |
| Voice control | Amazon Alexa / Google Assistant (via Tuya connection) |
| RS485 | May be available in some versions only |
Quick setup (brief)

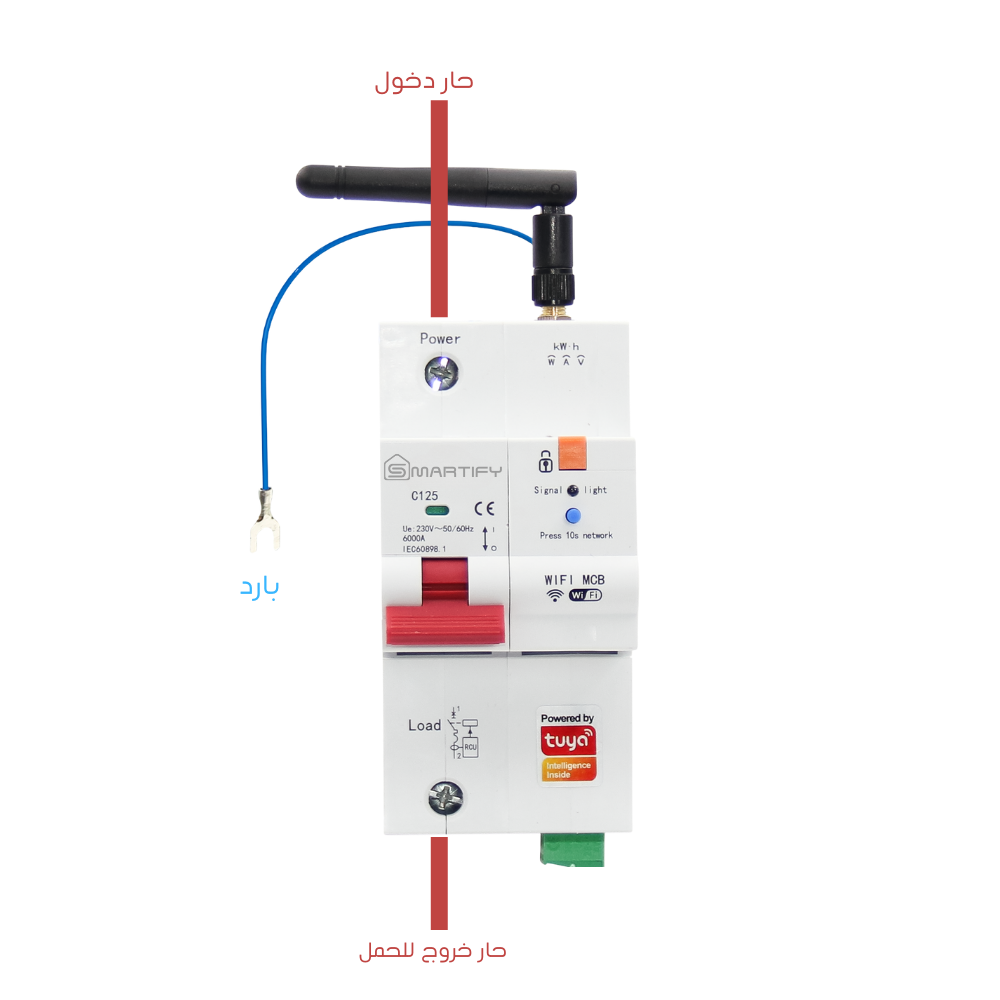

- Disconnect the main power supply and then install the circuit breaker inside the panel according to the approved electrical diagram.
- Turn on the cutter and then put it into pairing mode via the Wi-Fi button/action (depending on the version) until the indicator starts flashing.
- Open Tuya/Smart Life ← Add Device ← Select the Switches/Power category and follow the 2.4GHz network steps.
- Adjust the protection limits and schedules according to your needs.
Network Note: Works on 2.4GHz Wi-Fi only (does not support 5GHz).
Powered by Tuya — Manage your electricity from your phone screen, instead of running to the panel every time.
