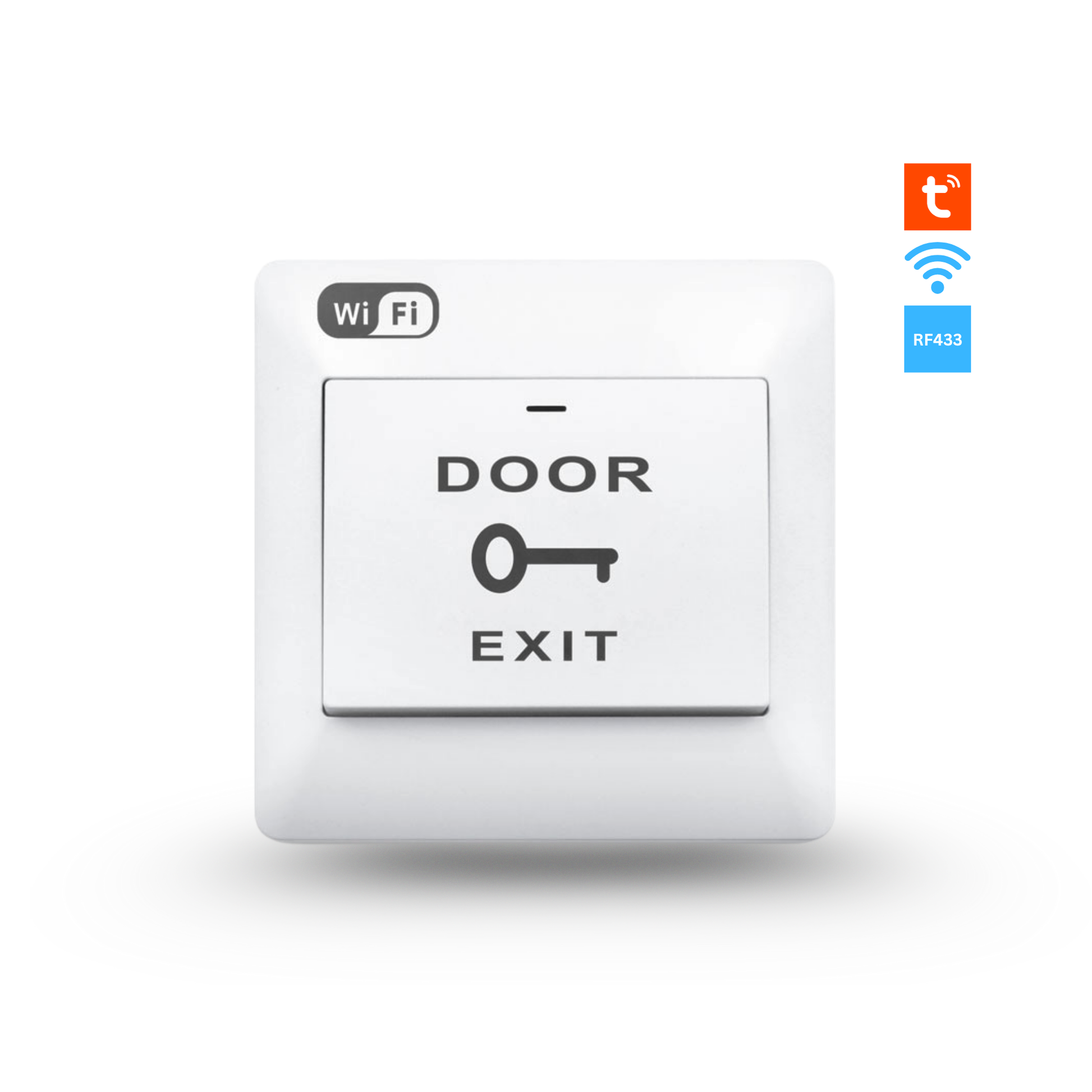

Wi-Fi Smart Door Control Switch with RF433 Support – Type 86 (DC 12V)

Wi-Fi Smart Door Control Switch with RF433 Support – Type 86 (DC 12V)

SMFY-DAWT

22,000 IQD
22,000 IQD
وفر -22,000 IQD Sold out
Shipping calculated at checkout.

4 in stock
  • quality assurance
  • One full year replacement warranty
  • Fast shipping

Wi-Fi Smart Door Control Switch with RF433 Support – Type 86 (DC 12V)

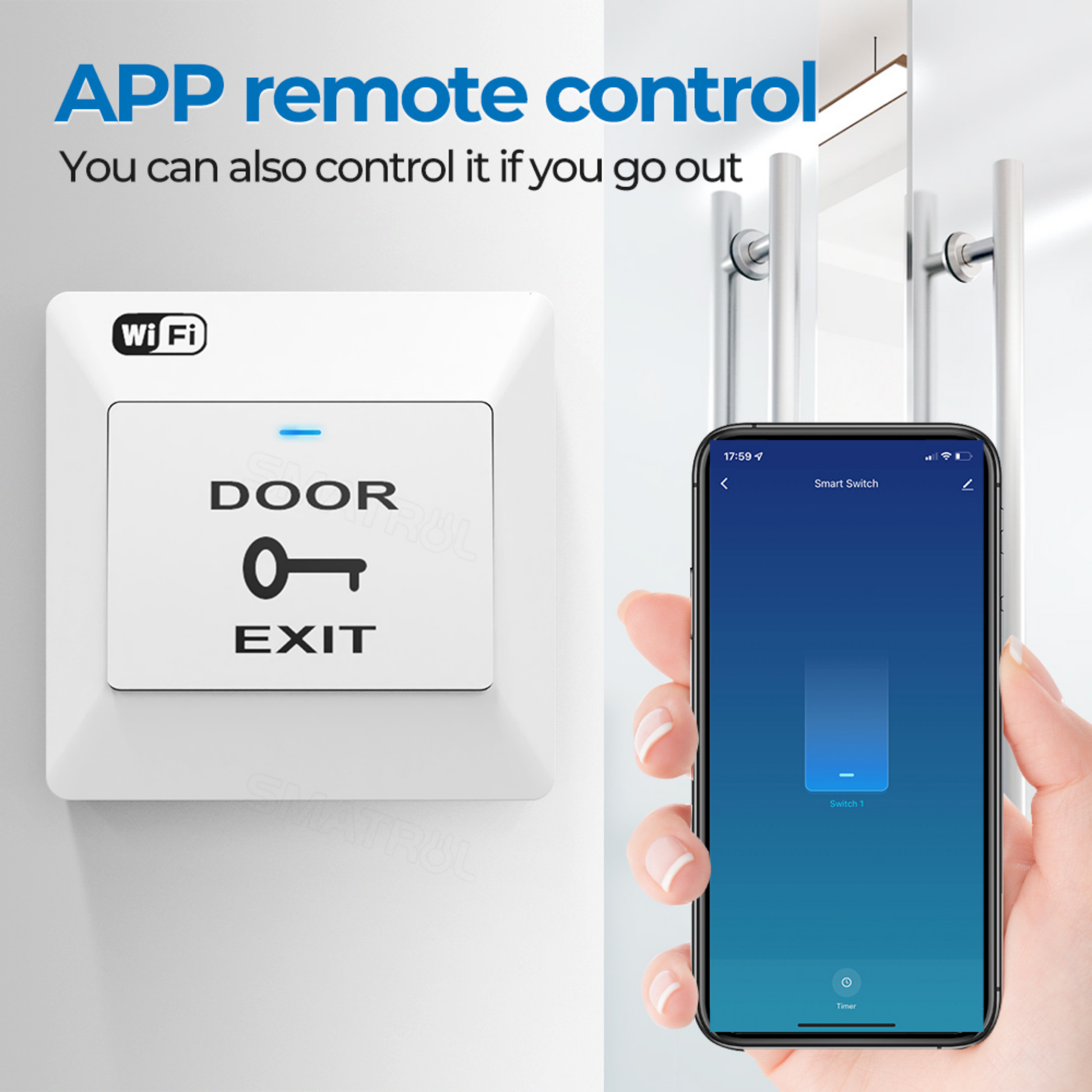

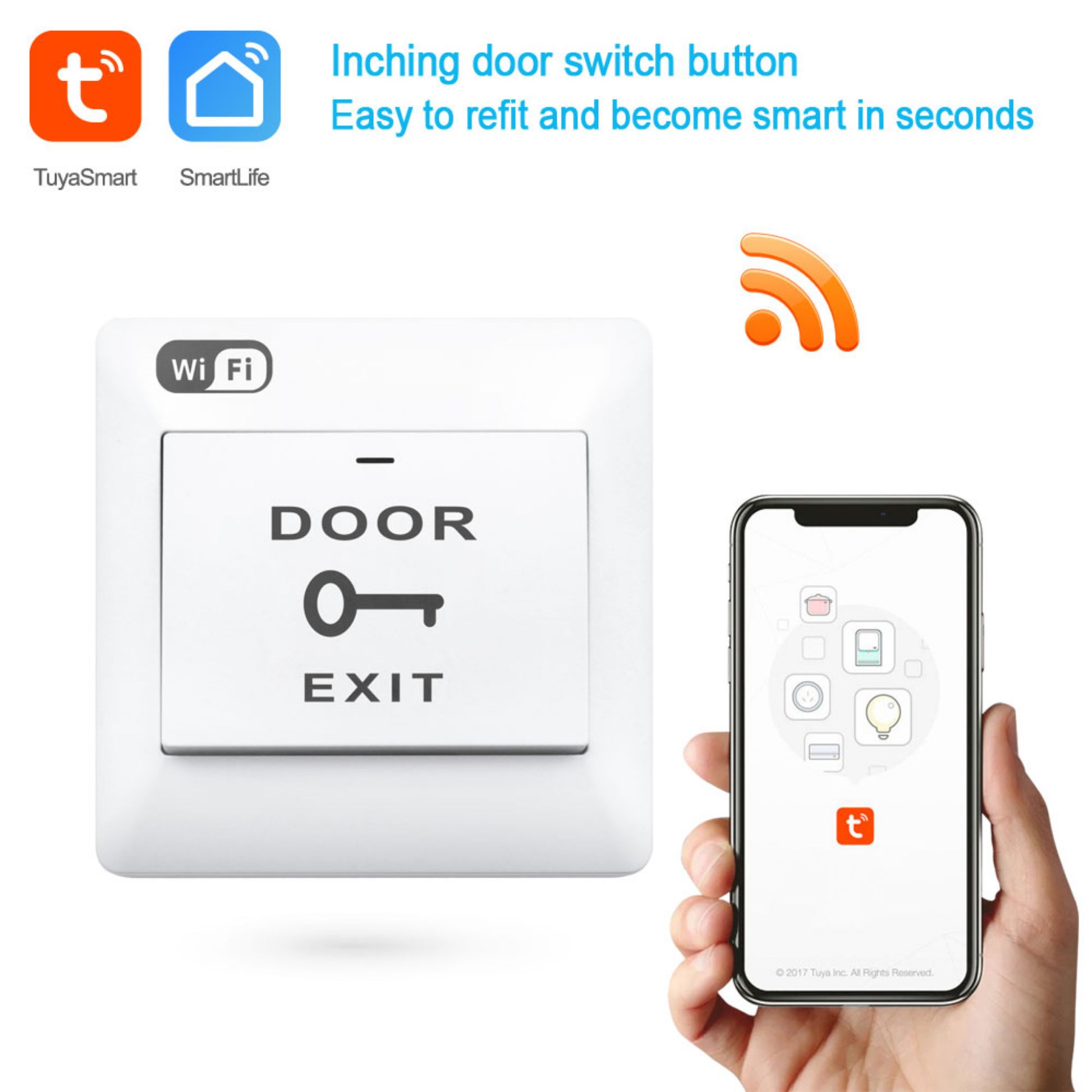

Control the door opening/closing via the Smart Life app or voice commands, with a timer/scheduling and pulse mode. Supports adding an RF433 remote (not included).

Wi-Fi 2.4GHz, supports RF433, voice control, pulse mode (Inching), type 86 (86×86×22 mm)

Key Features

  • Control via the Smart Life app (on a 2.4GHz network).

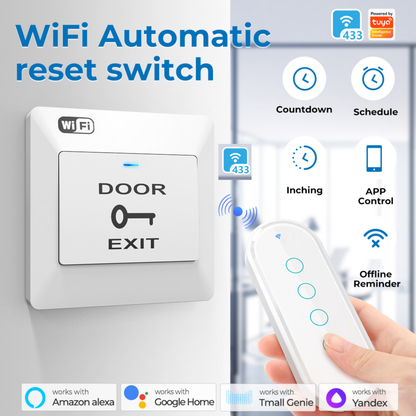

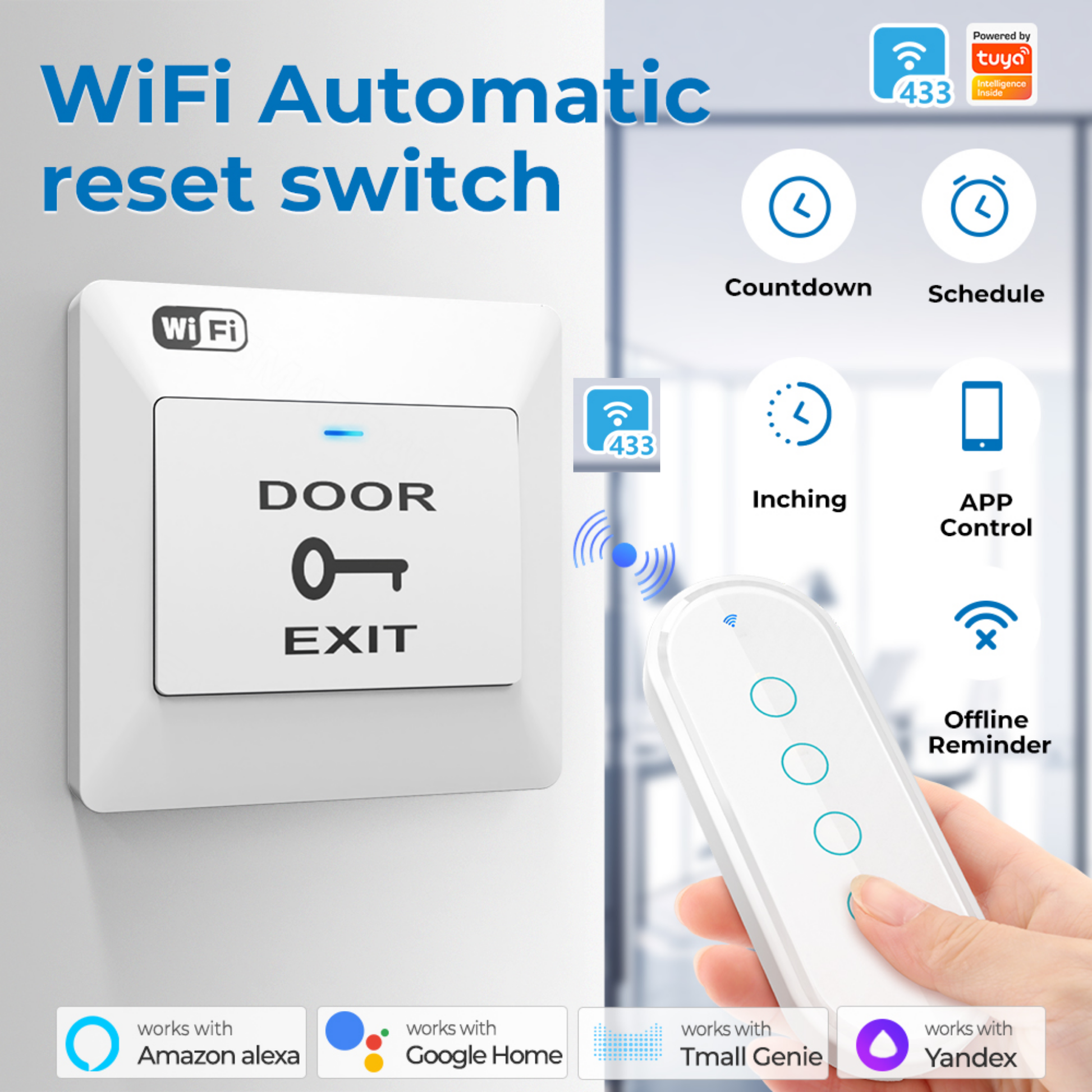

  • It supports adding an RF433 remote for local control (remote not included).
  • Voice compatibility: Amazon Alexa and Google Home (and similar devices).

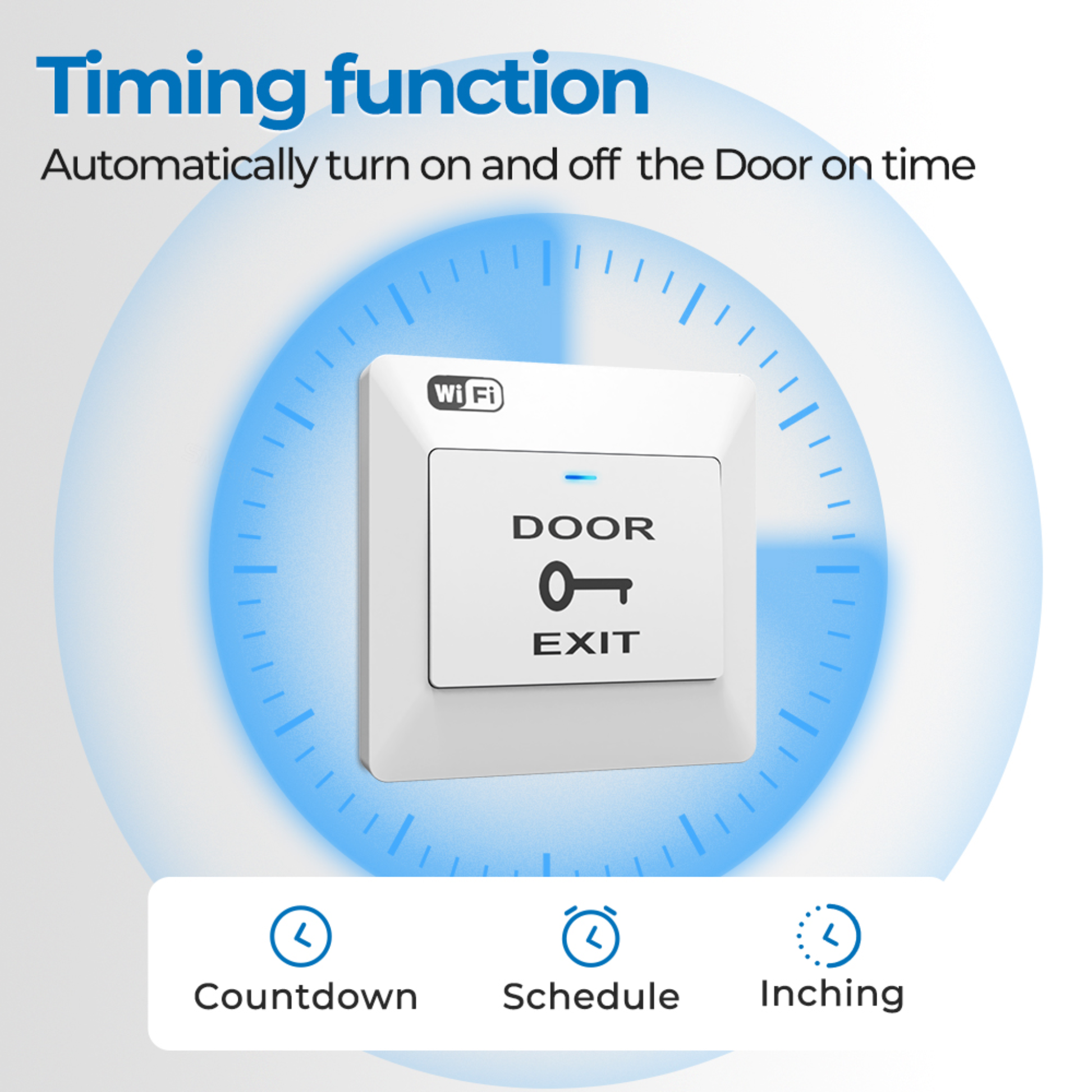

  • Timer, scheduling, pulse mode (instantaneous operation) + countdown.
  • Family control sharing + alert when connection is lost (within the app).
  • Flame Retardant Design.

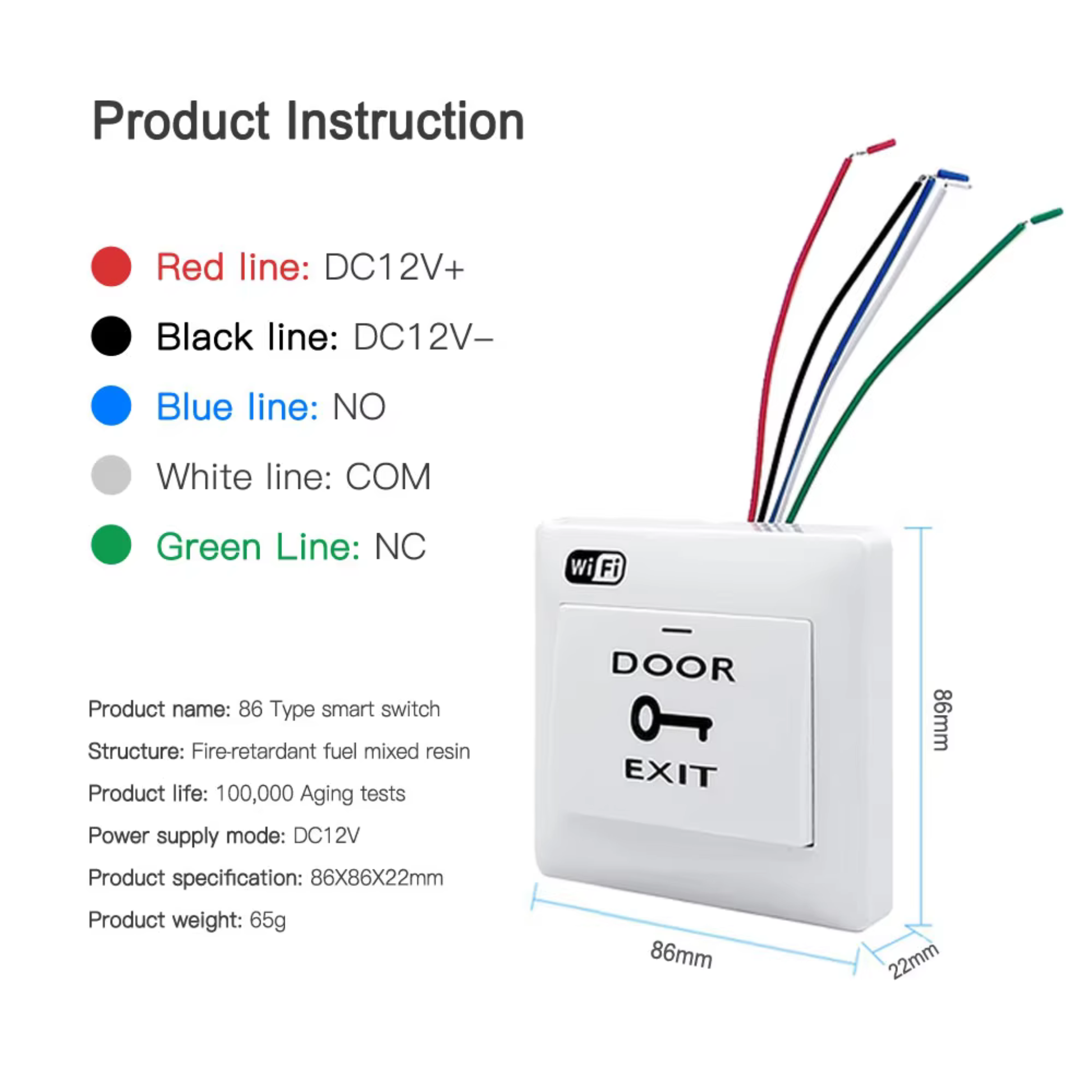

Technical specifications

Type Smart access control switch (Single Pole)
wireless connection 2.4GHz Wi-Fi (IEEE 802.11 b/g/n) + RF433 support
Rated voltage DC 12V (regulated power supply)
Dimensions 86 × 86 × 22 mm (Type 86 / EU Standard)
Operating temperature -10° to +55° C
Mechanical life 100,000 test cycles
raw material Flame-resistant resin
Supporting application Smart Life / Tuya

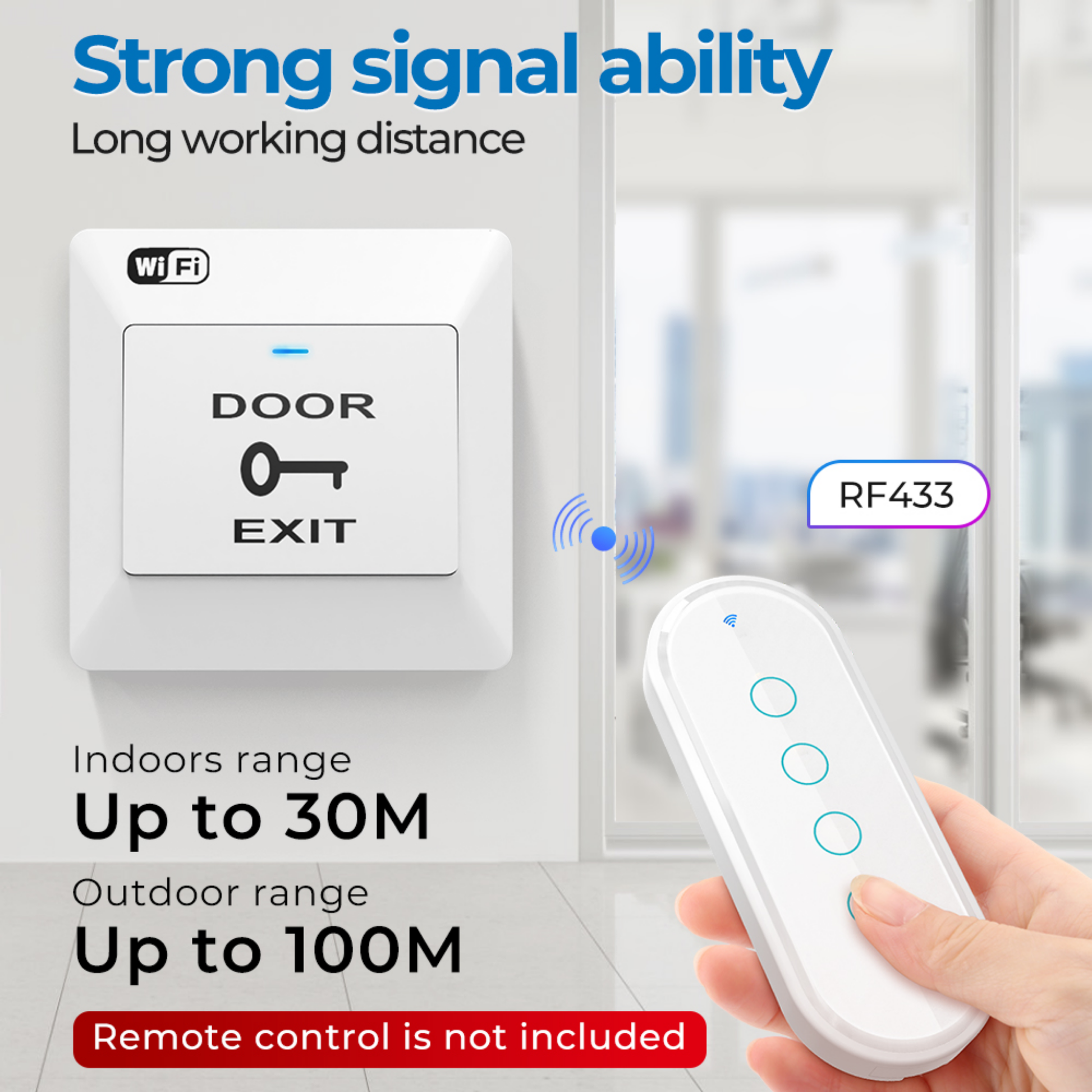

RF433 remote range (when added)

  • Inside buildings: up to 30 meters (approximate).
  • Outdoors: up to 100 meters (approximate).
  • Note: The remote control is not included with the product.

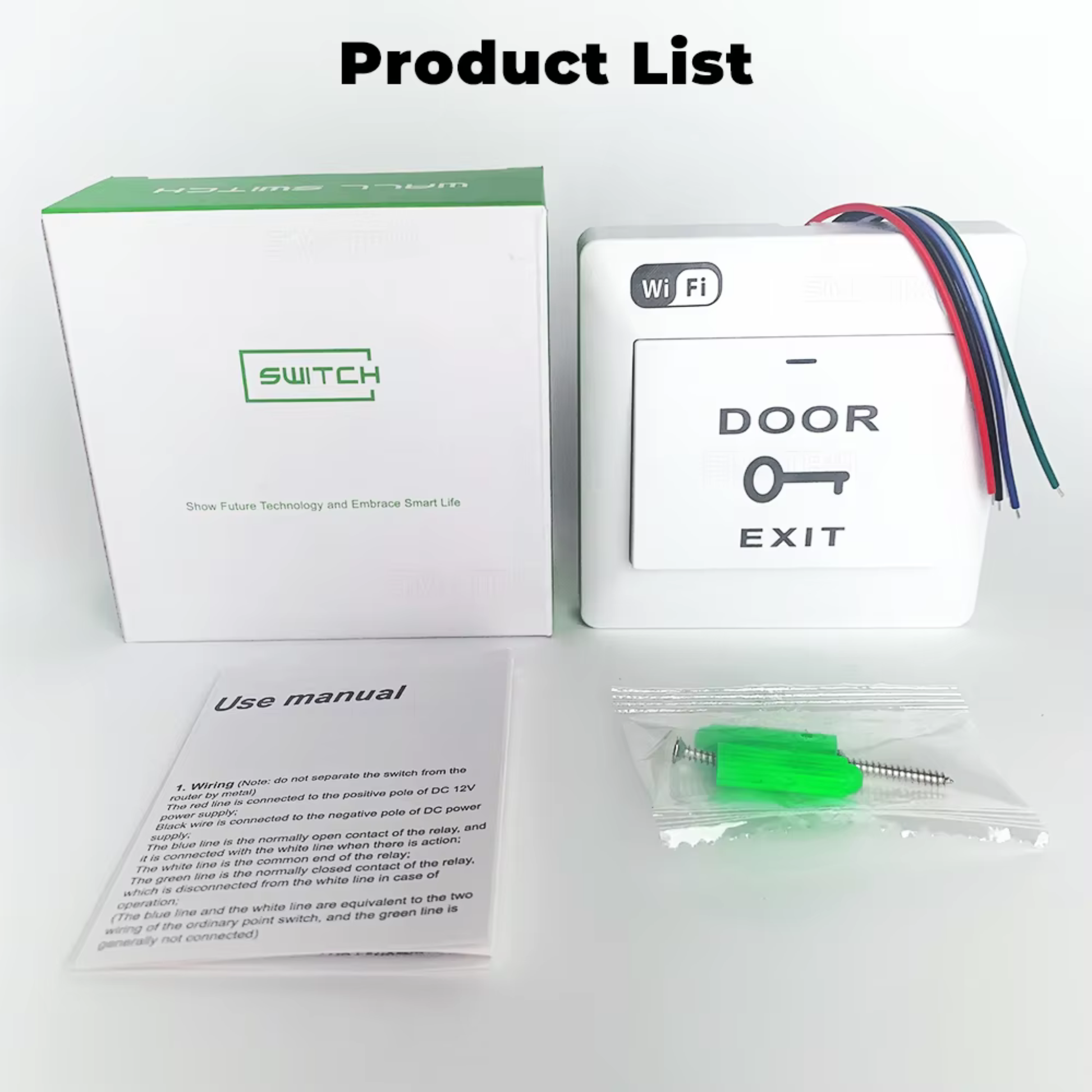

Box contents

  • Smart access key type 86.
  • User manual.
  • Mounting screws and accessories.

Quick delivery tips

  1. The switch is supplied with a 12V DC voltage from a regulated source.

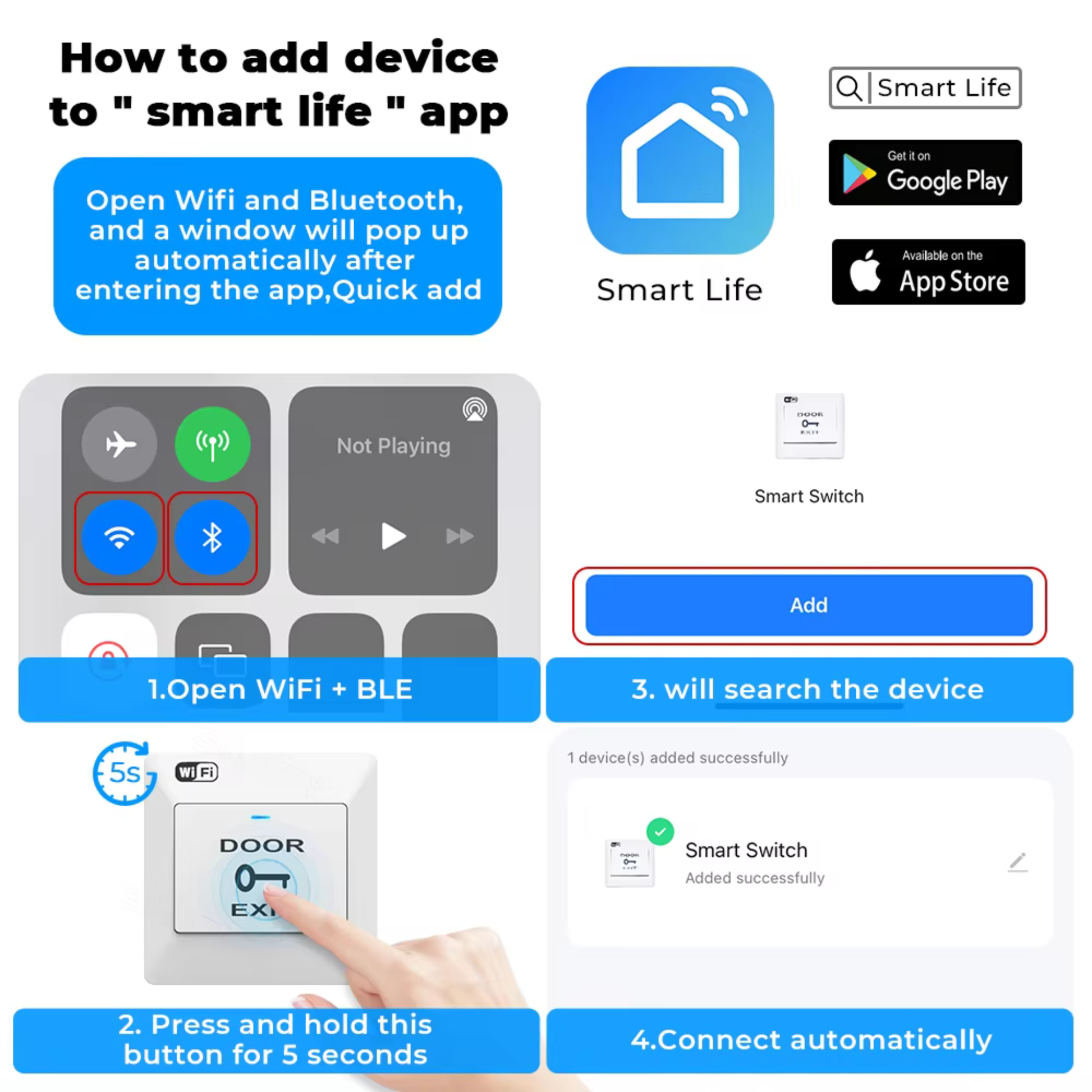

  2. Open the Smart Life app and follow the path to add a device (2.4GHz network).

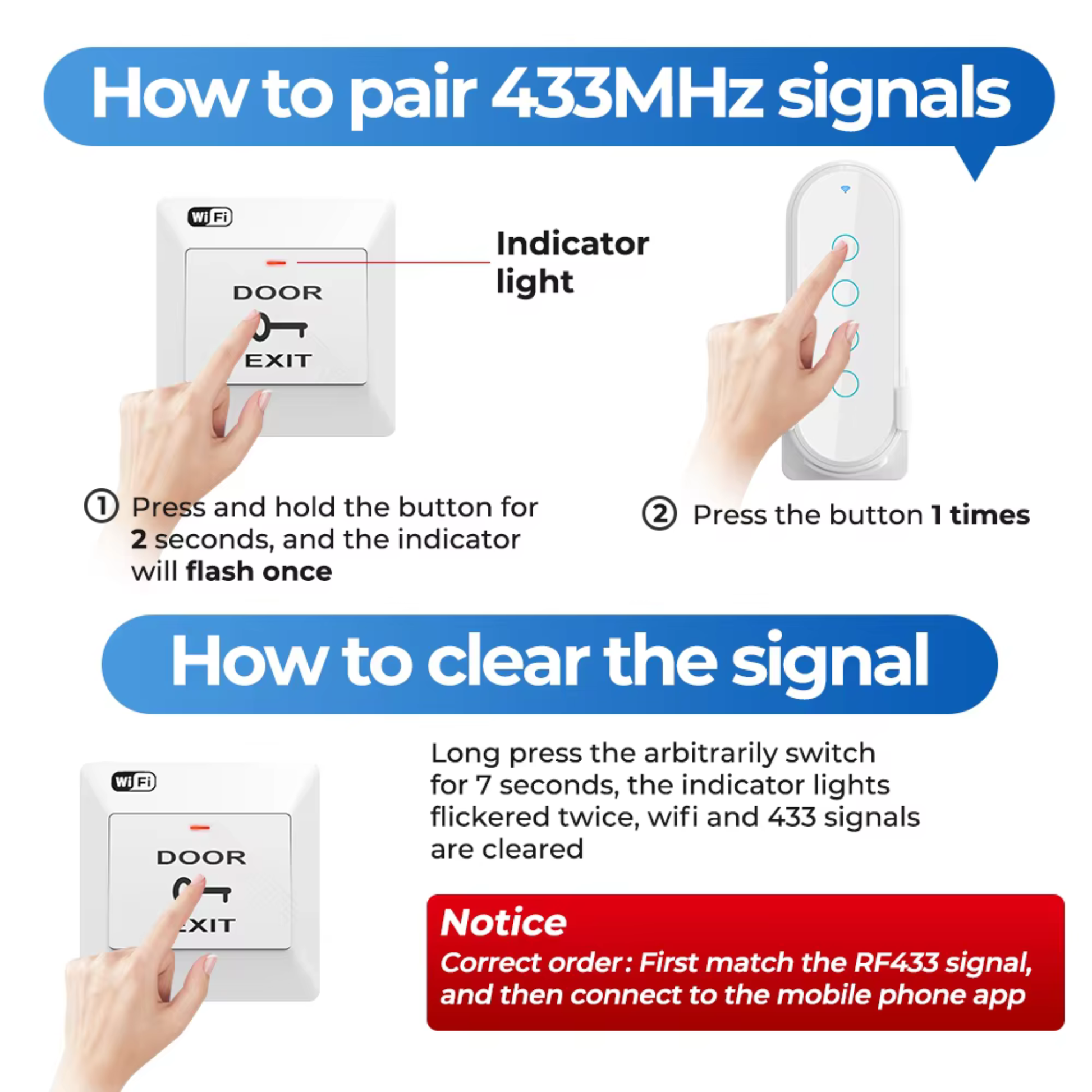

  3. To set up RF433 : Press the device button for ~2 seconds until the indicator flashes, then press the remote button once to pair.
  4. RF/Wi-Fi pairing scan: Press and hold for ~7 seconds until the indicator flashes twice.
