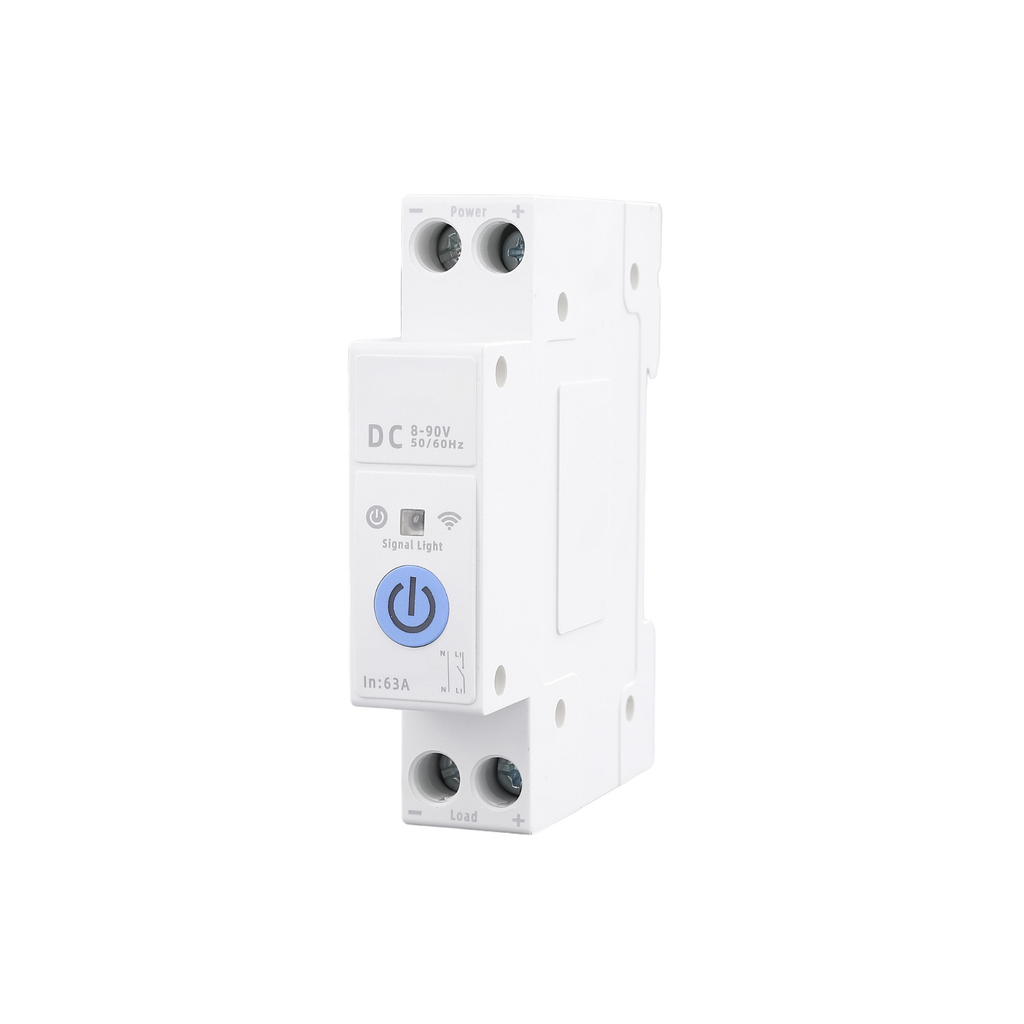

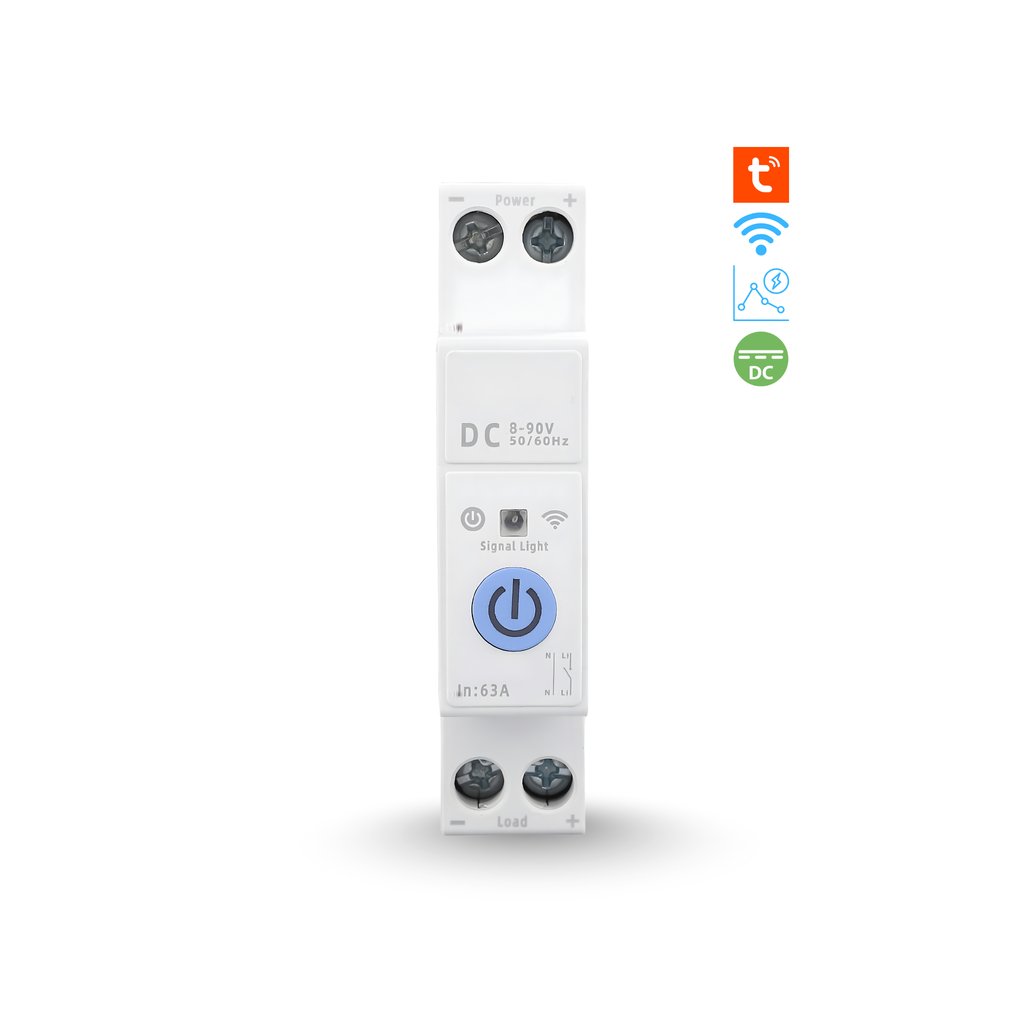

Smart DC Wi-Fi Circuit Breaker/Switch for DIN Rail – Remote Control + Timing | Up to 63A
Control your DC-powered loads from your phone via the Tuya Smart or Smart Life app. Suitable for solar power systems, batteries, and DC applications.
Important Warning: This product operates on DC only (not suitable for AC). Adhere to the polarity (+/−) markings on the device during installation.
Control from anywhere
On/Off via the app even when you are away from home.
Time Automation
Daily schedule + countdown + cycle timing.
Practical solar solution
Fits DC loads within battery and power systems.
Features

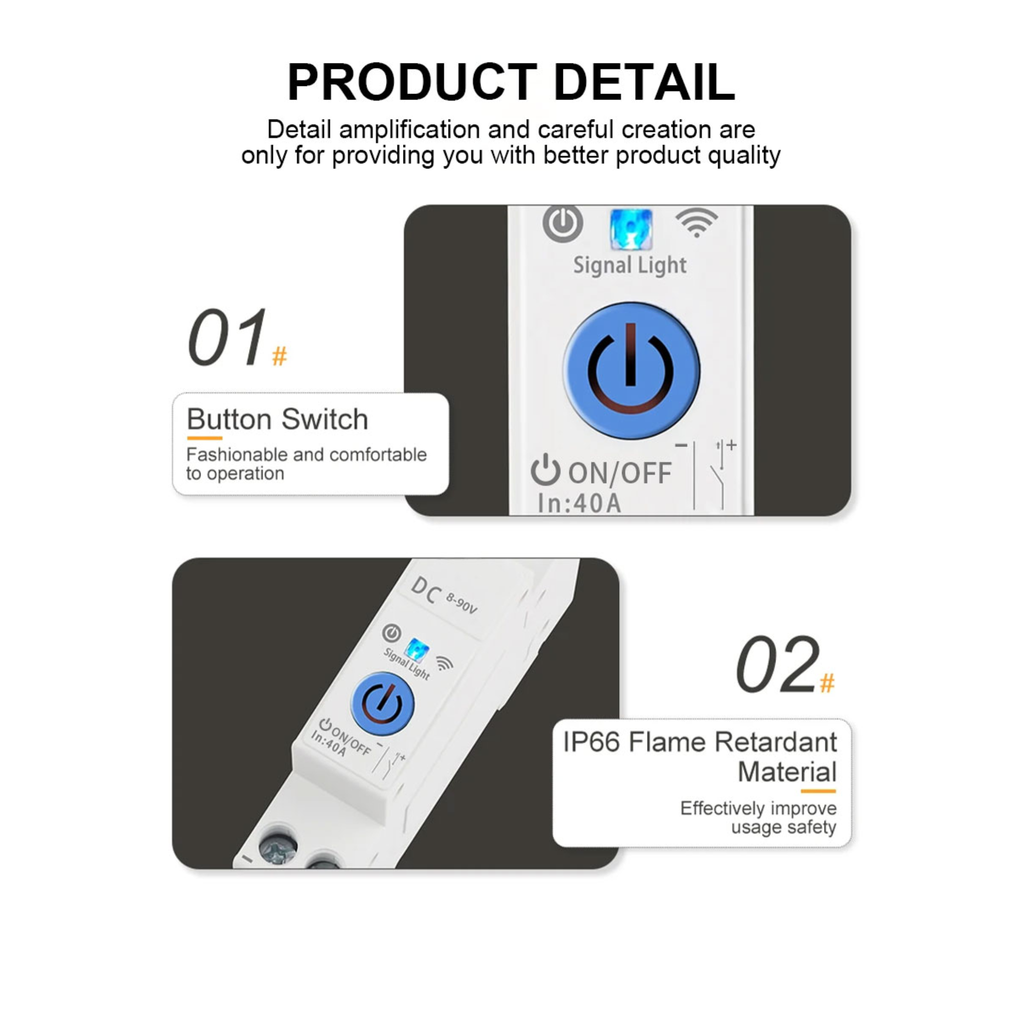

- On/Off via the device button or phone.
- Remote Control via 2.4GHz Wi-Fi using Tuya Smart / Smart Life.
- Scheduling (Timing) to turn the device on/off at specific times.
- Countdown to turn off the load automatically after a set duration.
- Loop Timing for periodic on/off switching (ideal for DC fans/ventilation/lighting).
- Device Sharing with family members from within the app.
- Voice Control when linking the app with Alexa/Google Home (account configuration dependent).

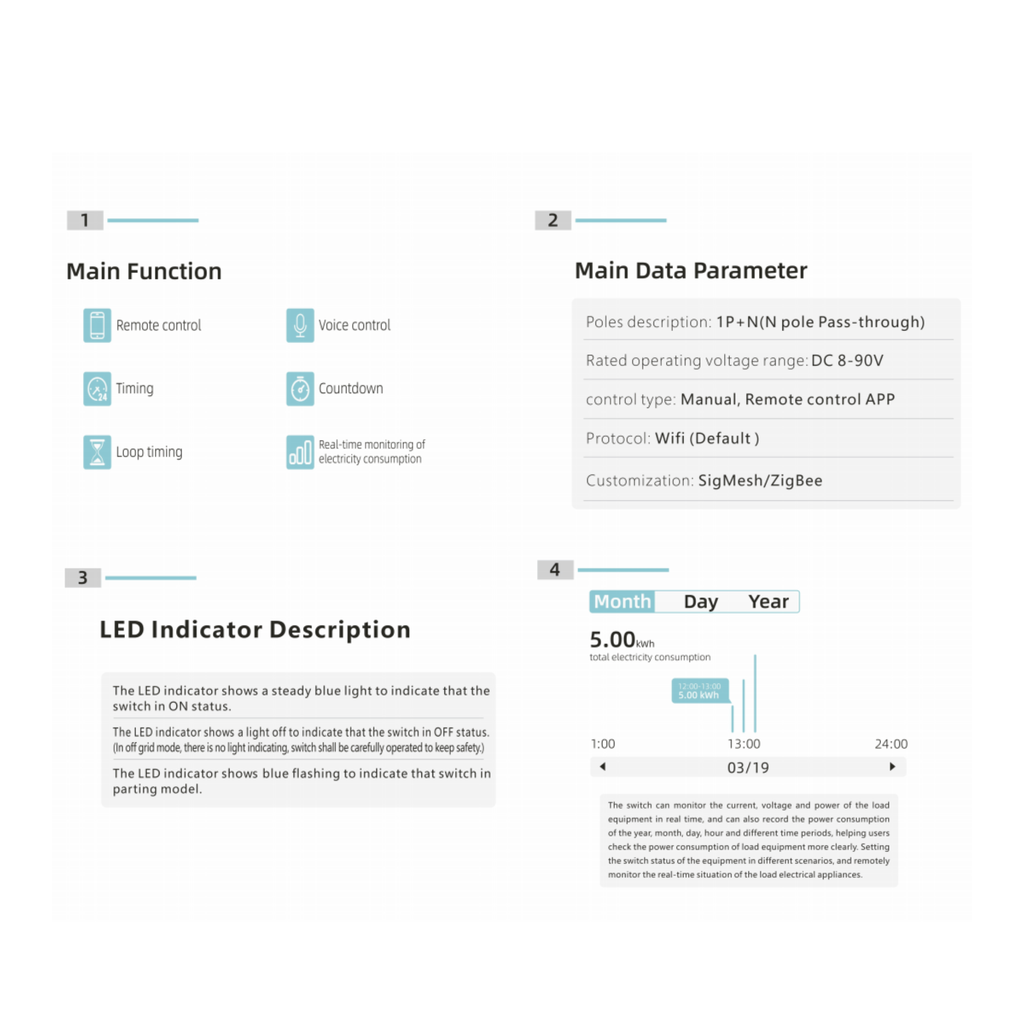

Technical Specifications
| Power Type | Direct Current (DC) |
|---|---|
| Operating Voltage Range | DC 8–90V |
| Rated Current | Up to 63A |
| Connectivity | Wi-Fi 2.4GHz (5GHz not supported) |
| App | Tuya Smart / Smart Life |
| Control Methods | Manual + App-based |
| Wiring | Power (+/−) input from top and Load (+/−) output from bottom (follow labeled polarity) |

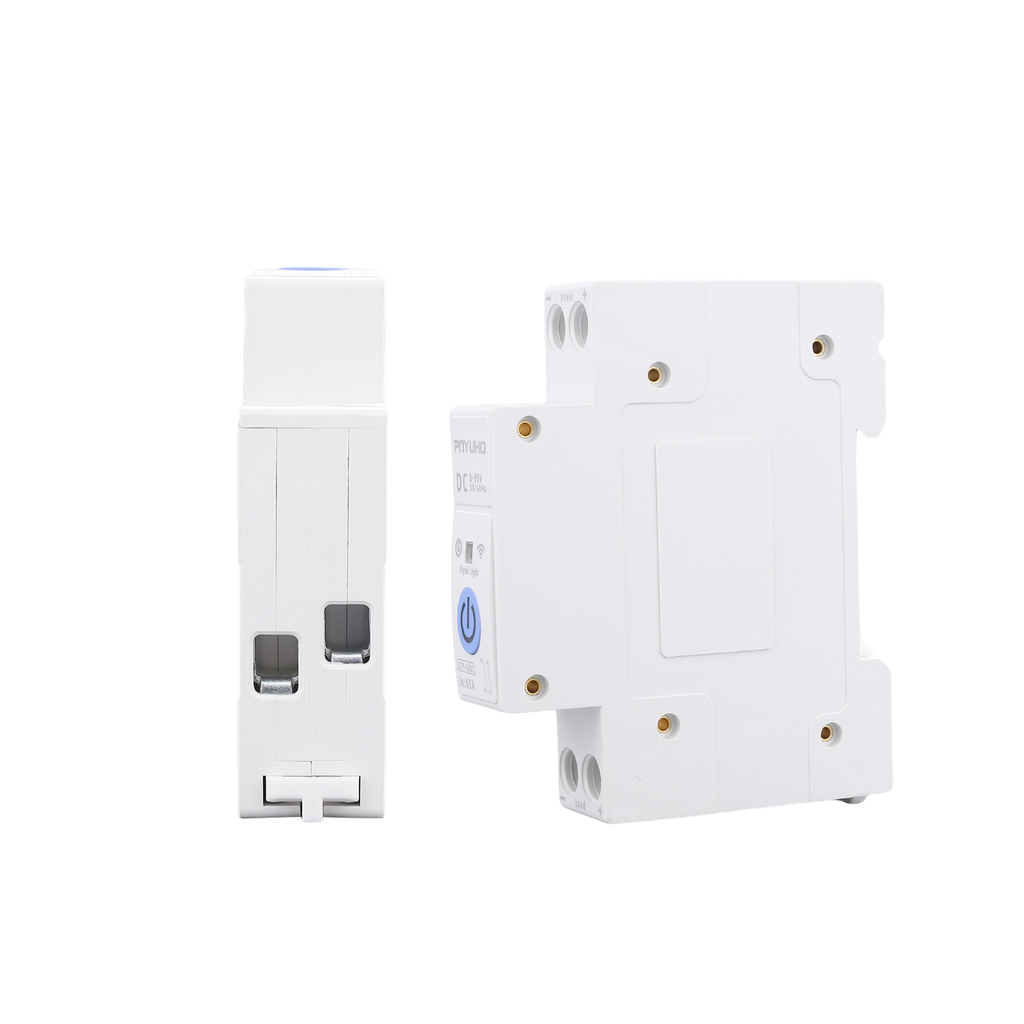

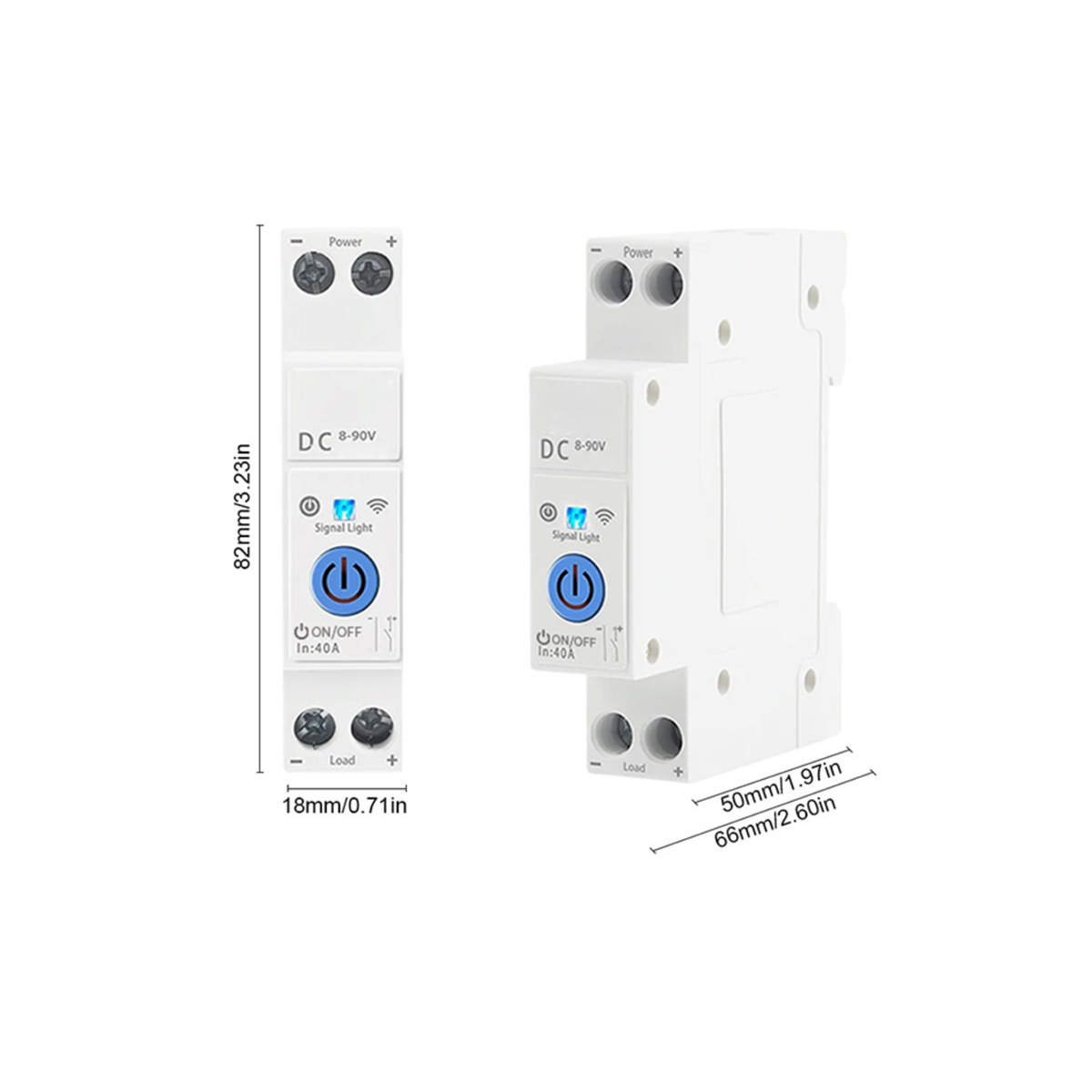

| Mounting | DIN rail inside an electrical panel |
* For very high loads, a proper electrical design is recommended (appropriate wiring, protection breakers, and installation inside a ventilated distribution box).
How to Use (Brief)
- Download the Tuya Smart or Smart Life app.
- Enable Wi-Fi and Bluetooth on your phone (if requested).
- Long-press the power button on the device for several seconds until it enters pairing mode (blinking/indicator light change).
- In the app, select: Add Device (+) then follow the steps to connect to a 2.4GHz Wi-Fi network.
- After connecting: Enable scheduling/countdown/loop timing as needed.
Suggested Uses
- DC solar power systems (switching DC loads on/off).
- DC outdoor lighting with automatic scheduling.
- DC fans/ventilation with loop timing.
- Managing battery and DC loads within load limits.
- Full phone control without touching the panel.
- Time automation to save energy and organize operation.
- Suitable for DC environments like solar power and batteries.
In the Box
- Smart DC Wi-Fi DIN Rail Circuit Breaker/Switch
- User Manual
Safety Warnings
- This product is DC only — do not use with AC (Alternating Current).
