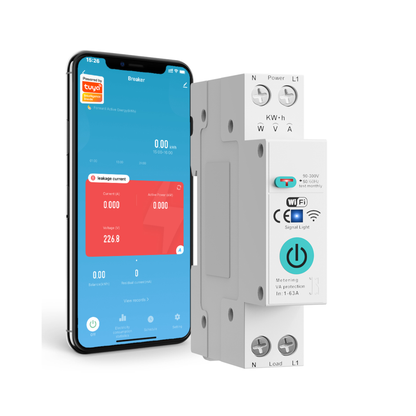

Smart switch 1-63 Amp, integrated protection with Earth Leakage system - Wi-Fi - Tuya

Smart switch 1-63 Amp, integrated protection with Earth Leakage system - Wi-Fi - Tuya

SMFY-EA63TW

31,000 IQD
36,000 IQD 31,000 IQD
وفر 5,000 IQD Sold out
Shipping calculated at checkout.

8 in stock
  • quality assurance
  • One full year replacement warranty
  • Fast shipping

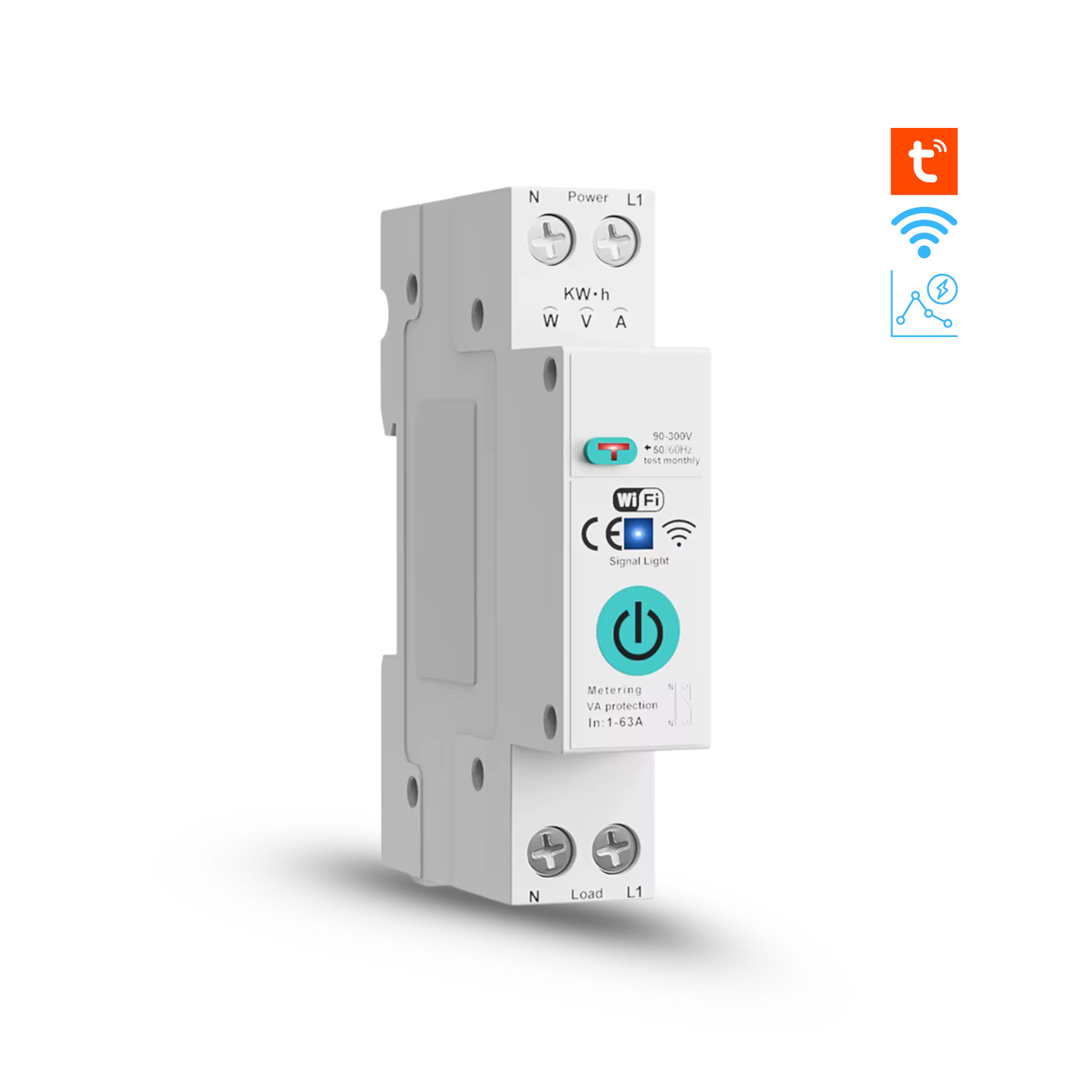

63 Amp Smart Circuit Breaker 1P+N – Wi-Fi with Ground Leakage Protection (RCD) and Power Monitoring

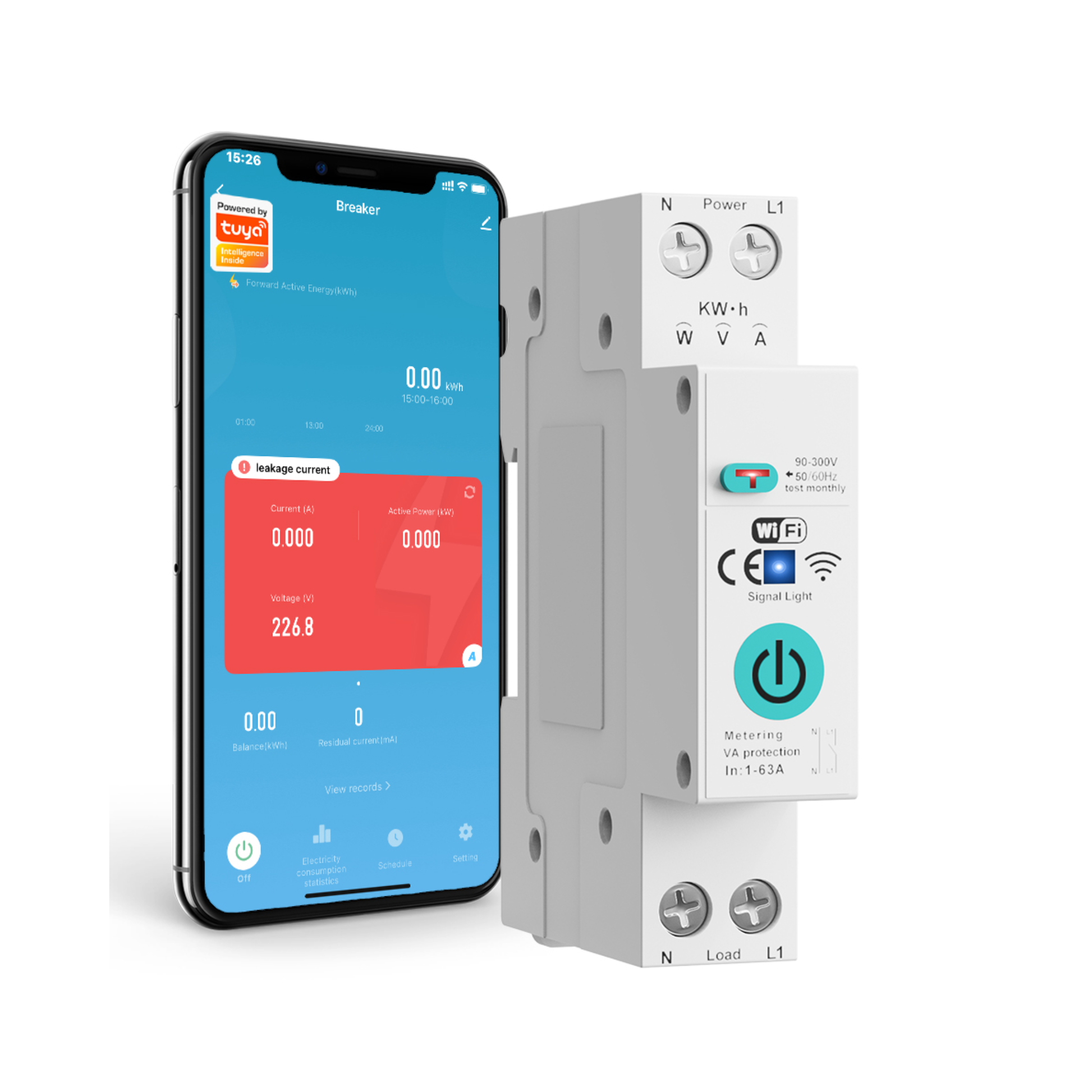

The SmartifyIQ SCB-L circuit breaker combines comprehensive protection and remote control via Smart Life/Tuya , with real-time monitoring of voltage, current, and power, as well as management of operating schedules and alerts.

1P+N Rated current 1–63A (adjustable) Wi-Fi 2.4GHz Curve C • 6kA RCD (Type A) Ground Leakage Protection DIN Rail Installation

Key advantages

  • Remote on/off via the Smart Life/Tuya app from anywhere.
  • Supports voice commands via Google Assistant and Amazon Alexa .

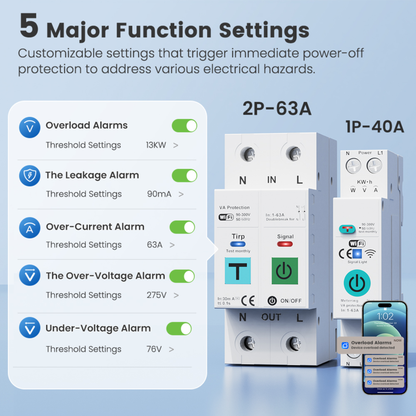

  • Intelligent protection against ground leakage (RCD), overload/overcurrent, overvoltage/undervoltage, and short circuits.
  • Real-time monitoring of V/A/kW/kWh with graphs and instant alerts.
  • Adjust the rated current from 1 to 63 amps to suit your loads.
  • PC V0 structure is fire-resistant and quick to install on DIN rail.

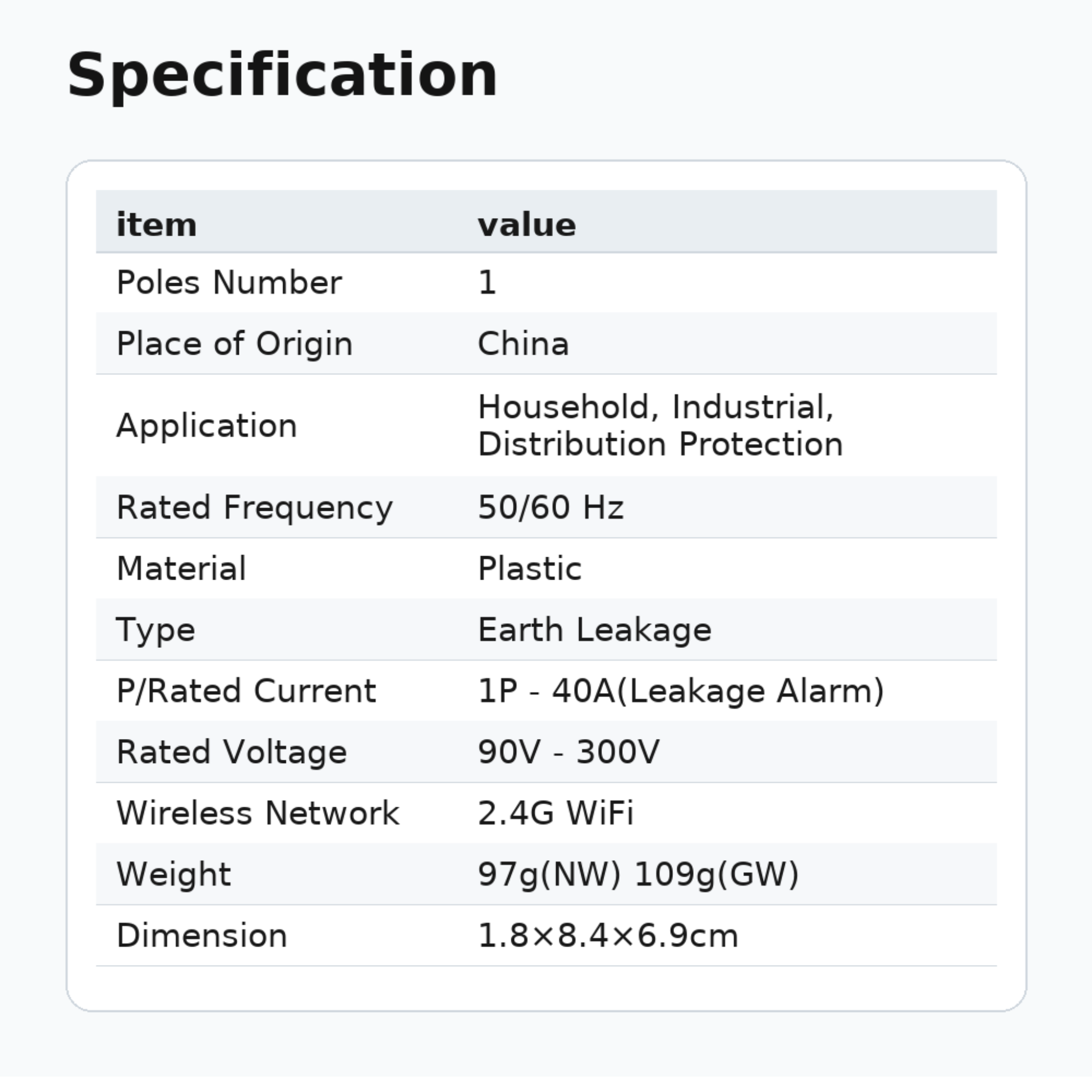

Technical specifications

electrical voltage
AC 90–300V • 50/60Hz
Rated current
1–63A (Adjustable via app)
Number of poles
1P + N
cut-off curve
Curve C
breaking capacity
6kA
wireless connection
Wi-Fi 2.4GHz (IEEE 802.11 b/g/n)
Applications
Smart Life / Tuya • Supports Google Assistant & Alexa
Types of protection
RCD (30mA default human protection, Type A) + Overload/Overcurrent + Overvoltage/Overvoltage + Short Circuit
Energy measurement
Voltage, current, power, and cumulative energy (kWh)
Dimensions/Weight
Approximately 1.8 x 8.4 x 6.9 cm • 97g net / 109g gross
Composition
DIN rail with distribution boards
raw material
PC with a fire resistance rating of V0
Warranty
12 months

Usage scenarios

  • Lighting circuits and sockets for loads within the rated current limits.
  • Homes, offices, and shops: Monitor consumption and reduce energy waste.
  • Small business projects: Automatic shut-off in case of overcurrent or short circuit.

Instructions and installation

  1. Turn off the power supply and install the circuit breaker on the DIN rail.
  2. Ensure that the wiring and main protection can withstand 63A or adjust the appropriate current from the application.

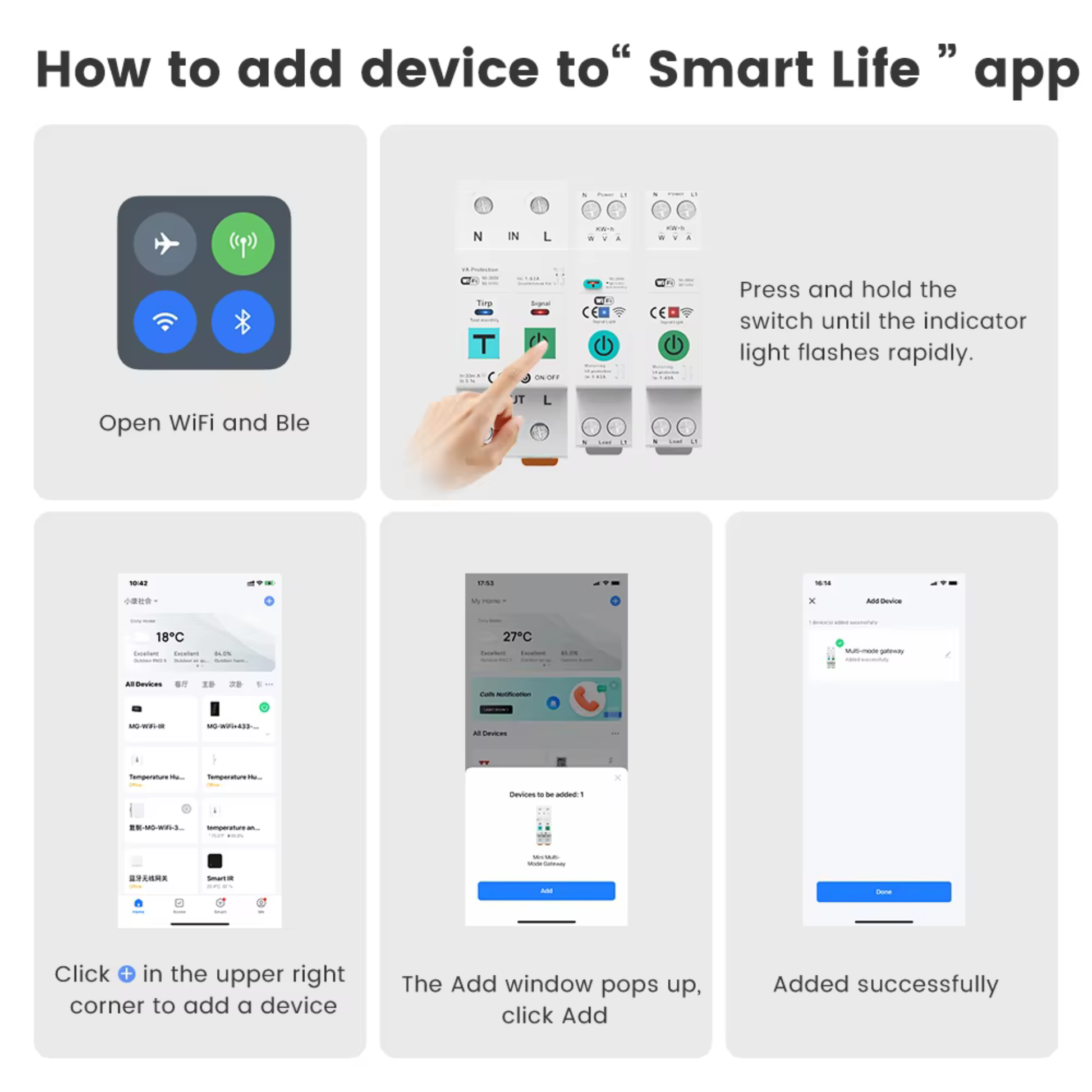

  3. Connect the breaker to the Smart Life app via a 2.4GHz Wi-Fi network.

Caution: It is preferable that the installation be carried out by a qualified electrician.
