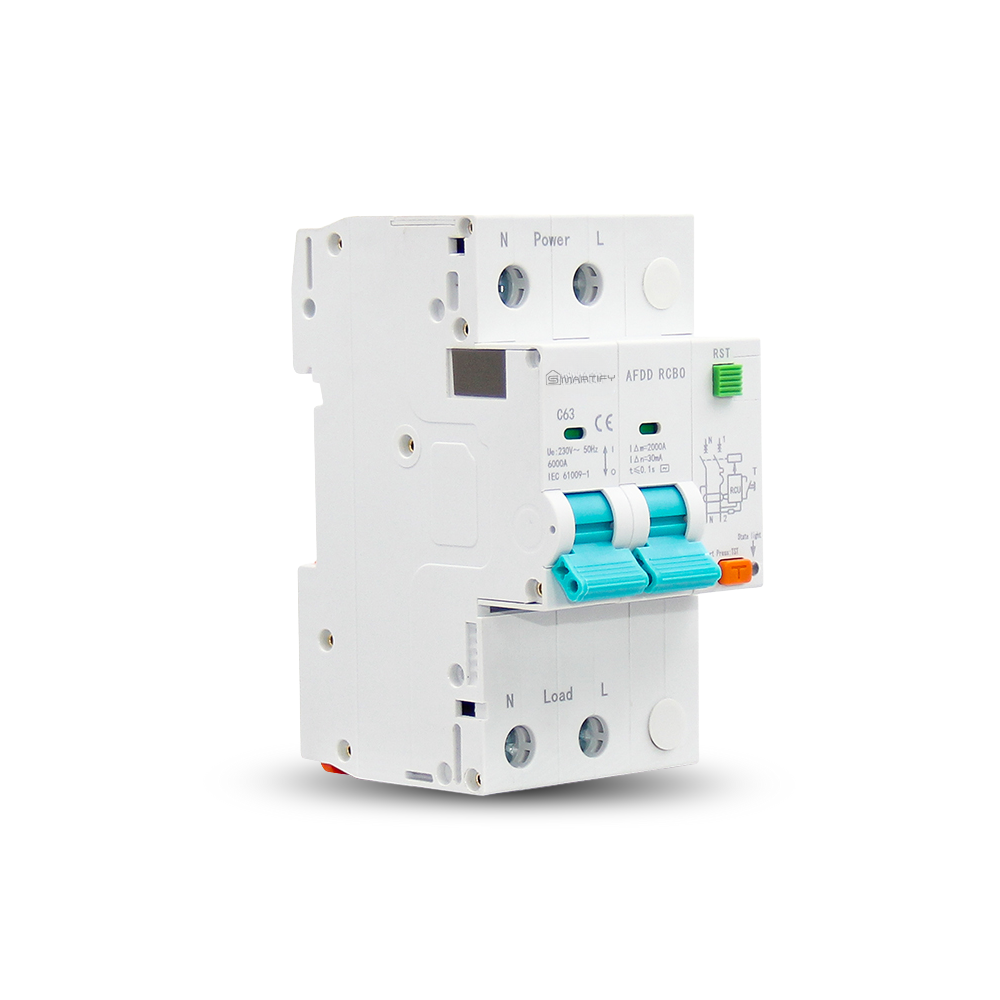

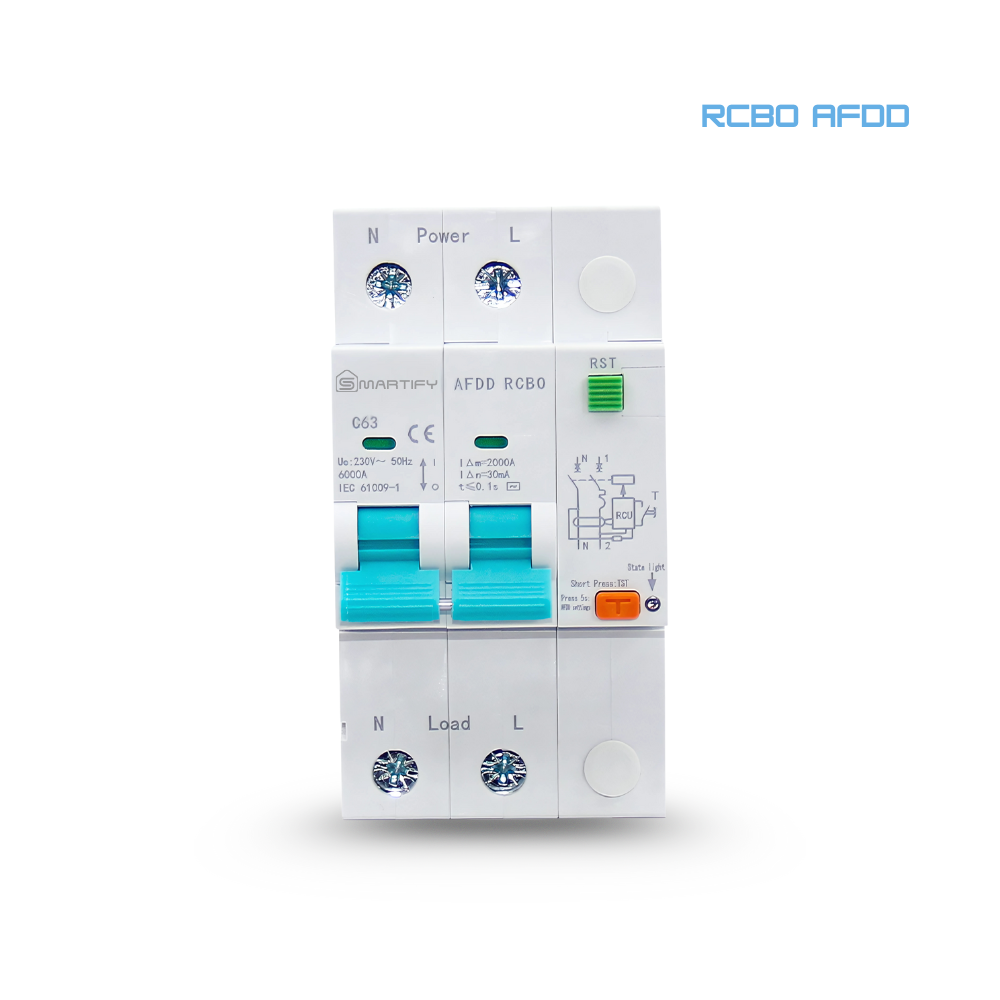

RCBO + AFDD Bi-Pole Universal Circuit Breaker - Protection against Arc, Leakage and Overcurrent

RCBO + AFDD Bi-Pole Universal Circuit Breaker - Protection against Arc, Leakage and Overcurrent

SMFY-RCBOAFDD

35,000 IQD
35,000 IQD
وفر -35,000 IQD Sold out
Shipping calculated at checkout.

3 in stock
  • quality assurance
  • One full year replacement warranty
  • Fast shipping

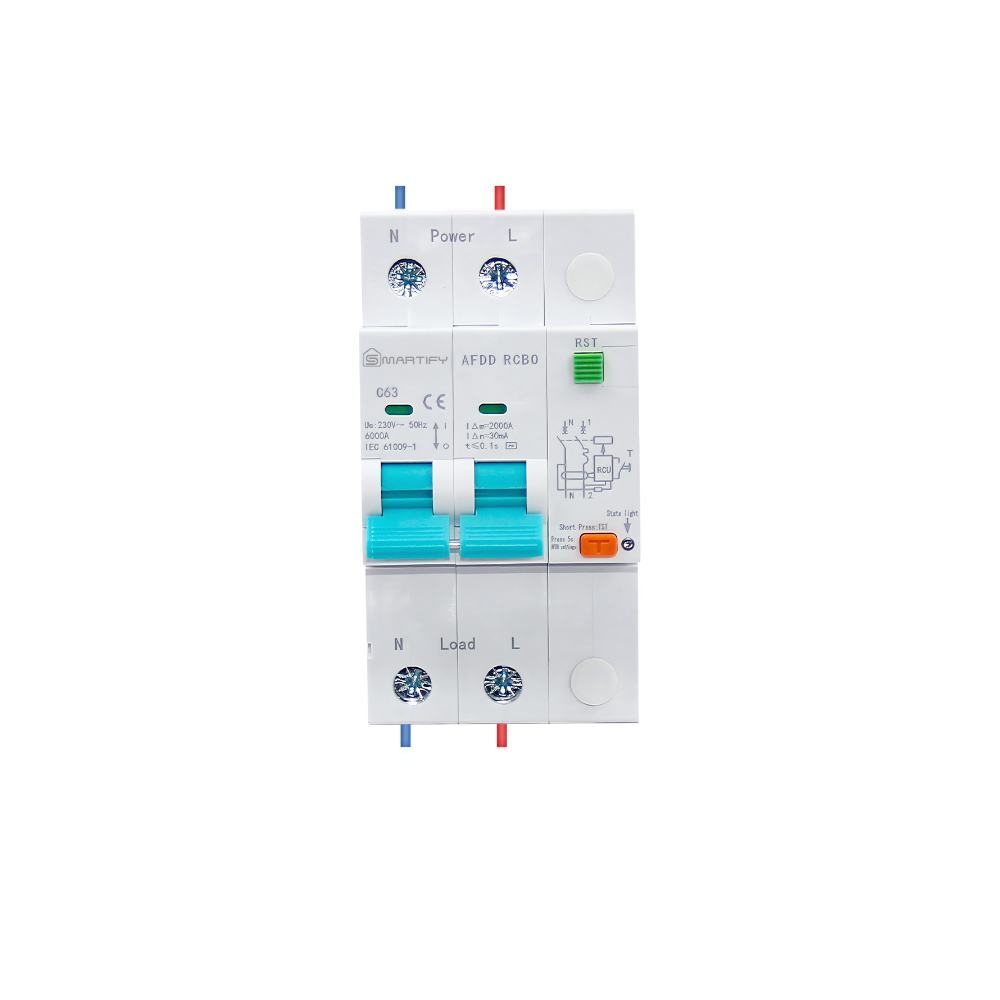

RCBO + AFDD bipolar protection circuit breaker

Achieve maximum electrical safety with the RCBO circuit breaker, which features an integrated arc detection (AFDD) module. This device is designed to protect distribution circuits from all types of electrical hazards, including leakage, arcs, overcurrent, and short circuits. While this breaker doesn't have smart features (WiFi or apps), it provides advanced protection based on precise sensor technologies that ensure safety around the clock.

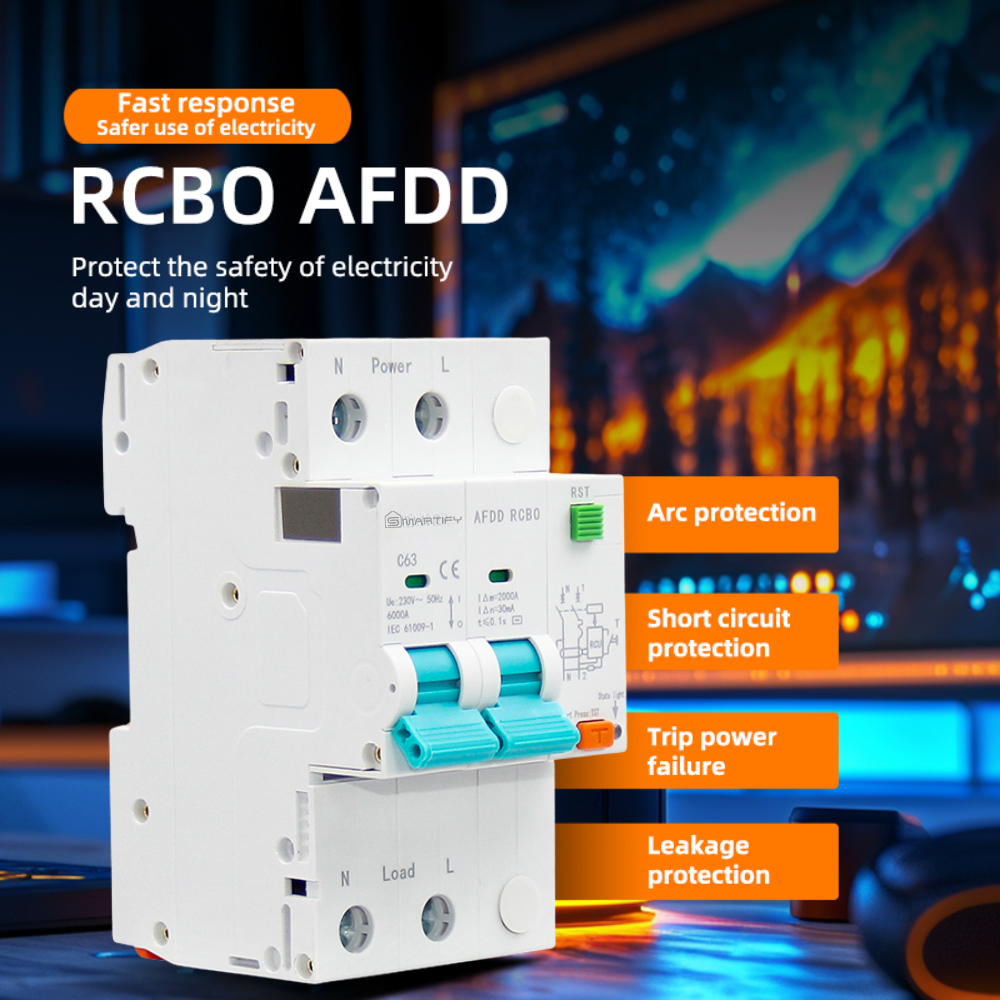

Key advantages:

  • Arc Protection (AFDD): Detects faults caused by damaged insulation or moisture.
  • Overcurrent and short circuit protection (MCB).
  • Leakage current protection (RCD) with a sensitivity of 30mA.
  • Automatic power cut-off in case of any malfunction.

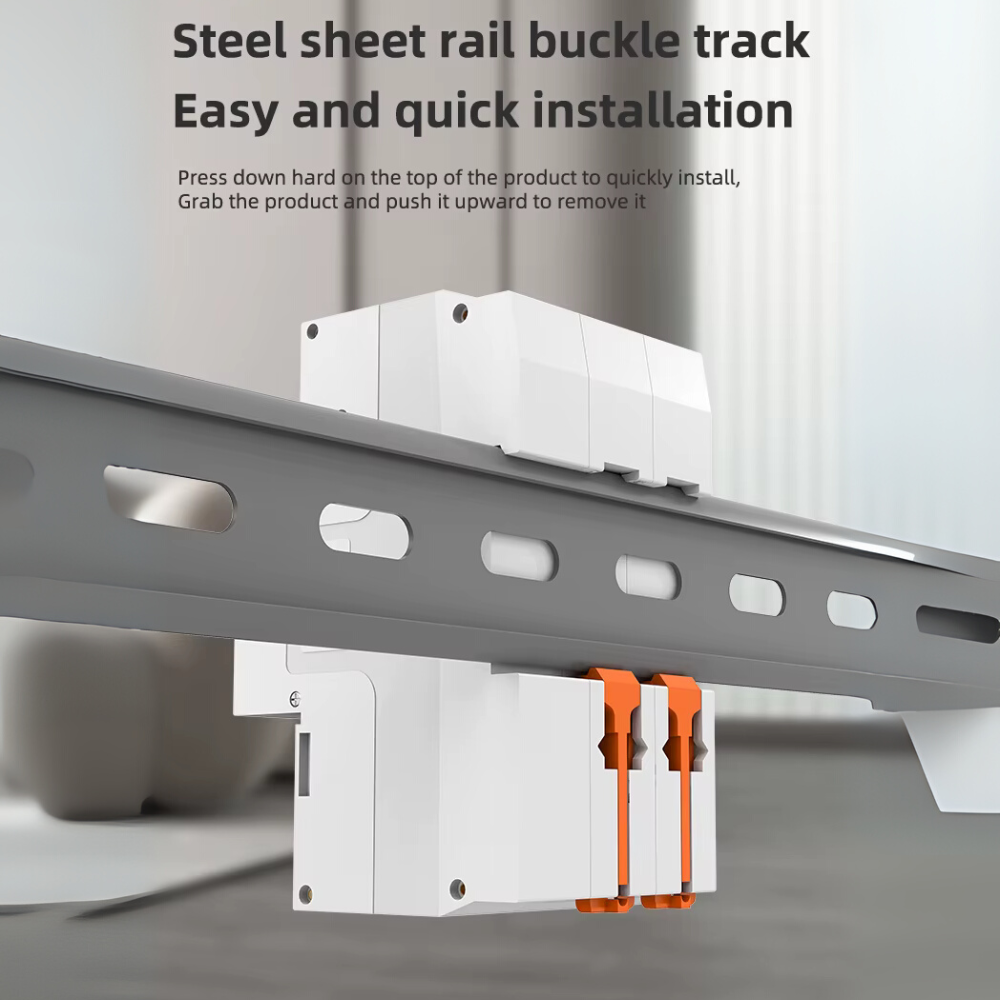

  • Compact design and easy installation on a DIN rail.

Explanation of abbreviations:

abbreviation Meaning His job
RCBO Residual Current Breaker with Overcurrent It protects against current leakage and overcurrent.
AFDD Arc Fault Detection Device It detects and stops the dangerous electric arc
MCB Miniature Circuit Breaker Protects against overcurrent and short circuits
RCD Residual Current Device Current leakage reveals protection against shocks
6kA 6000 amps The ability to disconnect in the event of a short circuit.
30mA Type A Standard leak sensitivity It disconnects when a leakage current exceeds 30 mA.

A realistic protection scenario:

Imagine an older house with electrical wiring that has corroded over time. A wire behind a wall has started generating an electrical arc due to the worn insulation, potentially leading to a fire. Conventional circuit breakers don't detect this type of fault because they don't generate a high current. This is where the AFDD (Arc Detection and Voltage) comes in : it detects the oscillations caused by the arc and immediately disconnects the power before the danger becomes a disaster.

Suggested uses:

  • Electrical distribution panels for homes and offices.
  • Protecting lighting circuits and sockets from hidden hazards.
  • Places that require superior protection against electrical fires, such as electrical cabinets, offices, and workshops.

Technical specifications:

  • Nominal voltage: 230V AC
  • Nominal current: up to 63 amps
  • Frequency: 50 Hz
  • Insulation voltage: 400 volts
  • Pulse resistance: 4 kV
  • Number of electrodes: 2P (electrode + neutral)
  • Magnetic separation type: C-Curve or B-Curve
  • Separation capacity: 6kA
  • RCD sensitivity: 30mA Type A

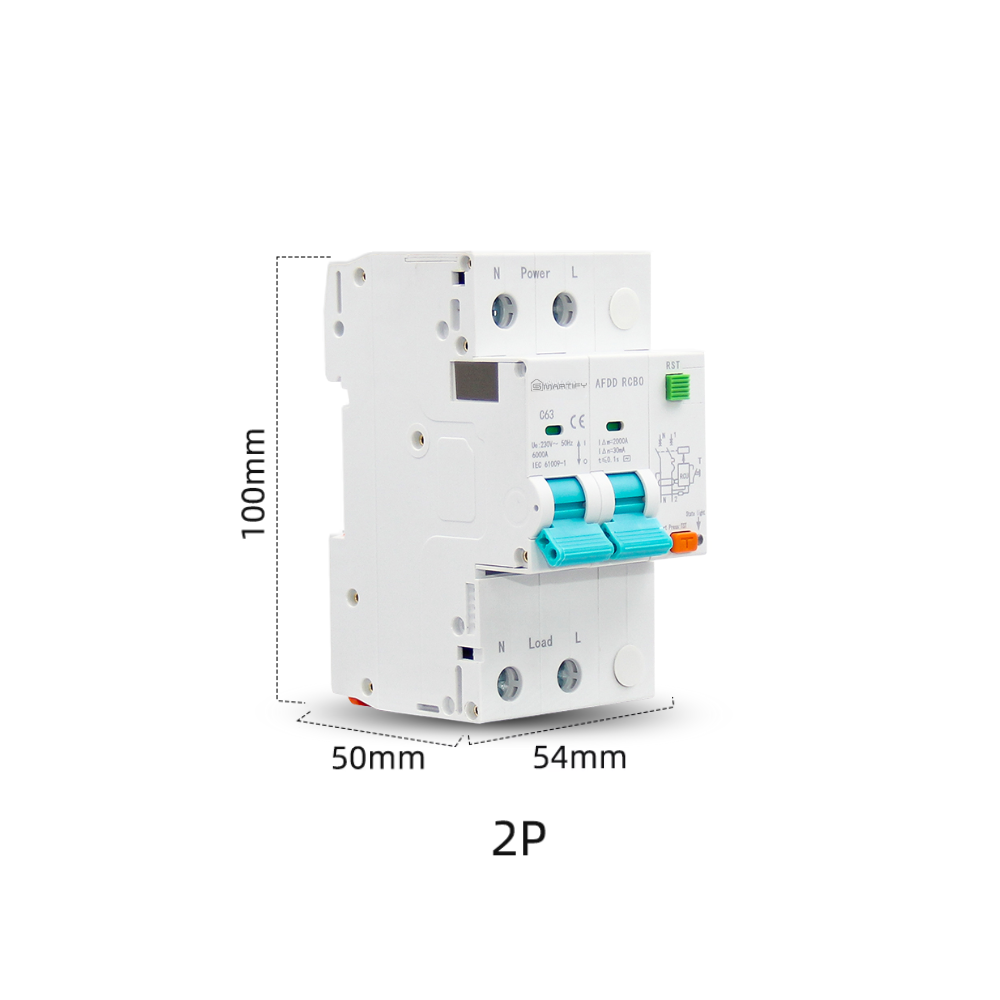

  • Dimensions: 100 x 54 x 50 mm
