Smart fan switch, 5-speed pressure, Wi-Fi system - Tuya - Child lock, adjustable light
29,000 IQD
Shipping calculated at checkout.

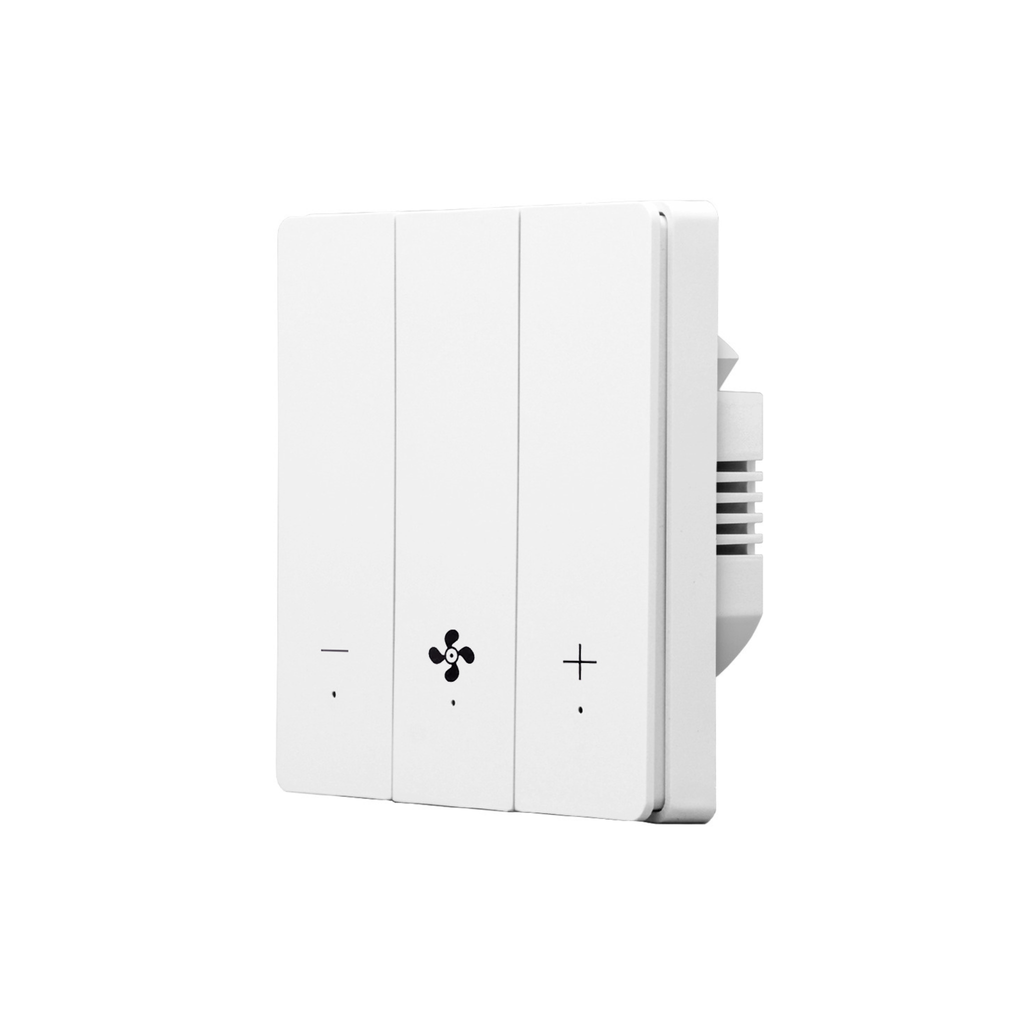

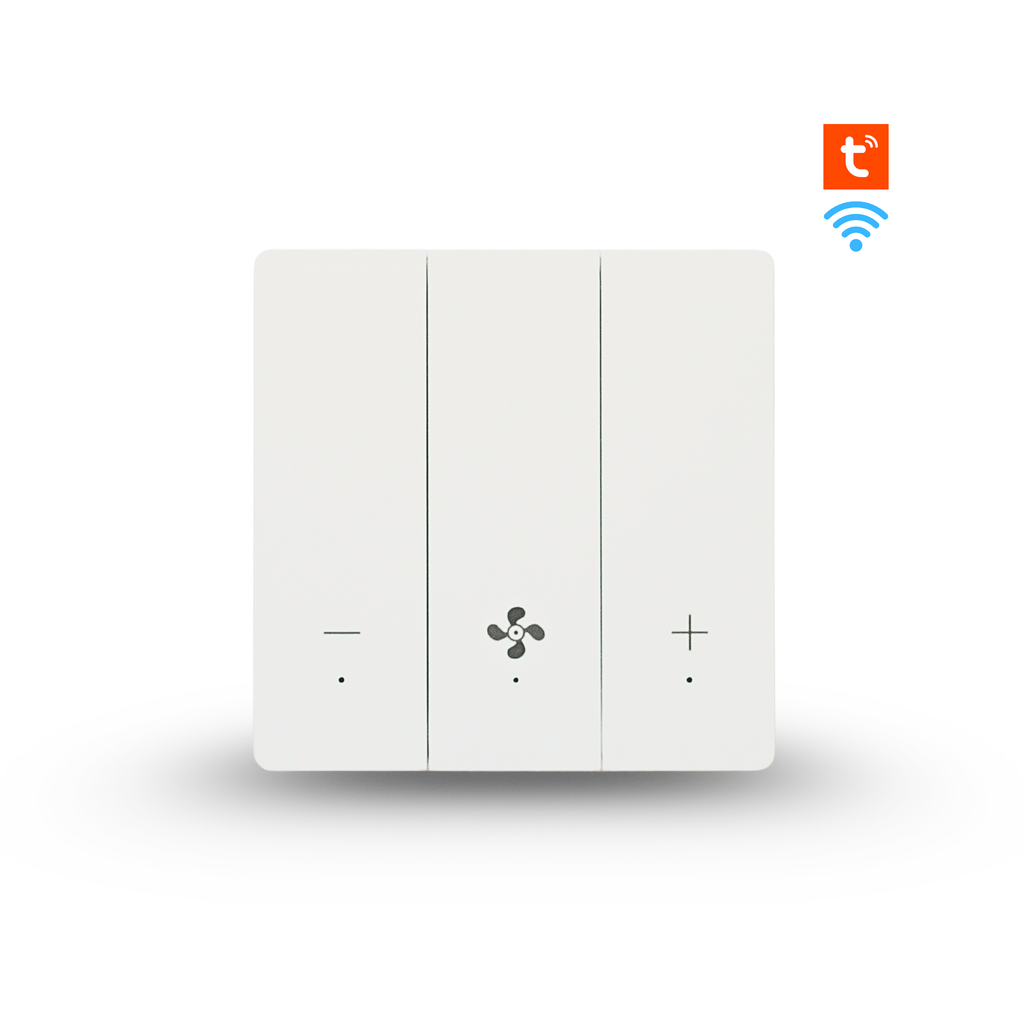

Smart Wi-Fi Ceiling Fan Switch (Tuya) — 5-Speed Push-Button Control
Control the fan from the Tuya/Smart Life app or by voice commands, with 5 speed levels, scheduling/timer, and remembers the last state after a power outage.
Tuya 2.4GHz Wi-Fi / Smart Life 5 Speeds ≤ 200W / Line Requires N EU Cable 86×86 mm
Features
- Touch control with five speeds (lower/higher) and a middle button for speed.
- Control from anywhere via Tuya/Smart Life with a slider/percentage interface, on/off, and playback log.
- Voice commands via Google Assistant and Amazon Alexa .
- Scheduling and timer to automatically turn the fan on/off.

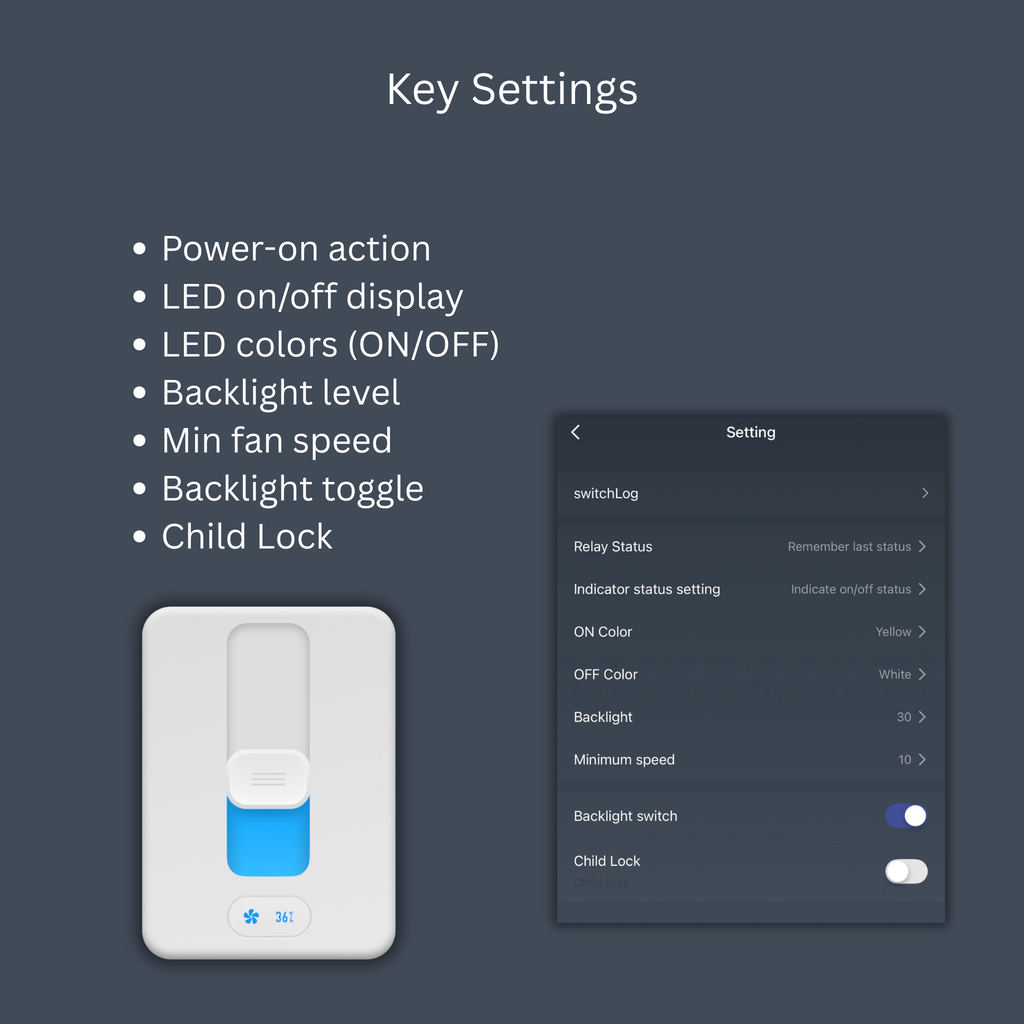

- Remember the last state after a power outage or choose the operating state upon restoration (Relay Status).
- Setting the minimum speed to prevent very slow rotation.
- Adjustable or off backlight with the ability to select the on/off indicator color.
- Child lock feature to prevent accidental pressing.
- Sharing the device with family members.
Important note: A neutral ( N ) wire is required for operation. Installation should be performed by a qualified electrician. It is recommended to remove any old controller/remote or dimmer before connection.

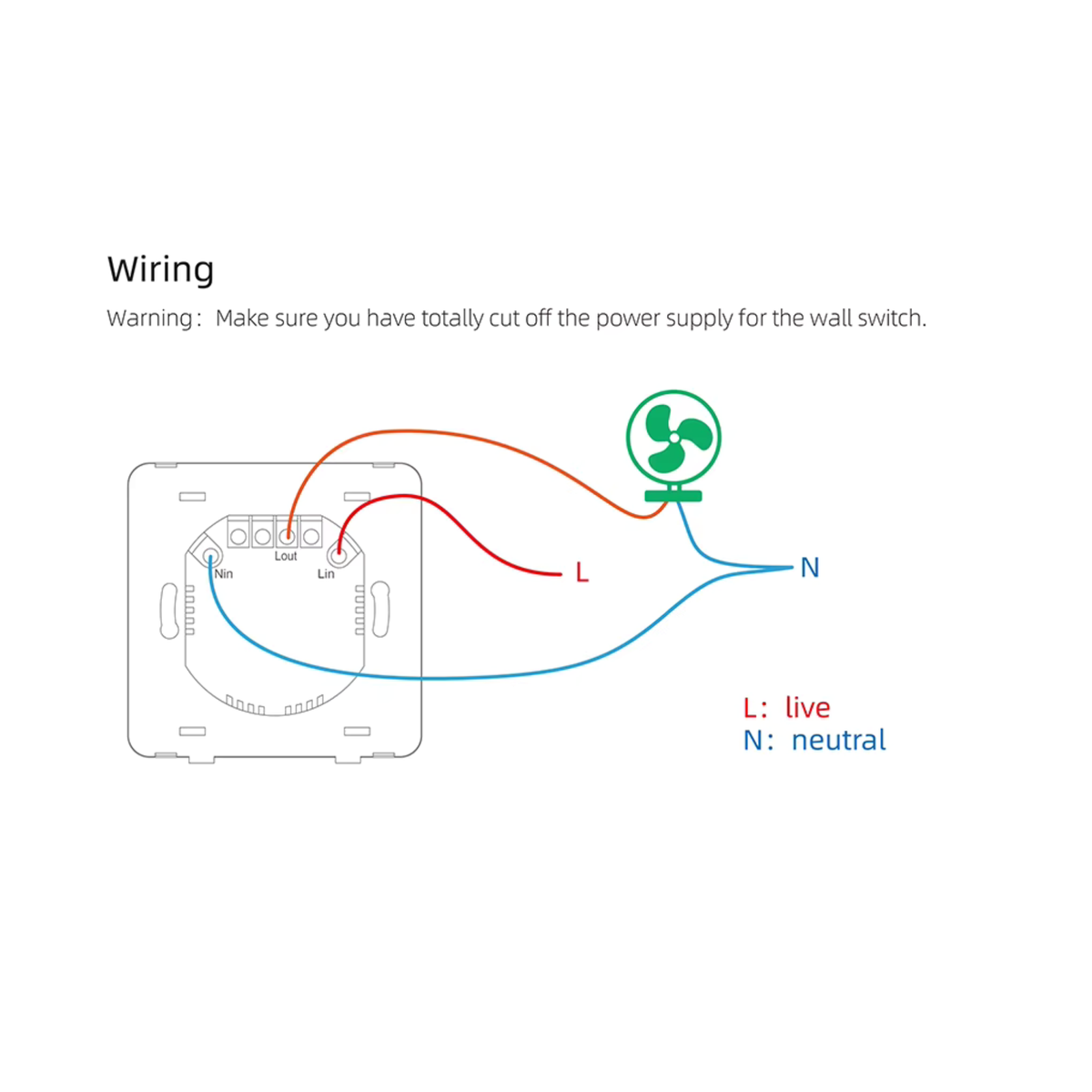

Short delivery method
- L in from the source, and L out/L1 to the fan.
- Wire N connects to both the switch and the fan.
- Cut off the power supply before working and secure the wires inside an 86 mm box.
Technical specifications

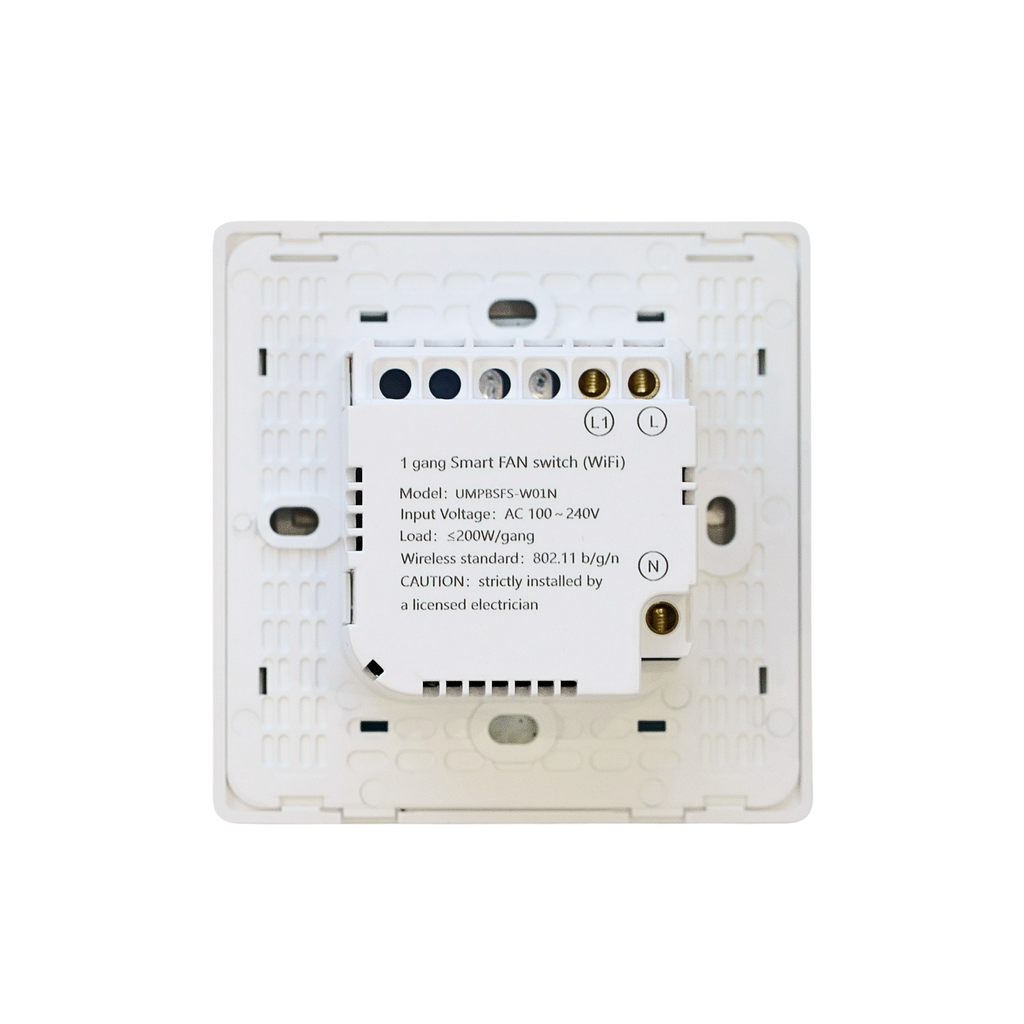

| Model | UMPBSFS-W01N (Smart Fan Switch – Wi-Fi) |
| Voltage/Frequency | AC 100–240V, 50/60Hz |
| Load capacity | ≤ 200 watts per line (fan) |
| wireless connection | Wi-Fi 802.11 b/g/n (2.4GHz) |
| Applications | Tuya / Smart Life |
| Number of speeds | 5 speed levels + slider/ratio within the app |
| Lowest speed | Selectable from the settings (Minimum speed) |
| Backlighting | Dimmable/Off + Customizable ON/OFF indicator color |
| Safety | Child lock, remember last status (Relay Status) |
| Standard dimensions | EU 86×86 mm (Inset inside an 86 mm box) |
| Content | Key + mounting screws + quick guide |
Note: Some ceiling fans equipped with an original control unit (remote/dimmer) may need to have that unit removed to ensure the five speeds remain stable via the smart switch.
