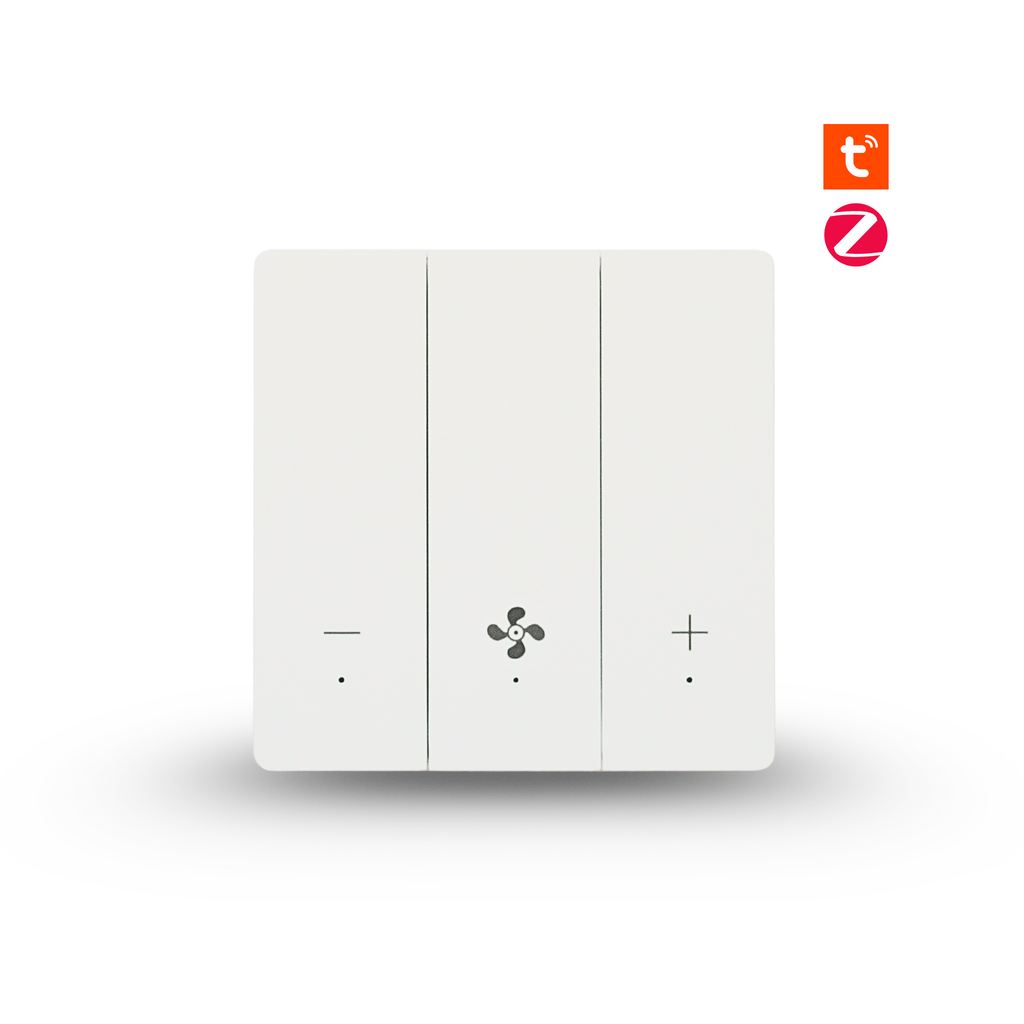

Zigbee 3.0 Smart Ceiling Fan Switch (Tuya) — 5-Speed Touch Control
Fast local control via Zigbee network with Tuya/Smart Life app integration through Zigbee gateway. Supports voice commands, scheduling/timer, and last state recall after power outage.
Zigbee 3.0 requires a Tuya Zigbee 5-speed gateway , ≤ 200W/line, 100–240VAC EU 86×86mm, N wire required.
Note: This version uses Zigbee 3.0 and is not Wi-Fi. A Tuya/Smart Life compatible Zigbee gateway/hub is required to connect to the app and voice commands.
Features
- Touch control with five speeds (lower/higher) and a middle button for speed.
- The Zigbee network is fast and stable with low power consumption, and operates locally via the hub.
- Control from the Tuya/Smart Life app (on/off, speed change, timer, and scheduling).
- Voice commands via Google Assistant and Amazon Alexa through the Zigbee gateway.
- Remember the status after a power outage (Relay Status) + Set the minimum speed to prevent vibration/humming.
- Adjustable or off backlighting, with a choice of on/off indicator colors.
- Child lock feature and switchlog instructions.
- Local scenes and groups via the hub (operating multiple fans within a single scenario).
Zigbee Quick Pairing
- Open the Smart Life/Tuya app > Add device > Zigbee.
- Press and hold the touch button for ~10–15 seconds until the indicator flashes to enter pairing mode.
- Follow the instructions to complete the connection via the portal.

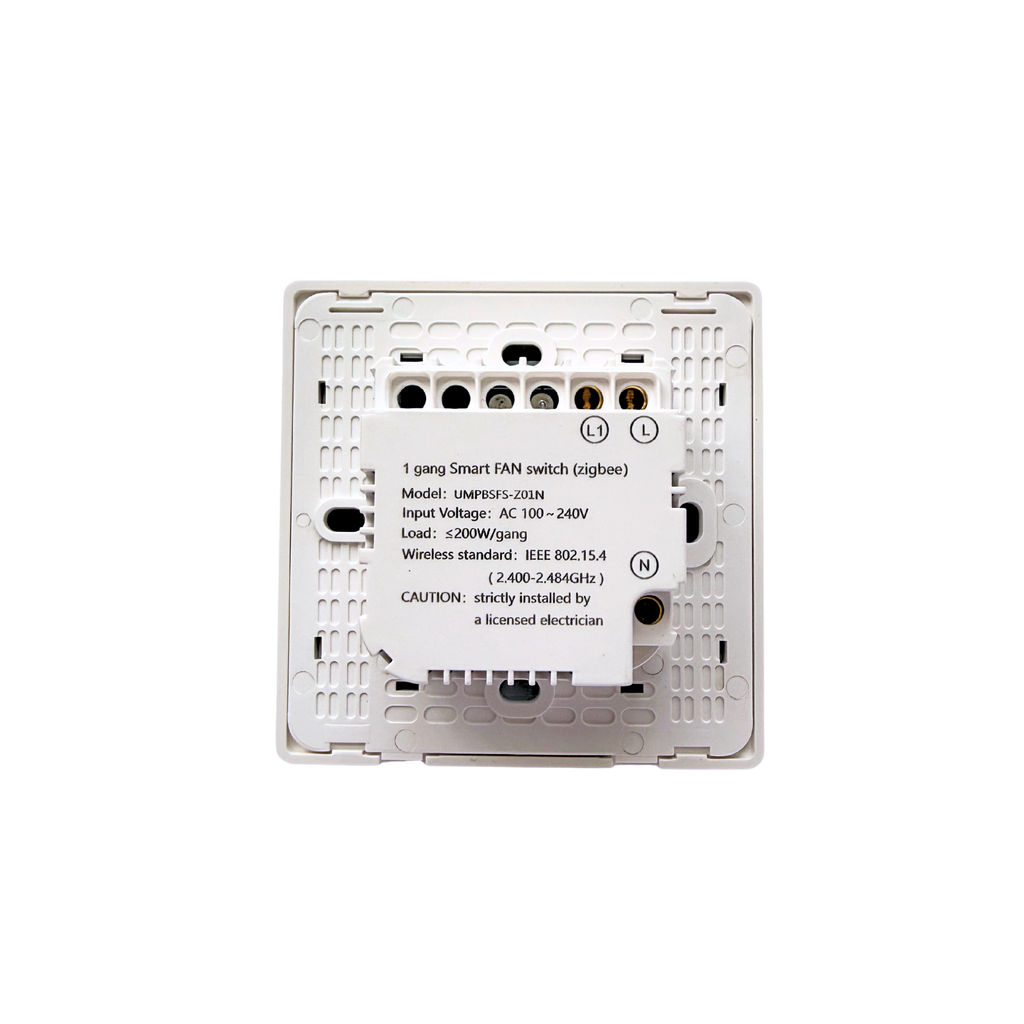

Typical ports: L in / L out (L1) + N — Make sure the screws are tightened properly.
- L in from the source, L out/L1 to the fan, and N to the switch and fan together.
- It is installed by a qualified electrician inside an 86 mm box.
Technical specifications
| version | Zigbee 3.0 (Tuya) |
| Model | Zigbee Edition (Model code varies by batch) |
| Voltage/Frequency | AC 100–240V, 50/60Hz |
| Load capacity | ≤ 200 watts per line (fan) |
| Applications | Tuya / Smart Life via Zigbee |
| voice commands | Google Assistant, Amazon Alexa (via the app) |
| Number of speeds | 5 speed levels + relative control within the app |
| Safety and comfort | Child lock, status memory, adjustable backlight |
| Standard dimensions | EU 86×86 mm (Inset inside an 86 mm box) |
Note: It is recommended to remove any old fan controller/dimmer before connecting to ensure stability at all five speeds. Performance may vary depending on the fan model.
