Smart Human Presence Radar Sensor

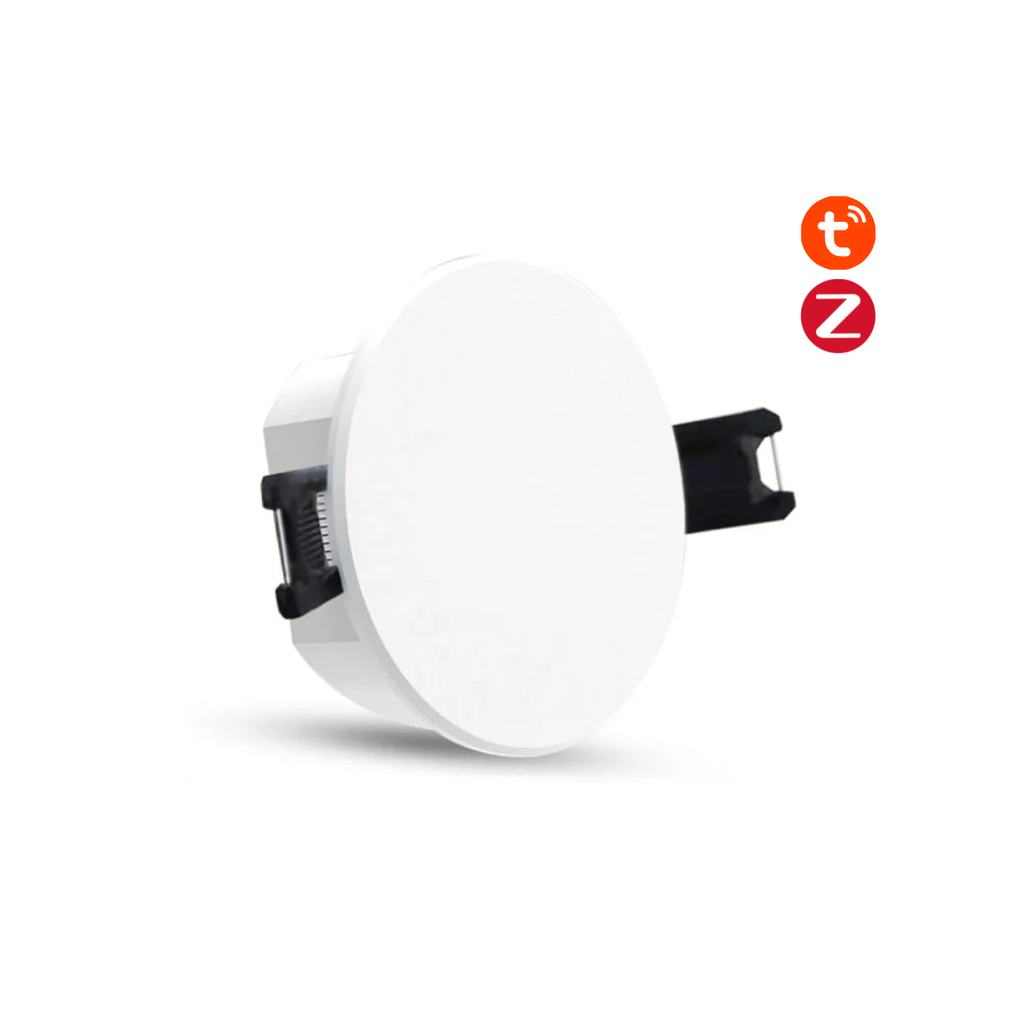

MOES Human Presence Sensor (Zigbee / 5.8GHz mmWave)
Take your home intelligence to a whole new level. This sensor goes beyond traditional motion technologies (PIR) by using mmWave radar to detect actual human presence, even while you are sitting still or sleeping. It integrates micro-motion detection with light intensity measurement to provide you with true, reliable automation.
Advanced Radar Technology (mmWave)
Unlike traditional motion sensors that require significant physical movement, this sensor uses 5.8GHz radar waves to detect the finest micro-motions, such as human breathing, which prevents the lights from turning off while you are sitting, reading, or sleeping.
Built-in Light Sensor (Lux)
Equipped with a built-in ambient light sensor (0 to 2000 Lux). You can create smart scenarios, such as having lights turn on only when you enter the room if it is dark, thus intelligently saving energy consumption.
Precise and Custom Settings
The Smart Life app gives you full control over the sensor settings. You can adjust the detection distance (0 to 9 meters), control sensitivity levels (0 to 9), and set delay times to avoid false alerts and tailor it to the exact size and type of your room.

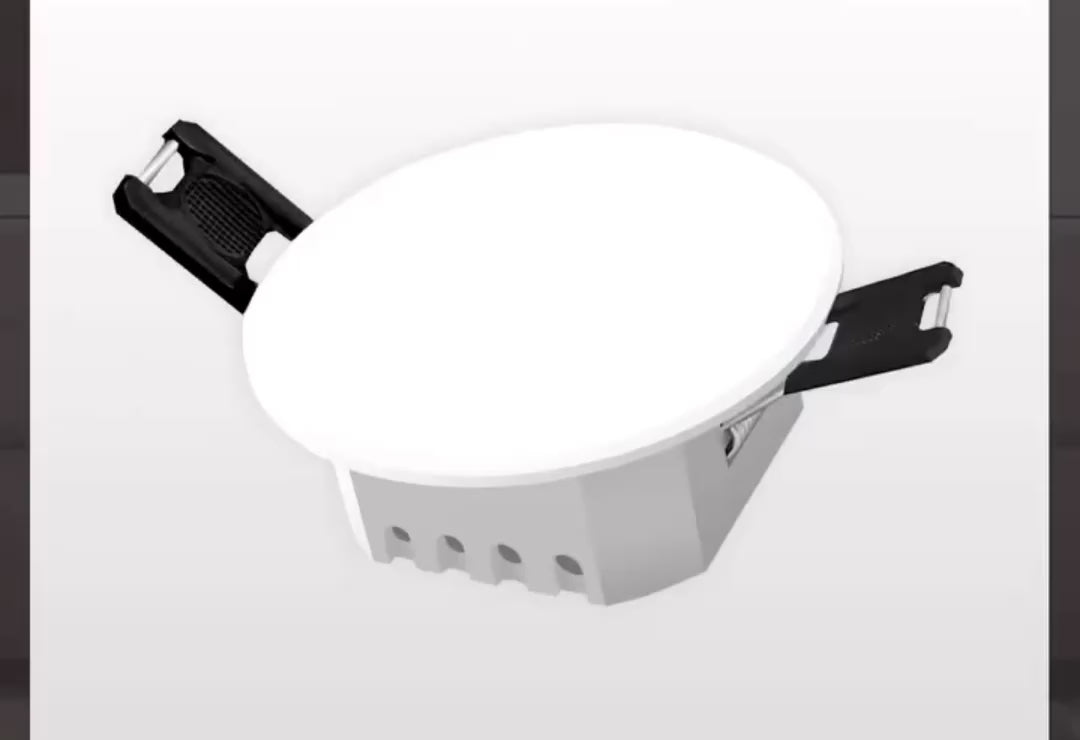

Recessed Ceiling Design
Designed for flush-mounting (embedded) in false or gypsum ceilings, providing a hidden, aesthetic look that does not spoil the room's decor, while ensuring a wide, comprehensive detection angle from above for optimal coverage.
Comprehensive Smart Linkage
Link it with your other smart home devices. Create security scenarios to receive notifications when unusual movement is detected, or full automation to turn off air conditioning and lights automatically once the room is vacant for a specific period.
Stable ZigBee Connection
Thanks to the ZigBee 3.0 protocol, the sensor features ultra-stable connectivity and instantaneous response speeds, without consuming your Wi-Fi bandwidth, making it ideal for integrated smart home systems.
Technical Specifications
| Brand | MOES |
|---|---|
| Model | ZSS-QY-HP-MS (Zigbee version) |
| Communication Protocol | ZigBee 3.0 (Hub required) |
| Compatible Apps | Tuya Smart / Smart Life / MOES |
| Power Source | Direct wiring (AC 100V-250V) |
| Detection Radar Frequency | 5.8GHz (mmWave) |
| Detection Distance Range | 0 to 9 meters (adjustable via app) |
| Sensitivity Levels | 0 to 9 (Default: 7) |
| Light Measurement Range (Lux) | 0 to 2000 Lux |
| Power Consumption Rate | Less than or equal to 70mA |
| Operating Temperature | -20 to +70 degrees Celsius |
| Installation Method | Recessed Ceiling Mount |

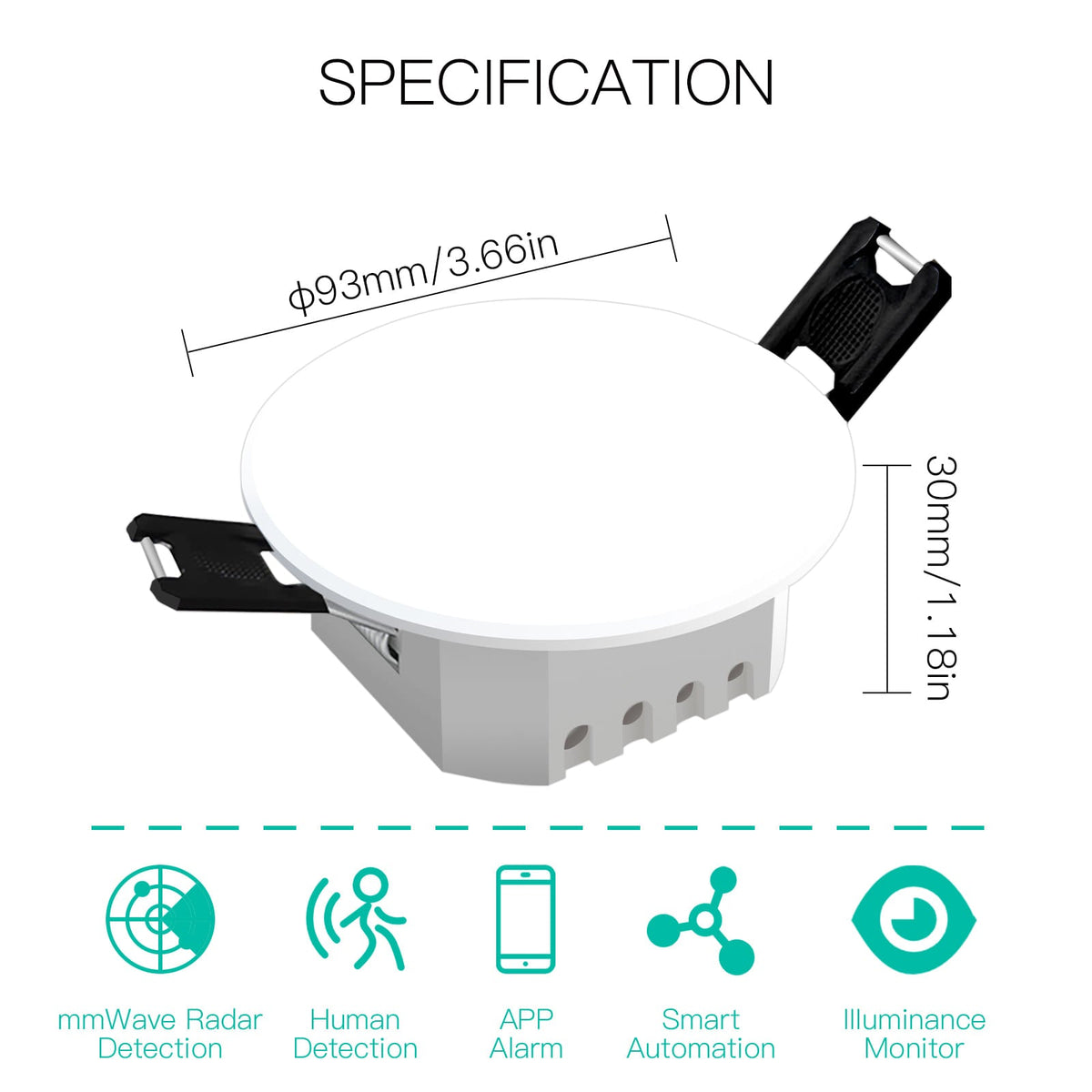

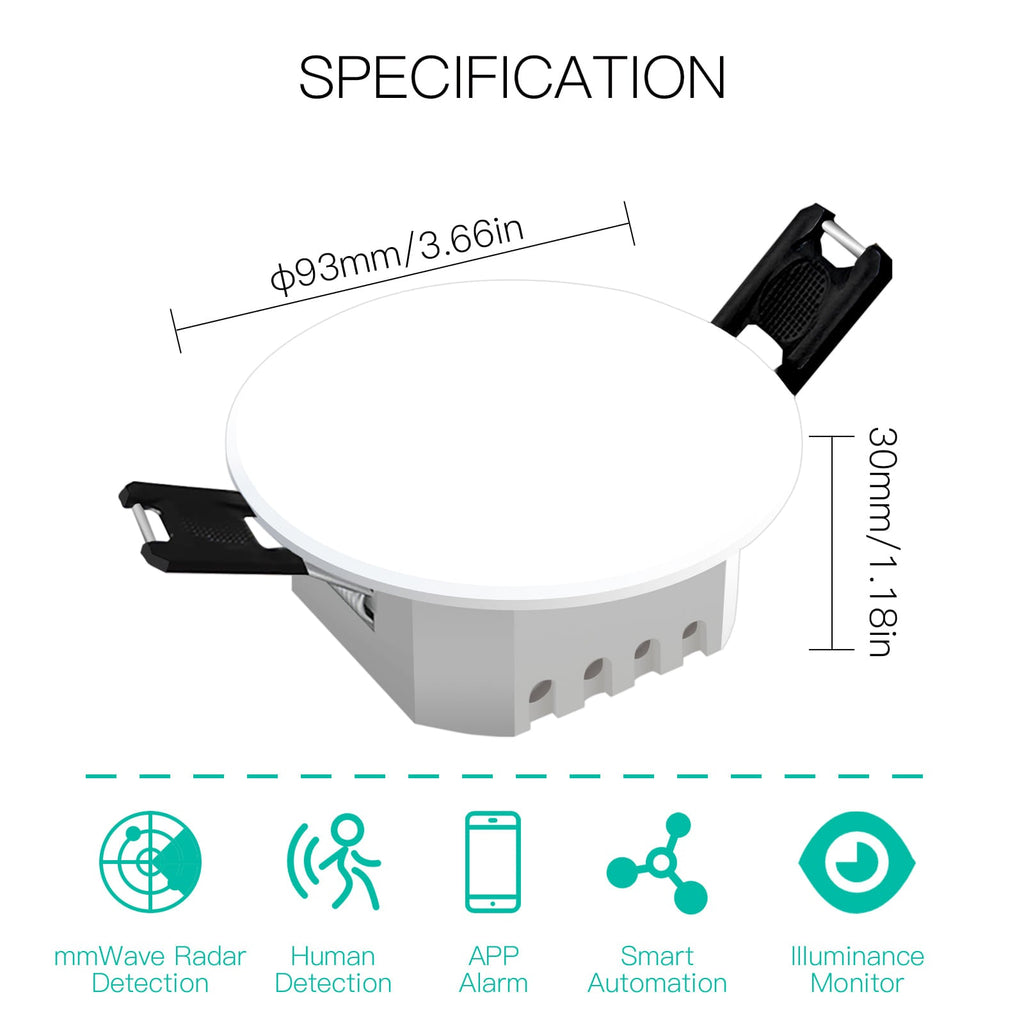

| Product Dimensions | Diameter: 93mm / Depth: 30mm (Required ceiling cutout diameter: approx. 80mm) |
Installation Notes
This device is installed recessed into the ceiling. It requires direct electrical wiring (L and N) for continuous operation without the need for batteries. It is recommended to install it in the middle of the room or directly above seating areas to ensure the best reading of micro-motions and light levels. (Warning: Please disconnect the main power supply before starting the wiring process).
