Tuya 63 Amp Smart Switch: Controls amperage and voltage, monitors power, voltage, and current, and disconnects power using the Zip code system.

Tuya 63 Amp Smart Switch: Controls amperage and voltage, monitors power, voltage, and current, and disconnects power using the Zip code system.

SMTY-ZTCB

29,000 IQD
35,000 IQD 29,000 IQD
وفر 6,000 IQD Sold out
Shipping calculated at checkout.

Low stock: 2 left
  • quality assurance
  • One full year replacement warranty
  • Fast shipping

Tuya Zigbee 1P+N Smart Circuit Breaker – 63A with Timed Power Measurement and Advanced Control

This innovative smart circuit breaker uses Zigbee technology, supports remote control via Smart Life/Tuya apps, and requires a separate Zigbee hub for connection and operation. It provides accurate measurement of energy (kWh), voltage, and current, along with timer capabilities and voice control compatible with Google Assistant and Alexa.

Note: This cutter does not work without a Zigbee Hub (sold separately).

Technical specifications

number 1P+N
Rated voltage AC 90-300V (or 100-260V)
Frequency 50/60 Hz
Maximum current 1-63 A Adjustable
Maximum load Up to 26 kW
Separation capacity 6 kA
cut-off curve C Curve
Accuracy Accuracy class 0.1 for power, voltage, and current
wireless connection Zigbee (IEEE 802.15.4)
Protection voltage range High voltage protection: 220-265V
Low voltage protection: 76-240V
Voice control Google Assistant, Alexa (via Zigbee Hub)
Supported apps Smart Life, Tuya
Operating temperature -25 to 70 °C

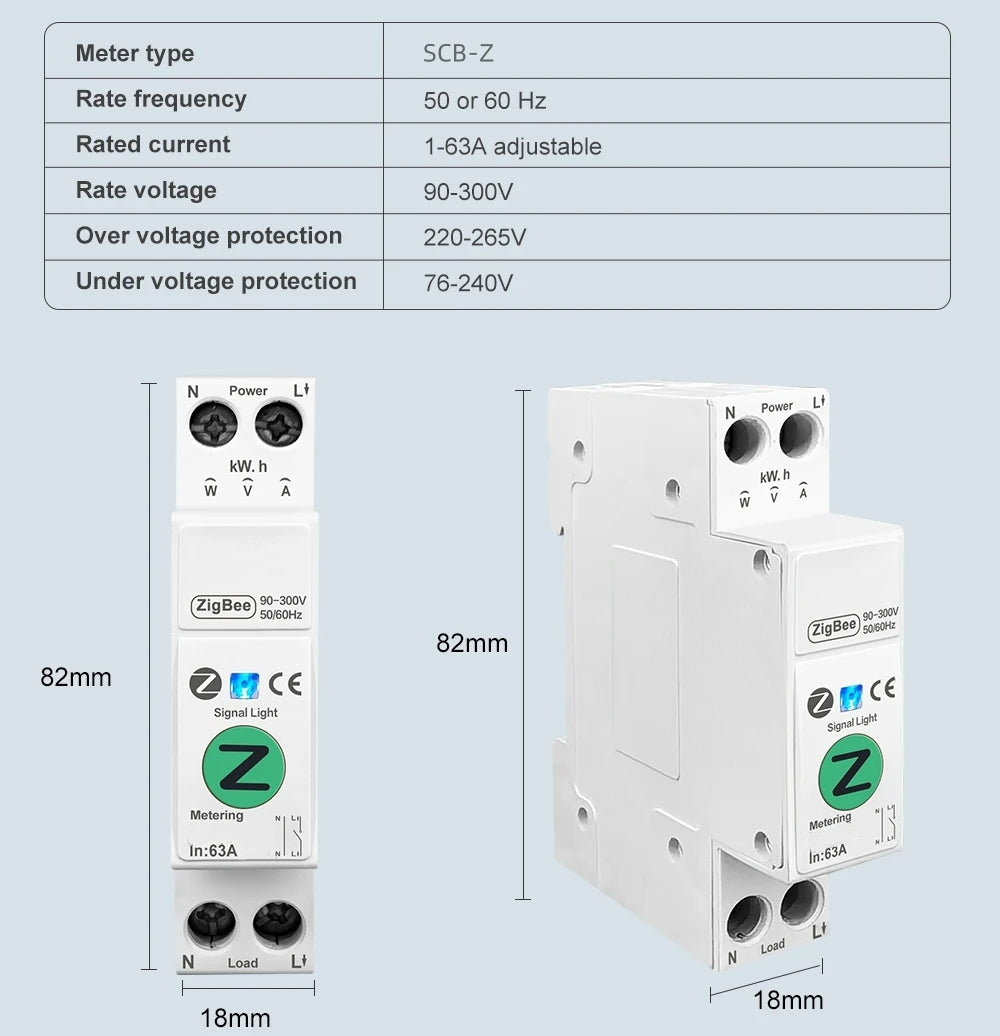

Dimensions Approximately 18 x 82 mm (DIN-rail)
Mechanical life More than 100,000 transactions
Warranty year

Additional features

  • Remote control via Tuya/Smart Life app (requires Zigbee Hub).
  • Instant measurement of energy (kWh), voltage, current, and power.
  • Programming timers for scheduled and recurring on/off operation.
  • Multiple protections: overcurrent, high/low voltage, and overpower.
  • The DIN-rail design is compact and suitable for all electrical panels.
  • Supports OTA updates to improve performance and system stability.

Caution: A separate Zigbee hub is required for app integration and voice control. Installation should be performed by a qualified electrician, and settings should be adjusted according to local laws and safety standards.
