Name: Tuya Zigbee Ultrasonic Liquid Level Sensor – Accurate Water Tank Monitoring
Brand: Tuya
SKU: SMFY-ZTULSS
Price: 68000.000 IQD
Availability: OutOfStock

Tuya Zigbee Ultrasonic Liquid Level Sensor – Accurate Water Tank Monitoring

68,000 IQD

Shipping calculated at checkout.

Out of stock

Tuya Zigbee Ultrasonic Liquid Level Sensor – Accurate Water Tank Monitoring

Monitor the water/liquid level inside the tank directly from the Tuya Smart / Smart Life app with high/low level alerts, and a measurement range of up to 5 meters .
Important: This version works via Zigbee 3.0 and requires a Zigbee Gateway .

Zigbee 3.0 Range 0.1–5m Accuracy ±0.02m DC power 5V/1A Upper/lower level alerts

Instant View + App History displays ratio/depth and level status with a graph (day/month/year).

Suitable for tanks: household tanks, gardens, rooftop/ground tanks, liquid storage (subject to installation conditions).

Smart alerts : Full/low alert according to settings within the app.

What makes this sensor special?

Ultrasonic measurement : Measures the distance to the liquid surface from the top of the tank and converts it to a level/depth value.
High/Low Alerts : Monitor the status (Normal / Full Alarm / Low Alarm) according to the alert limits you define.
Monitor from anywhere : via the Tuya Smart or Smart Life app (with an internet-connected Zigbee gateway).
Setup button (Touch Key) : Press and hold for 5 seconds to enter setup/pairing mode.

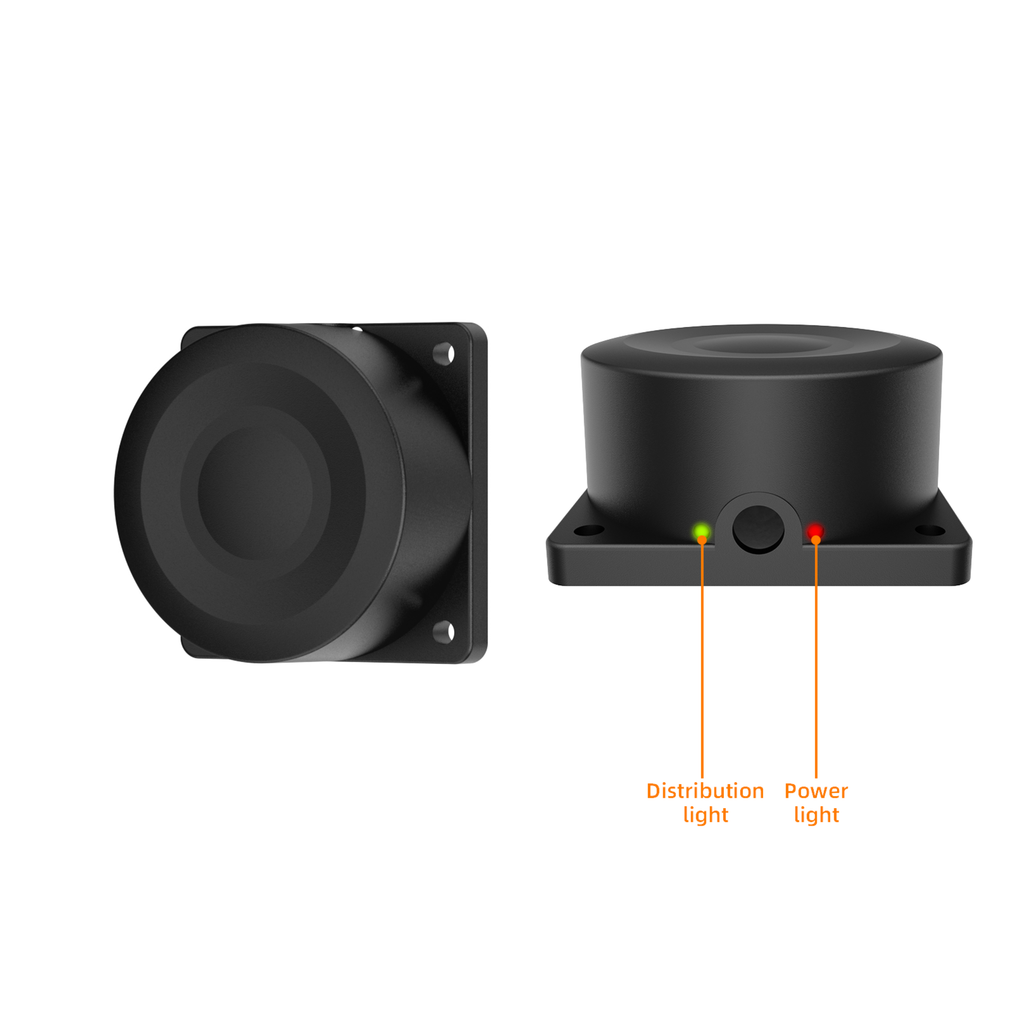

LED status light :
- Setting mode: LED flashes rapidly.
- Connected: LED steady (ON).
- Off: LED turns off slowly/slow flashing.

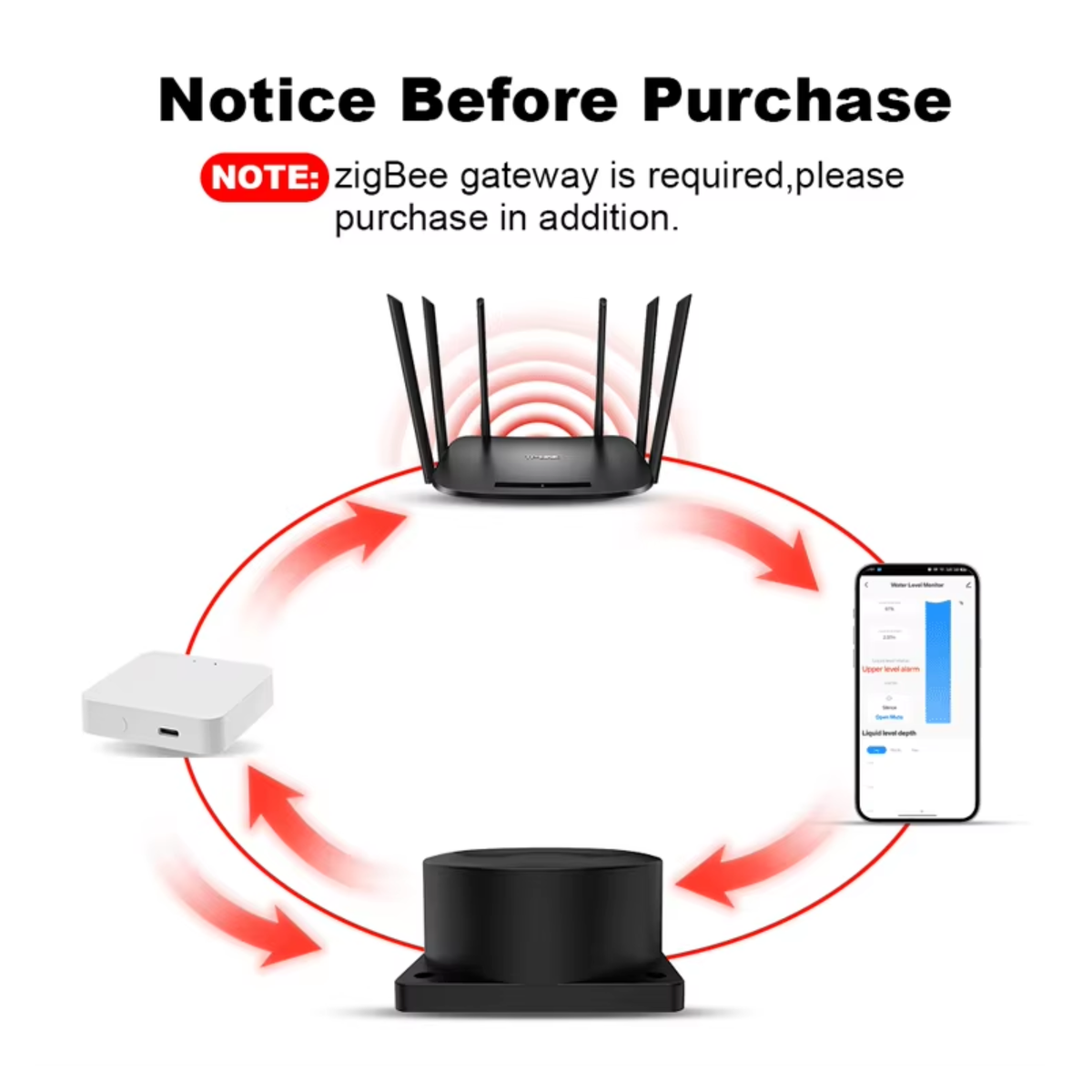

Important note before purchasing: A Zigbee gateway is required for this sensor to work with the app. (Gateway separate from sensor)

Suggested Uses (Use Cases)

A rooftop/ground water tank to check the fill level without having to go up and inspect it.
Gardens and irrigation: Warning when water is running low.
Liquid storage tanks/stores (water or similar liquids) for level monitoring.
Multiple homes or projects: Tracking multiple tanks from the same app.

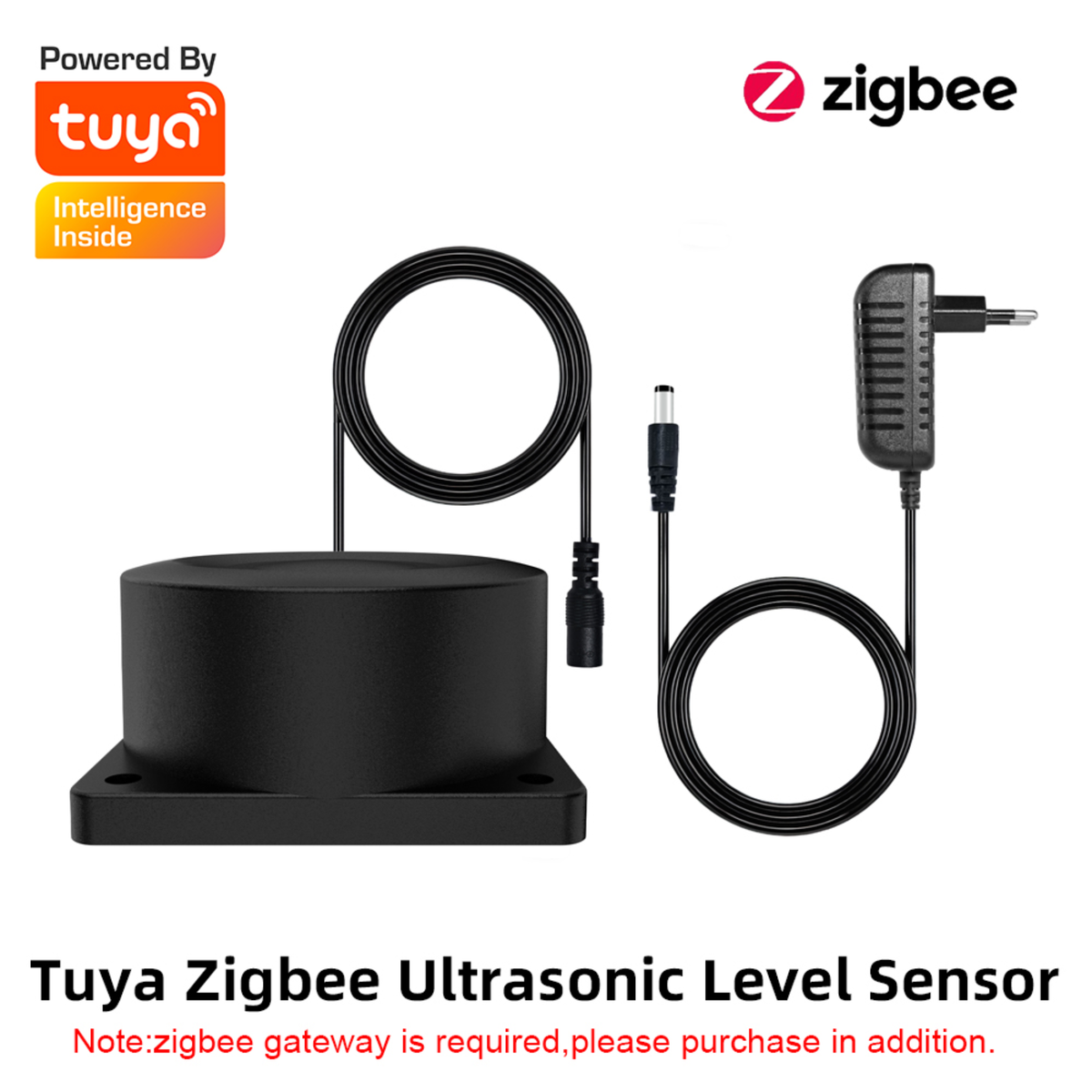

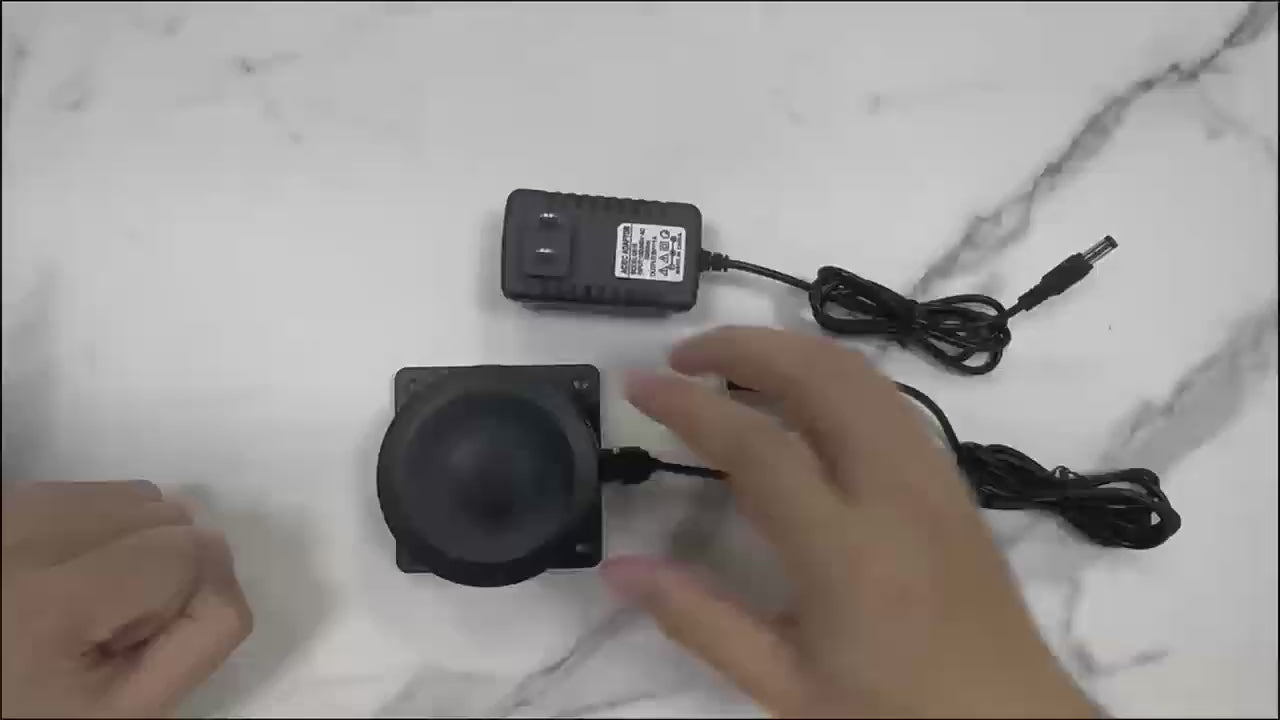

Box contents (as shown in the pictures)

Ultrasonic level sensor.
Cable/connecting wires.
DC 5V power adapter.

Technical specifications

Product Name	Tuya Zigbee Liquid Level Monitor Sensor
Model	WL-872WZ
The app	Tuya Smart App / Smart Life App
Material	PC
Warranty (according to supplier specifications)	1 year
Energy	DC 5V / 1A
Contact	Zigbee 3.0 (requires Zigbee Gateway)
Operating temperature	-20°C ~ +70°C
Level measurement range	0.1m ~ 5m
Installation height	Maximum 5m
Accuracy	±0.02m
Touch button	Hold for 5 seconds
LED indicator	1) Setting: Quick flash 2) Connected: Constant lighting 3) Offline: Slow lighting/gradual turning off

Important installation notes (to ensure a correct reading)

Mount the sensor vertically on top of the tank so that the ultrasonic sensor is facing the water surface directly.

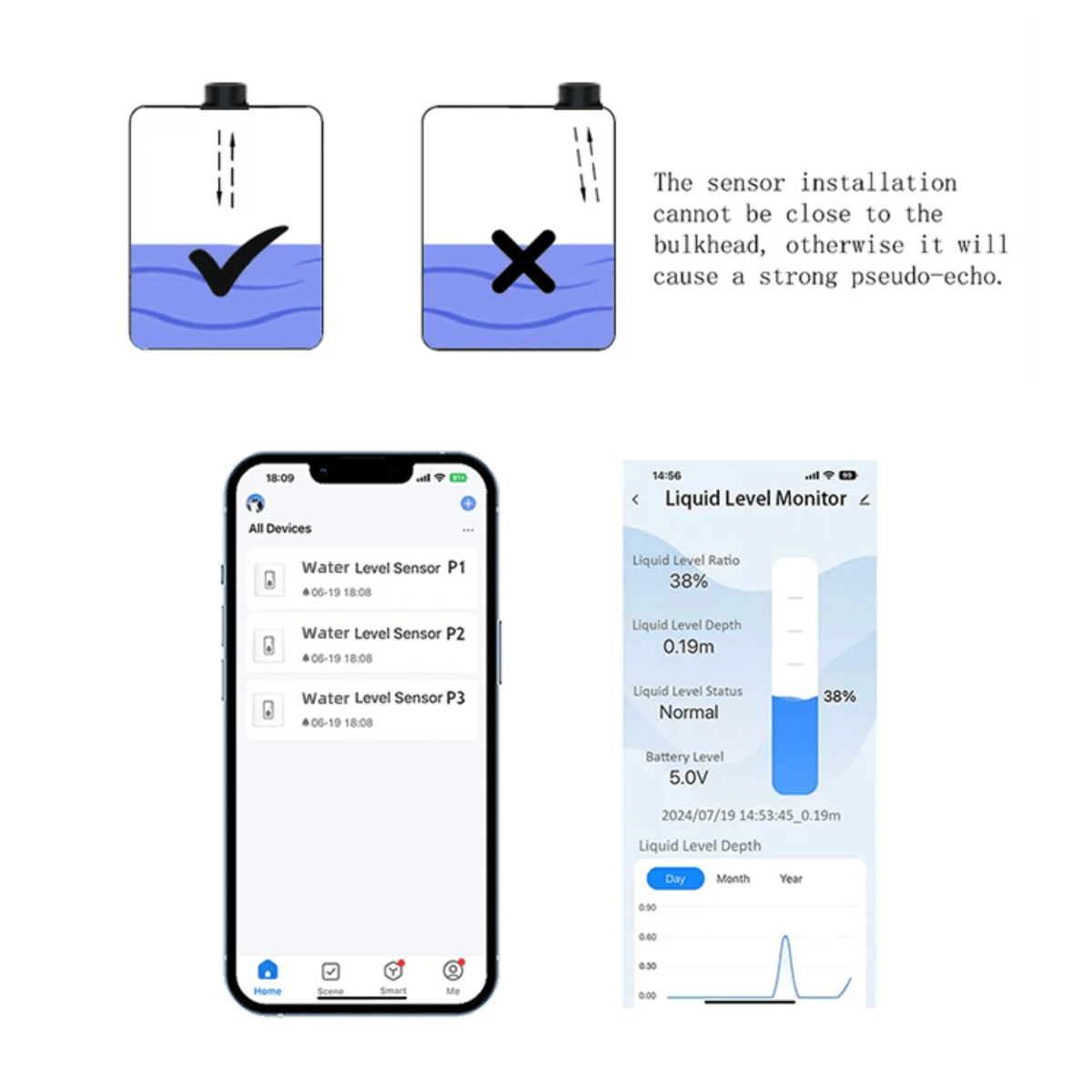

Keep away from the edges/inner walls : Installing the sensor too close to the tank wall/barrier may cause a pseudo-echo and inaccurate readings.
Do not place obstructions within the measurement area (such as a tube/float/wire) within the “reflective zone” in front of the sensor.

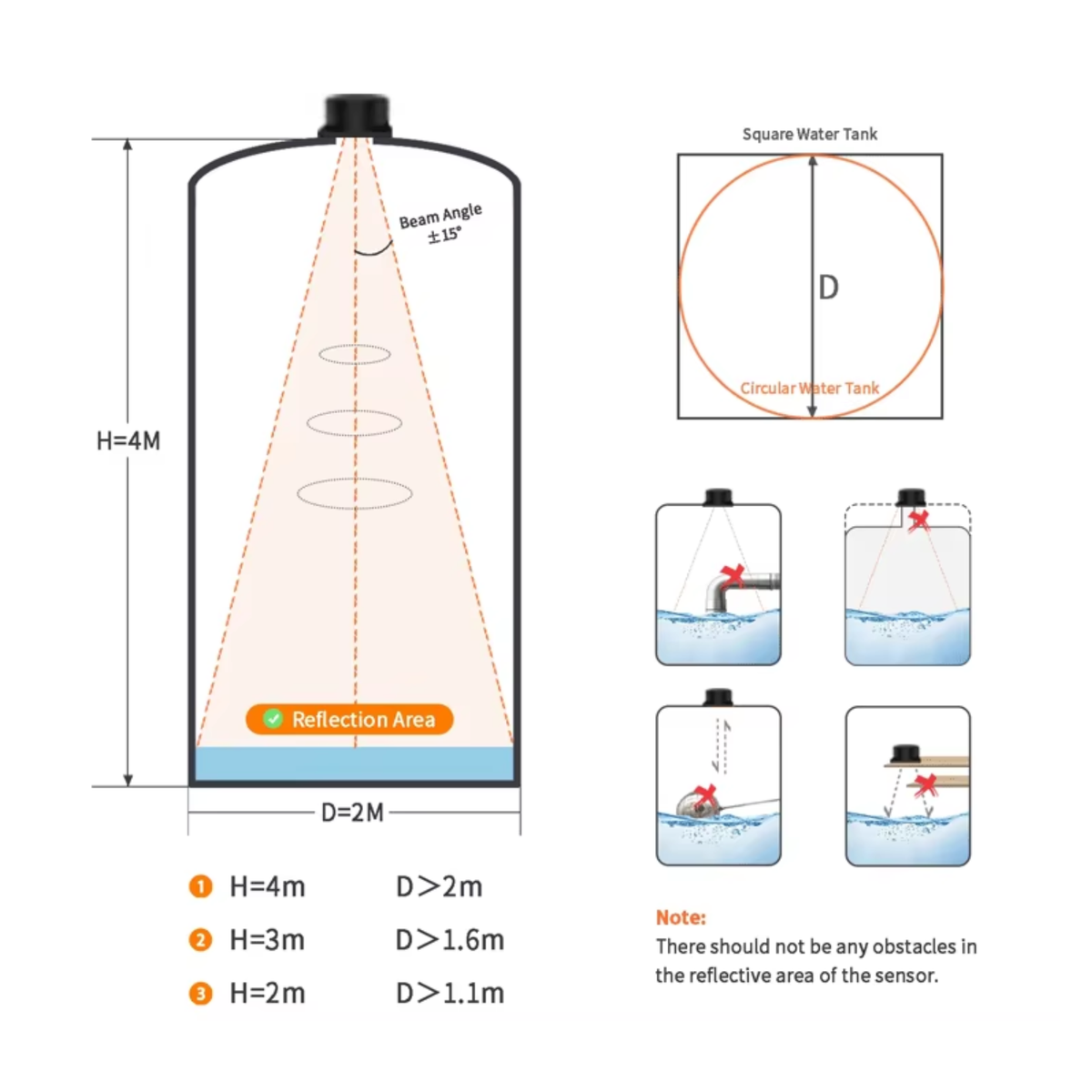

The transmission angle is approximately ±15° ; therefore, the water surface must be within the transmission cone without obstructions.
Approximate requirements for the diameter of the measuring area (D) based on the height of the tank (H) :
- H = 4m ⇒ D > 2m is preferred
- H = 3m ⇒ D > 1.6m is preferred
- H = 2m ⇒ D > 1.1m is preferred

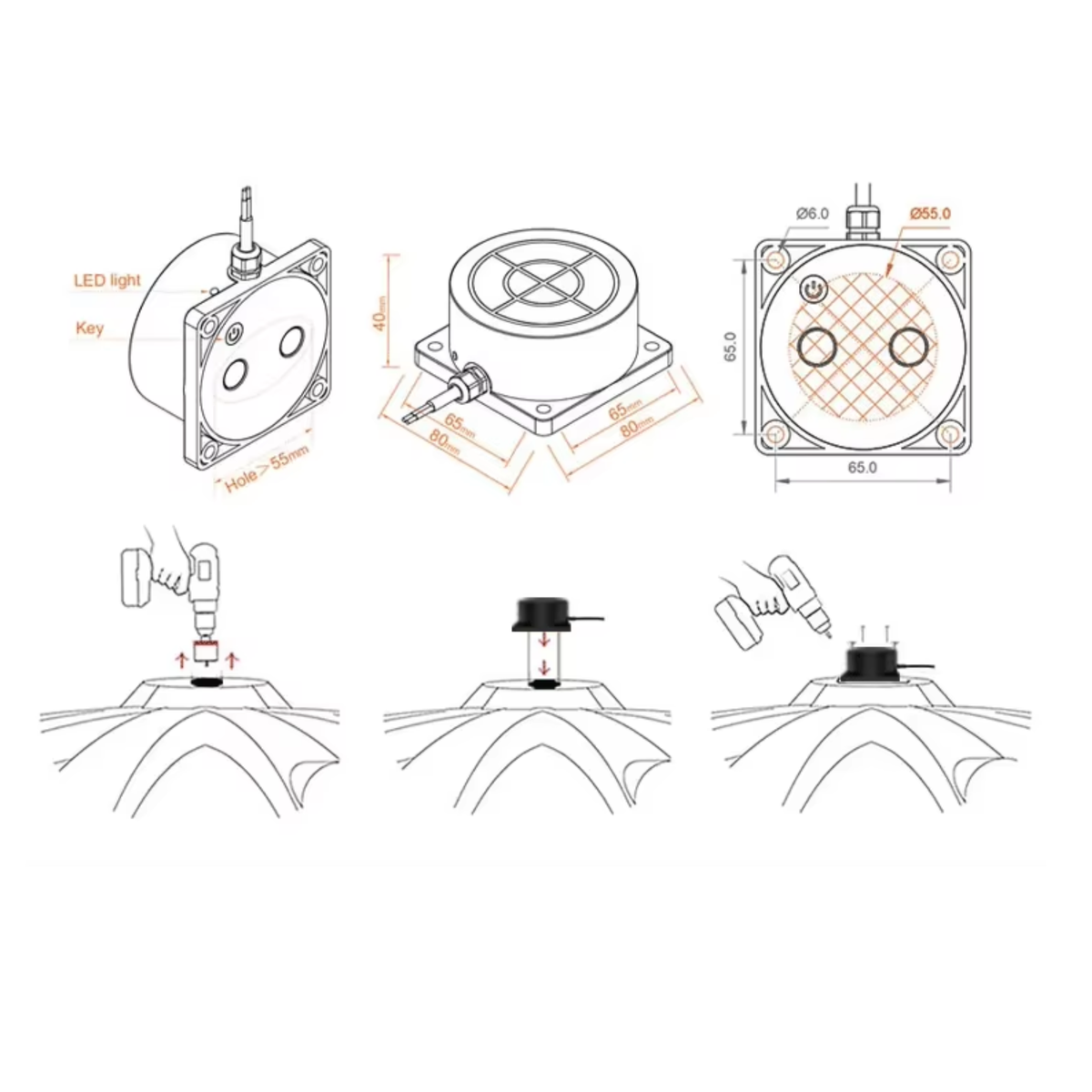

The opening : A mounting opening larger than 55 mm is required (as per the drawing).

Electrical warning: The device operates on DC 5V/1A . Use a good power adapter, keep the wires away from moisture, and ideally have installation performed by a technician if necessary.

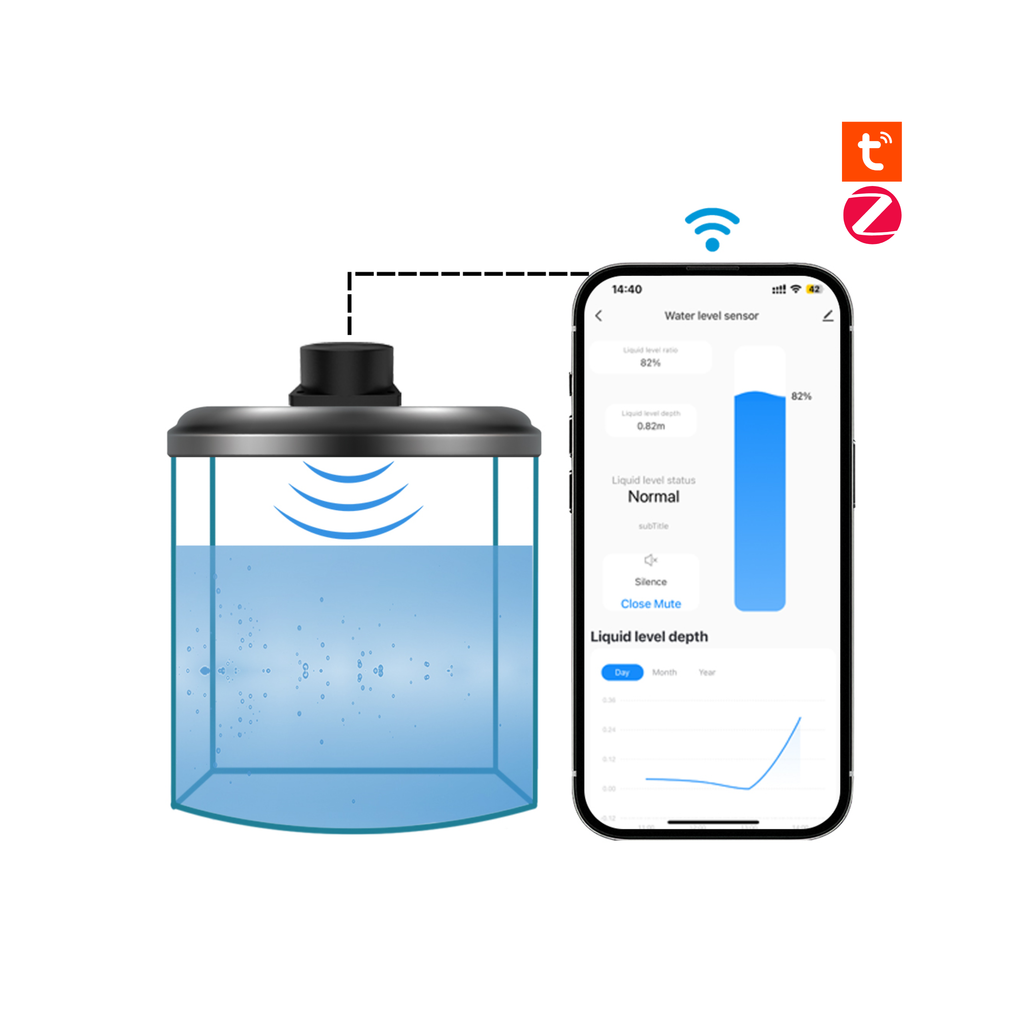

How does it work within the application?

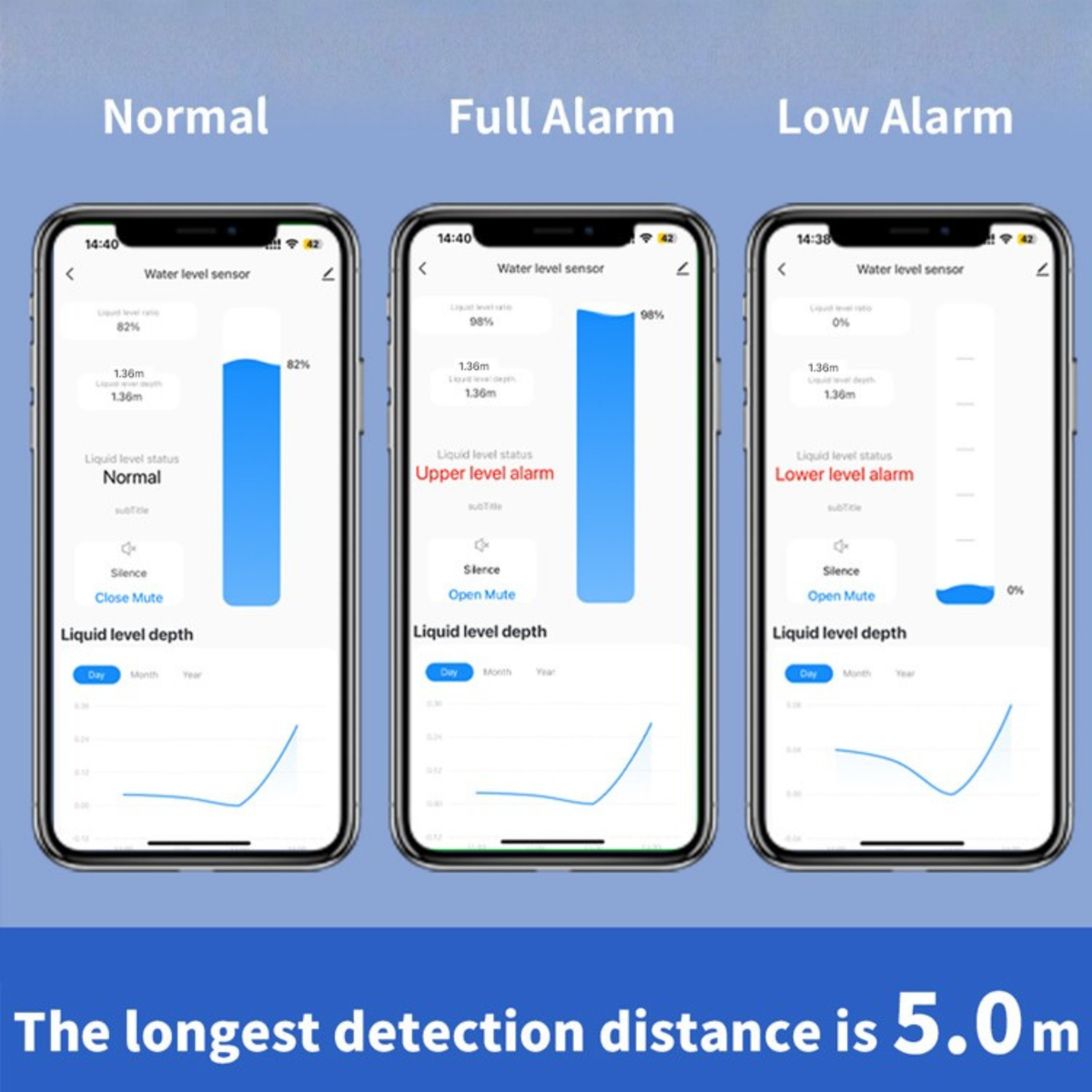

Displays liquid percentage/depth and level status (Normal / Upper Alarm / Lower Alarm).
You can set a maximum and minimum limit for sending alerts.
The level change chart is displayed for review and follow-up.
It is possible to add more than one sensor within the same account.
