Control your circuit and track energy from your phone

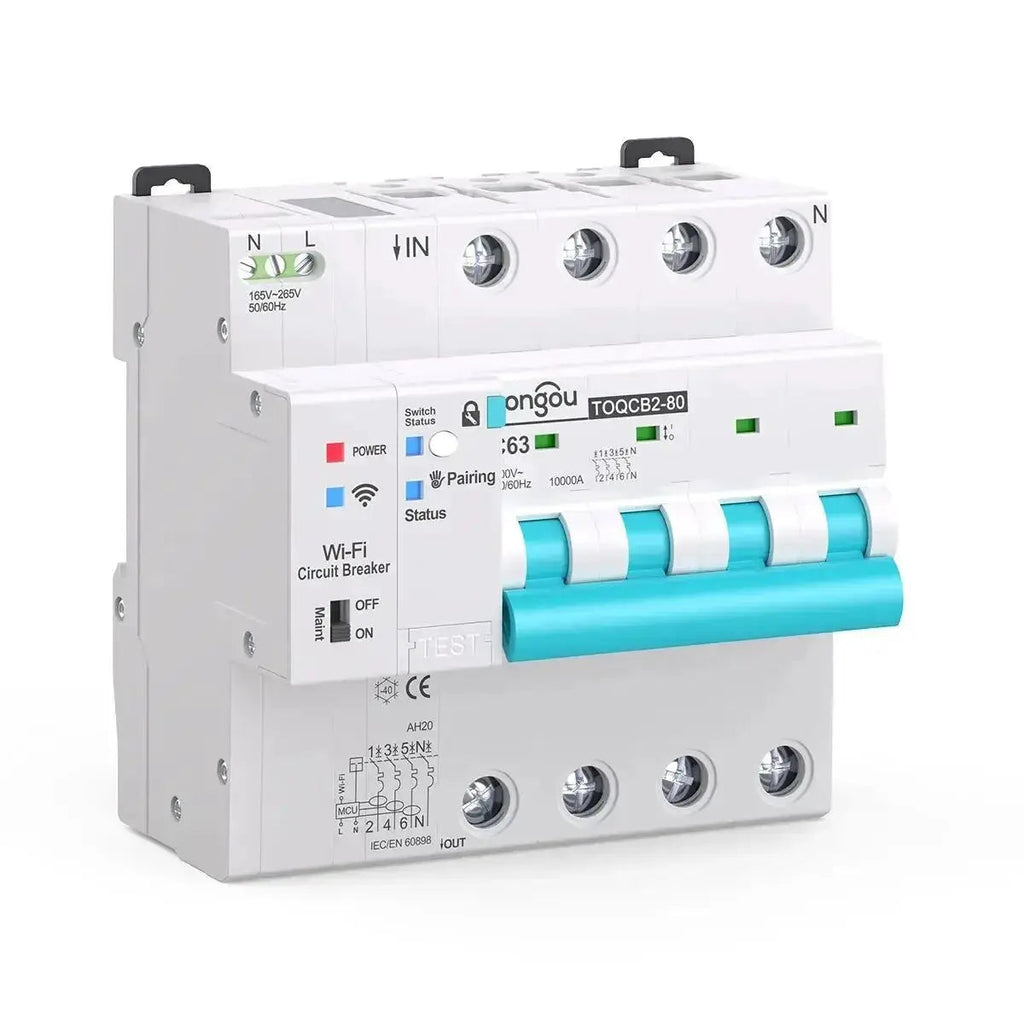

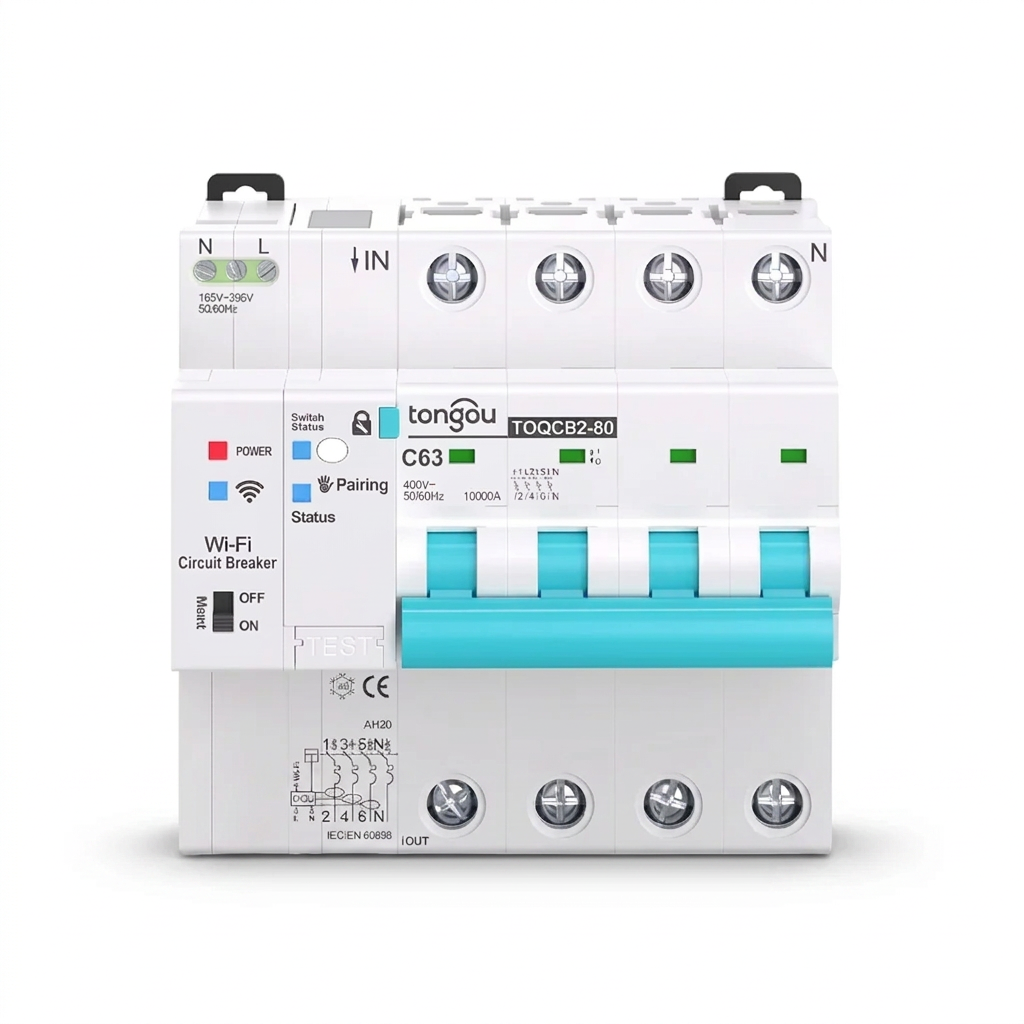

A smart circuit breaker for three-phase circuits with neutral, combining app control with voltage, current and energy monitoring. It brings circuit operation and monitoring together, with selection and installation handled by a qualified electrician.
Wi-Fi connection
Connects to a 2.4 GHz Wi-Fi network. This is the Wi-Fi version, not the Zigbee version.
App control
Check the breaker status and switch it on or off through Tuya Smart or Smart Life. Manual control remains available on the device.

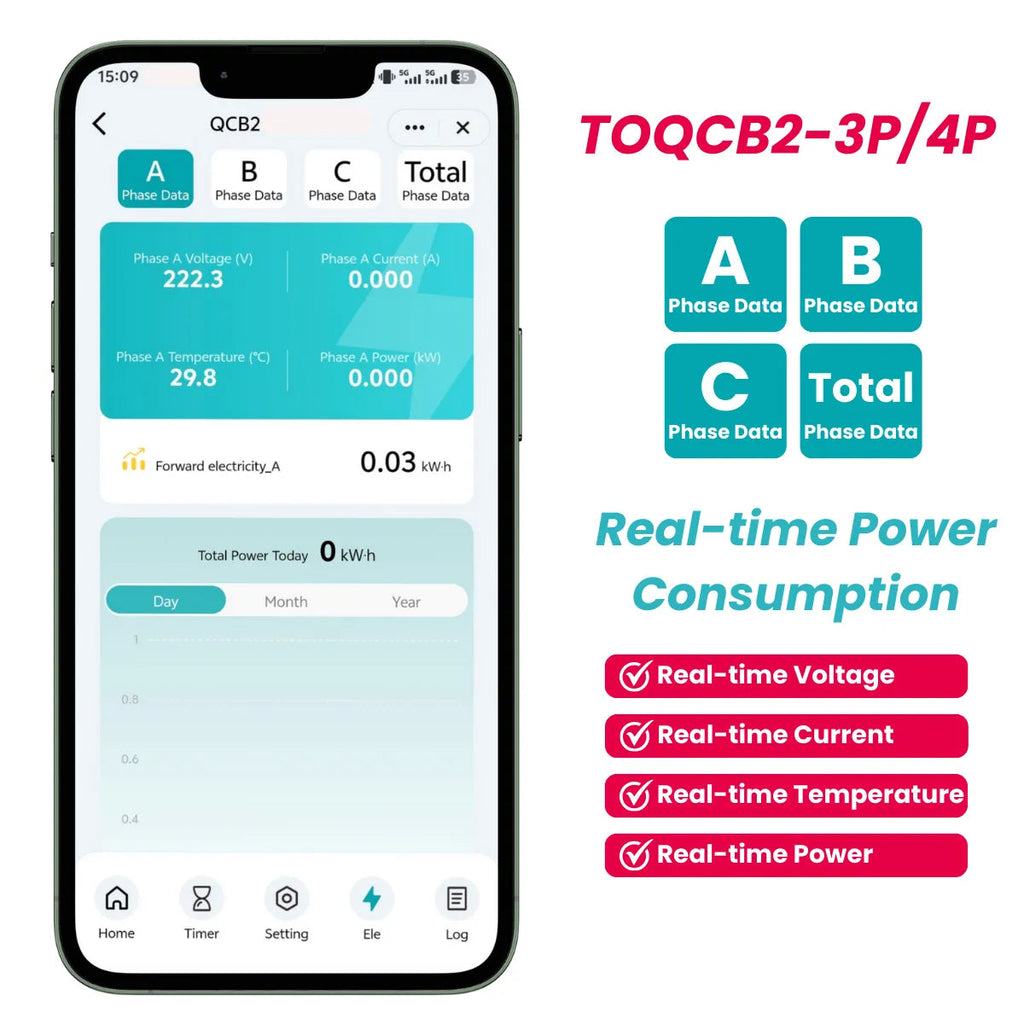

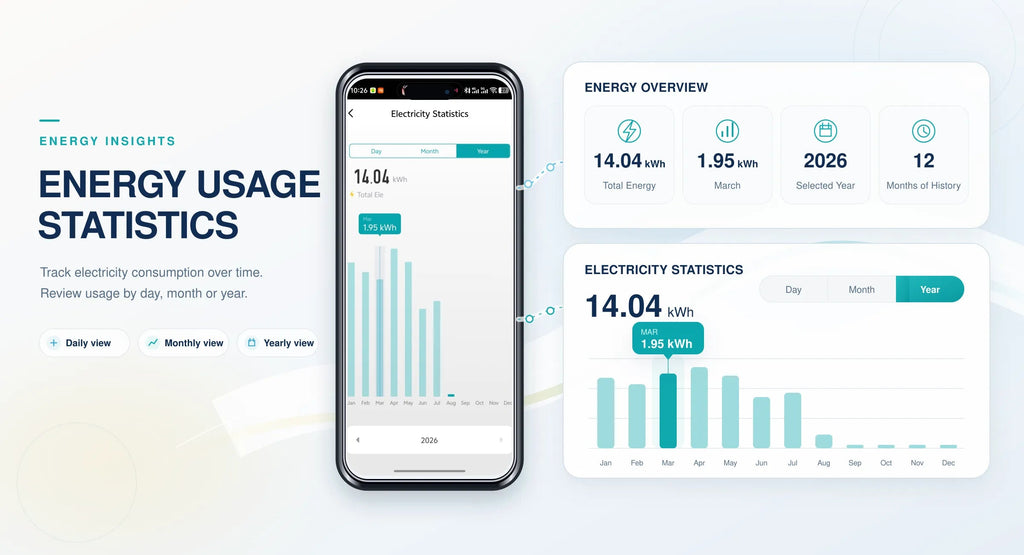

Energy monitoring
View voltage, current and power for each phase, and track energy consumption in the app.

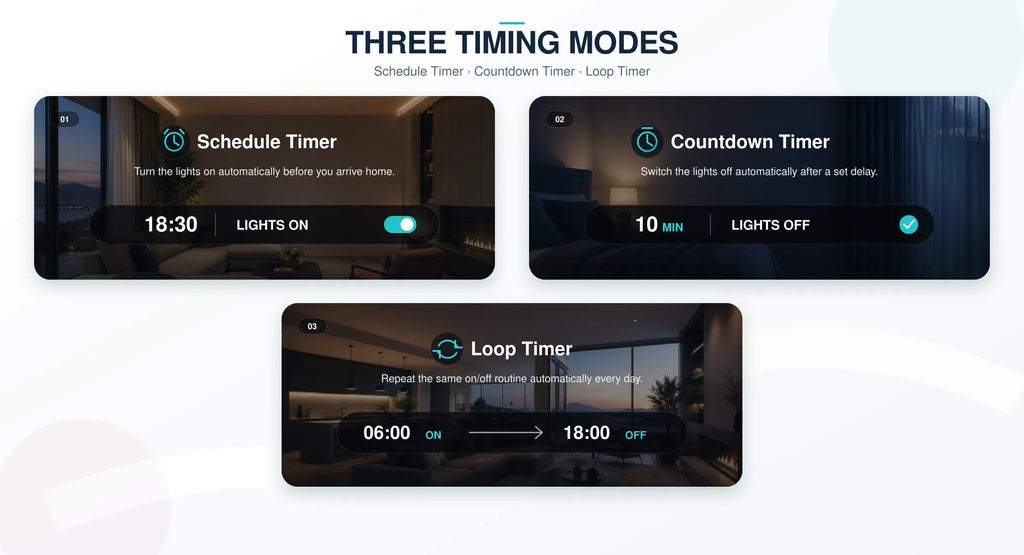

Scheduled switching
Set on/off times in the app to suit the circuit and its connected equipment.
A clearer view of your electrical circuit
Check circuit readings on your phone and review consumption before changing its operating schedule. An electrician must confirm suitability for your loads, wiring and supply system.
Key specifications
| Model | TOQCB2-JWT-4C63 |
|---|---|
| Device type | Smart MCB with energy metering |
| Poles | 3P+N — four poles |
| Rating | C63 — 63 A rated current, C curve |
| Connection | 2.4 GHz Wi-Fi |
| Apps | Tuya Smart / Smart Life |
| Control | Manual and app control |
| Measurements | Voltage, current, power and energy consumption |
Before use
Requires installation by a qualified electrician and a 2.4 GHz Wi-Fi network with adequate signal at the panel. Off-site control requires internet connectivity and the device linked to the app.
Does an app current setting change the breaker's rating?
No. The breaker remains rated C63. Electronic protection settings do not change the printed device rating and must be selected by a qualified professional for the circuit.
